Introduction
Many people ask the same question: Can you use a fiber optic cable with an RJ45 port?
The short answer is no - RJ45 connectors are designed for electrical Ethernet signals, while fiber optics transmit light pulses through glass or plastic.

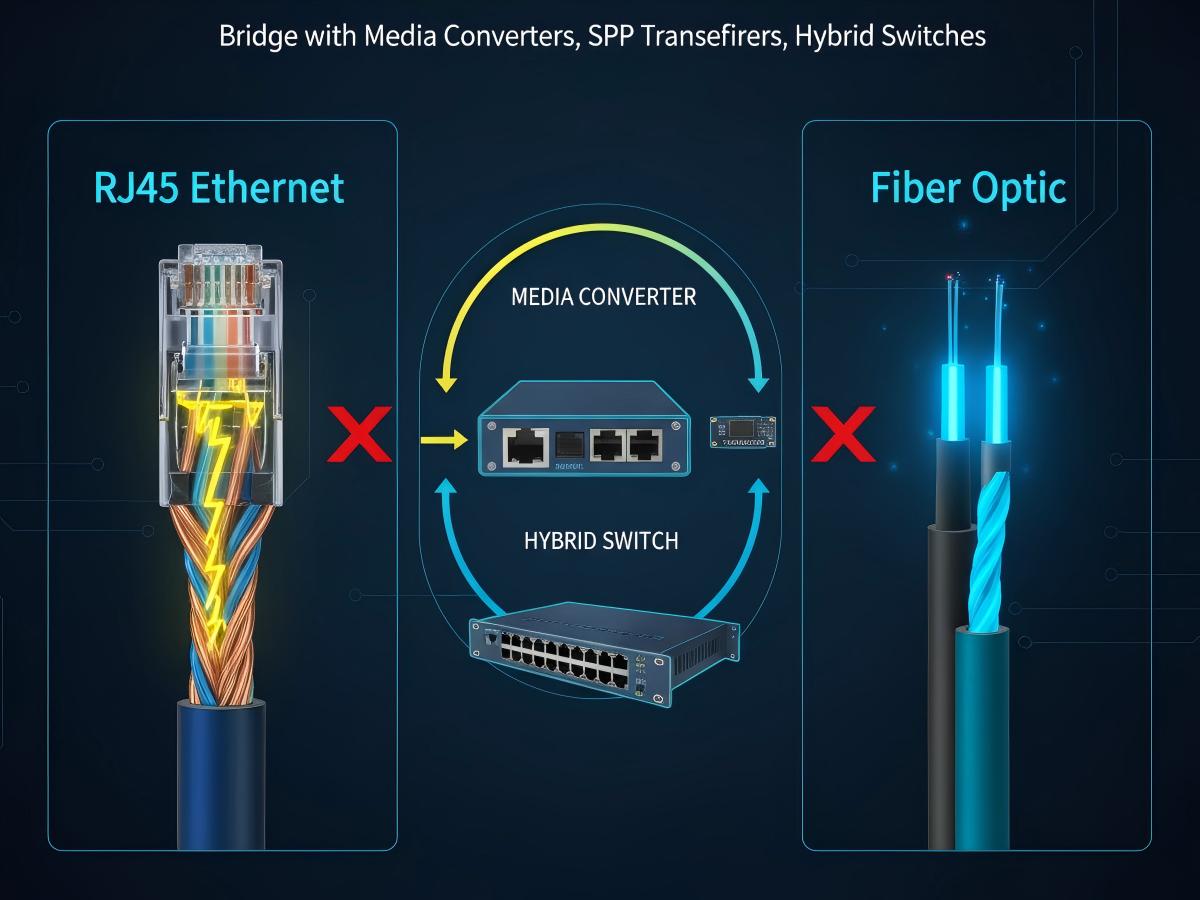

However, modern networks often combine both technologies. The good news: you can bridge them easily using the right hardware, such as media converters, SFP transceivers, and hybrid switches.
This guide explains the key differences between RJ45 and fiber, why they cannot connect directly, and how to integrate them properly in enterprise or data center environments.
Provided by Network-Switch.com - Global IT hardware supplier with 5-day delivery, 3-year warranty, and lifetime technical support from CCIE/HCIE-certified engineers.
RJ45 vs Fiber
What is RJ45? (Copper Ethernet Standard)
An RJ45 connector is the world’s most common interface for Ethernet networking. It follows the 8P8C (eight-position, eight-contact) standard and connects twisted-pair copper cables such as Cat5e, Cat6, Cat6A, and Cat7.
Each cable contains four twisted pairs that carry electrical signals for sending and receiving data. RJ45 connectors can be wired in T568A or T568B pinouts, forming either straight-through or crossover cables depending on network needs.
Key Characteristics
- Medium: Electrical (copper)
- Maximum distance: ~100 meters (328 feet) per segment
- Typical use: LANs, routers, switches, patch panels
- Common speeds: 100 Mbps to 10 Gbps
- Connector type: Plastic plug with eight metal contacts
RJ45 remains popular due to its low cost, simplicity, and plug-and-play installation. Yet, when networks require higher bandwidth or longer distances, copper quickly reaches its limits — that’s where fiber optics come in.
What is Fiber Optic Cable? (Light Transmission Medium)
Unlike copper, fiber optic cables transmit data using light instead of electricity. Each cable contains a core (glass or plastic) surrounded by cladding that reflects light, enabling extremely fast and long-distance communication.
Main Types of Fiber
- Single-Mode Fiber (SMF): Thin core (~9 µm); carries signals over long distances (up to 40 km or more).
- Multi-Mode Fiber (MMF): Thicker core (50–62.5 µm); used for short to medium distances (up to 550 m).
Connector Types
Common connectors include LC, SC, ST, and FC, depending on the equipment and application. Unlike RJ45, these connectors align optical cores precisely to maintain signal integrity.
Comparison Table: RJ45 vs Fiber
| Feature | RJ45 (Copper) | Fiber Optic |
| Medium | Electrical signal | Light signal |
| Typical Connector | RJ45 (8P8C) | LC, SC, FC |
| Max Distance | 100 m | Up to 40 km+ |
| Speed Range | 1G – 10G | 1G – 400G |
| EMI Resistance | Susceptible | Immune |
| Signal Loss | Higher | Very low |
Fiber optics are ideal for data centers, campus backbones, cross-building links, and high-performance computing - anywhere bandwidth and distance are priorities.
Why You Can’t Use Fiber Optic Cable with RJ45 Directly?
This is the core question - and the answer lies in both physics and engineering design.
-
Different Signal TypesRJ45 ports transmit electrical voltage pulses.
Fiber optics transmit light waves (photons).
Electrical signals cannot directly become light; they require optical conversion hardware. -
Connector MismatchRJ45 uses metal contacts to connect twisted-pair wires.
Fiber connectors (LC, SC, etc.) require precise optical alignment.
You cannot plug a glass fiber core into an RJ45 socket. - Device CompatibilityNetwork interface cards, routers, and switches must have optical transceivers (SFP/SFP+/QSFP) to read light signals. RJ45 interfaces are strictly electrical; they have no optical components.
In summary: RJ45 ≠ Fiber - they are two different worlds of networking technology.
To connect them, you must use an intermediary device that converts electrical data into optical form.
How to Connect RJ45 to Fiber?
Integrating fiber with existing RJ45 infrastructure is simple when you use the right conversion tools. Here are the three most common methods:
Option 1: Media Converter
A media converter is a compact device that converts copper Ethernet (RJ45) to fiber optic (SFP/SC/LC).
- Plug your Ethernet cable into the RJ45 port.
- Connect a fiber patch cord to the fiber port.
- The device converts electrical signals into optical light in real time.
Ideal for: SMB offices, short inter-building links, CCTV or IP camera backhaul.
Works for: 10/100/1000 Mbps or 10G applications depending on model.
Option 2: Switch with SFP/SFP+ Ports
Many enterprise switches (including Cisco, Huawei, Ruijie, NS Comm) come with built-in SFP or SFP+ cages.
Simply insert optical transceiver modules that match your fiber type (single-mode or multi-mode).
These transceivers convert signals internally, eliminating the need for a separate converter box.
Ideal for: Data centers, aggregation layers, or mixed copper/fiber deployments.
Compatible with: Cisco SFP, Huawei SFP, or NS RoutE compatible modules.
Option 3: Optical Transceiver Modules
Optical transceivers - SFP, SFP+, QSFP+, QSFP28 - are modular plug-ins that transform electrical data into optical signals and vice versa.
- Fit into switch or router SFP slots.
- Connect to fiber patch cords (LC/SC).
- Support speeds from 1G up to 400G.
Ideal for: Core or distribution layers in enterprise and ISP environments.
Use transceivers rated for distance and wavelength: e.g., SFP-10G-LR (10 km) or QSFP-40G-SR4 (100 m).
Recommended Product Categories
| Product Type | Description | Compatibility | Typical Use |
| Media Converter (Copper ↔ Fiber) | Converts RJ45 Ethernet to fiber optic | Cisco / Huawei / Ruijie / NS RoutE | Branch uplink / point-to-point link |
| Optical Transceiver (SFP / SFP+ / QSFP) | Converts electrical ↔ optical signals | Multi-vendor compatible | Switch / Router / Firewall |
| Fiber Patch Cable (LC–LC / LC–SC) | Physical link between transceivers | Cisco / Huawei / H3C / Arista | Rack interconnects / ACI fabrics |
| RJ45-to-Fiber Converter Kit | Complete kit for hybrid connectivity | Universal Ethernet | SMB / campus extension |
Why Upgrade to Fiber in Modern Networks?
Migrating to fiber isn’t just about speed - it’s about scalability, reliability, and long-term savings.
- Long Distance: Transmit data across campuses or buildings without boosters.
- High Bandwidth: Support 1G to 400G for cloud, AI, or virtualization workloads.
- Electromagnetic Immunity: Perfect for industrial and high-EMI environments.
- Security: Harder to tap than copper lines; better data protection.
- Lower Latency: Especially critical for trading, HPC, or storage networks.
- Future-Proof: Fiber remains relevant as Ethernet standards evolve to 800G+.
Upgrading critical links to fiber is one of the fastest ways to increase throughput and network stability while reducing future hardware churn.
Common Misconceptions (FAQ)
Q1: Can I plug a fiber optic cable directly into an RJ45 port?
A: No. They are incompatible. Use a media converter or an SFP-based device.
Q2: Can I use an RJ45 cable for a fiber switch port?
A: Not directly. But you can use a copper SFP (RJ45 SFP module) to provide an electrical Ethernet interface on that switch.
Q3: Do I need different patch cords for Cisco, Huawei, or NS RoutE devices?
A: All major vendors use standard optical connectors (LC/SC). Just ensure wavelength and speed compatibility.
Q4: Is fiber better than copper?
A: For long-distance and high-speed connections, absolutely yes. Copper is still practical for short local runs (<100m).
Conclusion
You cannot use a fiber optic cable directly with an RJ45 port, because they use completely different transmission principles: electricity versus light. But the two technologies complement each other beautifully when integrated with the right tools - media converters, SFP transceivers, and fiber patch cords.
Modern hybrid infrastructures depend on both copper and fiber, blending the flexibility of RJ45 with the scalability of optical networks.
