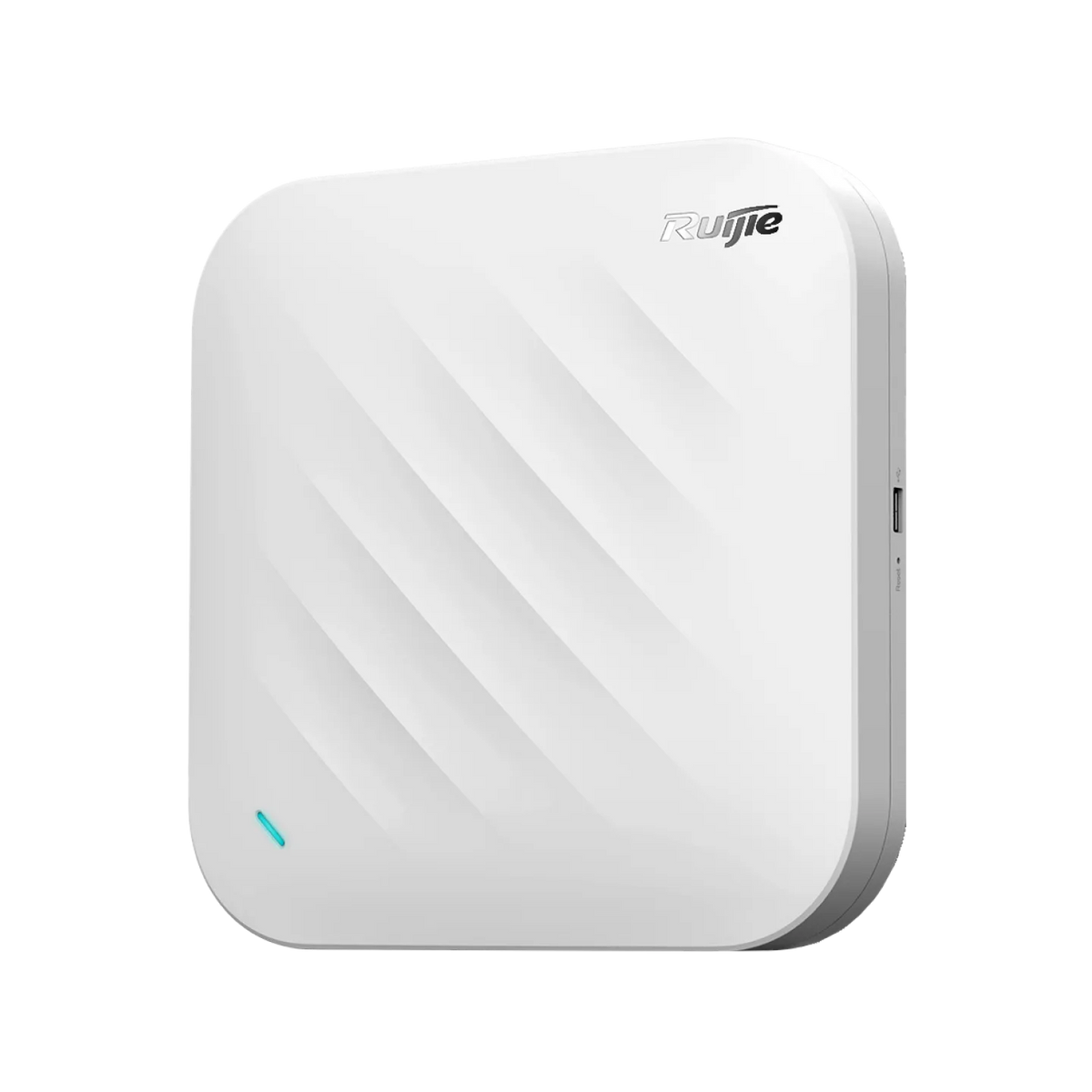

Ruijie AP9861-R – Indoor Wi-Fi 7 Access Point with 24 Gbps Throughput

Ruijie’s AP9861-R Series redefines high-density indoor networking with flagship Wi-Fi 7 Access Points.

In just 50 words, here’s our thesis: the RG-AP9861-R combines five-radio 18-stream architecture, up to 24.436 Gbps aggregate throughput, dual 10 GbE uplinks, AI-powered full-band scanning, and optional optical i-Share backhaul - delivering future-proof Indoor Wi-Fi 7 AP performance with simplified cabling and rock-solid reliability.

Model Overview & Specifications

Specification	RG-AP9861-R
Wireless Standard	IEEE 802.11be (Wi-Fi 7)
Radios	5 total: 2.4 GHz×2×2, 5 GHz×2×2, 6 GHz×2×2 + 1 AI radio
Spatial Streams	18
Peak Aggregate Throughput	24.436 Gbps
Uplink Ports	• 1 × 10GbE SFP+/RJ45 combo (1/2.5/5/10 GbE auto-sensing) • 1 × 10GbE RJ45 electrical
IoT Integration	Bluetooth 5.3, Zigbee
Power & Protection	PoE/PoE+/PoE++ (802.3bt) or 12–57 V DC; built-in 6 kV surge guard
Optical i-Share Backhaul	Long-reach CWDM hybrid cable up to 1,100 m, 10 Gbps flat optical architecture
Management	Ruijie Cloud, On-prem AC Controller, Standalone CLI/GUI
Form Factor & Environment	Ceiling or wall mount; 175 × 175 × 55 mm; 0–50 °C; indoor IP41

Accessories & Optional Modules

Optical i-Share Kits: Hybrid fiber-power cables for centralized master-AP architectures.
Mounting Brackets: Adjustable tilt for varied ceiling heights.
Surge Protectors: DIN-rail and in-line options for enhanced lightning protection.
IoT Modules: External Bluetooth 5.3/Zigbee antennas for extended range.

Core Features

True Wi-Fi 7 Performance
Harnessing 320 MHz channels and 4096-QAM, the AP9861-R delivers a combined 24.436 Gbps data rate—20 % higher than Wi-Fi 6.
Five-Radio AI Scanning
A dedicated AI radio performs real-time, full-band spectrum scans without impacting client throughput—eliminating coverage holes and accelerating rogue detection.
Multi-Gigabit & Optical Uplink
Dual 10 GbE uplinks (one SFP+/RJ45 combo, one electrical) plus optional optical i-Share hybrid backhaul simplify cabling and extend reach up to 1,100 m indoors at 10 Gbps.
High-Density Spatial Streams
With 18 spatial streams across 4×4:4 client radios, the AP9861-R supports massive concurrent device counts in auditoriums, stadium suites, and enterprise floors.
Robust IoT & BLE Support
Integrated Bluetooth 5.3 and Zigbee radios enable seamless IoT on-boarding and indoor positioning services without external gateways.

Security & Authentication

WPA3 Enterprise & PersonalSAE handshake and GCMP-256 encryption guard against brute-force and replay attacks.
SAE handshake and GCMP-256 encryption guard against brute-force and replay attacks.
802.1X / RADIUS & PPSKDynamic VLAN assignment per user or device. PPSK (Per-User PSK) issues unique pre-shared keys without RADIUS for small deployments.
Dynamic VLAN assignment per user or device. PPSK (Per-User PSK) issues unique pre-shared keys without RADIUS for small deployments.
Guest Portal & VLAN IsolationCustom captive-portal workflows with bandwidth/time quotas isolate visitor traffic into separate VLANs.
Custom captive-portal workflows with bandwidth/time quotas isolate visitor traffic into separate VLANs.
Rogue AP Detection & ContainmentAI radio continuously scans for unauthorized Wireless Access Points, automatically alerting or black-listing threats.
AI radio continuously scans for unauthorized Wireless Access Points, automatically alerting or black-listing threats.
Encrypted Management ChannelsSSH, HTTPS, and SNMPv3 secure all configuration and monitoring sessions.
SSH, HTTPS, and SNMPv3 secure all configuration and monitoring sessions.

Installation & Mounting

Ceiling & Wall KitsFlexible brackets for T-bar ceilings or drywall; low-profile housing blends into any decor.
Flexible brackets for T-bar ceilings or drywall; low-profile housing blends into any decor.
Cable ManagementGland-sealed uplink ports uphold IP41 rating; internal cable guides ensure neat installations.
Gland-sealed uplink ports uphold IP41 rating; internal cable guides ensure neat installations.
Grounding & Surge ProtectionIntegral 6 kV surge guards; follow NEC grounding practices for maximum lightning resilience.
Integral 6 kV surge guards; follow NEC grounding practices for maximum lightning resilience.
Optimized PlacementMount at 2.5–3.5 m height; maintain 10–15 m cell overlap in open offices or meeting rooms.
Mount at 2.5–3.5 m height; maintain 10–15 m cell overlap in open offices or meeting rooms.

RF Planning & Antenna Configuration

Beamforming & MU-MIMODirect antenna arrays focus RF toward active clients; MU-MIMO serves multiple devices concurrently for high density.
Direct antenna arrays focus RF toward active clients; MU-MIMO serves multiple devices concurrently for high density.
Auto RF OptimizationAI algorithms select channels (20/40/80/160 MHz) and adjust TX power in real time to minimize co-channel interference.
AI algorithms select channels (20/40/80/160 MHz) and adjust TX power in real time to minimize co-channel interference.
Coverage SimulationUse Ruijie’s cloud-based heat-map tool to model signal strength, capacity, and client distribution before deployment.
Use Ruijie’s cloud-based heat-map tool to model signal strength, capacity, and client distribution before deployment.
DFS & TPC ComplianceDynamic Frequency Selection and Transmit Power Control respect regulatory requirements in 5/6 GHz bands.
Dynamic Frequency Selection and Transmit Power Control respect regulatory requirements in 5/6 GHz bands.

Deployment & Management

Zero-Touch ProvisioningNew APs auto-register to Ruijie Cloud or AC, download profiles, and apply configurations on first boot.
New APs auto-register to Ruijie Cloud or AC, download profiles, and apply configurations on first boot.
Batch Firmware & Config PushSchedule in-service upgrades and policy changes across hundreds of APs with automatic rollback on failure.
Schedule in-service upgrades and policy changes across hundreds of APs with automatic rollback on failure.
AI-Driven O&MDigital-Twin dashboards visualize each AP’s performance, RF health, and client behavior—cutting mean-time-to-repair by 30 %.
Digital-Twin dashboards visualize each AP’s performance, RF health, and client behavior—cutting mean-time-to-repair by 30 %.
InteroperabilitySeamless handoff and unified management alongside earlier Ruijie Indoor and Outdoor APs.
Seamless handoff and unified management alongside earlier Ruijie Indoor and Outdoor APs.

Technical Configuration

Mode & Management Setup

ap mode cloud

ap mode fit # via console/Telnet

ap mode fat # via AC

SSID & WPA3 Enterprise

wlan ssid-profile CorpSSID

ssid MyCorp

authentication-mode wpa3-enterprise

security wpa2-aes

vlan 100

interface wlan 1

ssid-profile CorpSSID

Dual 10GbE Uplink

interface gigabitEthernet0/1

speed 10000

poe disable

interface sfp 1

port-type sfp+

speed 10000

AI Radio Scanning

interface air-scan0

mode ai-scan

interval 30

RF & Channel Settings

interface dot11radio0

band 6g

channel auto

width 160

tx-power auto

Security & Rogue AP

rlp enable

rlp mac-filter-action drop

Monitoring & SNMP

snmp-agent sys-info version v3

snmp-agent group v3 priv read v3grp write v3grp

Real-World Case Studies

Global Finance HQ
– 200 RG-AP9861-R units in trading floors and boardrooms delivered <2 ms roam times and zero packet loss under 5,000 concurrent streams.
University STEM Building
– Deployment across 50 labs supported 18 spatial-stream AR/VR research setups, boosting throughput by 40 % over previous Wi-Fi 6 gear.
Convention Center
– Five-radio APs eliminated dead zones in exhibit halls, managing 10,000+ attendees with high-density video streaming and seamless roaming.

FAQ – Expert Answers

Q1: What peak throughput does the AP9861-R deliver?
Up to 24.436 Gbps across five radios using 320 MHz channels and 4096-QAM.

Q2: How are long-reach backhauls achieved?
Via optional optical i-Share hybrid cables, delivering 10 Gbps and power up to 1,100 m indoors.

Q3: Can it run on PoE?
Yes—supports PoE/PoE+/PoE++ (802.3bt) and 12–57 V DC inputs.

Q4: Does it require a controller?
No—operates in Cloud, AC, or standalone modes for maximum deployment flexibility.

Q5: How fast is roaming?
AI radio and 802.11r/k/v ensure sub-30 ms handoffs with <0.5 % packet loss.

Q6: Are IoT devices supported?
Built-in Bluetooth 5.3 and Zigbee radios enable seamless IoT integration without extra gateways.

Q7: What security protections exist?
WPA3, 802.1X/RADIUS, PPSK, rogue AP detection, and encrypted management (SSH/HTTPS/SNMPv3).

Q8: How are firmware updates handled?
Use Ruijie Cloud or AC for zero-impact batch upgrades with automatic rollback on errors.

Conclusion

The Ruijie AP9861-R Series stands as the ultimate Indoor Wi-Fi 7 AP, merging five-radio, 18-stream architecture with 24.436 Gbps throughput, dual 10 GbE & optical backhaul, AI-driven O&M, and enterprise-grade security.

For venues demanding uncompromised Wireless Access Point performance and future-proof scalability, the AP9861-R delivers unmatched value and reliability.
