Ruijie AP9220 – Dual-Radio Indoor Wi-Fi 7 AP with Multi-Gig Uplink

The Ruijie AP9220 Series represents the pinnacle of Indoor Wi-Fi 7 AP design, combining dual-radio 2×2 MIMO, 320 MHz channel support, and cutting-edge 4096-QAM to deliver up to 3.570 Gbps of aggregate throughput.

As an Indoor WiFi 7 Access Point, the AP9220 series offers versatile uplink options—including 2.5 GbE SFP and 2.5 GBASE-T ports—alongside advanced security, AI-driven O&M, and seamless integration with Ruijie Wireless AP management platforms.

Whether deployed in corporate offices, higher-education campuses, or hospitality venues, these WiFi 7 Access Points future-proof networks and elevate user experiences.

Model Overview & Specification

Specification	RG-AP9220
Wireless Standard	IEEE 802.11be (Wi-Fi 7)
Radio Architecture	Dual-radio 2×2:2 (2.4 GHz & 5 GHz)
Max Wireless Throughput	3.570 Gbps (combined)
Spatial Streams	4 simultaneous streams

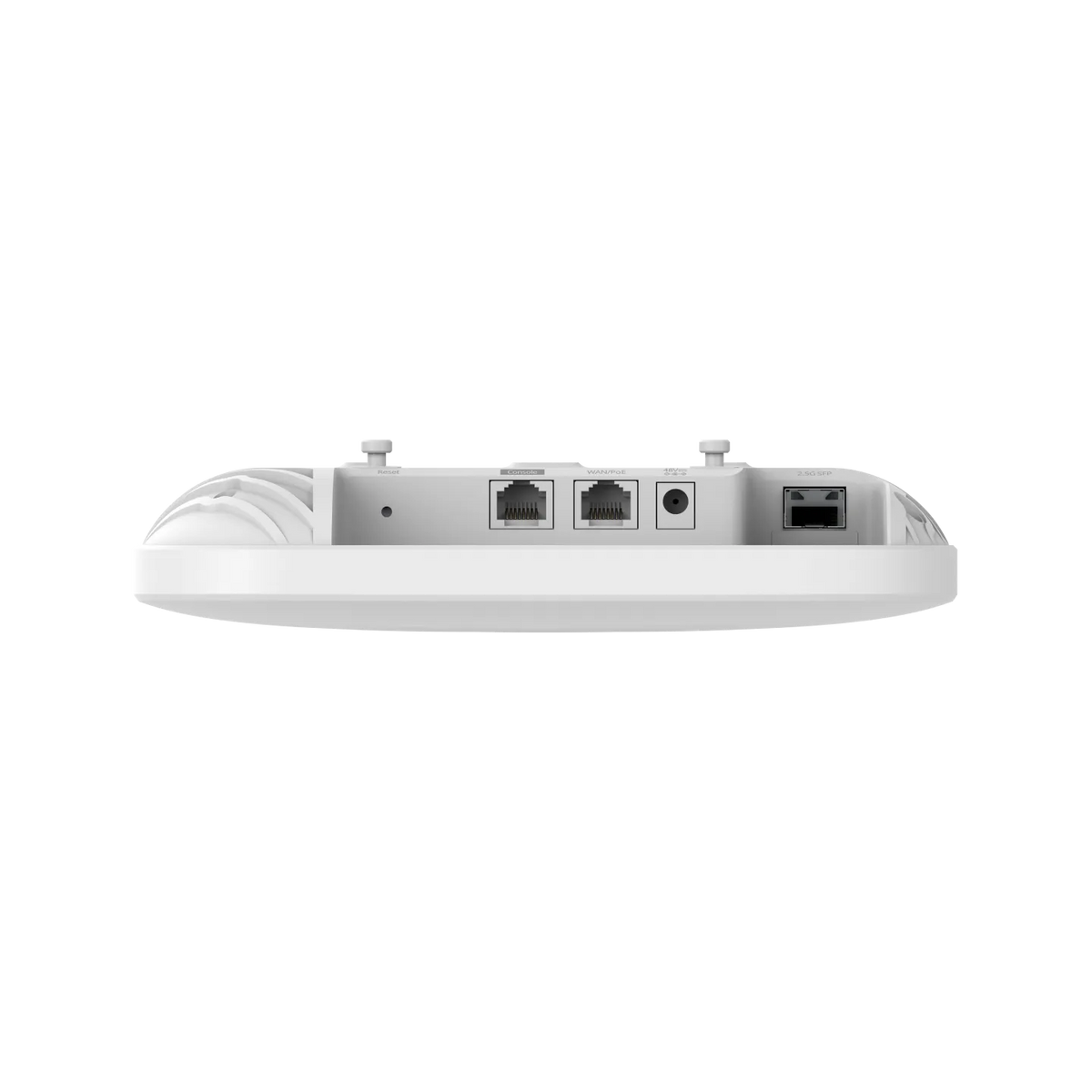

Uplink Interfaces	1×2.5 GbE SFP; 1×2.5 GBASE-T RJ45
Downlink Ports	4×1 GbE RJ45 (for PoE-powered devices)
Power Options	PoE+ (802.3at, ≤ 30 W) or 12–57 V DC input
Surge Protection	Ethernet surge guard up to 6 kV
Antenna	Built-in omnidirectional smart antennas
Management Modes	Ruijie Cloud / AC Controller / Standalone CLI & GUI
Digital-Twin O&M	Yes; improves maintenance efficiency by 30%
Dimensions	175 × 85 × 28 mm
Weight	0.45 kg
Operating Environment	0 °C to +50 °C; indoor IP41 rating

Accessories & Optional Modules

Mounting Kits: Ceiling-tile, wall-plate, and surface brackets for flexible installation.
Surge Protectors: In-line and DIN-rail Ethernet surge guards for harsh environments.
External Antennas: 8 dBi omnidirectional and 120° sector antennas for specialized coverage.
Fiber Transceivers: Certified 2.5 GbE SFP modules for long-reach optical backhaul.

Core Features & Differentiators

Next-Gen Wi-Fi 7 Performance
The AP9220 leverages IEEE 802.11be enhancements—320 MHz channels and 4096-QAM—to boost peak data rates by 20% over Wi-Fi 6, supporting up to 3.570 Gbps aggregate throughput.
Flexible Multi-Gig Uplink
Combining a 2.5 GbE SFP uplink with a 2.5 GBASE-T RJ45 port ensures that the Ruijie AP9220 can seamlessly integrate into fiber or copper networks without oversubscription.
Built-in Smart Antennas
Omnidirectional antennas with optimized beam patterns provide consistent coverage in diverse indoor layouts—from open-plan offices to corridor deployments.
Digital-Twin AI-Driven O&M
Real-time digital-twin analytics visualize the AP’s performance metrics and RF environment, reducing mean-time-to-repair by up to 30% and streamlining operations.
Comprehensive Management
Supports Ruijie Cloud, on-prem AC Controller, and standalone CLI/GUI modes, enabling zero-touch provisioning, batch firmware updates, and centralized policy enforcement.

Security & Authentication

WPA3 Enterprise & PersonalSAE handshake and GCMP-256 encryption for robust protection against dictionary and brute-force attacks.
SAE handshake and GCMP-256 encryption for robust protection against dictionary and brute-force attacks.
802.1X / RADIUS & PPSKDynamic VLAN assignment and per-user pre-shared keys (PPSK) enforce granular access control without complex infrastructure.
Dynamic VLAN assignment and per-user pre-shared keys (PPSK) enforce granular access control without complex infrastructure.
Guest Portal & VLAN IsolationCustom captive-portal workflows isolate guest traffic and apply bandwidth/time quotas for visitor networks.
Custom captive-portal workflows isolate guest traffic and apply bandwidth/time quotas for visitor networks.
Rogue AP Detection & ContainmentPeriodic spectrum scans identify unauthorized Wireless Access Points, triggering alerts or automatic blocking.
Periodic spectrum scans identify unauthorized Wireless Access Points, triggering alerts or automatic blocking.
Encrypted Management ChannelsSSH, HTTPS, and SNMPv3 ensure secure administrator access and protect configuration data.
SSH, HTTPS, and SNMPv3 ensure secure administrator access and protect configuration data.

Installation & Mounting Guidelines

Wall-Plate & Ceiling-Tile OptionsThe compact form factor fits standard 86 mm back boxes; optional ceiling-tile kits allow open-area deployments.
The compact form factor fits standard 86 mm back boxes; optional ceiling-tile kits allow open-area deployments.
Cable Management & GroundingGland-sealed Ethernet ports maintain IP41 rating; follow local electrical codes for grounding and surge protection.
Gland-sealed Ethernet ports maintain IP41 rating; follow local electrical codes for grounding and surge protection.
Optimal PlacementMount at 2.5–3 m height; maintain 10–15 m overlap for seamless handoff in corridors and offices.
Mount at 2.5–3 m height; maintain 10–15 m overlap for seamless handoff in corridors and offices.
Power & Surge ProtectionPoE+ simplifies power cabling; built-in 6 kV surge guard safeguards against electrical spikes.
PoE+ simplifies power cabling; built-in 6 kV surge guard safeguards against electrical spikes.

RF Planning & Antenna Configuration

Auto RF OptimizationAI-driven channel and power selection minimize co-channel interference and adapt to real-time environmental changes.
AI-driven channel and power selection minimize co-channel interference and adapt to real-time environmental changes.
Beamforming & MU-MIMOAdvanced beamforming directs energy toward clients; MU-MIMO serves multiple devices concurrently for high-density scenarios.
Advanced beamforming directs energy toward clients; MU-MIMO serves multiple devices concurrently for high-density scenarios.
Coverage SimulationUse the Ruijie Cloud planner to model heat maps, capacity, and device density before physical rollout.
Use the Ruijie Cloud planner to model heat maps, capacity, and device density before physical rollout.
DFS & TPC ComplianceDynamic Frequency Selection and Transmit Power Control adhere to regional regulations and optimize 5 GHz usage.
Dynamic Frequency Selection and Transmit Power Control adhere to regional regulations and optimize 5 GHz usage.

Management & Monitoring

Ruijie CloudZero-touch onboarding: APs auto-register to the cloud, download profiles, and self-configure. Real-time dashboards: view health metrics, client counts, and RF maps. Batch firmware: schedule upgrades across multiple APs with automatic rollback on failure.
Zero-touch onboarding: APs auto-register to the cloud, download profiles, and self-configure.
Real-time dashboards: view health metrics, client counts, and RF maps.
Batch firmware: schedule upgrades across multiple APs with automatic rollback on failure.
On-Prem AC ControllerHigh-availability clusters manage SSIDs, QoS policies, and security settings centrally. Role-based administration and RADIUS integration for enterprise workflows.
High-availability clusters manage SSIDs, QoS policies, and security settings centrally.
Role-based administration and RADIUS integration for enterprise workflows.
Standalone CLI/GUIQuick setup wizards for small-scale or branch deployments without controllers.
Quick setup wizards for small-scale or branch deployments without controllers.
APIs & SNMPv3RESTful interfaces and SNMP traps integrate with third-party NMS and automation tools.
RESTful interfaces and SNMP traps integrate with third-party NMS and automation tools.

Technical Configuration

SSID & Security

wlan ssid-profile CorpNet

ssid CorpSSID

authentication-mode wpa3-enterprise

security wpa2-aes

vlan 100

interface wlan 1

ssid-profile CorpNet

Radio Settings

interface dot11radio 0

band 5g

channel auto

width 320

tx-power auto

Multi-Gig Uplink

interface gigabitEthernet 0/1

speed 2500

poe enable

interface sfp 1

port-type 2.5gbe

Fast Roaming & QoS

fast-roaming enable

fast-roaming method 802.11r

wmm-profile default

wmm enable

Rogue AP Detection

rlp enable

rlp mac-filter-action drop

Monitoring via SNMP

snmp-agent sys-info version v3

snmp-agent group v3 priv read v3group write v3group

Real-World Case Studies

Corporate Office Floors150 AP9220 units in a high-rise HQ delivered consistent 3 Gbps+ connections for 2,000+ devices, reducing dead zones by 95%.
150 AP9220 units in a high-rise HQ delivered consistent 3 Gbps+ connections for 2,000+ devices, reducing dead zones by 95%.
University Lecture HallsDual-radio APs supported simultaneous 4 K video streaming and AR/VR demos for 500 students with no buffering.
Dual-radio APs supported simultaneous 4 K video streaming and AR/VR demos for 500 students with no buffering.
Hotel Property RolloutAP9220s installed in corridors and lobbies provided separate SSIDs per floor, boosting guest Wi-Fi satisfaction scores by 35%.
AP9220s installed in corridors and lobbies provided separate SSIDs per floor, boosting guest Wi-Fi satisfaction scores by 35%.

FAQ – Common Questions

Q1: What uplink options does the AP9220 support?
It offers both 2.5 GbE SFP and 2.5 GBASE-T RJ45 uplinks, ensuring flexible fiber or copper backhaul.

Q2: Can I power the AP via PoE+?
Yes—the AP9220 supports IEEE 802.3at PoE+ (≤ 30 W) and can also accept 12–57 V DC input.

Q3: Does the AP9220 require a controller?
No—deploy in Ruijie Cloud, on-prem AC, or standalone modes based on your network architecture.

Q4: How many clients can each AP handle?
Up to 1,536 concurrent devices, thanks to Wi-Fi 7’s enhanced scheduling and multi-user capabilities.

Q5: Is mesh networking supported?
No—designed as a high-density indoor AP; use wired backhaul for reliability.

Q6: What security features are built in?
Supports WPA3, 802.1X/RADIUS, PPSK, guest portal, and rogue-AP detection.

Q7: How do firmware upgrades work?
Use Ruijie Cloud or AC to schedule zero-impact updates with automatic rollback on failure.

Q8: Can I monitor RF and client metrics in real time?
Yes—cloud dashboards and AC controllers provide heat maps, client counts, and performance alerts.

Conclusion

The Ruijie AP9220 Series sets a new benchmark for Indoor Wi-Fi 7 AP performance. With dual-radio 2×2 MIMO, multi-gig uplinks, AI-driven digital-twin O&M, and enterprise-grade security, these Ruijie Wireless APs deliver future-proof connectivity and simplified operations for any indoor enterprise environment.
