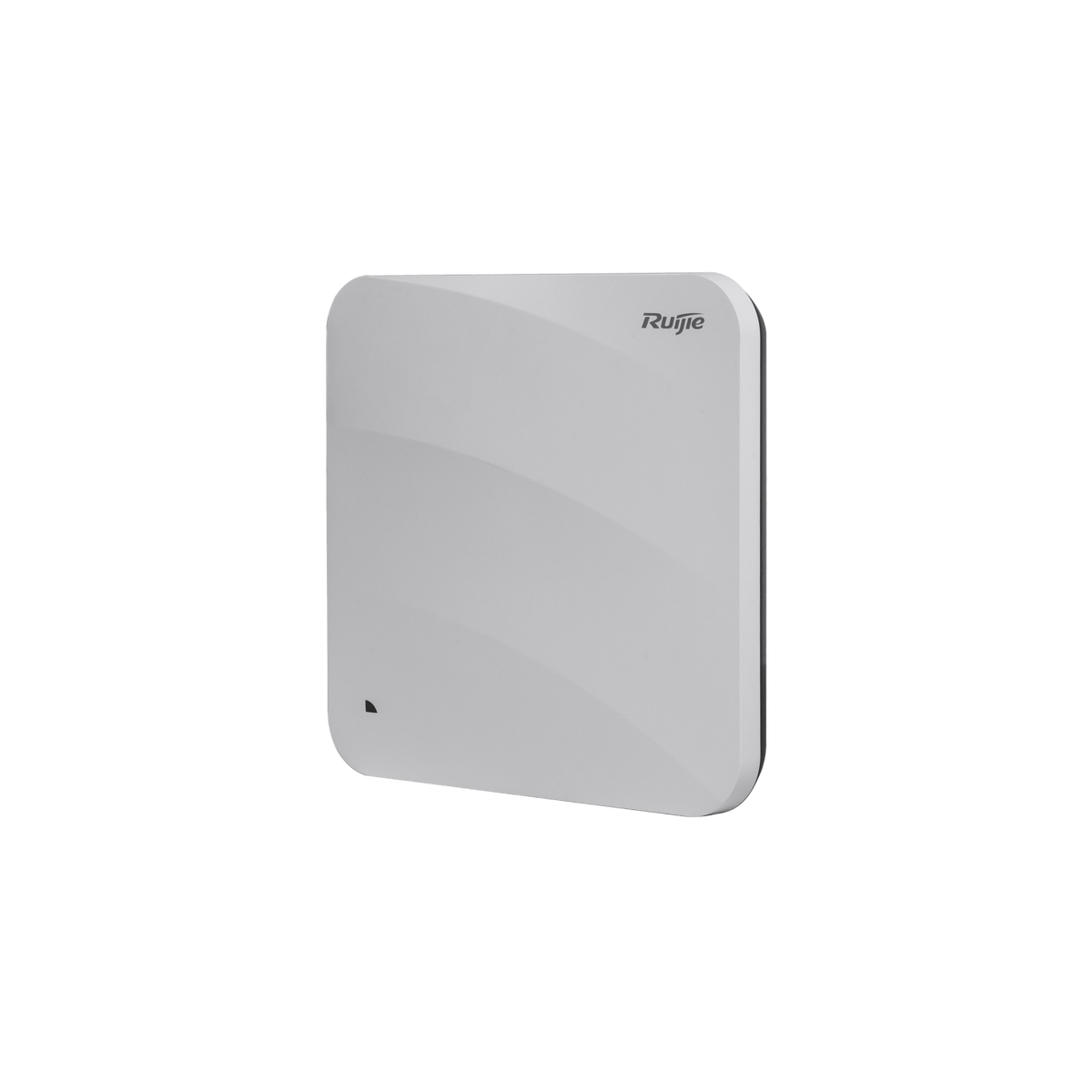

Ruijie 810 Series AP – High-Performance Indoor Wi-Fi 6 Access Points

The Ruijie 810 Series AP delivers cutting-edge Indoor WiFi 6 Access Point performance for enterprise, hospitality, and education environments.

With models such as the RG-AP810-I, this Ruijie Wireless AP family offers dual-band 4×4:4 radios, up to 5.95 Gbps aggregate throughput, advanced OFDMA, and MU-MIMO.

Plug-and-play installation, cloud or controller management, and rich security make the 810 Series the go-to Wi-Fi 6 AP for any indoor deployment.

Model Overview & Specifications

Feature	RG-AP810-I
Radio Architecture	Dual-band 4×4:4 (2.4 GHz + 5 GHz)
Maximum Throughput	1.148 Gbps (2.4 GHz) + 4.804 Gbps (5 GHz) = 5.952 Gbps
Antenna	Internal omnidirectional, 6 dBi gain
Ethernet Uplink	2×2.5 GbE RJ-45 ports (PoE+) + 1×console
PoE Support	IEEE 802.3at PoE+ (30 W)
Mounting Options	Ceiling tile clip, wall bracket, rafter mount
Operating Temperature	0 °C to +50 °C
Management	Cloud-based APP, on-prem AC controller, standalone CLI/GUI
Security & Authentication	WPA3 Enterprise, 802.1X/RADIUS, guest portal, rogue AP detection, encrypted SSID
Advanced Features	OFDMA, MU-MIMO, BSS Coloring, Airtime Fairness, Fast Roaming (802.11r/k/v)

Specifications consolidated from official Ruijie RG-AP810 datasheet and product page.

Core Features & Differentiators

Dual Multi-Gig Uplinks

The RG-AP810-I provides two 2.5 GbE PoE+ ports, enabling multi-gigabit backhaul to support the full 5.95 Gbps of radio throughput without oversubscription.

Full Wi-Fi 6 Capabilities

OFDMA subdivides channels for multiple low-bandwidth devices, improving efficiency.
MU-MIMO serves up to four clients simultaneously per band, boosting capacity.
BSS Coloring reduces co-channel interference in dense deployments.

Enterprise-Grade Security

Supports WPA3, 802.1X with RADIUS, dynamic VLAN assignment, and rogue AP detection to safeguard your wireless LAN.

Flexible Management Modes

Deploy as a standalone Wireless Access Point, under a Ruijie AC controller, or via the Ruijie Cloud—scaling from single-site offices to multi-campus networks effortlessly.

Easy Installation & Mounting

The 810 Series ships with tile-clip, wall, and rafter brackets. Auto-calibrated RF using the built-in radiometric sensor ensures optimal power settings and channel assignments on first boot.

Real-Time Analytics & AI-Assisted Tuning

Leverage Ruijie’s AI-driven cloud portal for live heat-maps, client behavior insights, and automated RF adjustments, ensuring peak performance even as environments change.

Security & Authentication Deep Dive

WPA3 Enterprise: SAE handshake prevents dictionary attacks in open and encrypted networks.
802.1X/RADIUS: Dynamic per-user credentials with VLAN assignment, isolating guest and corporate traffic.
Guest Portal: Captive-portal guest workflows with customizable branding and time- or bandwidth-based limits.
Rogue AP Detection: Periodic scans identify unauthorized APs; the system can quarantine or blacklist them.
Encrypted Management: All CLI, SNMPv3, SSH, and HTTPS sessions use strong ciphers to protect configuration channels.

Installation & RF Planning

Mounting: Ceiling-tile clip for standard drop ceilings. Wall bracket for corridor coverage. Rafter mount for high-ceiling venues.
Ceiling-tile clip for standard drop ceilings.
Wall bracket for corridor coverage.
Rafter mount for high-ceiling venues.
Auto RF Calibration: On-power-up self-tests adjust transmit power and channel selection based on ambient noise and interference.
Design Tools: Use Ruijie’s cloud-based heat-map planner to simulate coverage, capacity, and optimal placement before installation.

Management & Monitoring

Ruijie Cloud: Zero-touch onboarding, group firmware upgrades, real-time dashboards, and alerting.
On-Prem AC Controller: Centralized policy, SSID management, and RF controls with high-availability clustering.
Local GUI/CLI: Quick configuration for standalone or small-scale deployments.
APIs & SNMP: Integrate with third-party NMS and automation platforms via RESTful APIs and SNMPv3.

Technical Configuration Examples

SSID & Security

wlan ssid-profile CorpWiFi

ssid CorpSSID

authentication-mode wpa3-enterprise

security wpa2-aes

vlan 100

interface wlan 1

ssid-profile CorpWiFi

Radio Settings

interface dot11radio 0

band 5g

channel auto

width 80

tx-power auto

Multi-Gig Uplink

interface gigabitEthernet 0/1

speed 2500

poe enable

interface gigabitEthernet 0/2

speed 2500

poe enable

Fast Roaming

fast-roaming enable

fast-roaming method 802.11r

RF Optimization

rf-profile default

client-load-balancing enable

coverage-class 2

Security Features

radius-server host 10.0.1.5 auth-port 1812 key radkey

aaa authentication dot1x default radius

Monitoring

snmp-agent sys-info version v3

snmp-agent group v3 priv read v3group write v3group

FAQ – Essential Answers

Q1: What maximum throughput can the RG-AP810-I deliver?
Up to 5.952 Gbps—1.148 Gbps on 2.4 GHz plus 4.804 Gbps on 5 GHz, fully supported by dual 2.5 GbE uplinks.

Q2: Is the AP compatible with existing PoE switches?
Yes—all models support IEEE 802.3at PoE+, drawing up to 30 W from standard PoE+ ports.

Q3: What environments suit the 810 Series AP?
Ideal for offices, classrooms, hospitality venues, and any Indoor WiFi 6 Access Point scenario requiring high density and robust performance.

Q4: Can I manage these APs via the cloud?
Absolutely—use Ruijie Cloud for centralized provisioning, monitoring, and AI-driven RF optimization across all sites.

Q5: Does the 810 support mesh networking?
Yes—mesh mode lets APs form self-healing backhauls when wired uplink is unavailable.

Q6: How are firmware updates handled?
Stage updates in the cloud or AC, then schedule push upgrades with rollback support; no client impact during off-peak windows.

Q7: Are guest networks supported?
Yes—built-in captive portal with VLAN and bandwidth controls for guest SSIDs.

Q8: What fast-roaming standards are implemented?
Supports 802.11r for secure fast handoffs, plus 802.11k/v heuristics for optimal AP selection.

Real-World Use Cases

Corporate HQ: 200+ RG-AP810-I units cover open-plan floors, delivering 4 × capacity growth and 80% fewer dead zones.
University Lecture Halls: Dual-band 4×4:4 performance ensures smooth video streaming for 300+ students simultaneously.
Hotel Property: Mu-MIMO and OFDMA optimize performance in high-density lobbies and banquet spaces, boosting guest satisfaction scores by 25%.

Conclusion

The Ruijie 810 Series AP sets the standard for Indoor WiFi 6 Access Points, combining multi-gig uplinks, enterprise security, flexible management, and automated RF optimization.

Whether deployed as a Ruijie Wireless AP in offices, classrooms, or hospitality venues, the 810 Series delivers reliable, high-capacity wireless connectivity where it matters most.
