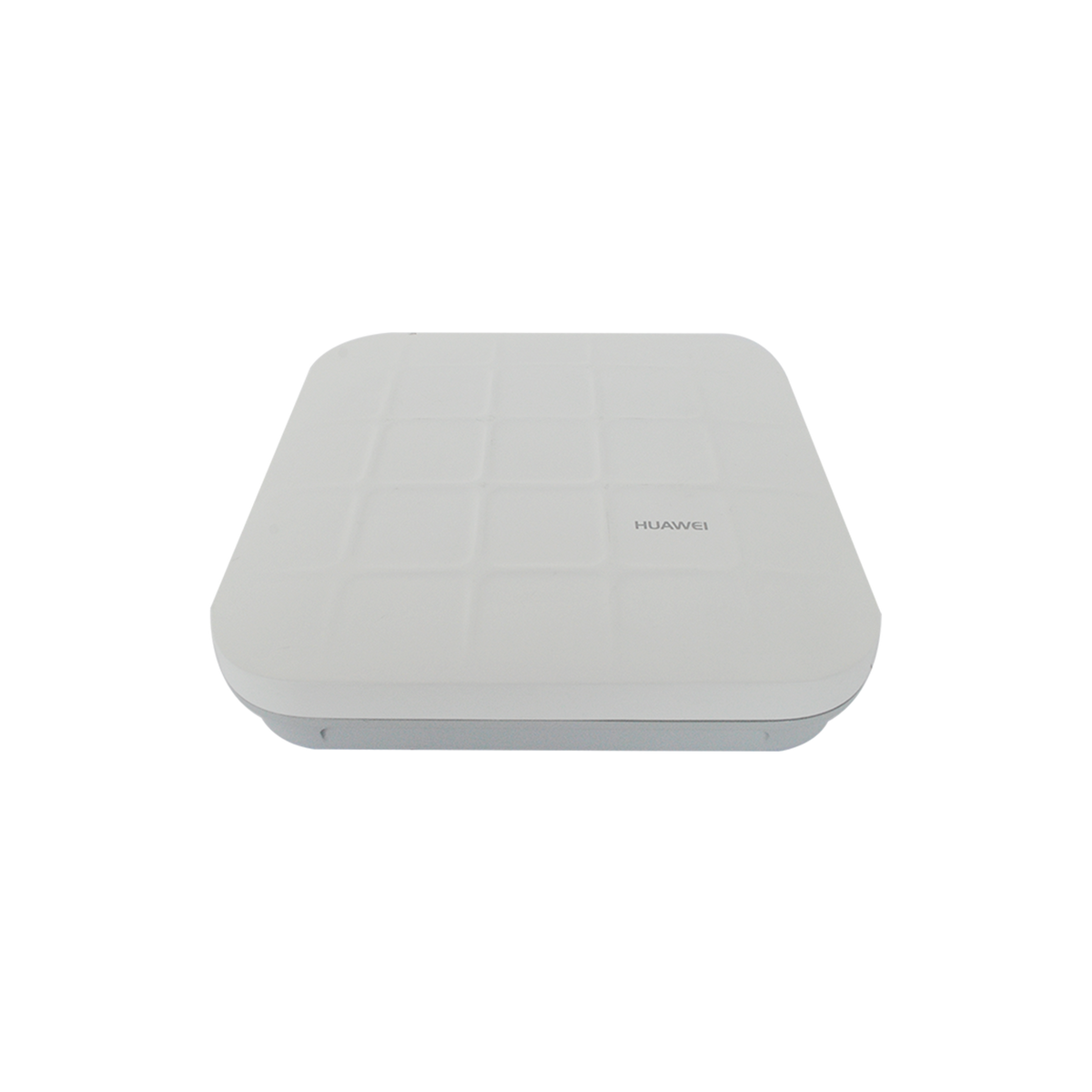

Huawei AP6050DN – High-Density 802.11ac Wave 2 Indoor Access Point

The Huawei AP6050DN is a premium 802.11ac Wave 2 Wi-Fi 5 Access Point engineered for medium-to-large, high-density indoor deployments.

Within roughly 50 words, here’s the core: its dual-radio 4×4:4 MIMO architecture delivers 2.53 Gbps of aggregate throughput, powered by 256-QAM and 80 MHz channels, while built-in omni-directional antennas and dual-GE ports ensure wide coverage, seamless roaming, and robust link resilience.

In short, the AP6050DN is the go-to Huawei Wireless AP for enterprise campuses, education, and retail environments seeking reliable gigabit-class Wi-Fi.

Model Overview

Specifications

Specification	Details
Wireless Standard	IEEE 802.11ac Wave 2
Radio Architecture	Dual-band 4×4:4 MIMO (2.4 GHz & 5 GHz)
Peak Aggregate Throughput	Up to 2.53 Gbps (400 Mbps @2.4 GHz + 2.13 Gbps @5 GHz)
Spatial Streams	Four streams per band (total 8)
Antenna	Built-in dual-band omni-directional, 6 dBi gain
Ethernet Uplink Ports	2× Gigabit Ethernet, supporting LAG and traffic load balancing
Power Options	PoE+ (802.3at, ≤30 W) or 12 V ±10% DC input
Maximum Power Consumption	22.9 W (excl. USB)
Memory & Storage	512 MB DDR3L RAM; 16 MB NOR + 128 MB NAND flash
Dimensions (H×W×D)	53 mm × 220 mm × 220 mm
Operating Temperature	–10 °C to +50 °C; humidity 5–95% non-condensing
Mounting Options	Ceiling-tile, wall-mount, or bracket installation
Management Modes	Fit/Fat AP; managed by Huawei AC controller or cloud; standalone GUI/CLI

Core Features & Differentiators

MU-MIMO & High-Order Modulation
AP6050DN’s 4×4 MU-MIMO serves up to four clients per band simultaneously, while 256-QAM boosts 5 GHz rates to 2.13 Gbps—2.16× faster than 802.11n.
80 MHz Channel Support
Wider channels double sub-carrier counts for data transmission, optimizing throughput for video streaming, desktop cloud, and large-file transfers.
Dual-GE Link Aggregation
Two Gigabit Ethernet ports can be bonded for 2 Gbps uplink capacity and redundancy, eliminating bottlenecks during peak traffic.
Smart Antenna Array
Built-in omni antennas with beamforming dynamically focus RF energy toward clients, enhancing coverage uniformity and interference immunity.
Seamless Roaming
Standards-based 802.11k/v/r fast-handoff ensures <50 ms roam times, preserving VoIP and video sessions across the coverage area.
Flexible Mounting
Ceiling-tile and wall-mount brackets allow graceful integration into modern office ceilings or corridor walls, preserving aesthetics.

Security & Authentication

WPA3 & WPA2 EnterpriseAdvanced SAE handshake and GCMP-256 encryption protect against offline attacks.
Advanced SAE handshake and GCMP-256 encryption protect against offline attacks.
802.1X / RADIUS & PPSKDynamic VLAN assignment and per-user PSKs enhance guest isolation without extra RADIUS servers.
Dynamic VLAN assignment and per-user PSKs enhance guest isolation without extra RADIUS servers.
Guest Portal & VLAN QuotasCustom captive-portal workflows isolate visitor traffic with bandwidth/time limits.
Custom captive-portal workflows isolate visitor traffic with bandwidth/time limits.
Rogue AP DetectionPeriodic scans locate rogue Wireless Access Points, generating alerts or automatic containment.
Periodic scans locate rogue Wireless Access Points, generating alerts or automatic containment.
Encrypted ManagementSSH, HTTPS, and SNMPv3 channels secure device configuration and telemetry.
SSH, HTTPS, and SNMPv3 channels secure device configuration and telemetry.

Deployment Scenarios

Enterprise CampusAP6050DN covers open-plan offices, lobbies, and collaboration zones, handling 200+ concurrent users per unit.
AP6050DN covers open-plan offices, lobbies, and collaboration zones, handling 200+ concurrent users per unit.
Higher EducationLecture halls and libraries benefit from gigabit-class connectivity for e-learning and HD video streaming.
Lecture halls and libraries benefit from gigabit-class connectivity for e-learning and HD video streaming.
Retail ChainsCorridor-mounted DN-S variants with sector antennas deliver aisle-focused coverage and consistent guest Wi-Fi.
Corridor-mounted DN-S variants with sector antennas deliver aisle-focused coverage and consistent guest Wi-Fi.
Healthcare FacilitiesCeiling-mounted APs support medical IoT devices and clinician handhelds with secure, low-latency transport.
Ceiling-mounted APs support medical IoT devices and clinician handhelds with secure, low-latency transport.
Logistics & WarehousingAP4050DE-M’s smart antenna array variant reduces interference from forklifts and metal racks while enabling fast roaming.
AP4050DE-M’s smart antenna array variant reduces interference from forklifts and metal racks while enabling fast roaming.

Product Management

Installation & Mounting

Site Survey & RF PlanningUse Huawei’s planning tools to simulate heat-maps, channel overlap, and client density.
Use Huawei’s planning tools to simulate heat-maps, channel overlap, and client density.
Mounting HeightRecommend 2.5–3 m for ceiling installs; 1.8–2.2 m for wall mounting, ensuring line-of-sight.
Recommend 2.5–3 m for ceiling installs; 1.8–2.2 m for wall mounting, ensuring line-of-sight.
Cable ManagementRoute PoE or DC cables through ceiling tiles or conduit, securing strain-relief brackets to preserve IP rating.
Route PoE or DC cables through ceiling tiles or conduit, securing strain-relief brackets to preserve IP rating.
Grounding & Surge ProtectionBond chassis to earth ground; consider inline surge arrestors for critical installations.
Bond chassis to earth ground; consider inline surge arrestors for critical installations.

Monitoring

Huawei AC ControllerCentralized policy, RF optimization, and batch firmware upgrades across all AP6050DN instances.
Centralized policy, RF optimization, and batch firmware upgrades across all AP6050DN instances.
Cloud-Managed ModeZero-touch provisioning: APs auto-register to Huawei Cloud, download profiles, and self-configure.
Zero-touch provisioning: APs auto-register to Huawei Cloud, download profiles, and self-configure.
Standalone GUI/CLIQuick configuration wizards for small-scale or branch-office setups without controllers.
Quick configuration wizards for small-scale or branch-office setups without controllers.
SNMP & RESTful APIsExport telemetry and alarms to third-party NMS or automation platforms for unified network management.
Export telemetry and alarms to third-party NMS or automation platforms for unified network management.
Real-Time AnalyticsDashboards display client counts, throughput trends, and RF interference alerts.
Dashboards display client counts, throughput trends, and RF interference alerts.

Technical Configuration

Enable MU-MIMO & Wave 2

system-view

wlan ap waveform ap6050dn

wave2 enable

mu-mimo enable

SSID & Security

wlan ssid-profile CorpNet

ssid CorpSSID

authentication-mode wpa3-enterprise

preshared-key cipher SecureKey123

vlan 100

Fast Roaming

ip wlan fast-roaming enable

fast-roaming method 802.11r

Link Aggregation

interface gigabitEthernet0/1

port link-aggregation group 1

interface gigabitEthernet0/2

port link-aggregation group 1

link-aggregation mode dynamic

RF Optimization

radio 0

power auto

channel auto

radio 1

power auto

channel auto

Monitoring via SNMP

snmp-agent sys-info version v3

snmp-agent group v3 priv read v3grp write v3grp

FAQ – Common Questions

Q1: What peak throughput does AP6050DN support?
It delivers up to 2.53 Gbps aggregate (400 Mbps @2.4 GHz + 2.13 Gbps @5 GHz).

Q2: How many clients can one AP serve?
Thanks to MU-MIMO and QoS, each AP supports 200+ active clients with minimal performance degradation.

Q3: What deployment modes are available?
Fit (cloud/cloud-AC), Fat (AC-managed), or standalone GUI/CLI—flexible for any network scale.

Q4: Is link aggregation mandatory?
No—but bonding the two GE ports for LAG (2 Gbps) provides uplink resilience and capacity for heavy loads.

Q5: Can AP6050DN handle VoIP and video?
Yes—fast roaming (802.11r/k/v) and WMM ensure low-latency, jitter-free voice and video sessions.

Q6: What mounting options exist?
Ceiling tile, wall mount, or bracket installation—Adapter kits included for various ceiling types.

Q7: How are firmware updates performed?
Via Huawei AC or Cloud with rolling upgrades; automatic rollback ensures uninterrupted service.

Q8: Does it support guest-portal isolation?
Yes—built-in captive-portal workflows isolate guest traffic on separate VLANs with bandwidth/time policies.

Conclusion

The Huawei AP6050DN exemplifies a high-density Wi-Fi 5 Access Point, combining 802.11ac Wave 2 MU-MIMO, 256-QAM, and dual-GE link aggregation to deliver 2.53 Gbps of reliable indoor connectivity.

As a versatile Huawei Wireless AP, it excels across enterprise, education, healthcare, and retail environments—providing seamless roaming, robust security, and simplified management.
