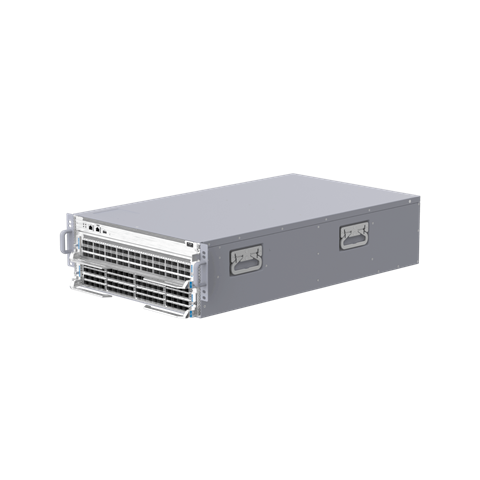

RG-S6930-2C Switch Overview
The Ruijie RG-S6930-2C is a high-density modular switch that serves as the core of the next-generation data center and high-performance computing. The versatile models feature (1 + 1) redundant CPUs and two service slots to host 100GE and 200GE line cards for up to 144 × 100GE or 72 × 200GE ports. It has a switching capacity of 28.8 Tbps and a packet forwarding rate of 5,400 Mpps.
RG-S6930-2C also has MACsec hardware encryption, telemetry and front-to rear airflow. The system's modular architecture and hot-pluggable components, are highly scalable and highly available, making it an ideal platform for data center gateways, metropolitan area networks (MANs), and data center interconnect (DCI) applications.
Highlights
-
High-Density Port Configuration: Supports up to 144 × 100GE or 72 × 200GE ports, providing flexibility for diverse networking requirements.
-
Advanced Architecture: Clos orthogonal design delivers non-blocking forwarding and high-speed transmission without packet loss.
-
Secure Data Transmission: MACsec hardware-level encryption ensures secure data transmission and protects against unauthorized access.
-
Telemetry-Based Monitoring: Real-time network monitoring with sub-second granularity enables efficient management and rapid fault detection.
-

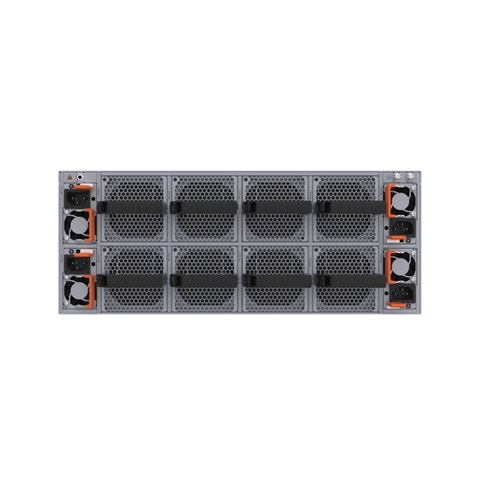

Robust Redundancy: 2+2 hot-swappable power modules and 7+1 hot-swappable fan modules ensure continuous operation and service reliability.
-
Efficient Cooling: Front-to-rear airflow design enhances cooling efficiency, contributing to system stability and longevity.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6930-2C:
| Product Name | Category | Description |
| M6900-36CQ18DC-CES | Line Card Module |
Provides 36 × 100GE QSFP28 ports and 18 × 200GE QSFP56 ports, supporting high-density connectivity. |
| PSA1300CRPS-F-RJ | Power Supply Module |
1300W AC/HVDC power supply module, supporting 2+2 redundancy for uninterrupted power. |
| FAN12K8080-F-RJ | Fan Module |
High-efficiency fan module with intelligent speed adjustment for optimal cooling performance. |
Specifications
| Parameter | Specification |
| Model | RG-S6930-2C |
| Service Slots | 2 |
| Switching Capacity | 28.8 Tbps |
| Packet Forwarding Rate | 5,400 Mpps |
| Port Configurations | Supports up to 144 × 100GE or 72 × 200GE ports |
| Buffer Capacity | 16 GB |
| Power Module Slots | 4 (supporting 2+2 redundancy) |
| Fan Module Slots | 8 (supporting 7+1 redundancy) |
| Management Ports | 1 × Management, 1 × Console, 1 × USB 2.0 |
| Dimensions (W × D × H) | 442 mm × 760 mm × 175 mm (17.40 in. × 29.92 in. × 6.89 in., 4 RU) |
| Weight | Approximately 33.55 kg (including fan and power modules) |
| Power Supply | AC 100–240V or HVDC 240V |
| Maximum Power Consumption | 2,934 W (typical: 1,338 W; static: 600 W) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Altitude | Operating: up to 5,000 m (16,404 ft.) |
| MTBF | ≥ 200,000 hours |
