Is the Huawei CloudEngine S5735-L12T4S-A a fanless switch?

Yes, it adopts a fanless design with natural heat dissipation, enabling completely silent operation. This makes it especially suitable for noise-sensitive environments such as libraries, hotel reception areas, and open offices.

Does the S5735-L12T4S-A support Power over Ethernet (PoE)?

No. This model is a data-only switch and does not provide PoE functionality. It is intended for devices with independent power sources. For a PoE version, consider the S5735-L12P4S-A.

What is the port configuration of this switch?

It provides 12 x 10/100/1000Base-T (Gigabit RJ45) downlink ports along with 4 x GE SFP uplink ports for flexible fiber connectivity.

What is the switching capacity and forwarding performance?

The switch delivers a forwarding rate of 24 Mpps, with a device switching capacity of 32 Gbps and an overall system switching capacity of 336 Gbps.

Can multiple S5735-L12T4S-A switches be stacked?

Yes. With Huawei's iStack technology, up to 9 switches can be combined into a single logical device using electrical ports, providing up to 80 Gbps bidirectional stack bandwidth.

Does this model support Layer 3 routing?

Yes. It is a fully managed switch supporting Layer 3 features, including IPv4 static routing, RIP (v1/v2), and OSPF.

What is the maximum power consumption of the device?

Thanks to its efficient fanless architecture, the maximum power consumption is only 29 W, while typical consumption at 30% load is around 23 W.

What are the physical dimensions and weight?

The switch uses a compact 1U chassis measuring 43.6 mm (H) x 442 mm (W) x 220 mm (D), with a total weight of approximately 3.83 kg including packaging.

What are the CPU and memory specifications?

It is powered by a 4-core 1000 MHz CPU, with 1 GB of RAM and 512 MB of flash memory (approximately 306 MB available for users), ensuring stable enterprise performance.

Does it support USB-based deployment?

Yes. A built-in USB 2.0 port allows for zero-touch deployment, batch configuration, and software upgrades via USB storage devices.

Can the S5735-L12T4S-A be managed via the cloud?

Yes. It supports cloud-based management through Huawei platforms such as iMaster NCE-Campus, enabling remote configuration, monitoring, and reduced O&M effort.

What security features are included?

The switch offers enterprise-grade security, including 802.1X authentication, MAC authentication, DHCP snooping, strict ARP learning, and protection against DoS attacks such as SYN flood and ICMP flood.

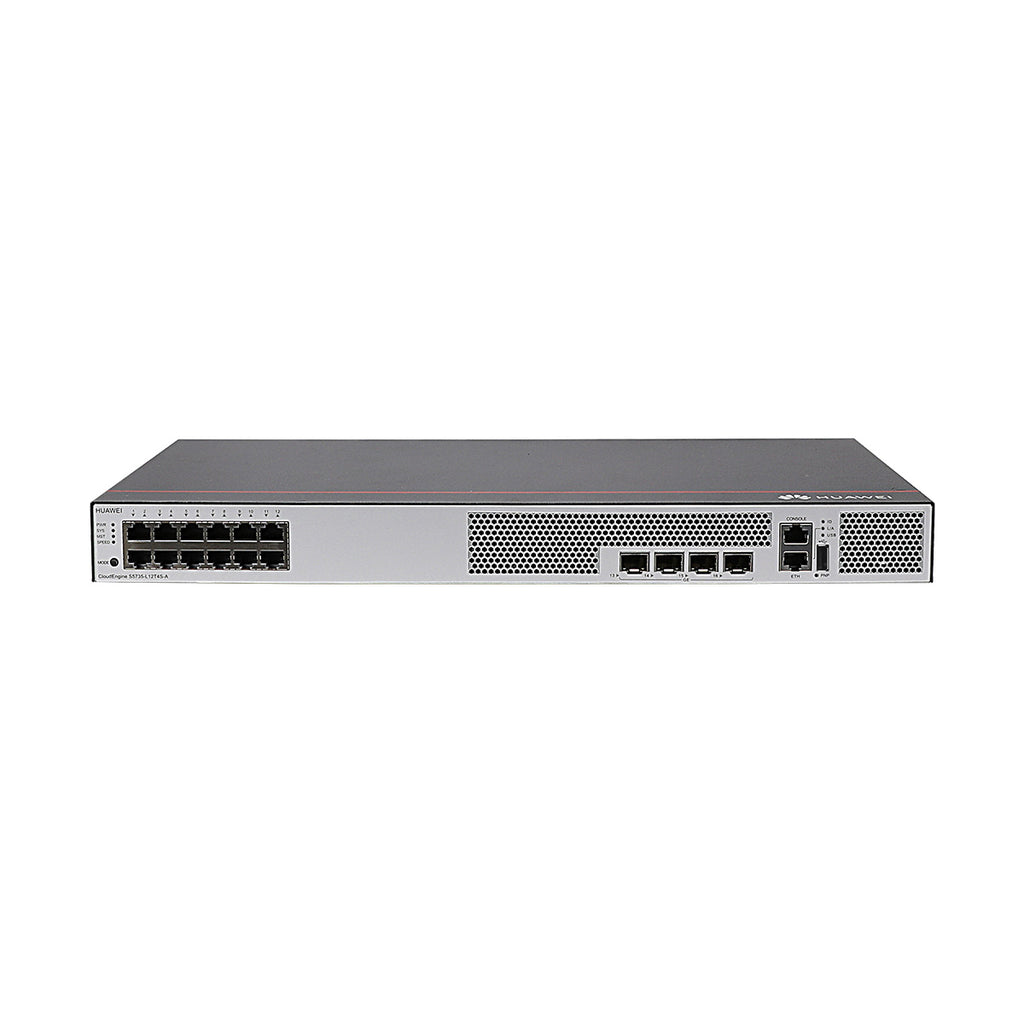

Huawei CloudEngine S5735-L12T4S-A 12-Port Gigabit Layer 3 Managed Switch with 4GE SFP Uplinks, Fanless Silent

اسم:

Huawei CloudEngine S5735-L12T4S-A 12-Port Gigabit Layer 3 Managed Switch with 4GE SFP Uplinks, Fanless Silent

نموذج:

S5735-L12T4S-A

التفاصيل:

الطبقة 3، 12 منفذ GE، 4 روابط تصاعدية SFP GE، تحويل 32 جيجابت في الثانية، إعادة توجيه 24 ميجابت في الثانية، VLAN، أمان ACL، إدارة الويب.

List Price:

$149.10 USD – $554.40 USD

التوفر:

في الأوراق المالية النظام السابق إنتهى من المخزن

حالة:

جديد

30-Day Returns | 30-Day Exchange

قسط:

100% Genuine Original, factory-verified

3-Year Warranty Extended, enterprise-grade

20 Years Expertise Proven, deployment-focused

شحن:

Express Shipping to 3-8 Days, via DHL, UPS, etc.

Proven Expertise, Trusted Solutions

9 Years, 100+ Countries
12000+ Customers/Projects
CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

24/7 Online Service

+852-63593631(Whatsapp)

+1-(458)271-7920(Whatsapp)

Chat Now

Join Partner Network

Exclusive Discounts/Service
Credit Terms/Priority Supply In Hongkong

Partner Today

Connectivity Solutions

Overview

Reviews

Q&A

DOWNLOAD

huawei_medium_enterprise_and_campus_network-type_1

huawei_medium_factory_and_farm_network-type

Faster Delivery, Globally Ready

48H
Worldwide Shipping
5+
Global Warehouses

Leading Global Distributor
Since 2017

A global ICT bridge delivering authentic hardware and trusted service for over 8 years.

Worry-Free Coverage with NSCare

3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support. See Our Refund Policy

Keep Projects On Time

Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

Your Trusted Genuine Source

Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Huawei, Nvidia, Juniper and Fortinet. 100% Original New Products

Select Right Huawei Switches

Huawei provides CloudEngine S5720, S5731, S5735, S6730, S6750 series and more switches for all-size business needs.

• CloudEngine S5731 • CloudEngine S5720

• CloudEngine S6730 • CloudEngine S6750

• All Huawei Switches • Global Sock List

0Gbps

Switching Capacity

0

Data Port

0Mpps

Fwd Rate

Applications Scenarios

Enterprise Network

The C9200 Series delivers scalable PoE+ and secure Layer 3 switching for stable enterprise access, reducing deployment complexity and boosting uptime.

Edge & IoT

The C9200 series directly energizes edge/IoT devices, enabling reliable, managed device connectivity in distributed deployments.

Security & Privacy

Advanced Cisco security like MACsec and TrustSec ensure compliance, safeguarding critical business data with granular access controls and robust encryption.

نموذج المنتج	فئة	وصف
SFP-GE-LX-SM1310	جهاز إرسال واستقبال SFP	1000BASE-LX SFP، 1310 نانومتر، ألياف أحادية الوضع، حتى 10 كم
SFP-GE-SX-MM850	جهاز إرسال واستقبال SFP	1000BASE-SX SFP، 850 نانومتر، ألياف متعددة الأوضاع، حتى 550 مترًا
SFP-GE-T	جهاز إرسال واستقبال SFP	1000BASE-T SFP، موصل RJ45، يصل إلى 100 متر عبر Cat5e/Cat6
CAB-SFP-1M	كابل SFP	كابل نحاسي SFP بطول 1 متر للتوصيل المباشر
كاب-إس إف بي-3 إم	كابل SFP	كابل نحاسي SFP بطول 3 أمتار للتوصيل المباشر
CAB-SFP-5M	كابل SFP	كابل نحاسي SFP بطول 5 أمتار للتوصيل المباشر

ميزة	S5735-L12T4S-A	S5735-L24T4S-A	S5735-L12P4S-A
منافذ الارتباط الهابط	12 × جي إي	24 × جنرال إلكتريك	12 × GE PoE+
منافذ الربط الصاعد	4 × GE SFP	4 × GE SFP	4 × GE SFP
دعم PoE	لا	لا	نعم (370 واط)
سعة التبديل	32 جيجابت في الثانية	56 جيجابت في الثانية	32 جيجابت في الثانية
سعر إعادة التوجيه	24 مليون نقطة في الثانية	42 مليون نقطة في الثانية	24 مليون نقطة في الثانية
دعم التكديس	لا	لا	لا
حالة الاستخدام المثالية	الوصول المدمج	الوصول القياسي	الوصول إلى PoE

المعلمة	مواصفة
نموذج	S5735-L12T4S-A
منافذ الارتباط الهابط	12 × 10/100/1000BASE-T منافذ
منافذ الربط الصاعد	4 منافذ GE SFP
سعة التبديل	حتى 32 جيجابت في الثانية
سعر إعادة التوجيه	24 مليون نقطة في الثانية
جدول عناوين MAC	16 ألف إدخال
شبكات VLAN	يدعم ما يصل إلى 4096 شبكة VLAN (IEEE 802.1Q)
جودة الخدمة	8 قوائم انتظار لكل منفذ، وخوارزميات جدولة SP وWRR وSP+WRR
ميزات IPv6	مضيف IPv6، مسارات ثابتة، OSPFv3، BGP4+، IS-ISv6
ميزات الأمان	802.1X، تصفية MAC، DHCP snooping، فحص ARP، عزل المنفذ
إدارة	مبني على الويب، CLI، Telnet، SNMP v1/v2/v3، RMON، SSHv2
مزود الطاقة	وحدة طاقة تيار متردد مدمجة (غير قابلة للتوصيل)
استهلاك الطاقة	نموذجي: 23 واط
درجة حرارة التشغيل	من -5 درجة مئوية إلى 45 درجة مئوية (من 23 درجة فهرنهايت إلى 113 درجة فهرنهايت)
الأبعاد (العرض × العمق × الارتفاع)	442 مم × 220 مم × 43.6 مم (17.4 بوصة × 8.7 بوصة × 1.7 بوصة)
وزن	≤ 3.83 كجم (8.44 رطل)
ضمان	ضمان محدود مدى الحياة
