Optimizing 25G0G connectivity can reduce rack power consumption by up to 15% and cut latency by 0.3 μs. Key levers include selecting Passive DAC for <3m links, leveraging 4×25G breakout strategies, and using LPO-ready modules for low-power high-speed deployments.
Quick Answer: What is Server-to-Switch Connectivity?

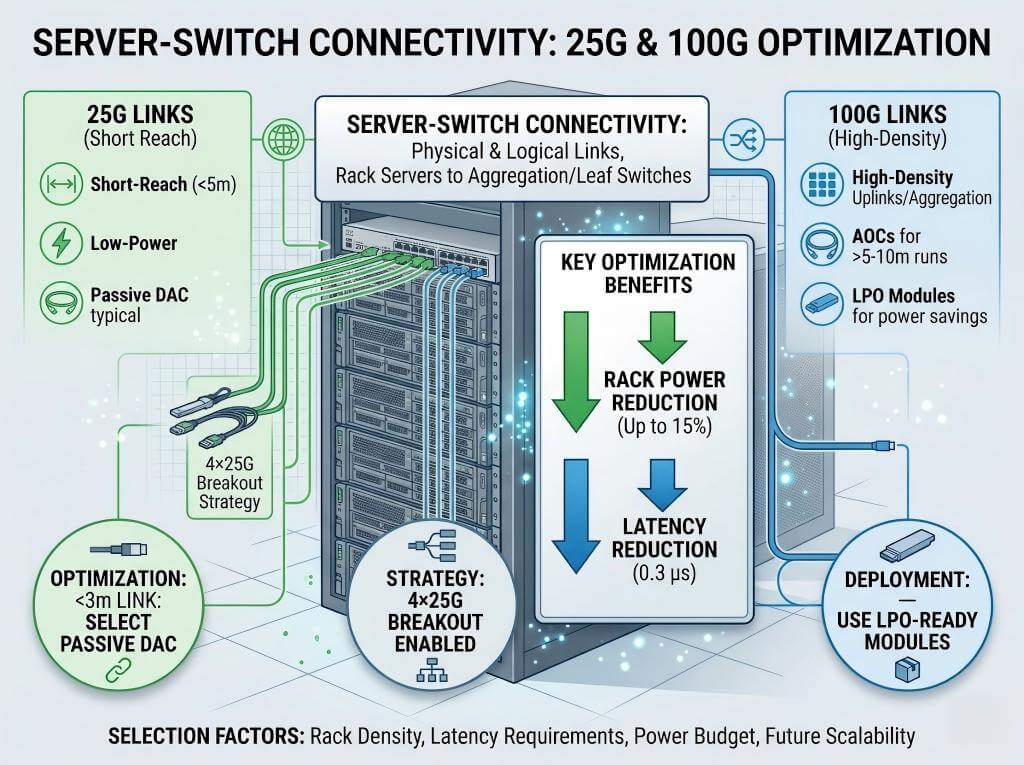

Server-to-switch connectivity refers to the physical and logical links connecting servers in a rack to the aggregation or leaf switches. For modern 25G and 100G deployments:
- 25G links: Typically short-reach (<5 m), cost-effective, low-power, often using DACs.
- 100G links: High-density uplinks or server aggregation, may require AOCs for >5-10 m runs, or LPO-based optical modules to save power.
The choice depends on rack density, latency requirements, power budget, and future scalability.
Core Components and Considerations
Module Type
- 25G: Usually SFP28 DACs or AOCs.
- 100G: QSFP28 modules or LPO-enhanced AOCs.
Each module type has different lane counts, breakout options, and power profiles, detailed in our SFP vs QSFP28 vs QSFP-DD form factor guide.
Lane Count and Breakout Strategy
- 25G: 1×25G per lane.
- 100G: 4×25G lanes per QSFP28 module. Breakouts allow one 100G port to feed four 25G server ports, reducing oversubscription.
Fiber Type and Cabling
- Passive DACs: Ideal for <3 m; low latency and zero optical power consumption.
- Active Optical Cables (AOCs): Required for >5 m runs; flexible, EMI-resistant, and lightweight.
- LPO Modules: Linear Drive Pluggable Optics remove DSPs, cutting ~25% power per 100G port for high-speed racks.
Link Budget & Power Considerations
High-speed server links must account for attenuation, connector loss, and safety margin:
- $P_{Margin}$: Remaining power margin (dB, must be $>0$)
- $P_{Tx}$: Transmitter output power
- $P_{Rx_Sens}$: Receiver sensitivity
- $\sum(Loss_{Components})$: DAC/AOC + connectors + splices (if any)
- $M_{Safety}$: Recommended 3-5 dB
Example Calculation (100G DAC, 1 m):
- Always monitor real-time Tx/Rx power via your switch's DDM/DOM diagnostics.
Best Practices for Modern Racks
| Factor | Recommendation | Notes |
| Distance | DAC <3 m, AOC >5 m | Use LPO if concerned about power at high port counts |
| Breakout Planning | Pre-configure 4×25G mapping | Prevents Day-1 deployment delays (observed in 2025-2026 deployments) |
| Cooling & Power | Optimize cable bundles to reduce airflow obstruction | Switching DACs from AOCs can save ~33.6 W per 48-port rack |
| Multi-vendor Interoperability | Test with Cisco Nexus, Huawei CloudEngine, Arista | Avoid surprises in leaf-spine deployment |
| Cable Handling | Maintain minimum bend radius ≥ 10× cable diameter | Prevents packet loss due to micro-bends |
TCO Sidebar: "Green Data Center: DACs have lowest carbon footprint per port. LPO modules reduce optical DSP energy by ~25%."
Common Mistakes & Field Experience
- Ignoring breakout mapping: Pre-configure QSFP28 4×25G port mapping.
- Overlooking power budgets: Use LPO if rack is high-density (>48 ports per rack).
- Thermal issues: DAC bundles can obstruct airflow; monitor via switch temperature sensors.
- Bend radius violations: Keep ≥10× cable diameter to prevent packet loss.
- Multi-vendor assumptions: Always test interoperability; our lab confirmed Cisco, Huawei, Arista modules work reliably.
1-Minute Optimization Checklist
- Determine link distance (<3 m DAC, 3-10 m AOC).
- Pre-plan breakout mapping for high-density racks.
- Choose LPO modules for future 800G readiness.
- Calculate link margin using $P_{Margin}$ formula.
- Monitor Tx/Rx power with [DDM/DOM diagnostics].
- Maintain proper cable bend radius.
- Verify multi-vendor compatibility.
- Consider power/cooling impact on TCO and ESG compliance.
Conclusion: Future-Ready Server-to-Switch Links
By following these best practices-selecting the right DAC/AOC/LPO module, pre-planning breakouts, monitoring power, and optimizing airflow-modern racks achieve high-density, low-latency, and energy-efficient server-to-switch connectivity. These optimizations ensure your data center is ready for future 100G/400G expansions while minimizing OpEx and carbon footprint.
Frequently asked questions (FAQs)
Can I mix 25G and 100G DAC/AOC links in the same rack?
Yes. Hybrid deployments are common. Ensure proper breakout mapping and power planning.
Do LPO modules reduce latency?
Yes. Removing DSPs reduces processing delay and power per port (~25%).
Can I plug an SFP28 25G module into a legacy 10G SFP+ port?
Usually yes, but manual configuration is required, and 25G performance will not be achieved.
How much safety margin should I leave for short-reach DACs?
A 3 dB margin is recommended to account for thermal drift and connector loss
What is the maximum bend radius for 25G/100G DAC/AOC cables?
Maintain at least 10× the cable diameter to avoid packet loss due to micro-bends.
