RG-AP850-AR(V3) Access Point Overview
The Ruijie RG-AP850-AR(V3) is a high-performance Wi-Fi 6 (802.11ax) quad-radio indoor access point designed to deliver ultra-fast, reliable wireless connectivity in high-density environments such as educational institutions, government offices, healthcare facilities, and enterprise settings. With its advanced features and flexible deployment options, the RG-AP850-AR(V3) ensures seamless user experiences and efficient network management.
Highlight
- Quad-Radio Design: Equipped with four radios (2.4 GHz, two 5 GHz, and AI radio), supporting a combined peak data rate of up to 6.245 Gbps, ensuring high-speed wireless access.
- Advanced Wireless Technologies: Supports OFDMA, MU-MIMO, and 1024-QAM, enhancing efficiency and reducing latency in high-density environments.
- Flexible Deployment: Supports both wall and ceiling mounting options, as well as PoE and DC power supply modes, catering to diverse installation requirements.
- Enhanced Security: Incorporates WPA3 encryption, 802.1X authentication, and PPSK, ensuring robust network security.
- Intelligent Management: Compatible with Ruijie’s Smart Network Commander (SNC) and supports hybrid management modes (Cloud / Controller / Standalone) for simplified operations and maintenance.
Specification
| Parameter | Specification |
| Model | RG-AP850-AR(V3) |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Radio Configuration | Quad-radio: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO x2), AI Radio (2x2 MIMO) |
| Peak Data Rate | Up to 6.245 Gbps |

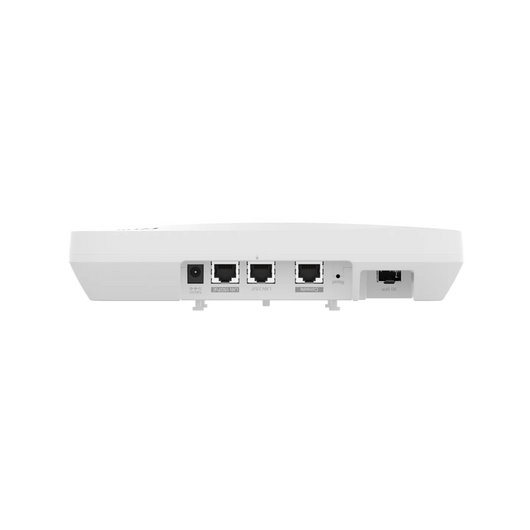

| Ethernet Ports | 1 × 100/1000/2.5G/5GBASE-T RJ45, 1 × 5GE SFP/RJ45 combo port, 1 × 10/100/1000BASE-T RJ45, 1 × RJ45 console port, 1 × USB 3.0 (Type-A connector) |
| Antenna Type | Built-in omnidirectional antennas (2.4 GHz: 5.4 dBi, 5 GHz: 5.2 dBi) |
| Power Supply | Supports DC and PoE power supply (IEEE 802.3af/at/bt) |
| Maximum Power Consumption | 40 W |
| Security | WPA3, WPA2, WPA, 802.1X, PPSK |
| Management | Supports Fat, Fit, and Cloud modes; compatible with Ruijie SNC |
| Operating Temperature | –10°C to +50°C (14°F to 122°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W × D × H) | 230 mm × 230 mm × 51 mm (9.06 in. × 9.06 in. × 2.01 in.) |
| Weight | ≤ 1.0 kg (2.20 lbs) |
| Warranty | Limited lifetime warranty |
