Ruijie’s MAP920 Series AP delivers fiber-based Indoor Wi-Fi 7 AP performance in a sleek micro form factor. The flagship RG-MAP920-SF-M combines up to 3.570 Gbps wireless throughput, a 2.5 GbE SFP port, and four 1 GbE downlinks—perfect for dorms, hotel rooms, and offices seeking high-speed, low-latency connectivity with simplified optical backhaul.
Models Overview & Specification
| Feature | RG-MAP920-SF-M |
| Form Factor | Micro AP (wall-plate style) |
| Radios | Dual-band Wi-Fi 7 (2.4 GHz & 5 GHz, 2×2:2 each) |
| Peak Wireless Rate | 3.570 Gbps (combined) |
| Optical Uplink | 1×2.5 GbE SFP |

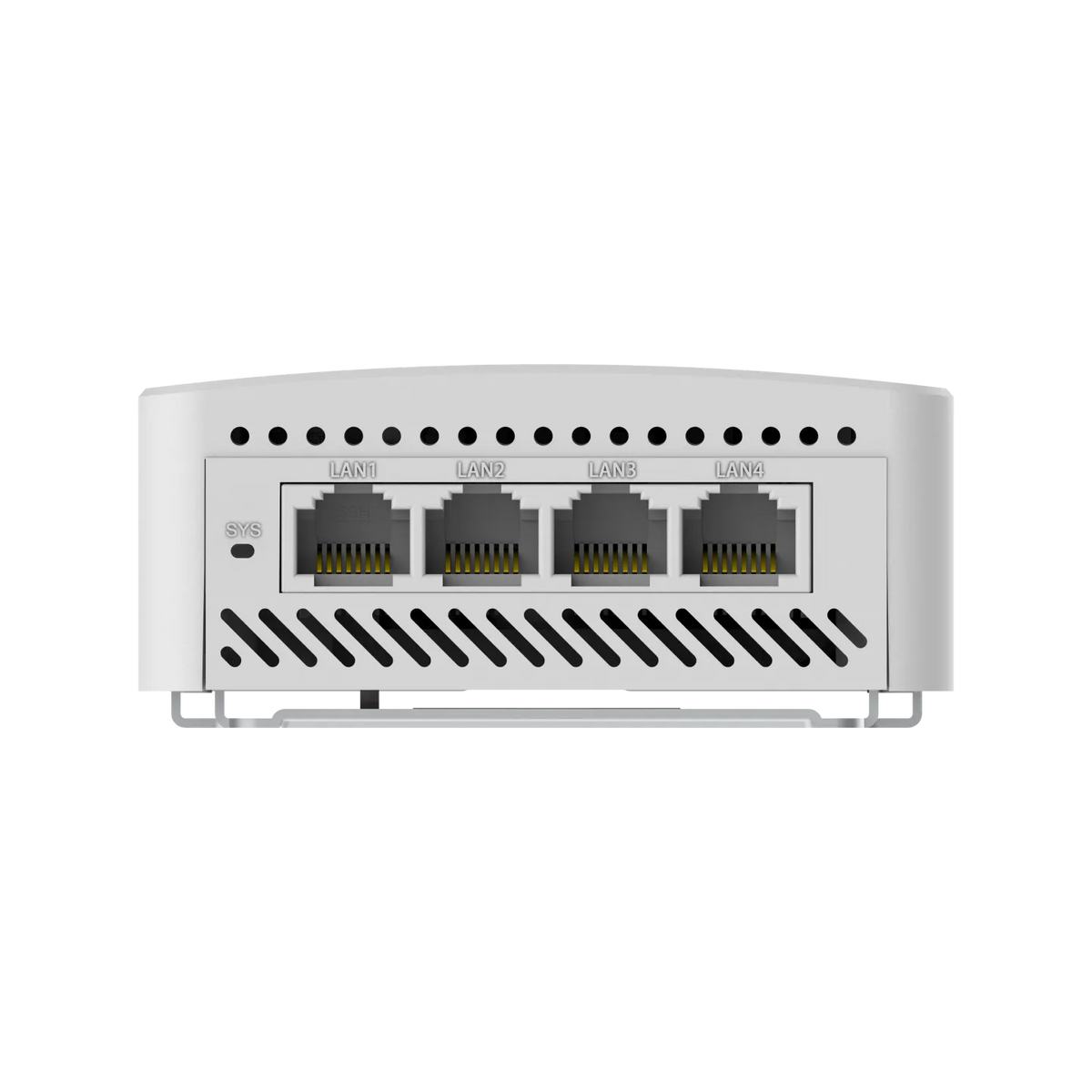

| Ethernet Downlinks | 4×1 GbE RJ45 (PoE-powered devices) |
| Backhaul Technology | Simplified Optical Ethernet (SOE) via CWDM/hybrid cable |
| Security | WPA3, 802.1X/RADIUS, Guest Portal, Rogue AP Detection |
| Management | Ruijie Cloud, AC Controller, Standalone CLI/GUI |
| Operating Conditions | Indoor IP41, 0 °C–50 °C |
| Power & Surge Protection | PoE+ (802.3at 30 W); built-in 6 kV surge protection |
| Advanced Features | 4096-QAM, 320 MHz channels, digital-twin O&M (30% efficiency gain) |
Accessories & Optional Modules
- External Antenna Kits: 8 dBi omni and 120° sector options for bespoke coverage.
- Surge Protector Modules: DIN-rail and in-line for enhanced electrical protection on the optical link.
- Hybrid Cable Harnesses: Pre-terminated fiber + DC power cables for rapid installation.
- PoE Injectors: 60 W mid-spans for non-PoE environments.
Security & Authentication
- WPA3 Enterprise & Personal: SAE handshake and GCMP-256 encryption guard against brute-force attacks.
- 802.1X/RADIUS Integration: Dynamic per-user authentication with VLAN assignment for role-based access.
- Guest Portal & VLAN Isolation: Custom captive-portal workflows with bandwidth/time limits for visitors.
- Rogue AP Detection: Continuous scanning identifies unauthorized Wireless Access Points and triggers containment.
- Encrypted Management: SSH, HTTPS, and SNMPv3 ensure secure control-plane communications.
Installation & Mounting Guidelines
- Wall-Plate Form Factor: Fits standard 86 mm electrical boxes for discreet in-room deployment.
- Mounting Kits: Includes flush and surface-mount brackets with built-in cable management.
- Cable Entry & Grounding: Gland-sealed ports maintain IP41 rating; follow local electrical codes for grounding.
- Placement Best Practices: Install at 1.5–2 m height for optimal coverage in small rooms. Maintain line-of-sight to minimize interference from obstructions.
- Install at 1.5–2 m height for optimal coverage in small rooms.
- Maintain line-of-sight to minimize interference from obstructions.
RF Planning & Antenna Configuration
- Integrated Antennas: Internal omnidirectional elements optimized for in-room coverage.
- Channel Utilization: Leverages Wi-Fi 7’s 320 MHz channel option for doubled capacity vs. Wi-Fi 6.
- Power Control: Auto-adjust TX power based on noise floor and client density to reduce co-channel interference.
- Heat-Map Tools: Use Ruijie’s cloud portal to simulate RF coverage and identify dead zones prior to installation.
Management & Monitoring
- Ruijie Cloud: Zero-touch provisioning, global dashboards, batch firmware updates, and AI-driven anomaly alerts.
- AC Controller: On-premises high-availability controller for unified SSID, QoS, and security policy enforcement.
- Standalone Mode: Local GUI/CLI for single-AP or small-scale deployments.
- APIs & SNMPv3: RESTful interfaces and SNMP for integration with third-party NMS and automation frameworks.
Technical Configuration
SSID & Security
wlan ssid-profile RoomSSID
ssid GuestRoom
authentication-mode wpa3-personal
security wpa2-aes
vlan 10
interface wlan 1
ssid-profile RoomSSID
Optical & Ethernet Ports
interface gigabitEthernet 0/1-4
poe enable
interface sfp 1
port-type 2.5gbe
RF & Channel Settings
interface dot11radio 0
band 5g
channel auto
width 320
tx-power auto
O&M & Telemetry
digital-twin enable
Real-World Case Studies
- University Dormitories: 500 MAP920-SF-M units deployed across five halls, delivering seamless 4 K video streaming and reducing Wi-Fi complaints by 85%.
- Hotel Guest Rooms: In-room micro APs provided private SSIDs per room, boosting guest satisfaction scores and enabling IPTV and VoIP services.
- Private Offices: Simplified Optical Ethernet backhaul over hybrid cables supported both power and data over 200 m, cutting installation costs by 40%.
FAQ – Essential Questions
Q1: What makes the MAP920 Series an Indoor Wi-Fi 7 AP?
It supports IEEE 802.11be with 320 MHz channels and 4096-QAM, delivering up to 3.570 Gbps.
Q2: How does Simplified Optical Ethernet work?
A hybrid CWDM cable carries both optical data (2.5 Gbps SFP) and DC power over long distances, enabling centralized master-AP architectures.
Q3: Can the MAP920 replace traditional wall-plate APs?
Yes—fits standard 86 mm boxes and leverages existing mounts, while offering superior Wi-Fi 7 performance.
Q4: What security features are available?
WPA3, 802.1X/RADIUS, guest-portal, rogue AP detection, and encrypted management (SSH/HTTPS/SNMPv3).
Q5: Is the digital-twin O&M tied to Ruijie Cloud?
Yes—digital-twin functions run on Ruijie Cloud/AC, boosting O&M efficiency by up to 30% with AI-driven insights.
Q6: How many clients can each AP support?
Up to 1,536 concurrent devices, ideal for dense indoor environments.
Q7: What power options exist?
Supports PoE+ (802.3at 30 W) and DC input (12–57 V) with built-in surge protection.
Q8: How are firmware upgrades managed?
Via Ruijie Cloud or AC controller—schedule zero-impact upgrades with automatic rollback if needed.
Conclusion
The Ruijie MAP920 Series sets a new standard for Indoor Wi-Fi 7 AP performance. With micro-AP form factors, optical backhaul, 3.570 Gbps wireless rates, and digital-twin automation, these Wireless Access Points deliver future-proof, high-density connectivity for any indoor scenario.
