RG-IS5200-8GT4XS-UP-DC

Q1: What environments is the RG‑IS5200 series designed for?

A: The RG‑IS5200 is built for harsh industrial conditions, offering wide temperature support (‑40 °C to +75 °C), dust, water, salt‑fog, surge and lightning protection, and high resistance to vibration.

Q2: What port configurations are available in the series?

A: Models offer 8 or 24 gigabit Ethernet (GE) downlink ports, plus four 1 GE/10 GE SFP+ uplinks. Some variants include PoE support .

Q3: Can the RG‑IS5200 provide Power over Ethernet (PoE) over long distances?

A: Yes, it supports long‑distance PoE: up to 1000 Mbps on 200 m and 100 Mbps on 400 m, with PoE/PoE+/PoE++ capability, up to 90 W per port .

Q4: How does the switch handle redundancy and fault tolerance?

A: It uses dual‑DC or AC input modules with 1+1 redundancy, supports VRRP for Layer 3 redundancy, STP/RSTP/MSTP, ERPS, BFD, RLDP/RLDP loop detection, and rapid convergence for high availability .

Q5: Can multiple RG‑IS5200 switches be managed as one logical device?

A: Yes, Virtual Switch Unit (VSU) allows clustering multiple switches under a single IP/CLI instance, with unified management and sub‑200 ms failover between members .

Q6: What layer‑3 protocols does it support?

A: It supports static routing, RIP, OSPF, and both IPv4 & IPv6 VRRP. Higher-end models may also support IS‑IS and BGP .

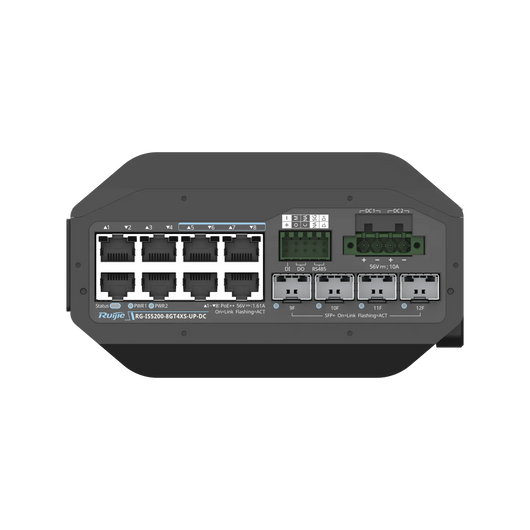

Q7: What hardware interfaces and management ports does it include?

A: Offers RJ‑45 console, USB port, RS‑232, RS‑485 (Modbus), DIDO, plus SFP+ uplinks. Management via CLI, web GUI, Telnet, SNMP, RMON, Syslog, USB backup is supported .

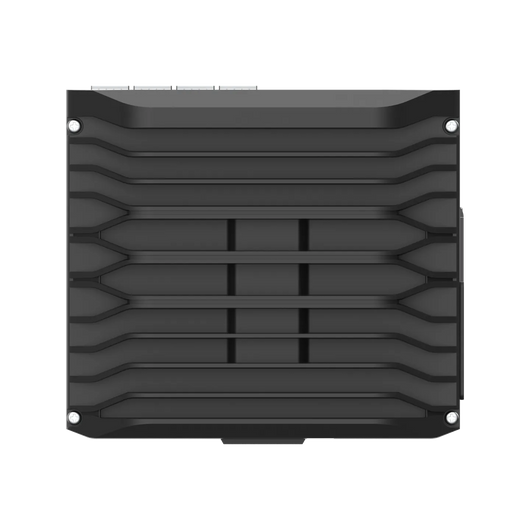

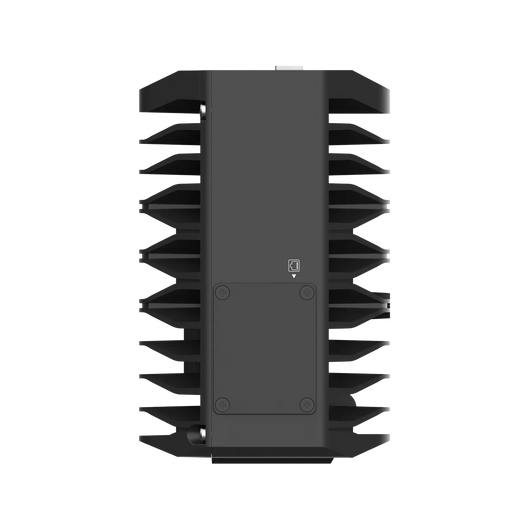

Q8: Does the RG‑IS5200 use fans? How is heat dissipated?

A: Most models are fanless with aluminum-alloy casings for effective passive cooling; some rack variants may include internal fans .

Q9: What is the switching capacity and performance?

A: Performance varies by model: e.g., 96 Gbps / 72 Mpps (8-port), up to 128 Gbps / ~95 Mpps on other models .

Q10: How resilient is the hardware design?

A: It meets IP55 when equipped with shield enclosure, protects against 10 kV surge, uses industrial components, and supports wide voltage input (9.6‑60 V DC or 90‑264 V AC) .

Q11: What management and security features are included?

A: Security includes SSHv2, HTTPS, ACL, IP‑MAC binding, port isolation, DHCP snooping, ARP inspection. Logging via Syslog, SNMP v2/v3, RMON, and USB config backup is supported .

Q12: In what use cases is the RG‑IS5200 ideal?

A: Commonly used in outdoor video surveillance, smart cities, industrial automation, intelligent transportation, and manufacturing where rugged performance and long‑distance PoE are required .
