Summary
Answer first: choose MSR610 only after validating exact hardware, Comware release, interfaces, feature-on traffic, VPN, routing, security, availability, management, and support requirements. Use the official source, the H3C router documentation map, and H3C MSR610 guide, MSR810 vs MSR830 comparison, MSR1004S vs MSR1008 comparison, secure-router guide, industrial-router guide, the Router 101 hub, the branch-router selection guide, and current H3C router options. Evidence boundary: preserved specifications and examples are planning inputs, not an independent benchmark or customer result. Support boundary: capability, software, licenses, lifecycle, entitlement, seller status, warranty, service, delivery, and engineering scope require exact PID, release, region, date, and written evidence.

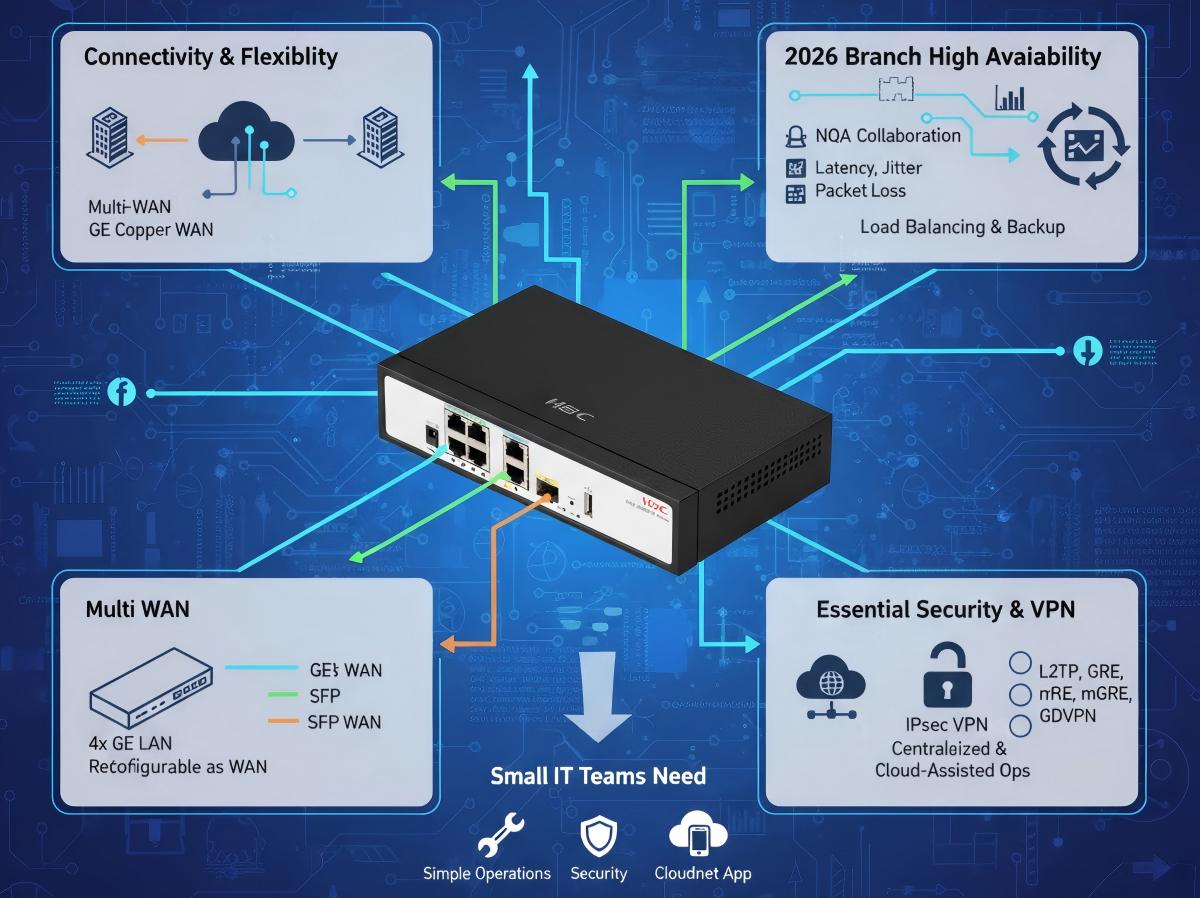

Its key advantage is flexibility: you get 6× Gigabit Ethernet total, including 1× GE copper WAN + 1× SFP WAN, and the 4× GE LAN ports can be reconfigured as WAN for multi-line designs.
Why MSR610 Still Makes Sense in 2026?
1) Branch networks are more "WAN-sensitive" than ever
By 2026, even small sites depend heavily on SaaS apps, cloud storage, VoIP, and video. The "ISP is up but users still complain" problem is often caused by latency, jitter, packet loss, or route flaps-not raw bandwidth.
MSR610 is built with branch high availability features like load balancing/backup and NQA collaboration with routing (health-check driven path decisions), which is exactly what small sites need when uptime matters but budgets are real.
2) VPN isn't optional anymore
Even if your HQ uses cloud services, many companies still need site-to-site IPsec (to reach internal systems, ERP, private services, or centralized security controls). MSR610 supports IKE + IPsec, and also includes VPN options like L2TP, GRE/mGRE, and GDVPN in its feature list.
3) Small IT teams need simpler operations
H3C positions MSR610 for centralized and cloud-assisted operations with Cloudnet App management and remote management platform support (Oasis is mentioned on the official page). For small teams, "manageable" is often a bigger win than "more features."
MSR610 Positioning: What it is?
MSR610 is a branch-router candidate when its documented interfaces and validated feature set match the design; do not infer firewall, VPN, availability, or WLAN-controller scale from the series name.
- Routing + NAT/NAPT
- Security basics (firewall/ASPF/ACL/connection limit)
- Multi-WAN failover and load balancing
- IPsec VPN
- Basic Layer 2 switching features (VLAN, STP variants, 802.1X, etc.)
- Optional Wireless AC function with licensing (more on that below)
It is not positioned as a full high-throughput next-gen firewall or a large-branch SD-WAN box.
A key spec to internalize: H3C lists Forwarding Performance with ACL+NAT+QoS (IMIX) as 300 Mbps, while also listing NGFW Throughput (1518-byte packets) as 1 Gbps-these are different test conditions and should be interpreted carefully when sizing.
Key Specifications at a Glance
| Category | MSR610 Official Specification |
| Product / Ordering | RT-MSR610 - "H3C MSR610 Enterprise-Level 6-Port Gigabit Ethernet Router" |
| Forwarding performance (ACL+NAT+QoS, IMIX) | 300 Mbps |
| NGFW throughput (1518-byte packets) | 1 Gbps |
| CPU / Memory / Flash | 800 MHz, 1 GB, 256 MB flash |
| Ports (WAN) | 1× GE copper WAN + 1× SFP WAN |
| Ports (LAN / configurable) | 4× GE ports (can be configured as WAN interfaces) |
| USB / Console | 1× USB (no SIM), 1× console |
| Power / Size | 24 W max, 210×140×44 mm, DC 12V 2A |
| Operating environment | 0°C-40°C, 5%-95% RH |
Feature Map (What You Can Build with MSR610)
1. Routing and switching capabilities (useful for "small-but-real" networks)
MSR610 includes a surprisingly complete set of branch-friendly functions:
- Layer 2 switching: VLAN (port-based VLAN, guest VLAN), 802.1Q, STP/RSTP/MSTP, 802.1X
- IPv4 routing: static + dynamic routing (RIPv1/v2, OSPFv2, BGP, IS-IS), ECMP, policy routing
- Traffic visibility/telemetry basics: NetStream and sFlow listed under IP services
Why this matters in 2026: even a small site often needs at least:
- separate VLANs for Office / Guest / IoT-CCTV
- a real routing protocol (or at minimum stable static routing)
- basic monitoring hooks so you can diagnose what's happening without guessing
2. Security and VPN (branch minimum viable security)
H3C lists:
- Basic Firewall Function, ASPF, ACL, connection limit
- IKE + IPsec, plus L2TP
- NAT/NAPT
- SSH, PKI/RSA, and crypto primitives (AES/DES/3DES/MD5/SHA1 listed)
This is enough for most SMB branch designs where you want:
- "default deny" inbound from WAN
- controlled outbound access for IoT/Guest
- encrypted site-to-site tunnels to HQ/cloud edge
3. High availability (the feature that pays for itself)
H3C explicitly lists:
- Bandwidth-based load balancing and backup
- IP address-based load balancing and backup
- NQA collaboration with routing / interface backup
In the MSR610 datasheet, H3C also mentions BFD and "millisecond link fault detection" in the high availability section-useful if you're designing faster failover behavior.
2026 Deployment Patterns
Pattern A: Single ISP + clean segmentation (most small offices)
When to use: one broadband circuit is acceptable, but you still want good structure.
| Component | Recommendation |
| WAN | GE copper WAN (or SFP WAN if your uplink is fiber handoff) |
| LAN | VLANs: Office / Guest / IoT-CCTV |
| Security | ACLs between VLANs + NAT policy; restrict IoT outbound destinations |
| Monitoring | Enable logs + basic flow visibility (NetStream/sFlow) |
Pattern B: Dual ISP failover (business continuity baseline)
When to use: POS systems, CCTV retention, or operations can't tolerate frequent ISP outages.
| Step | What to do (conceptually) | Why it matters |
| 1 | Use GE copper WAN + SFP WAN (or reassign LAN port as WAN) | Physical separation of uplinks |
| 2 | Configure NQA health checks to detect "ISP is up but internet is broken" | Avoid false "up" states |
| 3 | Set failback behavior carefully (avoid rapid flap) | Stability > speed for many SMBs |
Pattern C: Dual ISP load balancing (when you want smoother SaaS performance)
When to use: you have two moderate circuits and want better overall experience for many users.
H3C lists load balancing/backup based on bandwidth and IP address. You can typically implement:
- session-based balancing (good for general web)
- policy-based routing (pin VoIP to the cleaner circuit, pin backups to the cheaper circuit)
Load balancing improves aggregate throughput, but you still need QoS or policy pinning for jitter-sensitive apps.
Understanding the Throughput Specs
H3C provides two important performance numbers:
- 300 Mbps forwarding performance with ACL+NAT+QoS (IMIX)
- 1 Gbps NGFW throughput with 1518-byte packets
Here's the beginner-friendly interpretation:
- IMIX simulates a more realistic blend of packet sizes and flows. When you turn on "real network features" like NAT, ACL, and QoS, performance can drop significantly versus ideal lab traffic.
- 1518-byte throughput is closer to a "best case" large-packet forwarding figure.
Sizing boundary: compare the exact H3C test profile with measured packet sizes, flows, NAT, ACL, QoS, VPN, logging, routing, and peak traffic. Interface speed is not application throughput.
Wireless AC Function
H3C highlights a Wireless AC function:
- Maximum support for 64 APs, with suggested support for 8-16 APs
- licensing is involved ("no license by default, need to purchase" is noted on the official page)
How to think about this in 2026:
- If you only run a few APs per site and want centralized onboarding and upgrades, an "all-in-one" gateway + AC can simplify deployment.
- If wireless is mission-critical or large-scale, you'll often prefer a dedicated controller or cloud-managed WLAN platform for clearer scaling and separation of responsibilities.
Where to Buy and How to Build the Full BOM (MSR610 + Optics + Cabling)
At network-switch.com, you can bundle MSR610 with:
- SFP transceivers for the WAN SFP port
- Ethernet switches and PoE switching for APs/cameras
- Fiber patch cables and structured cabling accessories
- written engineering scope for VPN, failover, segmentation, testing, rollback, and acceptance
(Your readers care because "router only" doesn't solve projects-complete BOM + correct design does.)
FAQs
Q1: Why can a Gigabit interface deliver less application throughput?
A: Forwarding depends on packet size, traffic mix, NAT, ACL, QoS, VPN, logging, routing, software, and test method. Reproduce the required service mix on the exact PID and release.
Q2: Should MSR610 be sized from IMIX or large-packet results?
A: Use the official test definitions and the profile closest to your workload, then apply measured peak, growth, and failure-state traffic. No single published number replaces a pilot.
Q3: How should dual-WAN failure detection be designed?
A: Define monitored destinations, intervals, thresholds, route action, failback delay, session impact, alarms, and rollback in the exact Comware guide and test partial as well as total failures.
Q4: Can LAN ports be reassigned as WAN ports?
A: H3C documents link-mode changes for specified interfaces, but validate the exact PID, Comware release, interface map, configuration, cabling, and rollback before deployment.
Q5: Should a branch use failover or load balancing?
A: Choose from application behavior, session persistence, link quality, capacity, cost, observability, and failure impact. Test voice, video, VPN, SaaS, and return paths.
Q6: How should voice and video be protected during congestion?
A: Classify traffic, define trust boundaries and queues, measure loss, delay and jitter, and validate QoS under the full enabled-service load without assuming a universal policy.
Q7: Does MSR610 support site-to-site IPsec?
A: Verify IPsec, IKE, algorithms, certificates, NAT traversal, routes, license, scale, and throughput in the exact feature and configuration guides for the chosen release.
Q8: Why can IPsec be slower than the ISP circuit?
A: Encryption, packet size, algorithms, MTU, NAT, ACL, QoS, CPU, software, and traffic concurrency can become the limit. Measure encrypted traffic with required services enabled.
Q9: What should be checked when a tunnel is up but traffic does not pass?
A: Check selectors, routes, NAT exemption or traversal, ACLs, MTU or MSS, counters, logs, return path, peer settings, time, certificates, and packet captures under an approved change plan.
Q10: How should guest and IoT traffic be isolated?
A: Use documented VLANs, least-privilege policy, explicit DNS and management flows, logging, endpoint controls, and tested failure paths; a router alone does not establish a complete security program.
Q11: Is a stateful firewall function sufficient for branch security?
A: No. Combine approved firewall policy with identity, endpoint, patching, DNS, email and application controls, monitoring, backups, incident response, and recurring validation.
Q12: Can MSR610 manage wireless access points?
A: Treat wireless-controller capability and scale as release- and license-specific. Verify supported AP models, software, license, feature limits, redundancy, upgrades, and failure behavior in current H3C documentation.
Conclusion
For 2026 branch networks, MSR610 is a strong "core gateway" when your priorities are multi-WAN reliability, IPsec VPN connectivity, practical security controls, and manageable operations, all in a compact and power-efficient form.
Use it when your real-world throughput target aligns with the 300 Mbps IMIX (features-on) planning figure, and lean into NQA-driven failover plus clean VLAN segmentation to make small sites feel "enterprise-grade" without enterprise complexity.
