Huawei NE40E-X3A (CR5P03BASA75) – 3 LPU Slots, 1.08 Tbps Core Router
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
Proven Expertise, Trusted Solutions
- 8 Years, 100+ Countries
- 10000+ Customers/Projects
- CCIE, HCIE, H3CIE, RCNP, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Join Partner Network
- Exclusive Discounts/Service
- Credit Terms/Priority Supply In Hongkong

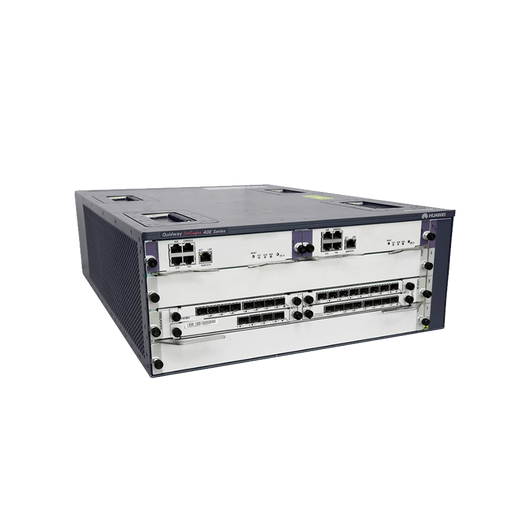

Huawei CR5P03BASA75 NE40E-X3A Routers Module
The Huawei CR5P03BASA75 NE40E-X3A is a high-performance, modular router designed for service provider edge and WAN aggregation networks. Part of Huawei's NetEngine40E series, it offers scalable architecture, advanced routing capabilities, and robust performance to meet the demands of modern network infrastructures.
Overview
Highlights
-
High Switching Capacity: Delivers up to 2.76 Tbps switching capacity, ensuring efficient data handling for high-throughput environments.
-
Advanced Forwarding Performance: Supports up to 1,071 Mpps forwarding performance, facilitating rapid packet processing and low latency.
-
Modular Design: Equipped with 5 slots (3 LPUs and 2 MPUs), allowing flexible expansion and customization based on network requirements.
-
Comprehensive Protocol Support: Compatible with IPv4, IPv6, MPLS, and a range of routing protocols, ensuring seamless integration into diverse network architectures.
-
Energy-Efficient Operation: Features intelligent fan speed adjustment and dynamic frequency scaling, reducing power consumption and operational costs.
Compare to Similar Items
| Model | Port Density | Max Throughput | Form Factor | Power Consumption | Software Support | Target Use | Redundancy |
| Huawei NE40E-X3A | Up to 120x10GE | 2.76 Tbps | Modular | ~1,070W | VRP | WAN Aggregation | Yes |
| Cisco NCS-55A1-24H-B | 24x100GE | 2.4 Tbps | Fixed (1U) | 330–550W | IOS XR | Core Networks | Yes |
| Cisco ASR 9000 Series | Varied (up to 32x100GE) | Up to 6.4 Tbps | Modular | Moderate | IOS XR | Edge Networks | Yes |
| Juniper MX10003 | Up to 24x100GE | 2.4 Tbps | Fixed (3U) | Efficient | Junos OS | Data Centers | Yes |
| Arista 7504R | Up to 576x10GE | 30 Tbps | Modular (7U) | High | EOS | Core Networks | Yes |
| Cisco NCS 5500 | 36x100GE | 3.6 Tbps | Fixed | Low | IOS XR | Data Centers | Yes |
Recommended Accessories
| Accessory | Part Number | Description |
| Main Processing Unit (MPU) | CR5D0SRUAC70 | High-performance control board for route processing and management. |
| Line Processing Unit (LPU) | CR5D0L2XFE75 | Flexible card supporting various interface types for data forwarding. |
| Fan Module | CR5D0FANB01 | Cooling fan module ensuring optimal operating temperatures. |
| DC Power Module | CR5D0PSUDC01 | DC power supply unit providing stable power input. |
| AC Power Module | CR5D0PSUAC01 | AC power supply unit compatible with standard power sources. |
| 100G QSFP28 Optical Module | QSFP-100G-LR4 | 100G optical transceiver for long-range data transmission. |
| 10G SFP+ Optical Module | SFP-10G-LR | 10G optical transceiver suitable for medium to long-distance connections. |
| DC Power Cable (≤25m) | 25030430 | 16mm² DC power cable for connections up to 25 meters. |
| AC Power Cable (Europe) | 4044598 | European standard AC power cable, 3.0m length, 250V/16A. |
| Console Cable | 330100004 | RS232 console cable for device management and configuration. |
Specifications
| Category | Specification |
| Model | CR5P03BASA75 NE40E-X3A |
| Product Type | Modular Router |
| Chassis Slots | 5 (3 LPUs, 2 MPUs) |
| Switching Capacity | Up to 2.76 Tbps |
| Forwarding Performance | Up to 1,071 Mpps |
| Dimensions (H × W × D) | 264 mm × 442 mm × 664 mm (6U) |
| Power Consumption | Maximum 1,070 W |
| Weight | Approximately 75 kg (fully loaded) |
| Supported Protocols | IPv4, IPv6, MPLS, OSPF, BGP, IS-IS, RIP |
| Redundancy | Supports 1+1 redundant MPUs and power supplies |
| Management Interfaces | Web-based GUI, CLI, SNMP |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 85% non-condensing |
| Altitude | 0 to 4,000 m |
| Compliance | CE, FCC, RoHS |
