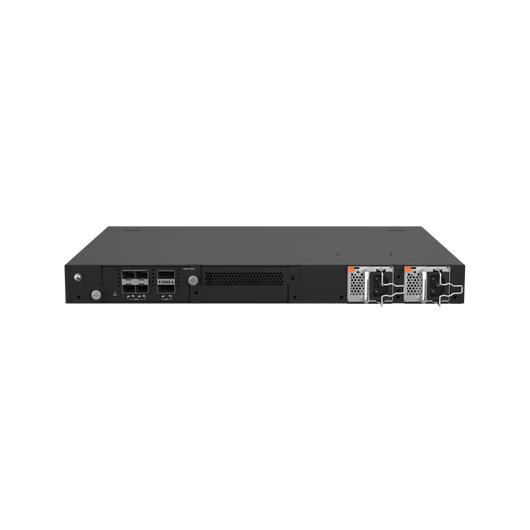

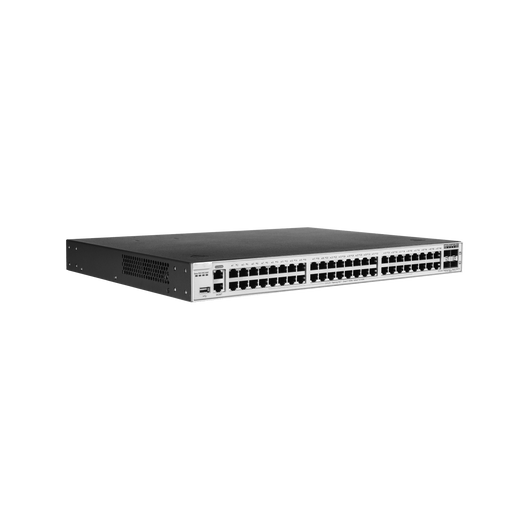

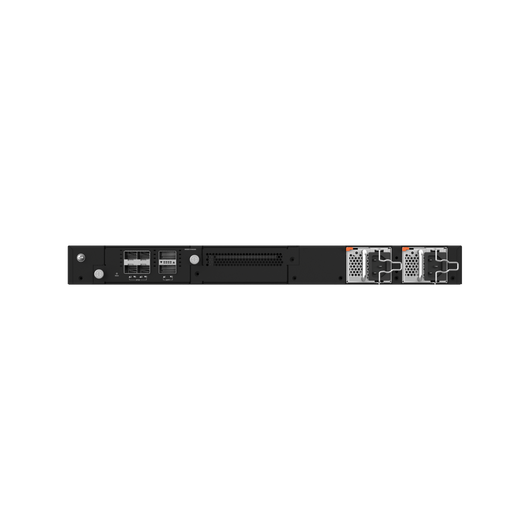

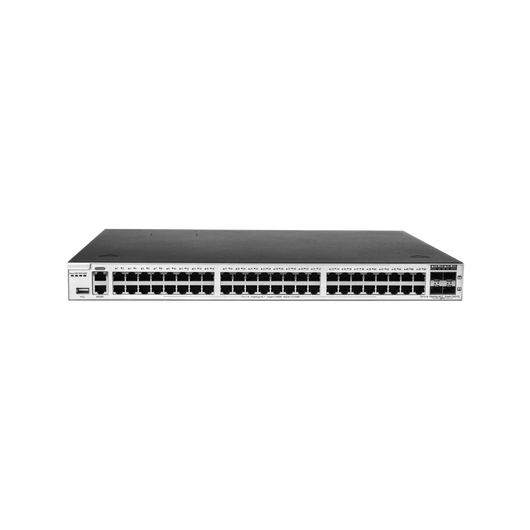

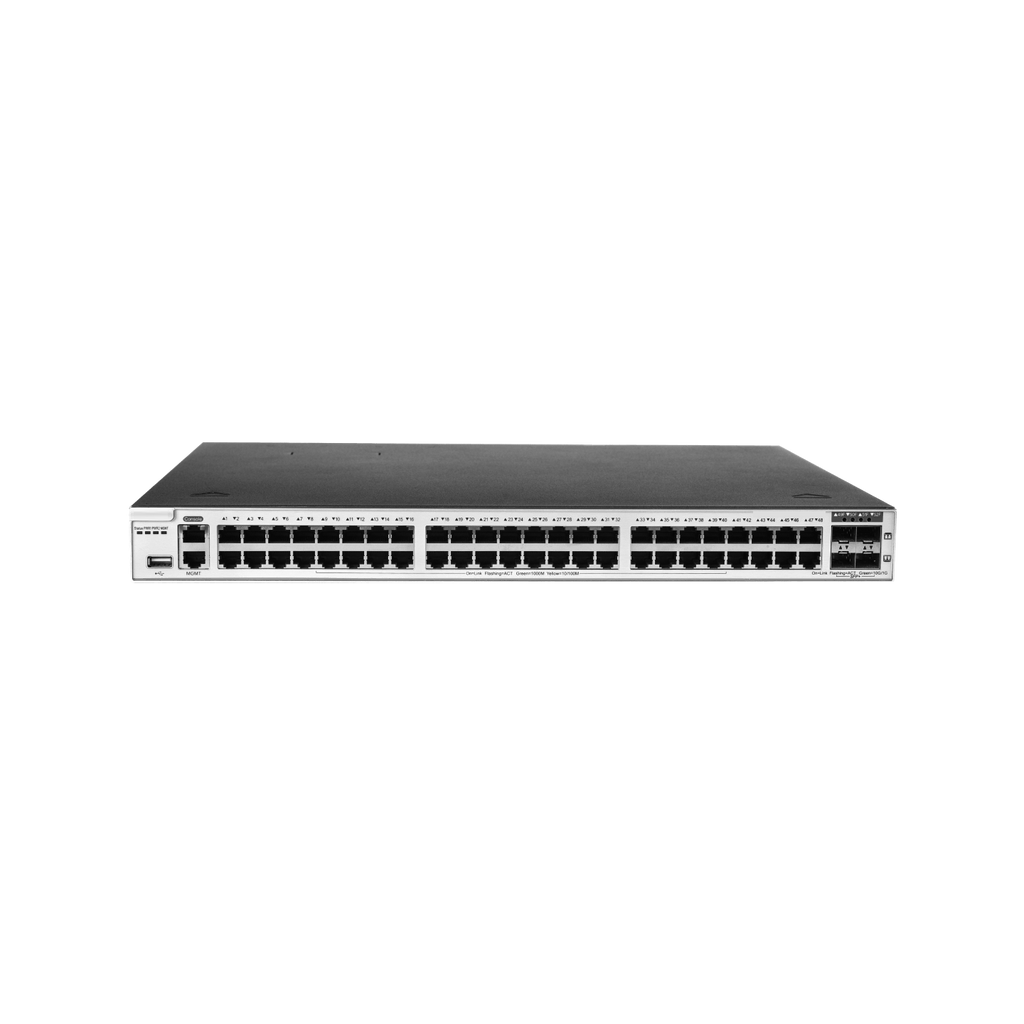

NS‑S5760C‑48GT4XS‑X, 48×1 Gbps RJ45 + 4×10 Gbps SFP+ Layer 3 Aggregation Switch
Overview
Equipped with 48×1 GbE ports, 4×10 GbE SFP+ uplinks; delivers 880 Gbps capacity and ~402 Mpps forwarding. Includes dual power module redundancy and fan support for high availability.
Highlights
-
880 Gbps / ~402 Mpps
-
Comprehensive Layer 2+/Layer 3 support: VLAN/QinQ/VXLAN, RIPv2/RIPng, OSPF, BGP4+, IS‑IS, ACLs, QoS, multicast support
-
Enterprise-grade reliability with dual PSU slots and hardware-level redundancy
-
VSU support, hybrid management interfaces, advanced O&M capabilities
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA150IB‑F | AC Power Module | 150 W module required |
| NS‑RMK‑1U | Rack Mount Kit | Standard mounting kit |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG‑S5760C‑24GT8XS‑X | 24×1GbE RJ45, 8×10GbE SFP+ | 880 Gbps | 426 Mpps | None | Dual PSU, dual-flash boot, redundant fans |
| NS‑S5760C‑24GT8XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48GT4XS‑X | 48×1GbE RJ45, 4×10GbE SFP+ | 880 Gbps | 402 Mpps | None | Dual PSU, dual-flash boot, redundant fans |
| NS‑S5760C‑48GT4XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑24SFP/8GT8XS‑X | 24×1GbE SFP, 8 Combo RJ45, 8×10GbE SFP+ | 688 Gbps | 512 Mpps | None | Dual PSU slots, fan redundancy, modular expansion |
| NS‑S5760C‑24SFP/8GT8XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48SFP4XS‑X | 48×1GbE SFP, 4×10GbE SFP+ | 880 Gbps | 660 Mpps | None | Dual PSU slots, triple fan redundancy |
| NS‑S5760C‑48SFP4XS‑X | Same | Same | Same | None | Same |
| Ruijie RG‑S5760C‑48GT4XS‑HP‑X | 48×1GbE RJ45 PoE+, 4×10GbE SFP+ | 880 Gbps | 402 Mpps | ≤30 W/port, up to 1565 W total | Dual PSU slots, redundant fans |
| NS‑S5760C‑48GT4XS‑HP‑X | Same | Same | Same | Same | Same |
| Ruijie RG‑S5750‑24SFP4XS24DP‑UP | 24×1GbE SFP, 4×10GbE SFP+, 24×PoF hybrid ports | 1.28 Tbps | 396 Mpps | ≤100 W per PoF port, ≤2400 W total | Triple PSU slots, triple fan redundancy |
| NS‑S5750‑24SFP4XS24DP‑UP | Same | Same | Same | Same | Same |
Specification Summary
| Parameter | Details |
|---|---|
| Model | NS‑S5760C‑48GT4XS‑X |
| Ports | 48×1 GbE RJ45, 4×10 GbE SFP+ |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | ~402 Mpps |
| MAC / ARP Table | 64K / 24K |
| Routing Table | ~24K routes |
| Redundancy Features | Dual PSU slots, fans, dual boot chips |
| Dimensions | 440×340×44 mm; ~4.3 kg |
| Operating Temp. | 0–45 °C |
| Surge Protection | 6 kV / 10 kV interface |
