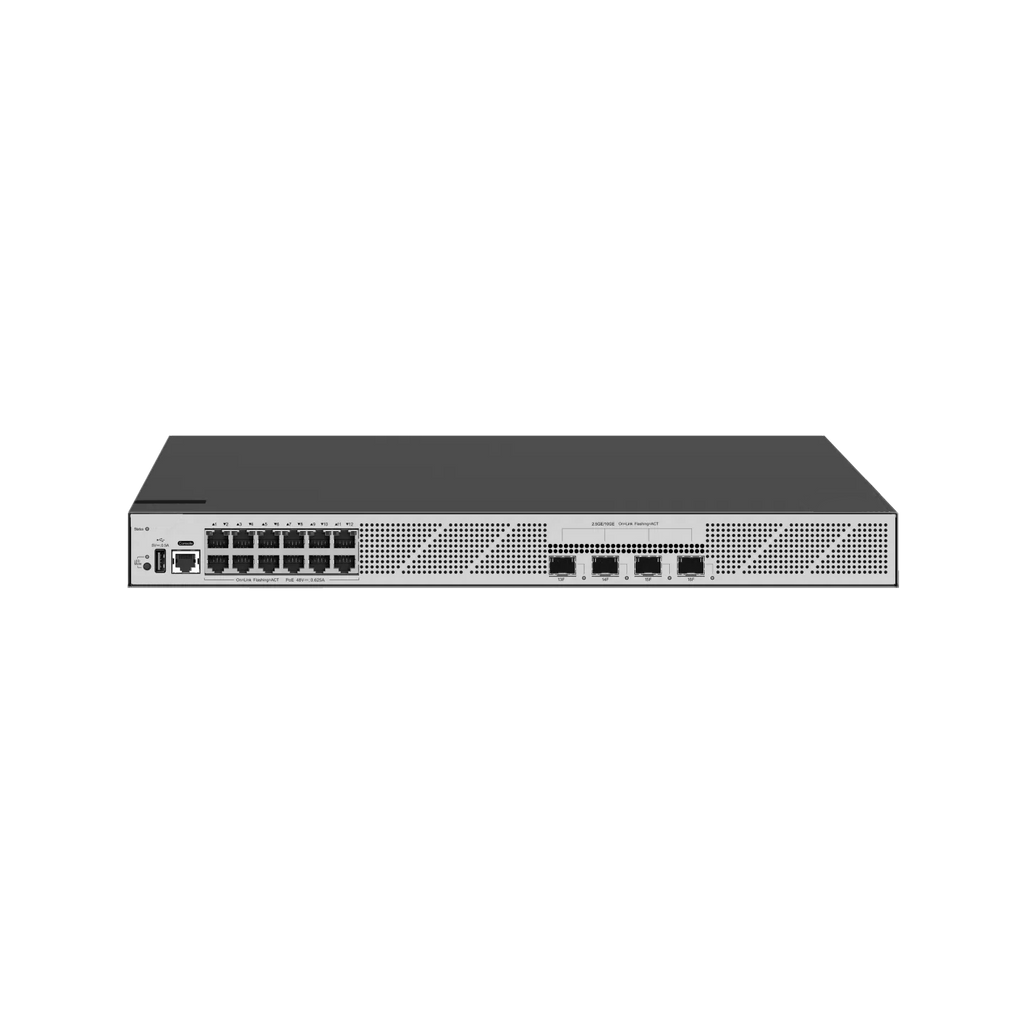

NS‑S5350‑12GT4XS‑P‑E, 12×1 GbE PoE+ + 4×10 Gbps SFP+ Layer 3 PoE Switch
As a top OEM partner alongside Cisco, H3C, Huawei, and Ruijie, Network‑Switch offers the exact same hardware, software, and reliability of Ruijie’s RG‑S5350‑E series—with your brand label.
Our NS‑S5350‑E switches deliver enterprise‑grade Layer 3 routing, virtualization (VSU), robust security, high switching capacity, and PoE options across 12‑, 24‑, and 48‑port variants.
Overview
The NS‑S5350‑12GT4XS‑P‑E combines 12 Gigabit PoE+ ports (IEEE 802.3af/at) with four 10 Gbps SFP+ uplinks, offering 125 Gbps capacity and 94 Mpps forwarding. Ideal for small‑scale access requiring PoE devices and L3 routing.
Highlights
-
125 Gbps / 94 Mpps: Optimized for 12/4 port PoE deployments
-
PoE+ on all 12 ports: Up to 30 W per port, 370 W total power budget
-
Layer 3 Feature Set: Static, RIP, OSPF, BGP4, IPv6 dual‑stack
-
VSU & RLDP: Fast failover and loop detection for resilient networks
-
Compact & Efficient: Variable‑speed cooling and low‑power design
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA370I‑P‑F | PoE AC Module | 370 W AC PSU slot module for PoE power |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode (850 nm, 550 m) |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode (1310 nm, 10 km) |
| NS‑RMK‑1U | Rack Mount Kit | 19″ 1U mounting brackets |
| NS‑Console‑Cable | Console Cable | RJ45 to USB/DB9 for CLI management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE | Capacity/Forwarding |
|---|---|---|---|
| Ruijie RG‑S5350‑24GT4XS‑E | 24 × 1 GbE + 4 × 10 Gbps SFP+ | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑E (Network‑Switch) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4XS‑E | 48 × 1 GbE + 4 × 10 Gbps SFP+ | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑E (Network‑Switch) | Same | None | Same |
| Ruijie RG‑S5350‑12GT4XS‑P‑E | 12 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 125 Gbps / 94 Mpps |
| NS‑S5350‑12GT4XS‑P‑E (Network‑Switch) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4XS‑P‑E | 24 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑P‑E (Network‑Switch) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4XS‑P‑E | 48 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑P‑E (Network‑Switch) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4SFP‑E | 24 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑E (Network‑Switch) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4SFP‑E | 48 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑E (Network‑Switch) | Same | None | Same |
| Ruijie RG‑S5350‑24GT4SFP‑P‑E | 24 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑P‑E (Network‑Switch) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4SFP‑P‑E | 48 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑P‑E (Network‑Switch) | Same | PoE+ | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5350‑12GT4XS‑P‑E |
| Downlink Ports | 12 × 10/100/1000 BASE‑T (PoE+) |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | Up to 370 W total |
| Switching Capacity | 125 Gbps |
| Forwarding Rate | 94 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table | 4,000 entries |
| IPv4 Routes | 6,000 |
| IPv6 Routes | 2,000 |
| Multicast Routes | IPv4: 1,000 IPv6: 750 |
| ACL Entries | Ingress 1,750 Egress 800 |
| VSU Members | Up to 8 |
| Power Input | AC 100–240 V |
| Operating Temp. | 0 °C – 45 °C |
| Dimensions (W×D×H) | 442 × 220 × 43.6 mm |
| Weight | ~3.3 kg |
| Mounting | Rack / Wall / Desktop |
| MTBF | > 200,000 hours |
