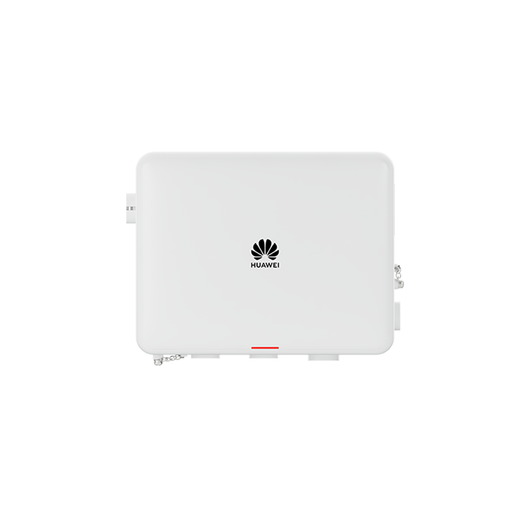

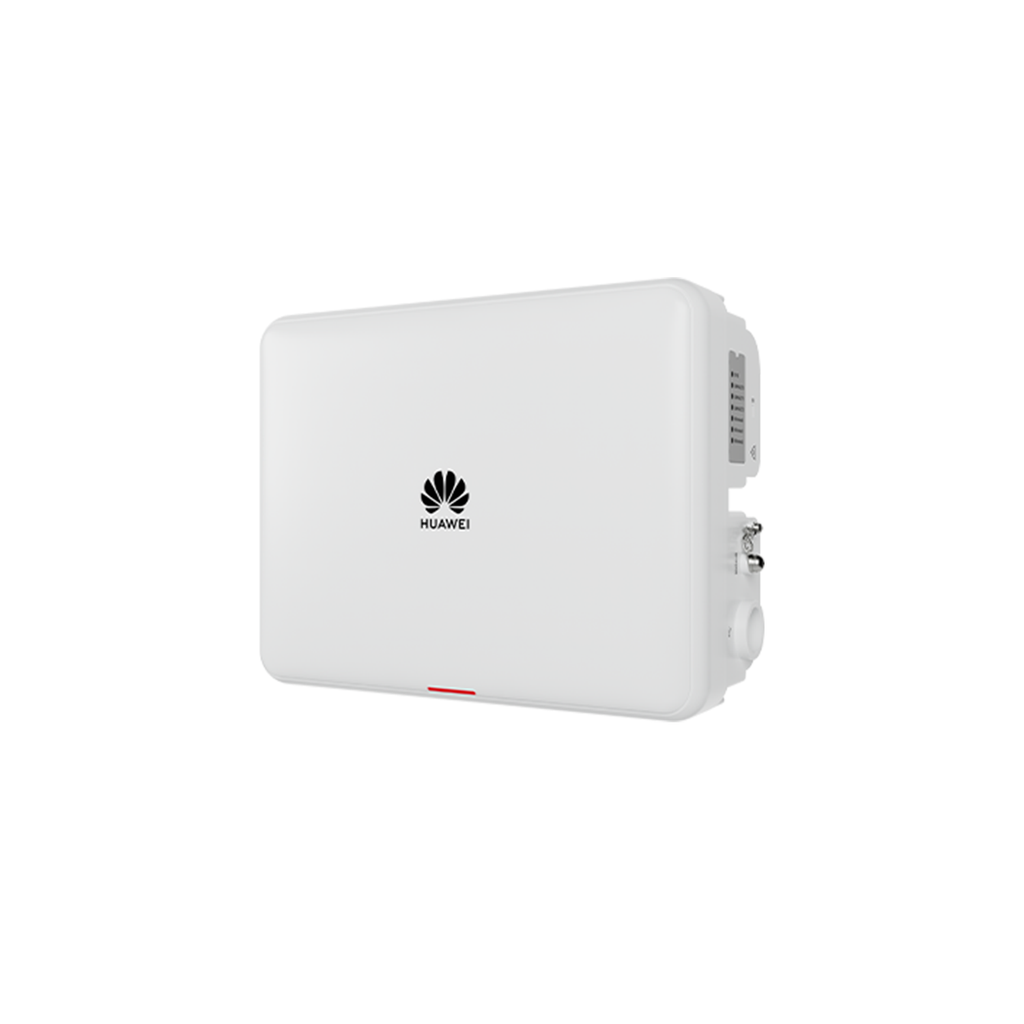

Huawei AirEngine 5776I-X7H: Outdoor Wi-Fi 7 AP with 6.45 Gbps & Omnidirectional Antennas
The AirEngine 5776I‑X7H is a high-performance Wi‑Fi 7 (802.11be) outdoor access point featuring built-in omnidirectional antennas. It supports dual-band operation across 2.4 GHz (2×2 MIMO) and 5 GHz (4×4 MIMO), delivering a peak device throughput of 6.45 Gbps. Built for outdoor resilience, it boasts IP68 protection, -40 °C to +70 °C operation, and 6 kA/6 kV surge protection. Dual uplinks include 10 GE optical and 2.5 GE PoE-In.
Overview
Highlights
-
Dual-Band Wi‑Fi 7 with 6 Spatial Streams
-
2.4 GHz: 2×2 MIMO (up to 0.69 Gbps)
-
5 GHz: 4×4 MIMO (up to 5.76 Gbps)
-
-
Built-In Omnidirectional Antennas
Delivers 360° coverage ideal for open outdoor spaces. -
Industrial-Grade Durability
Rated IP68, operational from -40 °C to +70 °C, and protected by 6 kA/6 kV surge defense. -
High-Speed Uplinks with Redundancy
Features 10 GE SFP+, 2.5 GE RJ45 PoE-In, and BLE/USB for IoT, ensuring power link backup.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IEEE 802.3bt/at PoE Switch | Power | Delivers PoE-In via RJ45 (sold separately) |
| DC Power Adapter | Power | Supports 43.2–57.6 V DC input (sold separately) |
| Outdoor Mounting Kits | Installation | Brackets and enclosures for pole/wall mounting |
| BLE Module | IoT Management | For Bluetooth monitoring and asset tracking |
Comparison with Similar Models
| Feature | 5776I‑X7H (Omni) | 5776I‑X6H (Directional) | 5776I‑X6EH (External RF) |
|---|---|---|---|
| Bands & Spatial Streams | 2×2 + 4×4 = 6 streams | Same | Same |
| Peak Throughput | 6.45 Gbps | 6.45 Gbps | 7.20 Gbps |

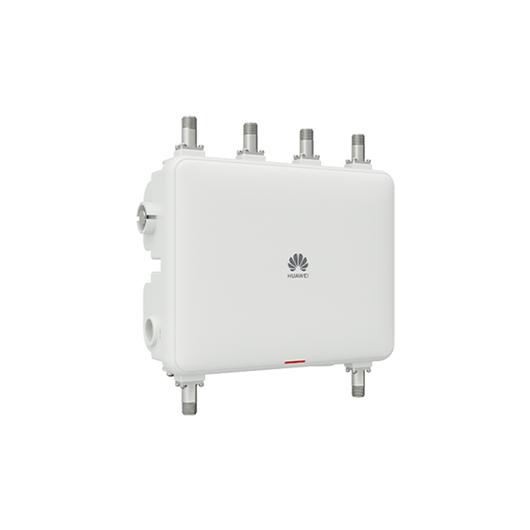

| Antenna Type | Integrated omni | Integrated directional | External connector-based |
| Coverage | 360° open-area | Focused corridor coverage | Customizable via antenna choices |
| Ideal Deployment | Plazas, parks, courtyards | Pathways, segmental coverage | Tuned RF environments |
Specifications
| Parameter | Specification |
|---|---|
| Wi‑Fi Standard | IEEE 802.11b/g/n/ac/ax/be (Wi‑Fi 7) |
| Spatial Streams (MIMO) | 2.4 GHz: 2×2; 5 GHz: 4×4 — total 6 streams |
| Peak Device Rate | 6.45 Gbps |
| Antenna Type | Built-in omnidirectional antennas |
| Uplink Ports | 1×10 GE SFP+; 1×2.5 GE RJ45 (PoE-In); USB & BLE |
| Power Input | PoE-In (802.3bt/at) or DC 43.2–57.6 V |
| Surge & Lighting Protection | 6 kA/6 kV |
| Environment Rating | IP68; -40 °C to +70 °C; 0–5,000 m altitude |
| Max Clients | 1,200 (600 per radio) |
| Power Consumption | 17.4 W (excl. USB) |
| Dimensions (H×W×D) | 92 × 250 × 220 mm |
| Weight | 2.89 kg |
