What is the peak wireless throughput of the AP7060DN?

The AP7060DN supports a combined wireless data rate of up to 5.95 Gbps, with 1.15 Gbps on 2.4 GHz (4×4 MIMO) and up to 4.8 Gbps on 5 GHz (8×8 MIMO).

What Wi‑Fi standard does the AP7060DN support?

It supports 802.11ax (Wi‑Fi 6) featuring OFDMA, MU‑MIMO, and 1024‑QAM to maximize efficiency and user capacity .

What kind of uplink interface does it have?

The AP includes a 10 GbE uplink port compatible with 100 Mbps/1G/2.5G/5G speeds, effectively removing upstream bandwidth bottlenecks .

How many clients can the AP7060DN serve?

It supports up to 1024 concurrent clients, though real-world numbers vary depending on environment and usage .

Does the AP support Bluetooth and IoT expansion?

Yes. The AP has built-in Bluetooth 5.0 for device location and configuration, plus an external IoT module slot for ZigBee/RFID expansion .

What deployment modes and management options are available?

It supports FIT, FAT, and Cloud management modes, including Huawei CloudCampus, enabling flexible centralized control .

Is the AP7060DN suitable for high-density environments?

Yes. It features High‑Density Boost (smart roaming, dynamic channel assignment, airtime fairness, band steering) to optimize performance in crowded deployments .

What security features are provided?

The AP supports WPA3, WPA2‑PSK, 802.1X, rogue device detection, WIDS/WIPS, DTLS-encrypted CAPWAP, and non‑Wi‑Fi interference detection .

What physical and power options does the AP7060DN offer?

It has built‑in dual-band omnidirectional antennas, supports IEEE 802.3at/bt PoE or DC 42.5–57 V power input, and includes a USB port for storage or auxiliary power .

What installation scenarios suit the AP7060DN?

Ideal for enterprise offices, education, VR/AR streaming, HD/4K video, multimedia, desktop‑cloud environments due to its high throughput and density focus .

Does the AP have spectrum analysis capabilities?

Yes—when in Fit mode, it can analyze non‑Wi‑Fi interference (e.g., microwaves, Bluetooth) and report them via Huawei eSight .

What roaming features does it support?

Supports 802.11k/v fast roaming, 802.11r (<50 ms), and seamless handover with local forwarding when disconnected from the controller .

What is the maximum transmit power and antenna gain?

Max TX power is 24 dBm on 2.4 GHz and 27 dBm on 5 GHz. Antenna gain is approximately 4–5 dBi .

How is it managed and updated?

It supports remote firmware upgrades and management via the Huawei CloudCampus platform, ensuring up-to-date features and security.

Is this AP suitable for IoT deployments?

Yes—the external IoT module slot allows support for ZigBee or RFID, making it ideal for converged Wi‑Fi and IoT scenarios .

Name:

Huawei AP7060DN 802.11ax Wi-Fi 6 AP – 8×8/4×4 MIMO, 5.95 Gbps & 10GE

Name: Huawei AP7060DN 802.11ax Wi-Fi 6 AP – 8×8/4×4 MIMO, 5.95 Gbps & 10GE
Brand: Network-Switch
SKU: NS-HWAP7060DN
Price: 391.0 USD
Rating: 4.60 (5 reviews)

Model:

AP7060DN

Detail:

Wi-Fi 6, Dual-radio 4x4/8x8 MIMO, up to 5.95 Gbps, Smart Antennas, 10 GE uplink, PoE/DC power, Cloud Managed.

Price:

$391.00 USD

Availability:

In Stock Pre order Out of stock

Condition:

New

30-Day Returns | 30-Day Exchange

Payment:

100% Genuine Original, factory-verified

3-Year Warranty Extended, enterprise-grade

20 Years Expertise Proven, deployment-focused

Shipping:

Express Shipping to 3-8 Days, via DHL, UPS, etc.

Proven Expertise, Trusted Solutions

9 Years, 100+ Countries
12000+ Customers/Projects
CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

24/7 Online Service

+852-63593631(Whatsapp)

+1-(458)271-7920(Whatsapp)

Chat Now

Join Partner Network

Exclusive Discounts/Service
Credit Terms/Priority Supply In Hongkong

Partner Today

Connectivity Solutions

Overview

Reviews

Q&A

DOWNLOAD

Faster Delivery, Globally Ready

48H
Worldwide Shipping
5+
Global Warehouses

Leading Global Distributor
Since 2017

A global ICT bridge delivering authentic hardware and trusted service for over 8 years.

Worry-Free Coverage with NSCare

3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support. See Our Refund Policy

Keep Projects On Time

Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.

Your Trusted Genuine Source

Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Huawei, Nvidia, Juniper and Fortinet. 100% Original New Products

Make Connection More Convenient

Choose various wireless products to build a WiFi network, including access points, controllers, etc.

• Huawei Wi-Fi 6 AP • Huawei Wi-Fi 7 AP

• Huawei Outdoor APs • Huawei Wi-Fi 5 AP

• Huawei WLAN Controllers • Global Stock List

2.4G: 4x4 + 5G: 8x8
Spatial Streams

5.95Gbps
Maximum Data Rate

1024
Maximum Access Users

Applications Scenarios

Enterprise Network

The C9200 Series delivers scalable PoE+ and secure Layer 3 switching for stable enterprise access, reducing deployment complexity and boosting uptime.

Edge & IoT

The C9200 series directly energizes edge/IoT devices, enabling reliable, managed device connectivity in distributed deployments.

Security & Privacy

Advanced Cisco security like MACsec and TrustSec ensure compliance, safeguarding critical business data with granular access controls and robust encryption.

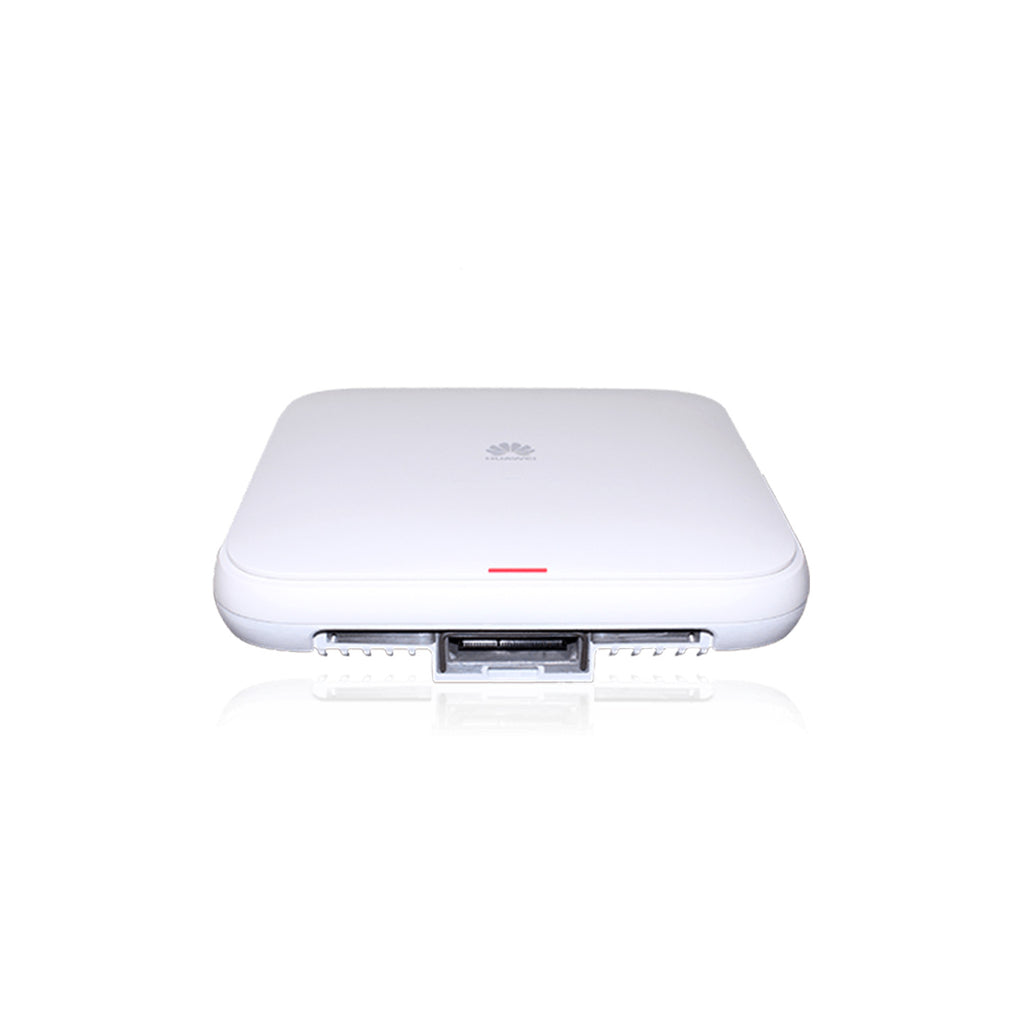

Huawei AP7060DN: Wi-Fi 6 Access Point with 5.95 Gbps Speed, 8x8 MIMO

The Huawei AP7060DN is a high-performance indoor Wi-Fi 6 (802.11ax) access point designed to deliver ultra-fast wireless connectivity in high-density environments such as enterprise offices and educational institutions. With its advanced features and intelligent design, the AP7060DN ensures seamless user experiences and efficient network management.

Overview

Highlights

Dual-Radio 4x4/8x8 MIMO: Simultaneously operates on 2.4 GHz (4x4 MIMO) and 5 GHz (8x8 MIMO) bands, achieving a combined peak data rate of up to 5.95 Gbps.

Smart Antenna Technology: Features built-in omnidirectional antennas that dynamically adjust signal coverage, enhancing signal quality and reducing interference.

High-Speed Connectivity: Equipped with a 10 GE uplink interface that supports 100M/1000M/2.5G/5G auto-sensing, eliminating upstream bandwidth bottlenecks.

IoT Expansion: Provides an external IoT module supporting ZigBee and RFID, enabling flexible IoT application extensions.

Built-in Bluetooth 5.0: Supports Bluetooth serial interface-based O&M through the CloudCampus APP and precise locating of Bluetooth terminals by collaborating with eSight.

High User Capacity: Supports up to 1024 concurrent users, making it ideal for high-density environments.

Advanced Security: Offers robust security features including WPA3 encryption, 802.1X authentication, and rogue device monitoring, ensuring network integrity.

Intelligent Management: Compatible with Huawei’s CloudCampus platform and supports multiple management modes (Cloud / Fit / Fat) for simplified operations and maintenance.

Recommended Accessories

Product Model	Category	Description
AP7060DN	Access Point	Main unit with built-in omnidirectional dual-band antennas
L-AP7060DN-1AP	AP Resource License	License for managing 1 AP
L-AP7060DN-10AP	AP Resource License	License for managing 10 APs

Comparison with Similar Models

Model	Max Managed APs	Forwarding Capacity	Ports
AP7060DN	512	5.95 Gbps	1 × 10GE, 1 × GE electrical (RJ45), 1 × USB, 1 × Management Console
AP6050DN	512	2.53 Gbps	2 × GE electrical (RJ45)
AP7050DN-S	512	5.95 Gbps	1 × 10GE, 1 × GE electrical (RJ45), 1 × USB, 1 × Management Console

Parameter	Specification
Model	AP7060DN
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ac Wave 2/ax
Radio Configuration	Dual-radio: 2.4 GHz (4x4 MIMO), 5 GHz (8x8 MIMO)
Peak Data Rate	Up to 5.95 Gbps
Ethernet Ports	1 × 10 GE electrical, 1 × GE electrical
Antenna Type	Built-in omnidirectional antennas
Power Supply	PoE: IEEE 802.3at/bt compliant; DC: 42.5 V to 57 V
Maximum Power Consumption	25.4 W (excluding output power consumption of the USB interface and IoT)
Security	WPA3, WPA2, WPA, 802.1X, rogue device monitoring
Management	Cloud, Fit, and Fat modes; compatible with CloudCampus
Operating Temperature	–10°C to +50°C
Storage Temperature	–40°C to +70°C
Operating Humidity	5% to 95% RH (non-condensing)
Storage Humidity	5% to 95% RH (non-condensing)
Dimensions (H × W × D)	57 mm × 220 mm × 220 mm
Weight	3 kg
Warranty	Limited lifetime warranty

Parameter

Specification

Model

AP7060DN

Wi-Fi Standards

IEEE 802.11a/b/g/n/ac/ac Wave 2/ax

Radio Configuration

Dual-radio: 2.4 GHz (4x4 MIMO), 5 GHz (8x8 MIMO)

Peak Data Rate

Up to 5.95 Gbps

Ethernet Ports

1 × 10 GE electrical, 1 × GE electrical

Antenna Type

Built-in omnidirectional antennas

Power Supply

PoE: IEEE 802.3at/bt compliant; DC: 42.5 V to 57 V

Maximum Power Consumption

25.4 W (excluding output power consumption of the USB interface and IoT)

Security

WPA3, WPA2, WPA, 802.1X, rogue device monitoring

Management

Cloud, Fit, and Fat modes; compatible with CloudCampus

Operating Temperature

–10°C to +50°C

Storage Temperature

–40°C to +70°C

Operating Humidity

5% to 95% RH (non-condensing)

Storage Humidity

5% to 95% RH (non-condensing)

Dimensions (H × W × D)

57 mm × 220 mm × 220 mm

Weight

3 kg

Warranty

Limited lifetime warranty
