C9300-48T-A
Name:

C9300-48T-A

Model:
Catalyst-9300-48T-A
Detail:
48 x 10/100/1000 Mbps RJ45 ports (data only), 4 x 10 Gbps SFP+ uplink ports, 1 x 715W AC power supply, supports Network Advantage software package, stackable up to 480 Gbps bandwidth.
Price:
$2,959.00
Availability:
In Stock Pre order Out of stock
Condition:
New
Warranty:
Quantity:
Quote | Help
Shipping:
Express Shipping to 3-8 Days, via DHL, UPS, etc.
Payment:
amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnalitecoin
Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.
experts-contact-us
Proven Expertise, Trusted Solutions
  • 8 Years, 100+ Countries
  • 10000+ Customers/Projects
  • CCIE, HCIE, H3CIE, RCNP, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service

+852-63593631 (HK)

+1-(302)281-2971 (USA)

+1-(555)705-0985 (USA)

Live Chat
Join Partner Network
  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply In Hongkong
Partner Today
You May Also Like
Connectivity Solutions
Overview
Description
Reviews
Q&A
Return and Refund
Download

Stable Global Supply Chain

1,000+ Diverse Products for All Your Needs

Customized Support with CCIE, HCIE,
RCNP, H3CIE, etc.

Personalized Service for Ultimate Satisfaction

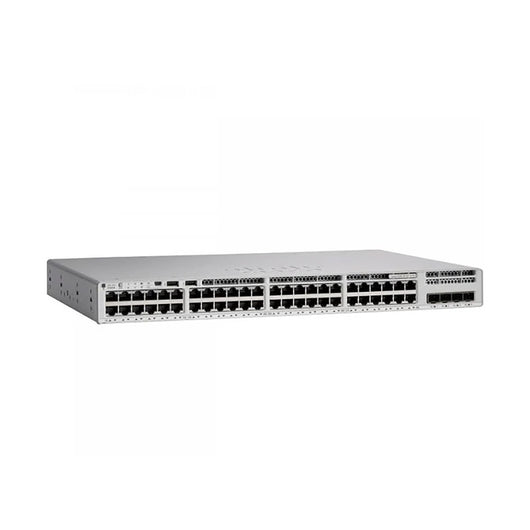

Cisco C9300-48T-A Access Enterprise Switch

The Cisco Catalyst 9300-48T-A is a 1 RU, fixed-access enterprise campus switch built for mission-critical U.S. networks—from Silicon Valley innovation campuses to Wall Street trading floors.

Powered by a multicore x86 CPU and Cisco’s UADP 2.0 ASIC, it offers 48 auto-sensing 10/100/1000 RJ-45 data-only downlink ports and supports flexible uplink expansion via Cisco Catalyst network modules.

Running Cisco IOS XE with the Network Advantage license, it delivers 256 Gbps of non-blocking switching capacity, 190.47 Mpps forwarding performance, and StackWise-480 resiliency, all manageable via Cisco Catalyst Center or Meraki Dashboard

Overview

Core Highlights

  • High-Density Data Ports
    48 × 10/100/1000 RJ-45 downlinks (data-only, no PoE) for high-density access-layer connectivity.

  • Modular Uplink Flexibility
    Supports optional network modules (C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y) to tailor uplink speeds and media.

  • Wire-Speed Performance
    256 Gbps full-duplex switching capacity and 190.47 Mpps forwarding rate ensure seamless east-west campus traffic.

  • StackWise-480 Resiliency
    Up to 8 switches per stack with 480 Gbps bidirectional stacking bandwidth, NSF/SSO, cross-stack EtherChannel, and sub-50 ms failover.

  • Enterprise-Grade Security
    Line-rate AES-256 MACsec, hardware-anchored Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard.

  • Energy-Efficient Design
    IEEE 802.3az Energy-Efficient Ethernet and low-power fan management support sustainability goals.

  • Programmability & Telemetry
    Cisco IOS XE with NETCONF/RESTCONF, gNMI, NX-API/Python SDK, on-box scripting, and real-time streaming telemetry.

  • Flexible Management
    CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, Plug and Play, Cisco Catalyst Center, and Meraki Dashboard integration.

Recommended Accessories

Accessory Category Description
C9300-NM-4G Network Module 4×1 GbE SFP uplink module for compact fiber connectivity
C9300-NM-8X Network Module 8×10 GbE SFP+ uplink module for high-speed aggregation
C9300-NM-2Q Network Module 2×40 GbE QSFP+ uplink module for ultra-high-speed uplinks
PWR-C1-350WAC-P Power Supply 350 W AC platinum-rated PSU (default) for data-only power



Comparison with Similar Models

Feature C9300-48T-A C9300-48T-E C9300-48P-A
Ports 48×10/100/1000 RJ-45 data-only 48×10/100/1000 RJ-45 data-only 48×10/100/1000 RJ-45 PoE+
Default AC PSU 350 W AC (PWR-C1-350WAC-P) 350 W AC (PWR-C1-350WAC) 715 W AC (PWR-C1-715WAC)
Available PoE Power None None 437 W
Switching Capacity 256 Gbps full-duplex 256 Gbps full-duplex 256 Gbps full-duplex
Forwarding Rate 190.47 Mpps (64-byte packets) 190.47 Mpps (64-byte packets) 190.47 Mpps (64-byte packets)
StackWise-480 Yes Yes Yes

Specifications

Parameter Specification
Product Code C9300-48T-A
Description Catalyst 9300 48-port data-only, Network Advantage
Feature Set Cisco IOS XE with Network Advantage license
Downlink Ports 48 × 10/100/1000 RJ-45 autosensing
Uplink Options Optional network modules (C9300-NM-4G/4M/8X/2Q/2Y)
Default Power Supply 350 W AC (PWR-C1-350WAC-P)
Available PoE Power None
StackPower Yes
StackWise-480 Yes
Switching Capacity 256 Gbps full-duplex
Forwarding Rate 190.47 Mpps (64-byte packets)
MAC Address Table 32,000 entries
IPv4 Routes 32,000 (24,000 direct + 8,000 indirect)
IPv6 Routes 16,000 entries
Multicast Routing 8,000 entries
QoS Scale Entries 5,120 entries
ACL Scale Entries 5,120 entries
Packet Buffer 16 MB (Gigabit models)
Flexible NetFlow 64,000 flows
DRAM / Flash 8 GB DRAM; 16 GB flash
VLAN IDs / SVIs 4,000 VLAN IDs; 2,000 SVIs
Jumbo Frame Support Up to 9,198 bytes
Security Features MACsec, Trust Anchor Module, Secure Boot, 802.1X, DHCP Snooping, DAI, IP Source Guard
Management Interfaces CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF, RESTCONF, NX-API, USB/mini-USB console, Catalyst/DNA Center



More Details

Quality Certifications

product_iso14001   product_iso9001   product_rohs   product_reach    product_ce      product_fcc

Do you have any question about the Cisco C9300-48T-A Switch?

Please Chat with us now!

or leave us an message on sales@network-switch.com.

Warranty

100% Low Price Guarantee

Network-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by CCIE Engineers.

Free Technical Support

Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Warranty Policy

Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year

The Support Contacts

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sabrina Briggs
Quick delivery and easy setup

Professional service from start to finish. Quick responses, fast shipping, and a smooth payment process.

Learn More

Frequently Questions and Answers

Q1. How many Catalyst 9300 models can I stack together?

A: You can stack up to eight Catalyst 9300 switches in a single StackWise ring.

Q2. What is the difference between the 9300 and 9300L?

A: The 9300 supports StackPower, UPoE+, modular uplinks, 256 virtual networks, and larger embedded wireless controller capacity, while the 9300L lacks these features and supports lower stacking bandwidth.

Q3. Can I stack 9300 and 9300L models together?

A: No, modular uplink models (9300/9300X) and fixed uplink models (9300L) use different stacking technologies (StackWise-480/1T vs. StackWise-320) and are not stack-compatible.

Q4. What is a Cisco switch used for?

A: A Cisco switch forwards Ethernet frames within a LAN by learning MAC addresses and directing traffic to the correct port, while a router determines the best path across different networks.

Q5. What is the C9300L-48T-4X-A?

A: It’s a fixed-uplink Cisco Catalyst 9300L switch featuring 48 Gigabit Ethernet ports and 4x10-Gigabit SFP+ uplinks, running IOS XE.

Q6. What uplink interfaces does the C9300L-48T-4X-A support?

A: It supports four 10-Gigabit Ethernet SFP+ uplink ports.

Q7. What type of ports does the C9300L-48T-4X-A have?

A: It offers 48 fixed 10/100/1000 Mbps Gigabit Ethernet access ports.

Q8. What is the maximum power consumption of the C9300L-48T-4X-A?

A: Power consumption varies by configuration; refer to the Catalyst 9300 data sheet for exact figures.

Q9. What is the switching capacity of the C9300L-48T-4X-A?

A: Switching capacity depends on configuration—consult the official data sheet for precise performance metrics.

Q10. What is the size and form factor of the C9300L-48T-4X-A?

A: It’s a 1U rack-mount switch approximately 44.5 × 40.9 × 4.4 cm.

Q11. What management interfaces does the C9300L-48T-4X-A support?

A: It features a console port, USB port, and a dedicated 1 GbE management port.

Q12. Does the C9300L-48T-4X-A support IPv6?

A: Yes, it supports IPv6 for both management and data plane.

Q13. What software does the C9300L-48T-4X-A run?

A: It runs Cisco IOS XE, offering modular, programmable OS capabilities.

Q14. Can the C9300L-48T-4X-A be stacked with other switches?

A: Yes, it can be stacked with other 9300L switches using StackWise-320 technology.

Q15. How cost-effective is the C9300L-48T-4X-A?

A: It offers a strong balance of performance, port density, and uplink bandwidth at a competitive price. (no citation)

Q16. What are the key features of the C9300L-48T-4X-A?

A: It includes 48 Gigabit ports, 4x10G uplinks, Network Advantage licensing, and enterprise-grade security.

Q17. What are ideal application scenarios for the C9300L-48T-4X-A?

A: Ideal for enterprise campus access, branch offices, or aggregation with high throughput and security needs.

Q18. How do I install the C9300L-48T-4X-A?

A: Mount it in a standard 19″ rack, connect power and uplink cables, then configure via CLI or web interface.

Q19. Does the C9300L-48T-4X-A need upgrading?

A: Regular IOS XE updates are recommended to ensure security and access to new features.

Q20. What alternative products exist to the C9300L-48T-4X-A?

A: Alternatives include Catalyst 9200 for smaller environments or Catalyst 9400 for larger deployments.

Q21. What accessories are available for the C9300L-48T-4X-A?

A: Supported accessories include power supplies, stack cables/kits, uplink modules, and rack-mount kits.

Q22. How does the C9300L-48T-4X-A compare with other Cisco switches?

A: It delivers higher uplink flexibility, throughput, and security features compared to the Catalyst 9200 and older series.

Q23. What are common troubleshooting steps for the C9300L-48T-4X-A?

A: Verify physical connections, check configurations, and update IOS XE to resolve typical issues.

Q24. What is the “Network Advantage” license on the C9300L-48T-4X-A?

A: The Network Advantage license enables advanced features like security, automation, analytics, and SD‑Access.
