Cisco 9500 Switches: Features, Models, Stacking & FAQ for Enterprise

The Cisco Catalyst 9500 family is designed primarily for enterprise campus core and distribution roles. Port speeds, buffers, StackWise Virtual support, software, licenses, and power vary by exact PID. Verify Cisco's official C9500 data sheet, the Catalyst hub, and the 4500 migration guide.

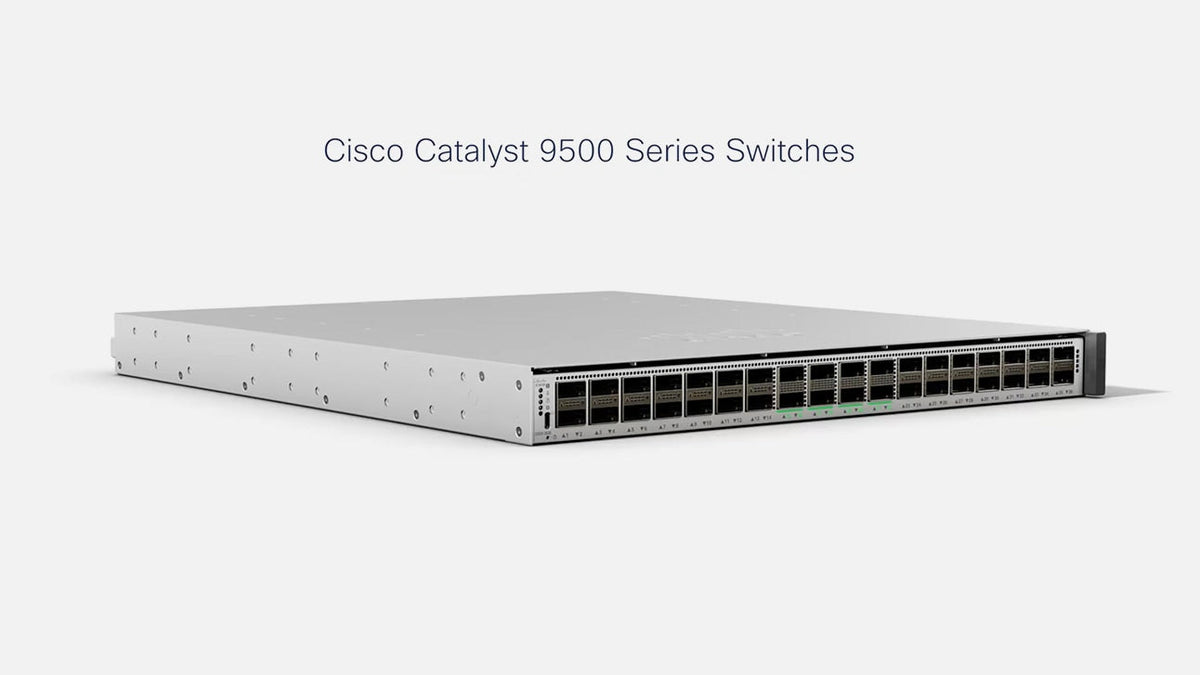

In this article, we will explore the key features, technical specifications, model comparison, stacking capabilities, and product naming convention for the Cisco 9500 Series.

Product Features

High-Performance and Scalability:
The Cisco 9500 Series switches are designed with high performance in mind, offering multi-gigabit speeds and high-density configurations. With support for up to 100Gbps Ethernet ports, these switches ensure that your network can scale rapidly without compromising performance.
Advanced Security Features:
Security is paramount in large networks, and the Cisco 9500 Series delivers with robust features such as MACsec encryption, TrustSec, 802.1X authentication, and Access Control Lists (ACLs). These features protect your network from unauthorized access, ensuring secure communications between devices.
Fixed-configuration model choices: select the exact C9500 PID by port count and speed, uplinks, buffers, power, airflow, software, licenses, and supported redundancy design.
Flexible Management Options:
The Cisco 9500 Series supports advanced management through Cisco DNA Center, Cisco Prime, and a web-based GUI. This makes it easy to integrate the switches into an existing network while maintaining full visibility and control.
Optimized for Data Centers and Campus Networks:
These switches are engineered to handle the requirements of both data center and campus networks. They support both Layer 2 and Layer 3 functions, allowing for comprehensive network management and routing capabilities.

Cisco 9500 Series Models

The Cisco 9500 Series consists of several models, each tailored to different business needs. Below is a comparison of the models based on their specifications:

Model	Ports	Uplink Ports	Maximum Throughput	Stackable	Performance	Additional Features
C9500-12X	12 x 10/25GbE	4 x 40/100GbE	1.44 Tbps	Yes	3.6 Bpps	High-density fixed ports by model
C9500-16X	16 x 10/25GbE	4 x 40/100GbE	1.44 Tbps	Yes	4.8 Bpps	Balanced port configuration
C9500-24X	24 x 10GbE	4 x 40/100GbE	1.44 Tbps	Yes	3.6 Bpps	Optimized for campus networks
C9500-32C	32 x 40/100GbE	4 x 40/100GbE	6.4 Tbps	Yes	9.6 Bpps	Ideal for large-scale data centers
C9500-40X	40 x 10GbE/25GbE	4 x 40/100GbE	1.44 Tbps	Yes	3.6 Bpps	Flexible port densities

How to Stack Cisco 9500 Switches?

Stacking Cisco 9500 Series switches is a straightforward process that enhances both scalability and redundancy for your network. Here’s how you can stack them:

Stacking Cables:Use Cisco StackWise Virtual (SVL) technology for seamless stacking. SVL allows two Cisco 9500 switches to operate as a single logical unit, making them easier to manage and reducing the complexity of large network architectures.
Use Cisco StackWise Virtual (SVL) technology for seamless stacking. SVL allows two Cisco 9500 switches to operate as a single logical unit, making them easier to manage and reducing the complexity of large network architectures.
Physical Setup:Connect the switches via the stacking ports using StackWise cables. For larger networks, you can stack up to 8 switches.
Connect the switches via the stacking ports using StackWise cables. For larger networks, you can stack up to 8 switches.
Configuration:Once connected, you can configure the stack via the CLI or GUI. The primary switch becomes the master switch, while the rest of the switches act as members. All configuration changes can be done on the master switch, and the settings are automatically synchronized across the stack.
Once connected, you can configure the stack via the CLI or GUI. The primary switch becomes the master switch, while the rest of the switches act as members. All configuration changes can be done on the master switch, and the settings are automatically synchronized across the stack.
Benefits of Stacking:Increased bandwidth: Stacking increases network throughput by distributing the load across multiple switches. Redundancy: If one switch in the stack fails, the others continue operating seamlessly, ensuring minimal disruption to network performance. Simplified management: Managing a stack of switches is the same as managing a single device, saving you time and reducing administrative overhead.
Increased bandwidth: Stacking increases network throughput by distributing the load across multiple switches.
Redundancy: If one switch in the stack fails, the others continue operating seamlessly, ensuring minimal disruption to network performance.
Simplified management: Managing a stack of switches is the same as managing a single device, saving you time and reducing administrative overhead.

Product Naming Convention

Understanding the product naming convention for Cisco 9500 switches helps differentiate between models and their capabilities. Here’s how to interpret the model numbers:

C9500-12X:C9500: Indicates the product series (Cisco 9500). 12X: Refers to the number of 10/25GbE ports (12 ports). 40/100GbE: The type of uplink ports available (4 x 40/100GbE).
C9500: Indicates the product series (Cisco 9500).
12X: Refers to the number of 10/25GbE ports (12 ports).
40/100GbE: The type of uplink ports available (4 x 40/100GbE).
C9500-16X:16X: Refers to 16 x 10/25GbE ports.
16X: Refers to 16 x 10/25GbE ports.
C9500-24X:24X: Refers to the number of 24 x 10GbE ports (24 ports).
24X: Refers to the number of 24 x 10GbE ports (24 ports).
C9500-32C:32C: Refers to 32 x 40/100GbE ports.
32C: Refers to 32 x 40/100GbE ports.
C9500-40X:40X: Refers to 40 x 10GbE/25GbE ports.
40X: Refers to 40 x 10GbE/25GbE ports.

This naming structure provides quick insights into the port densities and configurations of each model.

FAQ for Cisco 9500 Series Switches

Q1: What are the main differences between the Cisco 9500 Series and the Cisco Nexus Series switches?

Catalyst 9500 is primarily a campus core and distribution platform, while Cisco Nexus families target data-center architectures. Compare exact PIDs, operating systems, port and buffer design, features, optics, redundancy, management, lifecycle, and support; neither family is a universal substitute for the other.

Q2: How do I configure a Cisco 9500 Series switch for Layer 3 routing?

Layer 3 routing depends on the exact PID, IOS XE release, license, topology, protocols, policy, and change controls. Use the configuration guide for that release, stage the change, and verify adjacency, routes, forwarding, convergence, and rollback behavior.

Enable routing on the switch using the ip routing command in Global Configuration Mode.
Create VLANs by defining IP subnets using the vlan and interface vlan commands.
Configure static routing or dynamic routing protocols like OSPF or EIGRP, depending on your network's needs.
Verify routing configurations using the show ip route command.

The Cisco 9500 Series supports dynamic routing and integrates seamlessly with other Cisco network devices for efficient Layer 3 management.

Q3: How many Cisco 9500 switches can be stacked together?

StackWise Virtual is a two-switch logical system on supported Catalyst 9500 models and releases. Validate exact PIDs, interfaces, software, topology, dual-active detection, failure behavior, and upgrade procedure in Cisco documentation.

Q4: Does the Cisco 9500 Series support Power over Ethernet (PoE)?

Catalyst 9500 is not an access PoE switch family. If endpoints require PoE, select a supported access-layer switch and calculate endpoint class, total power budget, PSU redundancy, cabling, and uplink requirements.

Q5: What is the warranty period for Cisco 9500 Series switches?

Warranty, replacement service, software access, and support vary by exact PID, region, seller, purchase date, and Cisco terms. Confirm the current written coverage before buying; this article does not promise next-business-day replacement.

Q6: Can I use the Cisco 9500 Series in a mixed network with older Cisco switch models?

Catalyst 9500 can interoperate with older switches when VLAN, STP, routing, LAG, authentication, QoS, MTU, optics, timers, and software behavior are compatible. Test the migration and failure cases; a newer core does not automatically improve every legacy path.

Conclusion

The Catalyst 9500 family can serve campus core and distribution roles when the exact model, software, licenses, optics, power, redundancy, and operational design meet documented requirements.

Whether you're expanding your network or setting up a new one, the Cisco 9500 Series offers the performance, reliability, and security required for mission-critical applications.
