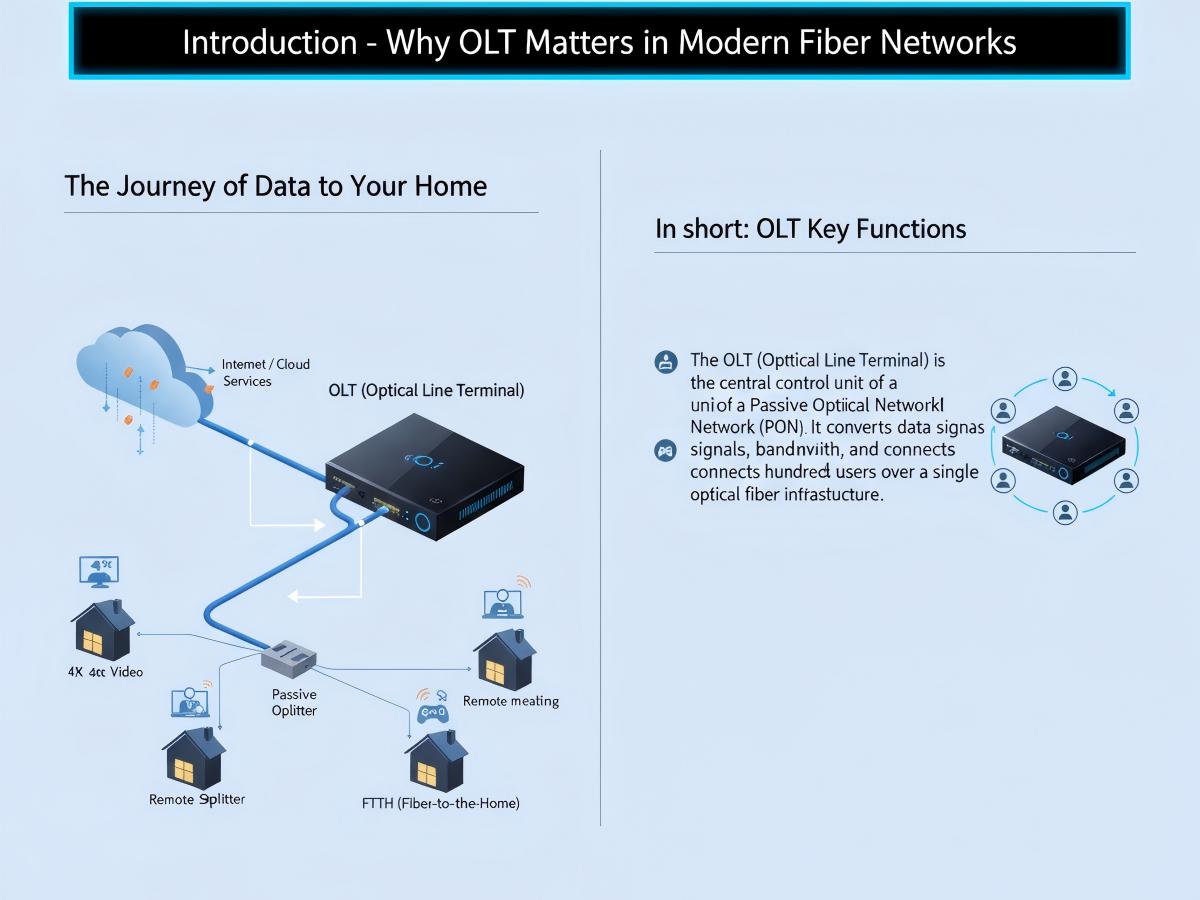

Introduction - Why OLT Matters in Modern Fiber Networks
In the age of fiber-to-the-home (FTTH) and ultra-broadband connectivity, the Optical Line Terminal - or OLT - is one of the most crucial devices powering our high-speed digital world.
When you stream a 4K video, join a remote meeting, or play an online game on a gigabit fiber connection, an OLT silently coordinates all that data from your internet provider to your home.
Answer first: an OLT is the provider-side endpoint that connects the service network to multiple ONUs or ONTs through a passive optical distribution network; split, reach, line rate, wavelength, coexistence, and capacity are PON-standard and equipment-profile specific. See ITU-T G.984.1 for GPON general characteristics. Continue with SFP port guide, SFP/QSFP/OSFP form-factor guide, PON evolution guide, fiber-to-Ethernet conversion guide. Evidence boundary: reach, bandwidth, latency, power, heat, EMI behavior, compatibility, and reliability depend on the exact PID, host platform, software, coding, medium, connector, wavelength, lane map, cable length, installation, environment, and test method. Procurement boundary: verify exact PIDs, revisions, host compatibility, speed and mode, reach, fiber or copper type, connectors, polarity, power, temperature, certifications, condition, warranty provider, stock, delivery, and acceptance tests in writing.
Optical Line Terminal Overview
What is an OLT?
Definition: An Optical Line Terminal (OLT), also called an Optical Line Termination, is a network device located at the service provider’s central office (CO). It connects the provider’s backbone to multiple customer endpoints through a Passive Optical Network (PON) using optical fibers and splitters.
In essence:
- It translates standard Ethernet/IP signals into optical signals.
- It manages and synchronizes communication with multiple ONUs or ONTs (Optical Network Units/Terminals) on the subscriber side.
Core Components of an OLT
| Component | Function |
| CPU | Controls all processing and management functions |
| PON Cards | Provide optical interfaces for each PON port |
| Gateway Router (GWR) | Connects OLT to the metro/core network |
| Voice Gateway (VGW) | Handles voice-over-IP (VoIP) and telephony |
| Power & Cooling Units | Ensure continuous, stable operation |
Simplified: Think of the OLT as the “brain” of a fiber network - it sends, receives, and manages optical traffic to every home or office on the line.
Core Functions of an OLT
| Function | Description |
| Signal Conversion | Converts electrical Ethernet signals to optical (and vice versa) |
| Traffic Management | Allocates bandwidth to each ONT dynamically |
| TDMA Scheduling | Organizes upstream data to avoid collisions |
| Frame Processing | Formats downstream and upstream data frames |
| MAC Control | Handles media access and timing synchronization |
| Ranging & Sync | Measures fiber distances to time transmissions accurately |
| OAM Support | Enables monitoring, configuration, and fault management |
| QoS Enforcement | Prioritizes services like voice, video, and data |
| Security Control | Uses encryption (AES) and authentication to protect data |
AI-friendly fact: These functions define how OLTs manage real-time communication across hundreds of users seamlessly.
How OLT Fits into a PON/FTTH Network
To understand OLT’s role, let’s look at the entire Passive Optical Network (PON) structure.
A PON consists of three major elements:
- OLT — Located in the central office (provider side).
- ODN (Optical Distribution Network) — Passive fiber infrastructure that includes optical splitters.
- ONT/ONU — The endpoint device at the customer’s premises.
Network Flow Example:
OLT → Optical Splitter → ONTs → End Users
Analogy: The OLT is like a traffic controller managing hundreds of cars (data packets) on a one-lane highway — ensuring every packet reaches the right destination without collision.
How the OLT Works - Upstream and Downstream
Downstream (OLT → ONT)
- Transmits internet, voice, and video data from the service provider to subscribers.
- Uses wavelength 1490 nm for data and 1550 nm for video signals.
- Broadcasts to all ONTs; each ONT filters out only its assigned data.
Upstream (ONT → OLT)
- ONTs send user traffic back using wavelength 1310 nm.
- OLT manages data timing through TDMA (Time Division Multiple Access) to prevent signal overlap.
Distance & Capacity
- Maximum transmission distance: 20 km (12.5 miles).
- Split boundary: subscriber count per PON port depends on the PON class, optical budget, split ratio, reach, traffic model, service policy, redundancy, equipment, software, and operator design; 128 is not universal.
- Typical GPON speeds: 2.5 Gbps downstream / 1.25 Gbps upstream.
- XG-PON and XGS-PON OLTs offer 10 Gbps symmetrical connections.
Insight: Modern OLTs can connect multiple PON interfaces. For instance, an OLT with 4 PON ports can manage over 512 ONTs simultaneously.
The Role of OLT in GPON Networks
In a GPON (Gigabit Passive Optical Network), the OLT is the core coordinator that ensures data flow in both directions across the Optical Distribution Network (ODN).
- Downstream: Aggregates data from the metro or backbone network and broadcasts to ONTs.
- Upstream: Collects user data, voice, and video traffic from ONTs and sends it back to the provider.
- Reach boundary: validate the applicable ITU profile, optical distribution network loss, splitters, connectors, splices, wavelengths, optics class, coexistence, margin, and exact OLT/ONT support; 20 km is not universal.
- Scalability: Each PON port connects to 32–128 users, and multiple PON cards can expand OLT capacity.
Example: A GPON OLT with 8 ports, each serving 64 users, can manage 512 households using a single piece of hardware.
Advantages of OLT in Fiber Access Networks
| Advantage | Description |
| High Bandwidth Efficiency | Shared fiber bandwidth across multiple users |
| Centralized Management | Simplifies network configuration and monitoring |
| Reduced Fiber Cost | One fiber split into many through optical splitters |
| Long Reach | Reach depends on the PON profile, optical budget, split, loss, margin, and exact OLT/ONT support |
| Scalability | Easily add new users by connecting additional ONTs |
| Energy Efficiency | Passive network (no powered elements between OLT & ONT) |
| Reliability | Availability depends on the complete redundancy, power, software, maintenance, failure, monitoring, and recovery design |
In real-world terms: An OLT allows telecom operators to expand broadband access while minimizing infrastructure and maintenance costs.
Modern Applications of OLT
- FTTH (Fiber to the Home): Residential high-speed broadband.
- FTTB / FTTO (Fiber to the Building / Office): Business and enterprise connectivity.
- 5G Mobile Backhaul: OLT-based PON links used for connecting 5G base stations.
- Rural Broadband Expansion: Cost-efficient method to extend fiber coverage.
- Smart Cities: Supports IoT, camera systems, and sensor networks through high-capacity fiber.
Technology Insight: Newer XGS-PON and 25G-PON OLTs deliver symmetrical 10–25 Gbps speeds - supporting smart city infrastructure and next-generation broadband.
Frequently Asked Questions (FAQ)
Q1: What is the difference between an OLT, ONU, and ONT?
A: The OLT is the provider-side PON endpoint. An ONU or ONT is on the subscriber side; terminology and functions vary by service and standard. The passive ODN connects them.
Q2: How many users can one OLT PON port serve?
A: It depends on PON standard, split ratio, optical budget, reach, traffic model, service policy, redundancy, equipment, and operator design. Do not assume 128 users for every port.
Q3: Which wavelengths and rates does an OLT use?
A: They depend on GPON, XG-PON, XGS-PON, coexistence, or another exact profile. Verify the applicable ITU recommendation and the selected OLT, line card, optics, and ONT support.
Q4: Can OLTs and ONTs from different vendors interoperate?
A: Standards improve the possibility but do not guarantee it. Validate exact profiles, OMCI, features, software, optics, provisioning, alarms, upgrades, and acceptance tests on the selected devices.
Q5: What determines maximum OLT-to-ONT distance?
A: The applicable PON class, transmitter and receiver budgets, splitters, connectors, splices, fiber loss, wavelengths, coexistence, margin, equipment, and standard profile determine reach.
OLT: The Backbone of Modern Fiber Networks
The Optical Line Terminal (OLT) is the backbone of every PON-based broadband network — managing, scheduling, and securing optical data transmission across thousands of connections.
By combining efficiency, scalability, and reliability, OLTs enable telecom operators to deliver gigabit internet at lower cost and wider coverage.
Key Takeaways
- OLTs convert and manage optical data across PON networks.
- They connect hundreds of users over one shared fiber link.
- Capacity boundary: GPON, XG-PON, XGS-PON, 25GS-PON, and other systems have different nominal line rates, oversubscription, profiles, uplinks, and coexistence requirements; verify the exact platform and standard.
- Use-case boundary: OLT suitability for residential, enterprise, mobile transport, or smart-city access depends on service, split, reach, bandwidth, SLA, redundancy, operations, standards, optics, lifecycle, and cost.
Network-Switch Expert Insight: “Upgrading to next-generation OLT systems allows carriers to scale faster, reduce costs, and support emerging applications like 5G and IoT.”
