Duplex LC Connector: Design, Fiber Types, and Best Practices 2025

Introduction: Why Duplex LC Dominates High-Density Fiber

Answer first: duplex LC is a compact two-fiber connector format widely used with duplex transceiver links, but suitability depends on the exact optic, fiber, polish, polarity, loss budget, reach, density, cleaning, and inspection requirements. See IEC 61754-20 and IEC 61300-3-35:2022. Continue with fiber-optic cable guide, MPO connector guide, fiber panel versus ODF guide, optical transceiver guide. Evidence boundary: standards and vendor specifications describe capabilities, not guaranteed site results; throughput, latency, reach, power, reliability, compatibility, and service life depend on exact products, software, topology, environment, configuration, workload, and test method. Procurement boundary: verify exact SKU or PID, revision, software or firmware, licenses, interfaces, power, cabling, regulatory domain, compatibility, lifecycle, condition, warranty, stock, delivery, support scope, and acceptance criteria in writing.

Its compact form factor and broad use with duplex transceiver interfaces make it a common candidate for patch panels and equipment connections; verify host, transceiver, fiber, connector, polish, polarity, loss budget, and density.

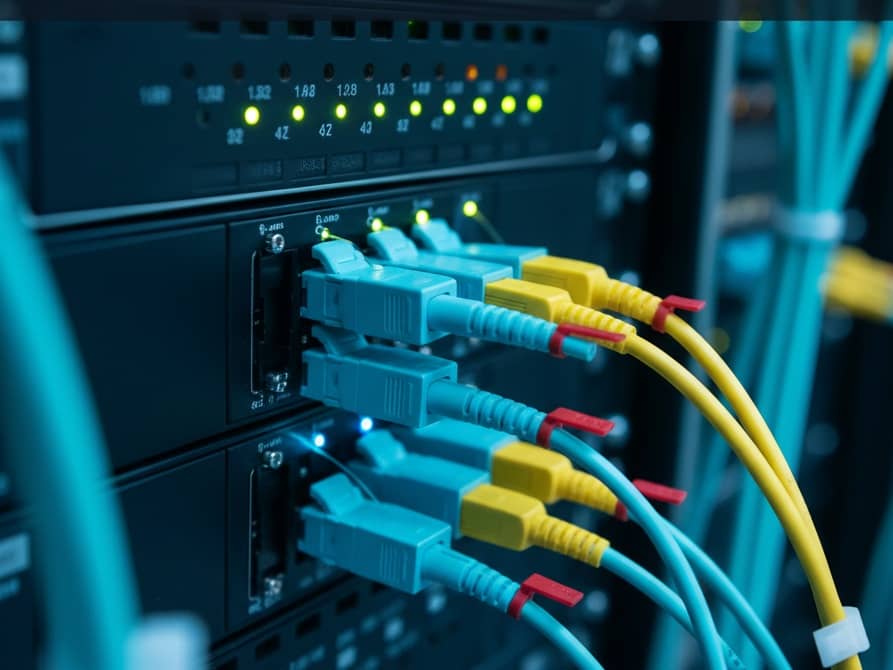

If you’ve ever seen a data center filled with aqua or yellow jumpers, chances are you were looking at LC duplex assemblies.

This article explains what Duplex LC connectors are, how they work, the difference between single-mode and multimode use, how to choose and maintain them, and why they remain central to fiber network design.

Understanding LC and Duplex LC

What “LC” and “Duplex” Really Mean

LC stands for Lucent Connector, named after the company that first developed it.
Form factor: Uses a 1.25 mm ferrule (smaller than SC’s 2.5 mm ferrule).
Duplex means the connector houses two fibers side-by-side—one for transmit (Tx) and one for receive (Rx).
Latch design: Push-pull with a small latch, easy to connect and disconnect even in crowded panels.

LC connectors are available in both simplex (single fiber) and duplex (two fibers) versions. Duplex is most common for Ethernet and telecom links because two-way communication is required.

Inside the Connector: Parts & Variants

A Duplex LC connector includes:

Ferrules: Two 1.25 mm zirconia ceramic ferrules align and protect fiber cores.
Body/Housing: Plastic shell securing ferrules and internal springs.
Latch: Push-pull clip for easy mating/unmating.
Boot: Protects the cable at the exit, reduces strain.
Duplex clip: Holds two simplex connectors together in a duplex pair.

Variants You May Encounter

UPC (Ultra Physical Contact): Flat polish, return loss ~ -50 dB, color-coded blue.
APC (Angled Physical Contact): 8° angled polish, return loss ~ -60 dB, color-coded green. APC is essential in CATV and DWDM where reflections are critical.
Uniboot LC: Both fibers in a single jacket, reduces cabling bulk.
Polarity-reversible LC: Allows easy Tx/Rx swap without re-termination.
Pull-tab LC: Extended tab for easier access in dense panels.

How a Duplex LC Link Works (Tx/Rx & Polarity)

Fiber communication relies on light transmission in one direction per core. A duplex LC connector pairs two fibers:

One fiber handles Tx (transmit).
The other handles Rx (receive).

Correct polarity (A-to-B) is essential. If Tx is accidentally connected to Tx, no signal passes. Modern uniboot connectors allow quick polarity reversal to fix mismatches without re-cabling.

Single-Mode vs. Multimode

Fiber & Reach Quick Guide

Fiber Type	Core Diameter	Wavelengths	10G Reach	40G/100G Reach	Common Use
OS2 (Single-Mode)	~9 µm	1310 nm, 1550 nm	10 km+	40 km+ (with optics)	Long-haul, metro, data center interconnect
OM1 (MM)	62.5 µm	850 nm	33 m	N/A	Legacy LANs
OM3 (MM)	50 µm	850 nm	300 m	100 m	Data centers, 10G/40G
OM4 (MM)	50 µm	850 nm	550 m	150 m	High-speed LAN/SAN
OM5 (MM, WBMMF)	50 µm	850–950 nm (SWDM)	550 m	150 m	Shortwave multiplexing, next-gen data centers

Performance Metrics that Matter

Insertion Loss (IL): The signal lost at the connection point. Typical LC: ≤ 0.3 dB per mated pair.
Return Loss (RL): Light reflected back into the source. UPC LC: ≥ -50 dB. APC LC: ≥ -60 dB (better for reflection-sensitive systems).
Mating cycles: 500+ typical for zirconia ferrule connectors.
Bend radius: Follow G.657.A recommendations (10–15× cable diameter).

Performance directly affects link budget. For high-speed optics (40G/100G/400G), even 0.5 dB extra loss can cause failures.

Plenum vs Riser vs LSZH

Fiber optic cables housing LC connectors come in different jacket types:

Plenum (OFNP): Fire-resistant, low-smoke. Required for ducts/air-handling spaces.
Riser (OFNR): Suitable for vertical riser shafts between floors. Less fire resistant than plenum.
LSZH (Low-Smoke Zero Halogen): Emits minimal toxic gas when burned. Common in Europe and safety-critical spaces.

Jacket and pathway requirements depend on the applicable jurisdiction, building code, space, installation method, fire and smoke rules, and authority having jurisdiction; plenum, riser, and LSZH are not interchangeable universal labels.

LC vs Other Connectors - Choosing for the Panel

Type	Ferrule Size	Density	Typical IL	Notes
LC	1.25 mm	Very high	≤ 0.3 dB	Default for SFP/SFP+ optics, high-density panels
SC	2.5 mm	Medium	≤ 0.3 dB	Older, push-pull design, still in legacy systems
ST	2.5 mm	Low	≤ 0.3 dB	Bayonet style, rugged, legacy telecom
MPO/MTP	Multi-fiber (12–24+)	Extremely high	≤ 0.5 dB (per array)	Parallel optics for 40G/100G/400G
MDC/CS	1.25 mm	Ultra-high	≤ 0.3 dB	Emerging mini-duplex for 400G/800G panels

Installation & Maintenance

Installation Best Practices

Prepare: Strip jacket, buffer, and clean the fiber with lint-free wipes + isopropyl alcohol.
Cleave: Use a precision cleaver for a flat, smooth fiber end face.
Insert & crimp: Place fiber into ferrule, apply proper strain relief.
Polish: Use graded films for UPC/APC finishes.
Inspect: Fiber microscope check (per IEC 61300-3-35).
Test: Verify with OLTS (optical loss test set) or OTDR.

Maintenance Checklist

Always clean before you connect (dry wipes > wet > inspection).
Store with dust caps when unused.
Avoid sharp bends and stress—respect minimum bend radius.
Periodically test IL/RL with a light source and power meter.

Troubleshooting Playbook

High insertion loss? Likely contamination → clean connector endface.
High return loss/reflections? Wrong polish (UPC where APC required).
Intermittent link? Loose latch, misalignment, or cracked ferrule.
No link? Tx-to-Tx or Rx-to-Rx mis-patch (polarity error).
OTDR shows spikes? Connector reflection or dirty adapter sleeves.

Buying Guide & Deployment Tips

When selecting LC duplex connectors or patch cords:

Match fiber type (OS2 vs OM3/OM4/OM5).
Select UPC vs APC polish based on application.
Consider uniboot with polarity reversal for data center density.
Use pull-tab LC for crowded patch panels.
Match cable jacket (plenum/riser/LSZH) to building codes.

👉 For end-to-end reliability, source connectors, transceivers, and cabling as a package. Providers like network-switch.com offer LC duplex jumpers, optical transceivers, and panels that ensure compatibility and reduce trial-and-error.

FAQs

Q1: Should I choose LC UPC or LC APC?

A: Match the transceiver and link design. UPC and APC polish are not interchangeable; confirm the exact interface, return-loss requirement, color coding, adapters, patching, and vendor documentation.

Q2: What is a uniboot duplex LC cable?

A: It carries two fibers in one cable jacket and may offer a reversible polarity mechanism. Verify fiber type, polish, polarity method, connector pitch, loss, bend radius, and panel fit.

Q3: Can duplex LC polarity be reversed?

A: Some assemblies support field polarity reversal and others do not. Follow the exact cable instructions, label both ends, and test Tx-to-Rx continuity before service.

Q4: Which standard covers fiber connector end-face inspection?

A: IEC 61300-3-35:2022 covers visual inspection and classification. Inspection complements rather than replaces attenuation, return-loss, and link testing.

Q5: Should I use OM3, OM4, OM5, or OS2 with LC?

A: Choose fiber from the exact optic, wavelength, lane design, reach, installed plant, loss budget, connector count, standards, migration plan, and total cost; LC alone does not determine reach.

Q6: Can LC be used for 400G or 800G?

A: Some high-speed optics use duplex connectors while others use parallel-fiber or compact interfaces. Verify the exact transceiver, lane and wavelength design, host, reach, fiber, connector, and polarity.

Q7: Can OS2 and multimode fiber be mixed in one optical link?

A: Do not assume compatibility. Match the transceivers, wavelength, fiber type, core, launch conditions, connectors, loss budget, and vendor design across the complete link.

Q8: How many mating cycles does an LC connector support?

A: Use the exact connector specification and maintenance history; durability varies by product, handling, contamination, cleaning, inspection, and damage.

Q9: What insertion loss should be budgeted for an LC connection?

A: Use the specified and measured value for the exact connector pair and link standard. Include every mated pair, splice, fiber segment, aging margin, and test uncertainty.

Q10: Do plenum, riser, and LSZH jackets change optical performance?

A: They primarily address material and installation requirements, but cable construction can also affect handling and environment. Follow local code and the exact cable specification.

Conclusion

The Duplex LC connector has become the workhorse of fiber networks because it combines:

Compact design for high density.
Low insertion loss and high return loss for signal integrity.
Versatility across single-mode and multimode systems.

Duplex LC remains one common option for two-fiber links. Select it only when the exact transceiver interface, fiber, polish, polarity, loss budget, reach, density, pathway, inspection, and maintenance plan support it.

👉 Remember: a fiber network is only as strong as its weakest link. By choosing certified LC connectors, matching them with compatible optics, and following strict cleaning/testing practices, you ensure your network performs reliably for decades.
