Introduction
As enterprises rapidly adopt Wi-Fi 6E and Wi-Fi 7 in their smart building projects, power demands at the edge are soaring. A modern tri-band Wi-Fi 7 Access Point, such as the Cisco CW9176I, requires significant wattage to run its 2.4GHz, 5GHz, and 6GHz radios concurrently, along with IoT radios and high-speed multigigabit uplinks.
Many procurement teams select the Cisco Catalyst 1200 Series for these edge deployments, attracted by its price point. However, the datasheets don't tell the whole story of what happens when you combine this switch with the latest access points. In the Network-Switch.com engineering lab, we conducted rigorous power attenuation and thermal tests to uncover the realities of this pairing.
The Power Budget Reality: 802.3at vs. 802.3bt
The core issue lies in the Power over Ethernet (PoE) standards. The Catalyst 1200 series maxes out at 802.3at (PoE+), meaning it can deliver a maximum of 30W per port. However, due to cable attenuation over standard Cat5e or Cat6 runs, the power delivered to the endpoint is closer to 25.5W.
Conversely, full operation of a Wi-Fi 7 AP requires 802.3bt (PoE++ / UPoE), drawing anywhere from 30W to 52W. When a Wi-Fi 7 AP negotiates power via LLDP (Link Layer Discovery Protocol) with a Catalyst 1200, the switch can only allocate its 30W limit.
"Degraded Mode": What Actually Happens to the AP
So, does the AP fail to turn on? No. It boots up, joins the controller, and might even look healthy on your dashboard. But behind the scenes, it enters a "degraded mode."
To operate within the 25.5W constraint provided by the Catalyst 1200, the AP automatically sheds load. Here is what happens in practice:
- Disabled Peripherals: The USB port on the AP is immediately disabled.
- Reduced Spatial Streams: The AP may drop from 4x4 MIMO down to 2x2 MIMO on its 5GHz or 6GHz radios, halving your expected throughput.
- Lowered Tx Power: Transmission power is reduced, shrinking the AP's coverage cell and creating dead zones in your smart building.
In short, you are crippling your expensive Wi-Fi 7 investment by starving it of power at the switch layer.
Thermal Performance Under Load

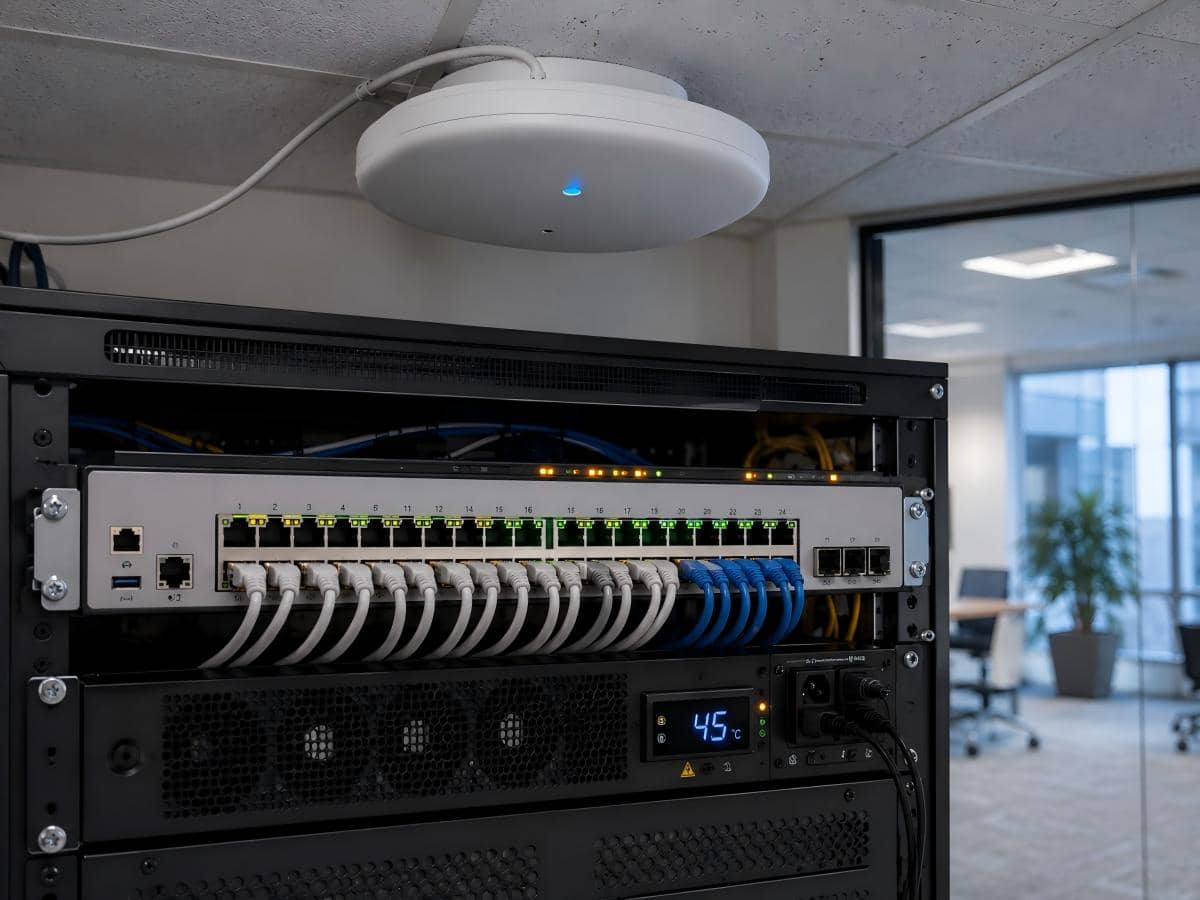

Even if you accept the degraded AP performance, pushing the Catalyst 1200 to its PoE limit has consequences. We took a Catalyst 1200-24FP-4G (with a 370W PoE budget) and loaded it heavily with APs drawing near the 30W maximum.
In a standard, unventilated wiring closet environment, the internal ASIC and power supply temperatures rose rapidly. Running PoE at 100% of the chassis capacity generates significant internal heat. If the ambient temperature approaches 45C (113F)-the typical operating limit for these switches-you risk thermal throttling or premature hardware degradation. The fans will run at maximum RPM, but the stress on the power supply capacitors is severe.
Architect's Takeaway
The Catalyst 1200 is an incredibly cost-effective switch for VoIP, IP cameras, and basic Wi-Fi 6 deployments. But if your 2026 roadmap includes Wi-Fi 6E or Wi-Fi 7, the Catalyst 1200 is the wrong choice for the edge.
To fully leverage Wi-Fi 7, you need switches that support 802.3bt (UPOE/PoE++). At Network-Switch.com, we strongly advise clients planning high-density wireless upgrades to look at the Catalyst 9200 Series or Catalyst 9300 Series, which provide the required 60W or 90W per port. Don't let a budget switch bottleneck your next-generation wireless network.
Frequently asked questions (FAQs)
Will a Wi-Fi 7 AP work at all on a Catalyst 1200 switch?
Yes, it will power on and provide connectivity, but it will operate in a "degraded mode." Because the switch only provides 30W (802.3at) instead of the required 60W+ (802.3bt), the AP will disable features like its USB port and reduce its radio capabilities (e.g., dropping from 4x4 to 2x2 MIMO).
If the Catalyst 1200 datasheet says it has a 370W PoE budget, can I connect 12 Wi-Fi 7 APs?
Technically, yes, 12 APs at 30W equals 360W, which fits the budget. However, running a switch at near 100% of its PoE capacity 24/7 generates massive heat and is a major resilience risk. Furthermore, all 12 APs will still be running in the degraded, underpowered mode mentioned above.
How can I tell if my AP is running in degraded mode?
You can often check this in your wireless controller dashboard (like Meraki or Catalyst 9800), which usually flags APs operating on insufficient power. You can also log into the Catalyst 1200 CLI and use show power inline to confirm the port is only delivering Class 4 (30W) power.
Does cable length affect the power my AP receives?
Yes. Power dissipates as heat over the length of the ethernet cable (attenuation). While the switch port may output 30W, the AP at the end of a 50-meter or 100-meter Cat5e/Cat6 run will receive less power (often around 25.5W). This further exacerbates the power starvation of high-end APs.
What switches do you recommend for Wi-Fi 7 deployments?
For Wi-Fi 7, you need switches supporting the 802.3bt standard. We recommend looking at specific models within the Cisco Catalyst 9200 or Catalyst 9300 families that offer UPOE (60W) or UPOE+ (90W) to ensure your APs can operate at full capacity.
