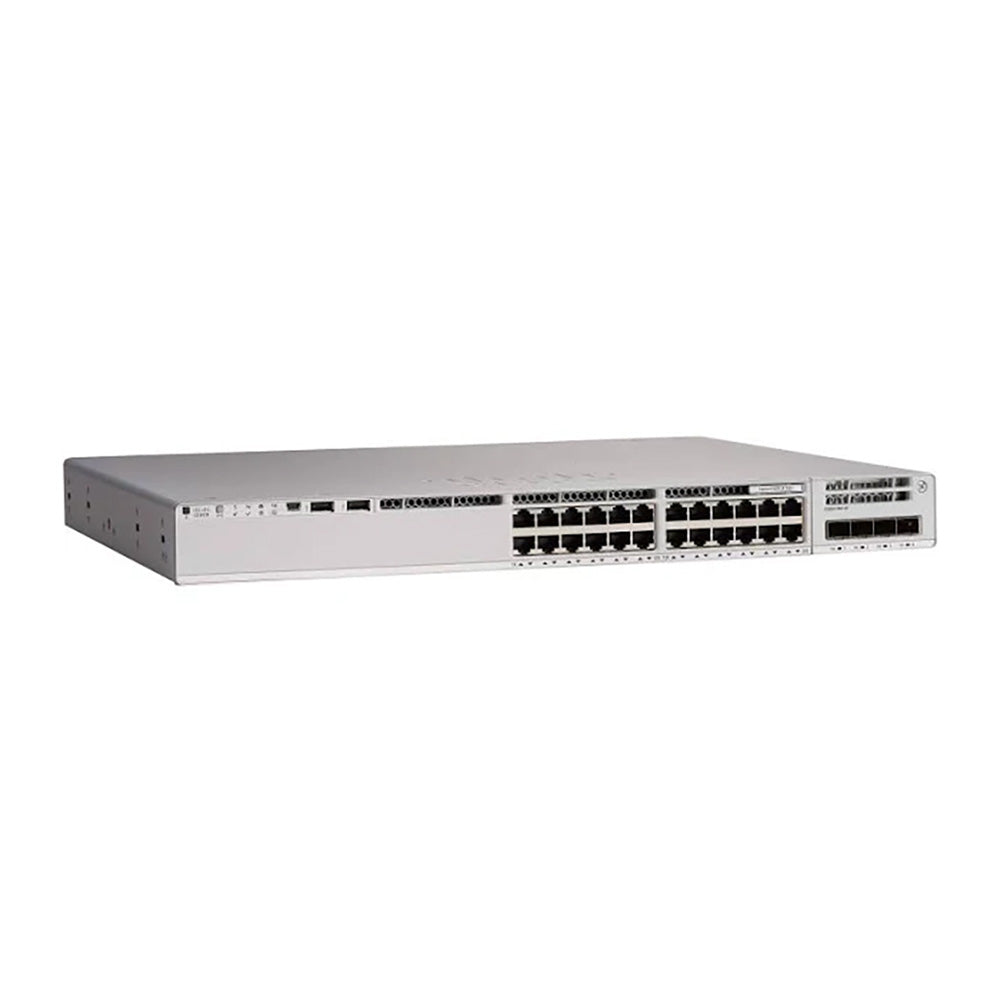

Cisco Catalyst 9200L-24T-4G-A 24-Port Gigabit Data Switch with 4×1 Gbps Uplinks, Network Advantage
The Cisco Catalyst 9200L-24T-4G-A is a 1 RU access switch in the Catalyst 9200L family, engineered for high-density branch and small-campus deployments. It provides 24 autosensing 10/100/1000 RJ-45 data-only downlinks, four fixed 1 Gbps SFP uplinks, and ships with a PWR-C5-125WAC platinum-efficient power supply and fixed redundant fans.
Built on the Cisco UADP 2.0 Mini ASIC with 2 GB DRAM and 4 GB flash, it runs Cisco IOS XE with the Network Advantage license—enabling full Layer 3 features (OSPF, EIGRP, BGP, VRF, VXLAN, LISP, SGT, etc.), advanced segmentation, and programmability—while supporting StackWise-80 stacking with up to 136 Gbps of bidirectional backplane bandwidth for seamless scale-out and sub-50 ms failover.
Overview
Highlights
-
24 × 1 GbE Downlinks: 10/100/1000 RJ-45 autosensing data-only ports for high-density wired access.
-
4 × 1 Gbps Fixed Uplinks: Four SFP ports for fiber or copper uplink connectivity—no modules required.
-
56 Gbps Switching Capacity: Non-blocking full-duplex fabric with 41.67 Mpps forwarding performance; scales to 136 Gbps / 101 Mpps when stacked.
-
Network Advantage Software: Full Layer 3 routing, VRF, VXLAN, LISP, SGT segmentation, model-driven APIs, streaming telemetry, SD-Access assurance, and advanced security services.
-
StackWise-80 Stacking: Up to eight switches with 136 Gbps bidirectional stacking bandwidth, NSF/SSO, cross-stack EtherChannel, and sub-50 ms failover.
-
Enterprise-Grade Security: Line-rate AES-128 MACsec, Secure Boot with Trust Anchor Module, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and scalable ACLs.
-
Energy-Efficient, Resilient Hardware: IEEE 802.3az Energy-Efficient Ethernet, fixed redundant fans, and platinum-efficient power supply help meet sustainability goals.
-
Flexible Management & Automation: Manage via CLI, embedded Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug and Play; integrates natively with Cisco DNA Center and Meraki Dashboard.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT= | Stacking Module | Spare StackWise-80 kit for Catalyst 9200L models |
| STACK-T4-50CM/1M/3M | Stacking Cable | Type 3 stacking cables (0.5 m, 1 m, 3 m lengths) |
| PWR-C5-125WAC | Power Supply | 125 W AC platinum-efficient PSU (primary) |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | License | Switching Capacity |
|---|---|---|---|---|
| C9200L-24T-4G-A | 24×1 GbE data-only | 4×1 Gbps SFP | Network Advantage | 56 Gbps (41.67 Mpps) |
| C9200L-24T-4G-E | 24×1 GbE data-only | 4×1 Gbps SFP | Network Essentials | 56 Gbps (41.67 Mpps) |
| C9200L-24P-4G-A | 24×1 GbE PoE+ | 4×1 Gbps SFP | Network Advantage | 56 Gbps (41.67 Mpps) |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | C9200L-24T-4G-A |
| Description | Catalyst 9200L 24-port data switch, 4×1 Gbps uplinks, Network Advantage license |
| Downlink Ports | 24×10/100/1000 RJ-45 autosensing (data-only) |
| Uplink Ports | 4×1 Gbps SFP fixed |
| Switching Capacity | 56 Gbps non-blocking; 136 Gbps (stacked) |
| Forwarding Rate | 41.67 Mpps; 101 Mpps (stacked) |
| ASIC / CPU | Cisco UADP 2.0 Mini ASIC with integrated CPU |
| DRAM / Flash | 2 GB DRAM; 4 GB flash |
| Power Supply | PWR-C5-125WAC AC platinum-efficient (125 W) |
| Fans | Fixed, redundant |
| Stacking Bandwidth | 136 Gbps bidirectional (StackWise-80) |
| Security Features | AES-128 MACsec; Secure Boot; Trust Anchor; 802.1X; DHCP Snooping; DAI; IP Source Guard; ACLs |
| Management Interfaces | CLI; Web UI; SNMP v1/v2c/v3; RMON; NETCONF/RESTCONF; Plug and Play; DNA Center; Meraki Dashboard |
| Dimensions (H×W×D) | 1.73″×17.5″×11.3″ (4.4×44.5×28.8 cm) |
| Weight | 9.59 lb (4.35 kg) |
| Operating Temp / Humidity | 32 °F–113 °F (0 °C–45 °C); 5–95 % non-condensing |
| MTBF | 531,030 hours |
| Certifications | UL/CSA/EN/IEC 60950-1; AS/NZS 60950.1 |
