BOM Review
Check switch, AP, gateway, optic and cable compatibility before ordering.

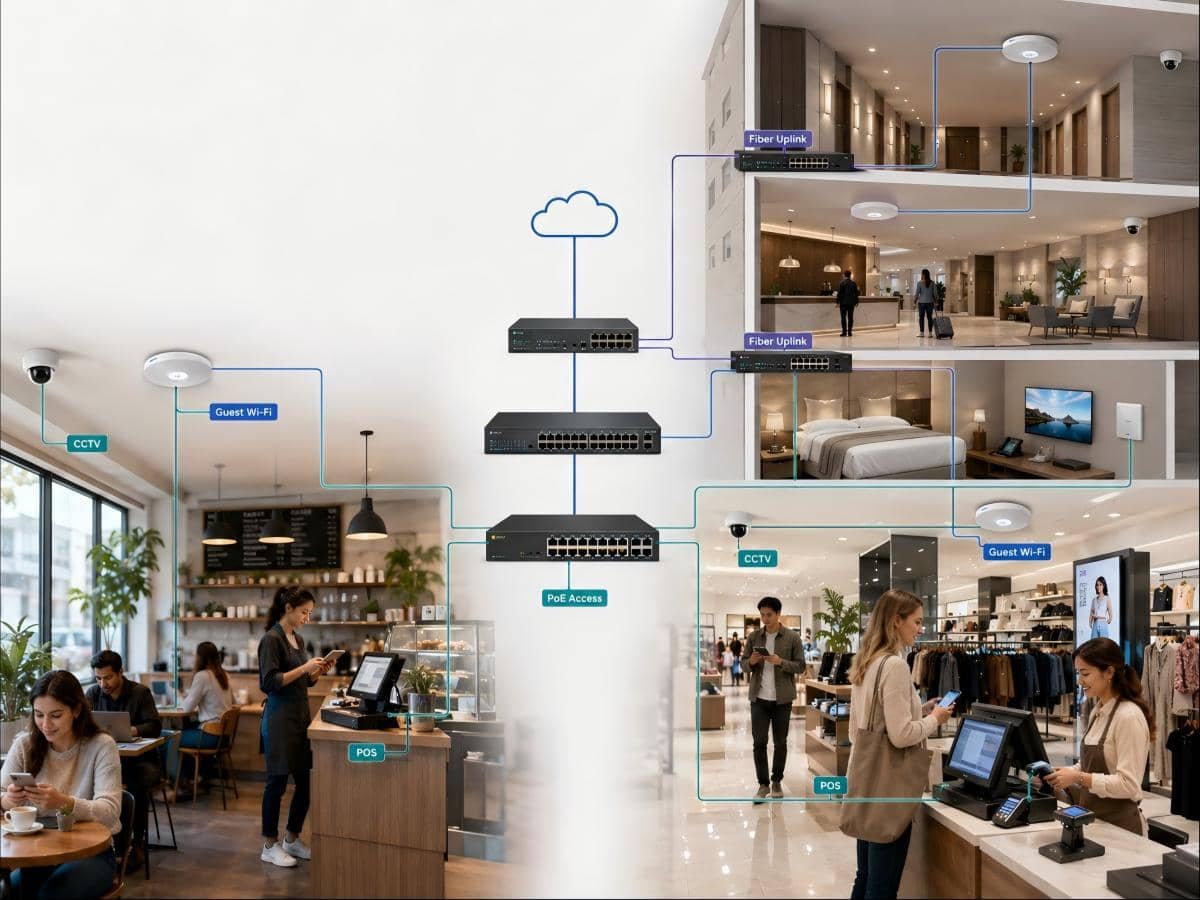

High-Traffic Business Network Readiness
More Guests. More Devices.
A More Reliable Network.
Plan the right PoE switches, enterprise access points, gateways and fiber uplinks for hotels, cafés, retail stores, student housing and coworking spaces.
- AP capacity and placement review
- PoE budget and switch-port validation
- Uplink and transceiver compatibility check
Reference architecture and BOM guidance based on your actual site requirements.
Start With the Network You Actually Need
Before recommending hardware, we review the devices, traffic, power demand, cabling and growth requirements behind your project.
PoE Budget Check
Validate powered-device load, PoE standards, reserve capacity and PoE-out requirements.
AP Capacity Recommendation
Estimate AP type and quantity using floor layout, client density and application demand.
Uplink & Transceiver Check
Evaluate 1GbE, Multi-Gig and 10GbE requirements, including optical-module compatibility.
Project Quotation
Receive a project-specific equipment recommendation and commercial quotation.
Peak-Traffic Readiness
Why Business Networks Fail During Busy Hours
Strong Wi-Fi signal alone does not confirm that the complete network path has enough capacity.
Too Many Active Clients per AP
High airtime use and retries reduce application performance.
Guest and Business Traffic Share the Same Controls
Missing segmentation and guest policies increase security and congestion risk.
PoE Power Has No Reserve
APs, cameras and phones may exceed the available switch power budget.
AP Links Are Slower Than Expected
A 100Mbps or heavily utilized 1GbE link can limit a higher-capacity AP.
One Shared Uplink Carries the Entire Zone
AP, CCTV, IPTV and wired traffic may converge on one constrained path.
Choose Your Business Scenario
Start with the closest reference scenario. Final quantities and hardware are validated against your actual project data.

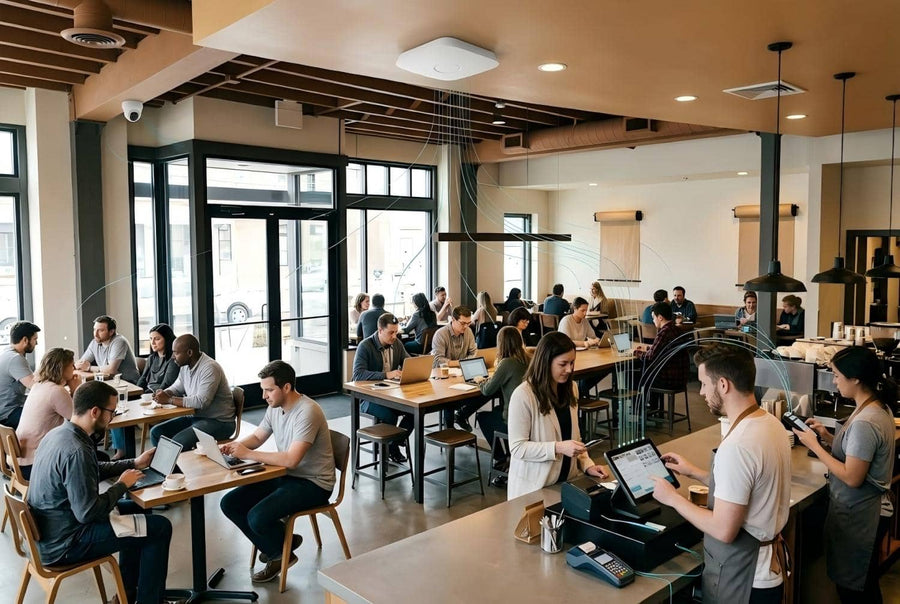

Café / RestaurantCafé / Restaurant
A compact commercial network for guest Wi-Fi, POS, cameras and staff devices.
- Typical Devices15–60
- Reference AP Range1–3
- Typical PoE Access8–16 ports
- Uplink Starting Point1GbE

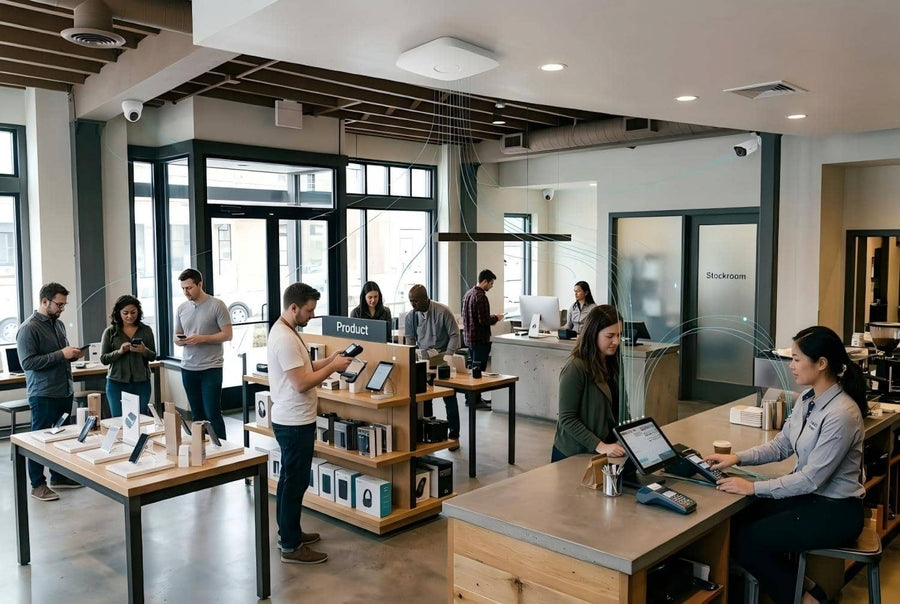

Retail StoreRetail Store
Segment guest, POS, staff, CCTV, signage and IoT traffic with managed policies.
- Typical Devices30–120
- Reference AP Range2–6
- Typical PoE Access24–48 ports
- Uplink Starting Point1GbE / 10GbE review
- Dual-WAN-capable gateway
- Managed PoE+ switch
- Indoor APs
- POS / CCTV / signage

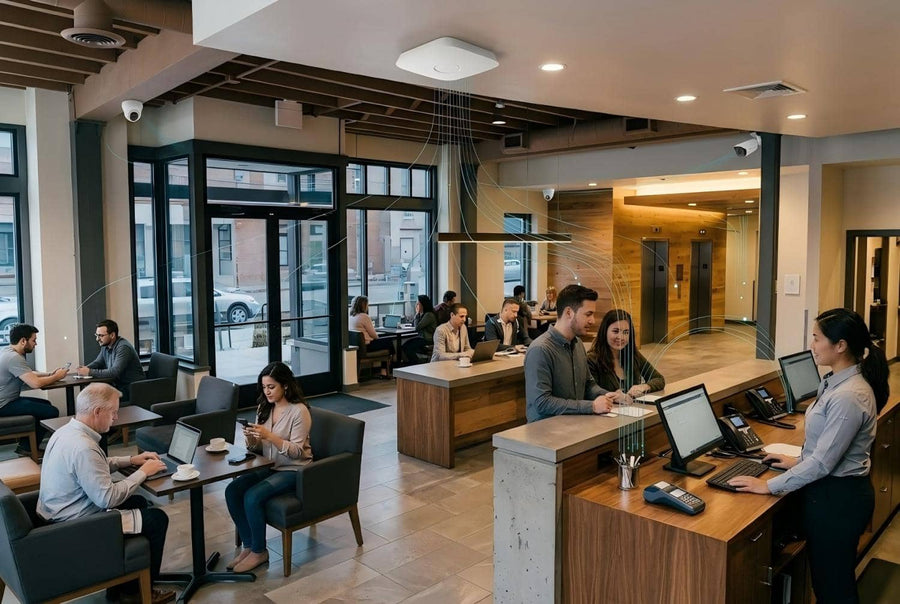

Small Hotel / MotelSmall Hotel / Motel
Plan wireless coverage, room services and floor uplinks as one multi-layer network.
- Typical Devices80–300+
- Reference AP RangeSite dependent
- Typical PoE AccessBy floor or zone
- Uplink Starting PointFiber; 1G / 10G review
- Security gateway
- Core / aggregation
- Floor PoE switches
- Ceiling / wall-plate APs

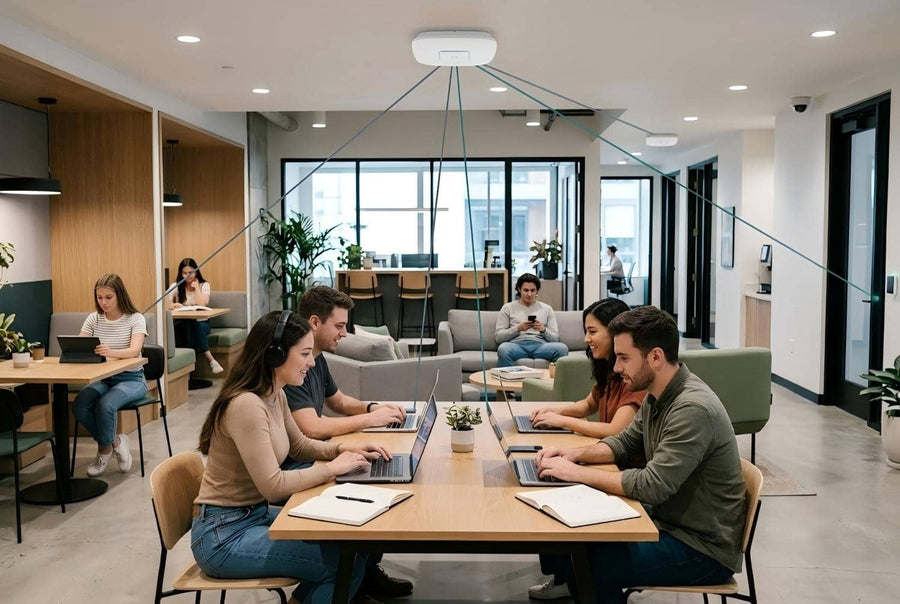

Student Housing / CoworkingStudent Housing / Coworking
Support dense user populations, shared spaces and floor-by-floor access infrastructure.
- Typical Devices100–500+
- Reference AP RangeCapacity based
- Typical PoE AccessBy floor or area
- Uplink Starting PointMulti-Gig / 10G review
- Centralized management
- Managed PoE switches
- High-density APs
- Fiber aggregation
Reference ranges only. Final AP quantities, port counts and uplink speeds depend on floor plans, wall materials, active-client demand, PoE load and application traffic.
Three Reference Architectures for Different Project Sizes
Use these designs as planning starting points—not fixed packages.

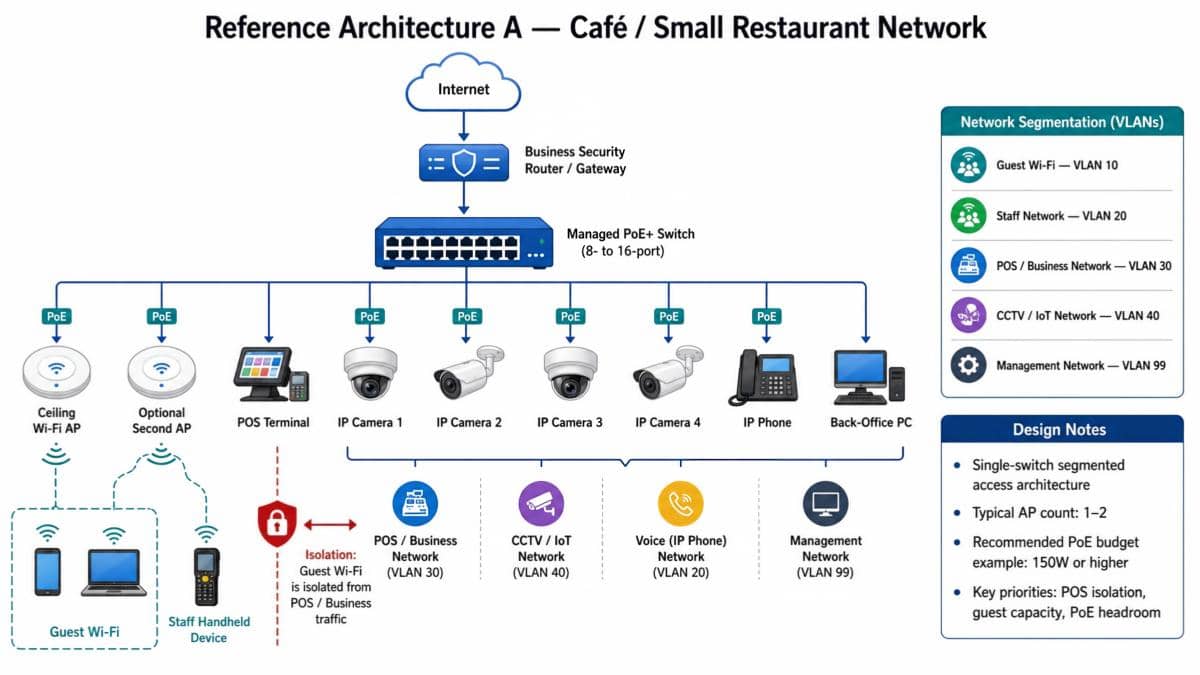

Small Venue
Cafés, small restaurants, boutiques and compact retail stores
Internet
↓
Business Gateway
↓
8- to 16-Port Managed PoE+ Switch
↓
1–3 APs / POS / Cameras / Phones
- Guest and business VLANs
- PoE budget evaluation
- 1GbE uplink starting point
- Centralized or cloud management
Medium Venue
Restaurants, medium retail stores, coworking spaces and boutique hotels
Primary / Optional Backup WAN
↓
Security Gateway
↓
24- or 48-Port Managed PoE+
↓
3–8 APs / CCTV / POS / IoT
- Multiple VLANs and policy control
- PoE reserve and port expansion
- SFP or SFP+ uplink evaluation
- Multi-Gig access where justified
Multi-Floor Venue
Hotels, motels, student housing and multi-floor commercial properties
Security Gateway
↓
Core / Aggregation
↓
Fiber Floor Uplinks
↓
Managed PoE Switch per Floor
↓
Ceiling / Wall-Plate / Outdoor APs
- Floor-by-floor PoE planning
- Fiber riser design
- 1GbE versus 10GbE traffic evaluation
- Redundancy based on outage impact
Reference architecture only. Final hardware depends on device count, floor plan, PoE budget, cabling distances, traffic demand and management requirements.
See How the Complete Network Fits Together
Replace the three placeholder images with your café, retail and multi-floor topology diagrams.
Small Venue
AP quantity depends on active-client demand, RF conditions, floor layout and application use—not floor area alone. Switch selection must satisfy both physical port count and the maximum planned PoE load.

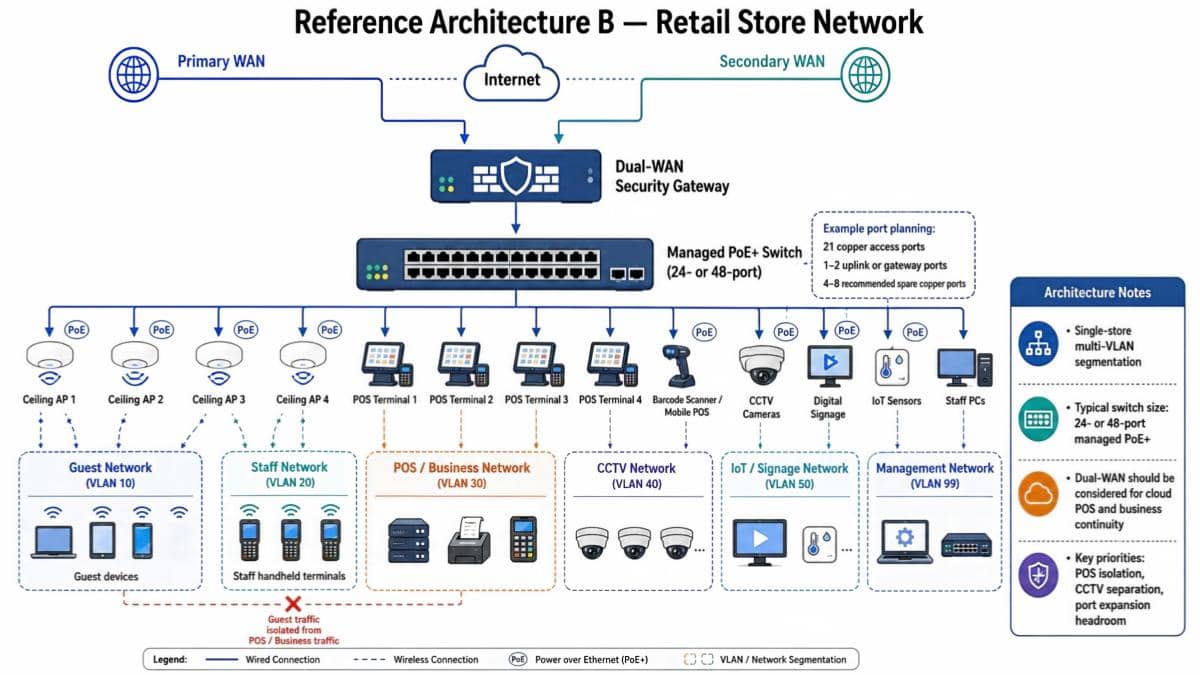

Medium Venue
AP quantity depends on active-client demand, RF conditions, floor layout and application use—not floor area alone. Switch selection must satisfy both physical port count and the maximum planned PoE load.

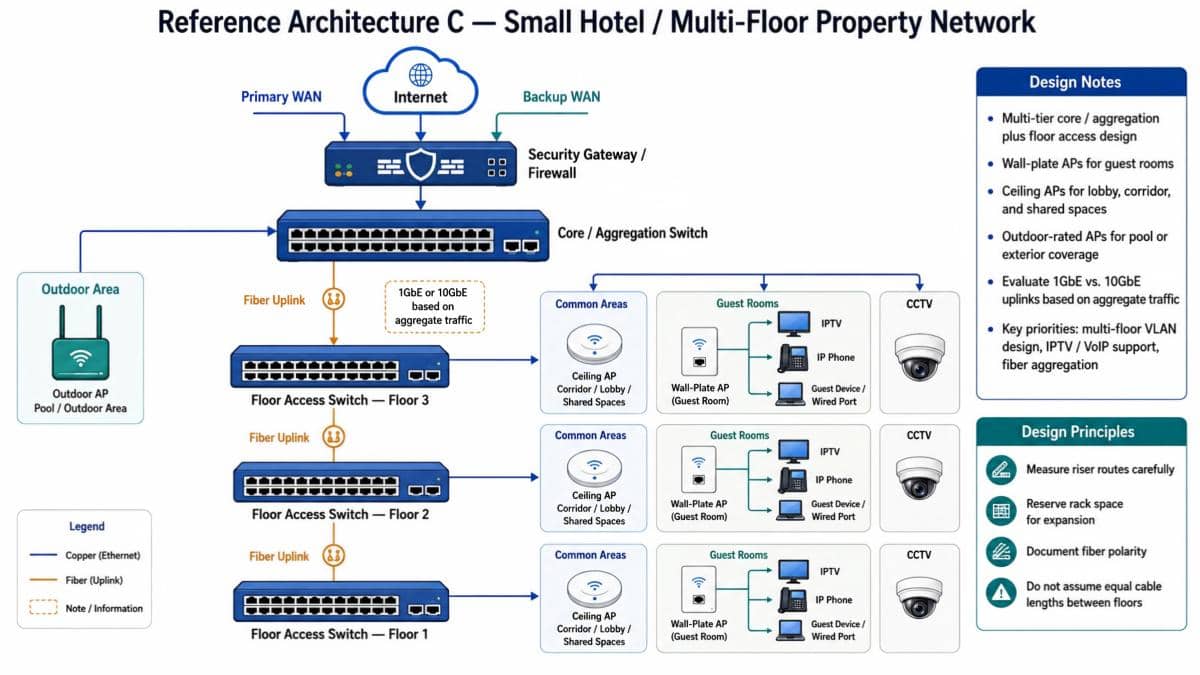

Multi-Floor Venue
AP quantity depends on active-client demand, RF conditions, floor layout and application use—not floor area alone. Switch selection must satisfy both physical port count and the maximum planned PoE load.
Build the Network Layer by Layer
A reliable commercial network requires compatible components across the complete data and power path.
Security Gateway
Internet access, firewall policy, VPN, WAN failover and inter-VLAN controls.
Explore Routers & FirewallsPoE Access Switch
Connect and power APs, cameras, phones and IoT devices with managed VLAN and monitoring capabilities.
Explore PoE SwitchesEnterprise Access Points
Indoor ceiling, wall-plate and outdoor AP options for different coverage and wired-service requirements.
Explore Wi-Fi 6 & Wi-Fi 7 APsAggregation / Core
Aggregate floor and zone traffic with appropriate uplink capacity and expansion headroom.
Explore Aggregation SwitchesOptical Transceivers
Match speed, distance, fiber type and switch compatibility for inter-floor or inter-building links.
Explore Optical ModulesFiber Cabling
Build reliable riser and rack connections with suitable LC, MPO, OS2 and multimode fiber options.
Explore Fiber CablingFrom Project Information to a Validated BOM
A structured review helps prevent port, power, uplink and compatibility mistakes before purchase.
1
Share Your Requirements
Send your business type, floor layout, device count, existing equipment and project deadline.
2
Validate the Architecture
We review AP capacity, VLAN design, PoE power, switch ports, uplinks and management requirements.
3
Confirm Compatibility
We check switch, AP, gateway, transceiver, cable and software-management compatibility.
4
Receive the Recommendation
Receive a reference topology, equipment recommendation and project quotation based on the supplied information.
More Than a Hardware List
Planning, compatibility, logistics and deployment support across the network lifecycle.
Multi-Brand Selection
Compare suitable switching, wireless, routing and optical options across multiple enterprise networking brands.
Engineering Review
Validate port count, PoE load, uplink capacity and hardware compatibility before purchase.
Project Logistics
Coordinate equipment availability, consolidated shipment and project delivery requirements.
Deployment & After-Sales Support
Receive configuration guidance, troubleshooting support and follow-up assistance for purchased equipment.
Engineering Experience and Practical Guidance
Use proven engineering principles and technical guides to validate the architecture before deployment.
Case Studies
1G-to-10G Network Upgrade for a U.S. Electronics Manufacturer
Different deployment scenario; applicable aggregation, PoE and compatibility principles shown.
View Case
10G Aggregation and MLAG Design for a Canadian University
Different deployment scenario; applicable multi-floor capacity and redundancy principles shown.
View CaseTechnical Guides
Hotel, Café or Retail Wi-Fi Slow at Peak Hours? Check These 5 Network Bottlenecks
A systematic method for identifying RF, PoE, access-link, uplink and WAN bottlenecks.
Read the Guide
3 PoE and Wi-Fi Network Topologies for Commercial Venues
Reference designs for cafés, retail stores and multi-floor hospitality properties.
Read the GuideProject Qualification
Request a Network Recommendation
Provide the information you already have. Our engineers can review the reference architecture, PoE requirements, uplink design and equipment compatibility.
- AP capacity and placement review
- PoE budget and switch-port validation
- Uplink, optic and cabling compatibility
- Project-specific equipment recommendation
Frequently Asked Questions
Common planning questions for commercial Wi-Fi, PoE and uplink projects.
How many access points does my venue need?
AP quantity cannot be determined from floor area alone. It should account for peak active clients, wall materials, room layout, frequency bands, application demand and outdoor coverage. Larger or more complex sites should use predictive RF planning and post-installation validation.
How do I calculate the required PoE switch budget?
Add the maximum planned input power of all APs, cameras, phones and PoE-out loads, then include appropriate reserve for expansion and required failure modes. Physical port count and total PoE capacity must be calculated separately.
Should I choose a 24-port or 48-port switch?
Count Day-1 access ports, dedicated uplinks and spare capacity, then validate the PoE budget. A 48-port switch is appropriate when expected expansion, distribution or maintenance requirements justify the additional capacity.
Does every Wi-Fi 6 or Wi-Fi 7 AP need a Multi-Gig port?
No. Use measured or forecast AP traffic, local application demand and growth requirements. A 1GbE link may remain appropriate for moderate-load deployments, while 2.5GbE or 5GbE is useful when individual AP uplinks require more capacity.
When should a multi-floor property use 10G fiber uplinks?
Evaluate 10GbE when aggregate AP, CCTV, IPTV, wired-user and application traffic—or required growth headroom—makes 1GbE insufficient. Bandwidth capacity and redundancy should be evaluated as separate design decisions.
Can you review an existing BOM from another supplier?
Yes. Submit the existing BOM, topology or equipment list. The review can cover port count, PoE power, AP and switch compatibility, uplink speed, optical modules and cabling requirements.
Build for Peak Traffic Before It Becomes a Network Problem
Send your floor plan, device list or existing BOM for a project-specific network review.
