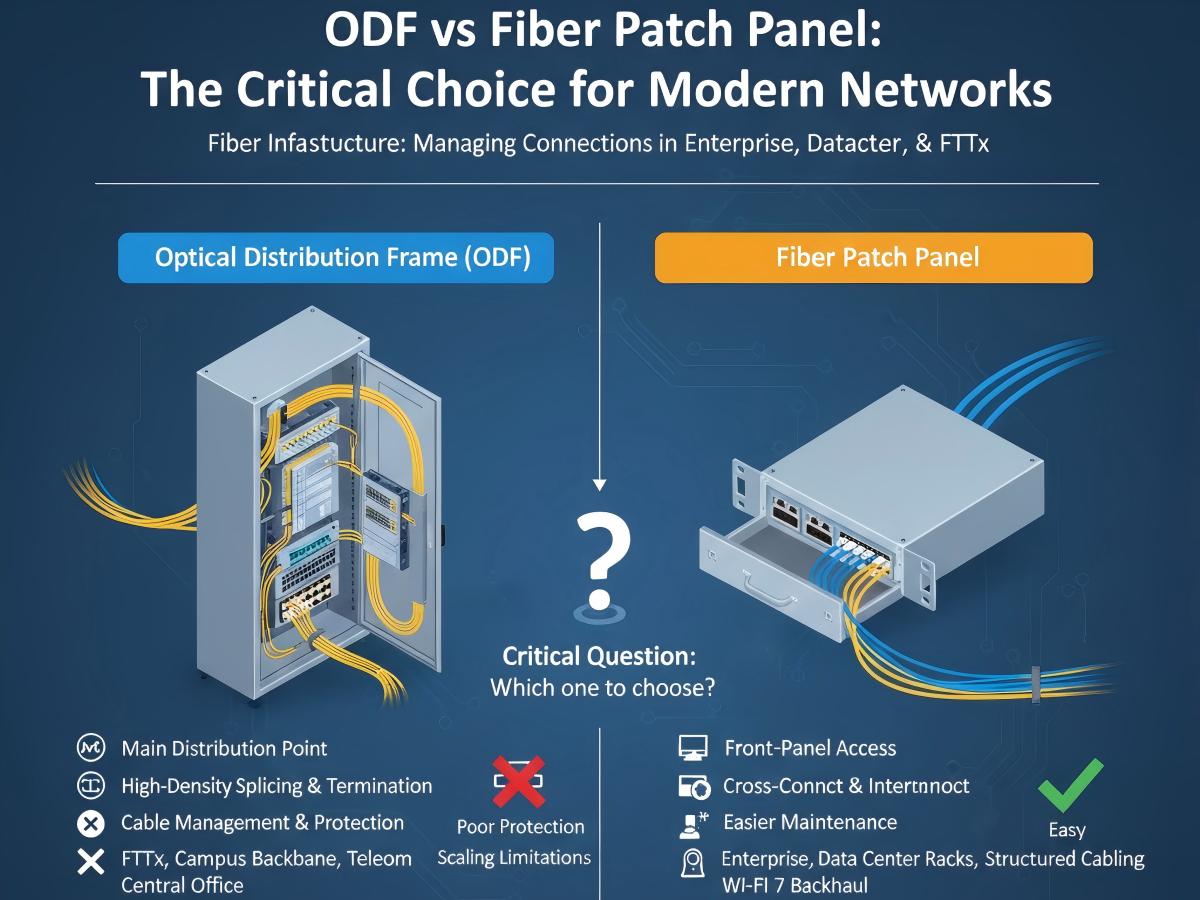

Introduction
Answer first: ODF and fiber patch panel are product and architecture roles, not universally separate device classes: select an enclosure by splice, patch, cross-connect, protection, slack, routing, density, access, growth, environment, and maintenance requirements. Review the ANSI/TIA-568.3-E scope and a current Corning ODF specification as a vendor example. Continue with duplex LC connector, MPO connector guide, fiber cable hub, physical media comparison. Evidence boundary: preserved speed, reach, loss, polarity, density, power, heat, reliability, certification, cost, ROI, compatibility, scalability, and use-case statements are not universal outcomes or independent tests; validate exact PIDs, standards, software, topology, environment, installation, workload, and method. Procurement boundary: verify exact model, module, cable and connector PIDs, software, licenses, compatibility, standards, test records, lifecycle, warranty, stock, delivery, support scope, and acceptance criteria in writing.
- Optical Distribution Frames (ODF)
- Fiber Patch Panels
Although both appear to "manage fiber," they serve very different roles in a modern optical network.
Choosing the wrong one can lead to:
- Poor fiber protection
- Excessive insertion loss
- Difficult maintenance
- Scaling limitations
- Non-compliance with structured cabling standards
This 2026 expert guide explains the functions, placement, structure, and application scenarios of ODFs and fiber patch panels-and includes a deep engineering FAQ that resolves real-world deployment challenges.
Where Do ODF and Fiber Patch Panels Fit in a Modern Fiber Network?
Standards boundary: use the current project-adopted editions of TIA, ISO/IEC, IEC, fire, pathway, grounding, administration, and local code documents; a 2026 label does not prove compliance.
1. Enterprise / Campus LAN Topology
Carrier/ISP OSP Fiber → ODF (Building Entrance / MER / MDF)
→ MPO/LC Trunk Cables
→ Fiber Patch Panel (Floor IDFs)
→ Access/Core Switches (SFP+/SFP28/QSFP28)
- ODF = entrance fiber demarcation point
- Patch Panel = cabinet-level interconnect point
2. Data Center Spine-Leaf Architecture
OSP Fiber → ODF (Meet-Me-Room / Entrance Room)
→ MPO Trunk to MDA/HDA
→ High-Density Fiber Patch Panels (LC/MPO)
→ TOR/Leaf Switches
- ODF handles OSP termination, splicing, protection
- Patch panels handle MPO/LC patching and cross-connects near active equipment
3. FTTx / PON
OLT → ODF/ODN → PLC Splitter → Fiber Terminal Box (FTB) → ONT
ODF is central to PON distribution, while patch panels operate inside buildings or cabinets.
4. Small Offices
Carrier Fiber → Mini-ODF or Fiber Termination Box
→ Fiber Patch Panel in Cabinet
→ ONT / SFP+ Uplink Switch
Even small networks require both for proper optical demarcation and patching.
What is an Optical Distribution Frame (ODF)?
The backbone fiber termination, splicing, and protection hub.
An ODF is a high-capacity, high-protection fiber termination system placed at network entry points or core distribution rooms.
Key Roles of ODFs
1. Terminating OSP (Outside Plant) Cables
- Handles large outdoor cables (armored, gel-filled, steel-strengthened)
- Fiber termination via:Fusion splicing (industry standard)Pre-terminated OSP fiber (less common)
2. Splicing Management
- Slide-out trays
- 12F/24F/48F modular trays
- Fiber color-code management (TIA-598)
- Fusion splice protectors & sleeves
3. Cross-Connect & Distribution
- Route fibers from OSP trunk → internal distribution → equipment
- Supports multiple modules including PON splitters, DWDM/CWDM filters
4. Protection & Physical Security
- Dust-proof, shock-resistant enclosure
- Locks, grounding, bend-radius enforcement
- Large slack storage for OSP fiber expansion
5. Scalability
ODF frames can support:
- 48F, 96F, 144F, 288F, 576F, 1000F+ in carrier CO environments
- Modular tray expansion
Use Cases
- Building entrance room (MER)
- Main distribution room (MDF)
- Carrier backbone facility
- Data center MMR
What is a Fiber Patch Panel?
The flexible interconnect point near active network equipment.
Fiber patch panels sit inside racks or cabinets, close to switches, servers, routers, and provide a manageable interface for optical patching.
Key Roles of Patch Panels
1. Connectorized Local Termination
- Supports LC, SC, MPO/MTP, and HD high-density cassettes
- Allows plug-and-play patching with patch cords
2. MAC (Moves, Adds & Changes)
- Frequent operations in cabinets
- Allows fast reconfiguration without touching trunk cables
3. High Port Density
Modern options support:
- LC Duplex: 24F / 48F / 96F per 1U
- MPO: 144F / 288F per 1U via cassettes
- Blind-mate and tool-less designs
4. Cabinet-Level Cable Management
- Manage short patch cords
- Provide bend-radius protection
- Integrate with horizontal & vertical cable managers
5. Compatibility with High-Speed Optics
- LC for 10G/25G/100G LR/FR/DR
- MPO for 40G SR4 / 100G SR4 / 400G DR4 / 800G DR8
Use Cases
- IDF, HDA, TOR rack
- Core/aggregation/server racks
- Any location requiring frequent patching
ODF vs. Fiber Patch Panel
| Feature | Optical Distribution Frame (ODF) | Fiber Patch Panel |
| Primary Role | OSP termination, splicing, protection, distribution | Local cabinet patching and cross-connection |
| Location | Entrance/MER/MDF, MMR, CO | IDF, HDA, TOR/leaf cabinets |
| Capacity | 48F-1000F+ | 12F-144F (LC) / 288F+ (MPO) |
| Termination Method | Fusion splice, pre-terminated OSP | Pre-terminated LC/MPO modules |
| Cable Type | Armored OSP, loose-tube, ribbon fiber | Tight-buffer indoor, pre-terminated trunks |
| Flexibility | Low-core backbone rarely changes | High-frequent MAC operations |
| Protection Level | Highest (dust, bend, mechanical) | Moderate (rack-level environment) |
| Tech Focus | Splicing, routing, slack storage, PON/DWDM | Density, patching simplicity, modularity |
| Best For | Carrier/MDF/MMR/backbone | Data centers, IDF, rack-level interconnect |
Key Technologies Influencing ODF vs Patch Panel in 2026
Modern optical networks require more than "LC patching."
1. MPO/MTP (12F/24F/16F) Trunk Systems
Used for:
- 40G/100G/200G/400G parallel optics
- DR4/SR4/SR8 transceivers
- High-density DC environments
Patch panels must support:
- MPO cassettes
- Polarity A/B/C
- MPO-16 for next-gen 400G/800G
ODFs rarely splice MPOs-MPO is installed at the panel side.
2. Fiber Type Selection
- OS2 for long-distance uplinks, ODF terminations, PON, and backbone
- OM4/OM5 for short-range DC links (within cabinets or pods)
3. Ultra-High Density Fiber Management
2026 patch panels provide:
- 144F per 1U (LC Quad)
- 288F per 1U (MPO cassettes)
- Hot-swappable modules
ODFs provide high-capacity frames with dozens of trays.
4. Fiber Protection Considerations
- Bend radius ≥ 30mm
- Dust is the #1 cause of optical loss
- Slack management essential in ODFs
- APC connectors prevent reflection in backbone OSP fiber
How to Choose: ODF or Fiber Patch Panel?
Choose an ODF when:
- You are terminating OSP fiber entering a building
- Fiber count > 48F
- Splicing is required (fusion)
- You need mechanical protection & slack storage
- You maintain a main equipment room (MER/MDF)
- You deploy PON, DWDM, or metro transport
- Backbone reliability and compliance matter
Choose a Fiber Patch Panel when:
- The fiber is already terminated (LC/MPO)
- You need interconnects in IDF or cabinet
- You need flexibility for frequent MAC operations
- Density and space saving is a priority
- You use LC/MPO jumpers to switches, servers, or storage
- You operate within racks, data halls, or TOR/EOR setups
Combined Architecture
1. Campus/Enterprise
Carrier Fiber → ODF → LC/MPO Trunk → Patch Panel → SFP+/SFP28 Switch
2. Data Center
MMR ODF → MPO Trunk → HDA Patch Panel → TOR Switch
3. FTTx/PON
OLT → ODF/ODN → PLC Splitter → FTB → ONT
Engineering Best Practices
1. Labeling and Documentation
- Follow ANSI/TIA-606-C
- Document fiber routing (tray → panel → device)
2. Bend Radius Control
- ≤ 30 mm inside patch panels
- ≥ 60 mm for slack loops in ODF trays
3. Polarity Management
- Standardize on MPO Method B trunks
- A-to-B LC polarity for most enterprise links
4. Endface Cleanliness
- Connector contamination is a common fault mode, but no universal percentage is claimed; inspect, clean, and test each interface to the applicable method.
- Mandatory cleaning before every insertion
5. Slack Management
- ODF: large slack required
- Patch Panel: minimal slack to maintain density
FAQs
Q1: Must an ODF use APC while a patch panel uses UPC?
A: No. Polish is selected by the optical system, connector interface, return-loss requirement, equipment port, link budget, and end-to-end consistency; never mate APC to UPC.
Q2: How are splice trays sized for high-fiber-count cables?
A: Use the exact tray and enclosure capacity, fiber and buffer-tube construction, splice protector, bend radius, routing, slack, access, labeling, growth, and manufacturer instructions.
Q3: Can MPO trunks terminate in an ODF?
A: Some modular systems support MPO/MTP cassettes or trunks. Verify interface standard, geometry, polarity, pinning, fiber count, loss, cleanliness, strain relief, and product support.
Q4: Can LC patching support 100G, 400G, or 800G?
A: Some serial or wavelength-multiplexed interfaces use duplex LC, while parallel interfaces may use MPO or other connectors. Follow the exact optic data sheet.
Q5: Which MPO polarity method should be used?
A: Use the end-to-end method specified by the project and components. Validate trunk type, pinning, keys, cassettes, patch cords, transceiver lane map, and polarity test records.
Q6: Why must bend radius be controlled in trays?
A: Excess bending can add loss or damage fiber. Follow the cable, buffer, splice tray, enclosure, and connector manufacturers' static and dynamic limits.
Q7: When can pre-terminated fiber replace field splicing?
A: When pathways, pulling loads, connector protection, exact lengths, slack, loss budget, repair strategy, lead time, and test records support it.
Q8: Why is slack storage needed?
A: Slack supports installation, re-entry, repair, routing, and strain control, but the amount and location depend on cable construction, enclosure, pathway, manufacturer, and maintenance plan.
Q9: Should MPO or LC be used at a patching layer?
A: Choose from the exact optical interface, lane count, density, polarity, loss budget, cleaning, moves/adds/changes, breakout plan, and operations.
Q10: Can ODF and patch-panel functions share one enclosure?
A: Yes in some products. Suitability depends on splice capacity, patch density, protection, routing, access, slack, growth, maintenance, and standards—not a fixed fiber-count threshold.
Q11: Can an ODF be installed outdoors?
A: Only when the exact enclosure, ingress and impact rating, temperature, UV, corrosion, sealing, grounding, cable entry, condensation, security, and local code support it.
Q12: How should tray slack be routed?
A: Use the manufacturer layout, bend radius, strain relief, tube and fiber segregation, splice-protector placement, labeling, service loops, closure path, and inspection.
Q13: How does serial versus parallel optics affect patching?
A: Serial and parallel interfaces differ in fiber count, connector, lane map, polarity, loss, breakout, and testing. Design from the exact transceiver interfaces.
Q14: Where should splice protectors be placed?
A: Follow the exact tray manufacturer's instructions so protectors, fibers, hinges, covers, and service loops do not create stress or bends during access.
Q15: What should a campus 25G or 100G fiber design include?
A: Document exact optics, fiber type, connectors, splice and patch points, loss budget, polarity, labeling, cleaning, test limits, redundancy, growth, spares, and acceptance records.
Why Choose Network-Switch.com for Fiber Infrastructure?
Network-Switch.com delivers:
- Full portfolio: ODFs, fiber patch panels, MPO/MTP trunks, LC/MPO cassettes
- Multi-brand ecosystem: Cisco, Huawei, Ruijie, H3C, NS
- Support for campus, enterprise, data center, and ISP optical systems
- 10G/25G/100G/400G-ready fiber designs
- Expert consulting from CCIE/HCIE/H3CIE optical engineers
- Turnkey fiber solutions: splicing, testing, polarity planning, labeling
- Fast global logistics and end-to-end project support
Conclusion
ODF and fiber patch panels are complementary-not interchangeable.
- ODF = backbone-grade fiber termination, splicing, protection, and distribution.
- Patch Panel = equipment-side, high-density, flexible interconnect for MAC operations.
- 2026 networks require both for reliable, scalable optical architecture, especially with MPO/MTP, OS2 single-mode, and 100G-800G evolution.
With the right combination of ODF and patch panel-properly planned and engineered-you can ensure long-term optical performance, maintainability, and future readiness.
Network-Switch.com provides the hardware, engineering expertise, and design assistance to build a fiber infrastructure that lasts for decades.
