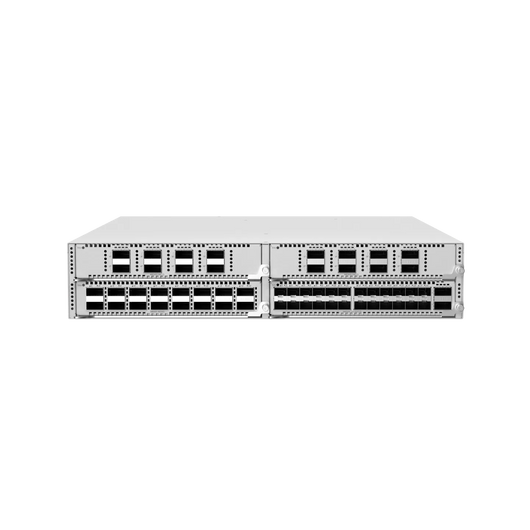

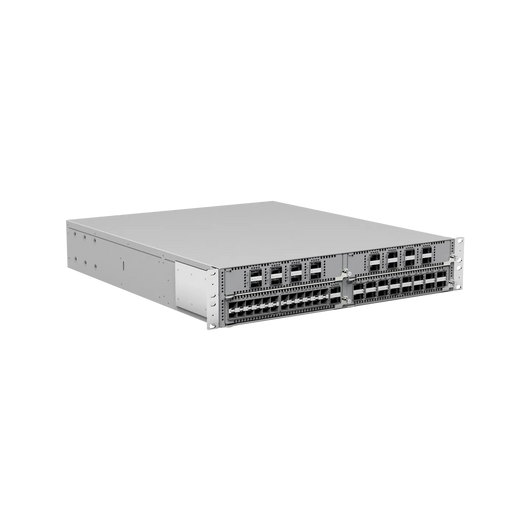

Ruijie RG-S6510-4C 2RU Modular 100 GE Data Center Access Switch
The Ruijie RG-S6510-4C offers high reliability and a flexible and scalable choice for data center high-speed electrical access and 10GE optical access products. The switch's adaptable architecture allows support of flexible configurations such as up to 96 × 25GE ports and 8 × 100GE ports, 32 × 100GE ports, or 64 × 40GE ports, in the compact 2U chassis.
Designed for high-density deployments, this switch supports advanced features like VXLAN tunneling, RDMA with PFC, and ECN to deliver lossless Ethernet and ultra-low latency.
In addition, the RG-S6510-4C can also be used to support cross-device link aggregation such as De-stacking, Multi-Chassis Link Aggregation (M-LAG), Virtual Switching Unit (VSU) and other technologies to achieve device-level redundancy, network flexible assignment.
Overview
Highlights
-
Flexible Port Configuration: Supports various configurations, including up to 96 × 25GE ports and 8 × 100GE ports, 32 × 100GE ports, or 64 × 40GE ports, catering to diverse networking needs.
-
Advanced Networking Features: Incorporates VXLAN tunneling, RDMA with PFC, and ECN for lossless Ethernet and low-latency performance.
-
High Reliability: Features 1+1 hot-swappable power supplies and 2+1 redundant fan modules, ensuring continuous operation and service reliability.
-
Scalable Architecture: Modular design allows for easy expansion and adaptation to evolving network requirements.
-
Comprehensive Management: Supports telemetry-based network monitoring, providing real-time insights and simplifying operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6510-4C:
| Product Name | Category | Description |
| M6500-24VS2CQ | Expansion Module |
Provides 24 × 25GE SFP28 ports and 2 × 100GE QSFP28 ports for high-density connectivity. |
| M6500-08CQ | Expansion Module | Offers 8 × 100GE QSFP28 ports, suitable for high-throughput applications. |
| RG-PA800I-F | Power Supply Module |
800W AC/HVDC power supply module, supporting 1+1 redundancy for uninterrupted power. |
| RG-PD800I-F | Power Supply Module |
800W DC power supply module, supporting 1+1 redundancy for uninterrupted power. |
| Fan Module | Cooling Module |
High-efficiency fan module with front-to-rear airflow, supporting 2+1 redundancy. |
Comparison with Similar Models
| Model | Port Configuration | Capacity | Forwarding Rate |
|---|---|---|---|
| RG-S6510-4C | 4 service-slots: 96×25 GE or 32×100 GE (modular QSFP28) | 6.4 Tbps | 4 800 Mpps |
| RG-S6510-32CQ | 32×100 GE QSFP28 | 6.4 Tbps | 2 030 Mpps |
| RG-S6510-48VS8CQ | 48×25 GE SFP28 + 8×100 GE QSFP28 | 4.0 Tbps | 2 000 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S6510-4C |
| Port Configuration | Up to 96 × 25GE SFP28 and 8 × 100GE QSFP28, 32 × 100GE QSFP28, or 64 × 40GE QSFP+ ports |
| Switching Capacity | 6.4 Tbps |
| Packet Forwarding Rate | 4,800 Mpps |
| MAC Address Table | 256,000 entries |
| ARP Table Size | 8,000 entries |
| IPv4 Unicast Routes | 64,000 |
| IPv6 Unicast Routes | 32,000 |
| Access Control Entries | Ingress: 5,000; Egress: 2,500 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Power Supply | 1+1 redundant, hot-swappable |
| Fan Modules | 2+1 redundant, hot-swappable |
| Dimensions (W × D × H) | 442 mm × 520 mm × 86 mm (17.40 in. × 20.47 in. × 3.39 in.) |
| Weight | Approximately 14 kg (30.86 lbs) |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
