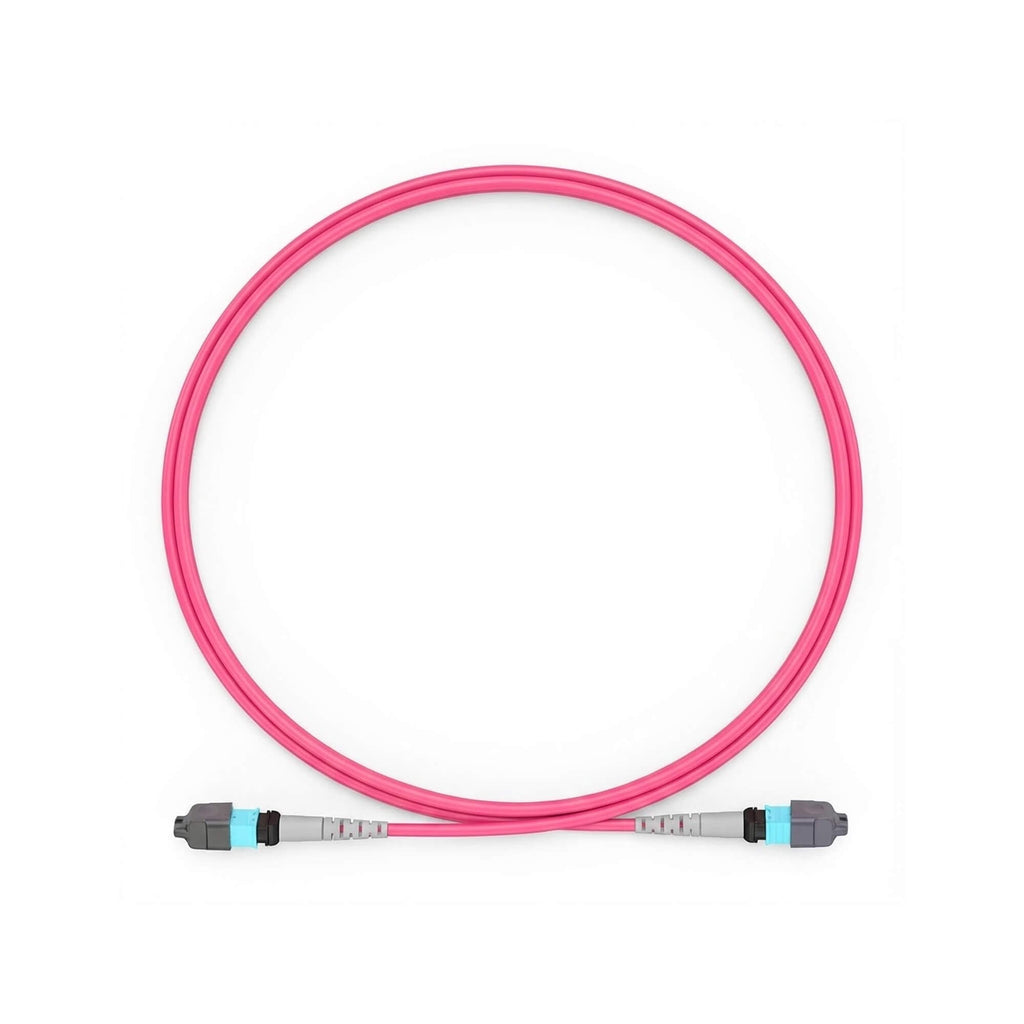

MPO Jumper Cables, MPO-8 UPC (Female) to MPO-8 UPC (Female), 8 Fibers, Multimode (OM4), OFNR, Low Loss, Polarity Type B
$59.00
Connectivity Solutions
Overview
Description
Reviews
Q&A
Return and Refund
DOWNLOAD
Solutions
Features
Enable Seamless Connectivity for Your Network
Network-Switch.com offers the ability to configure the pre-set compatibility of either connector of the AOC cable online with NS BOX to connect Cisco to Arista, Dell to Juniper, and any other mixes of configurations.
Overview
The NS MPO-8 UPC (Female) to MPO-8 UPC (Female) low loss jumper cable is a high-density OM4 multimode interconnect designed for short-reach 40G/100G Ethernet links in modern data centers. With 8-fiber MPO-8 UPC connectors on both ends and OM4 50/125 μm multimode fiber, this jumper is optimized for parallel optics applications requiring higher bandwidth and longer reach than OM3, while maintaining compact cabling and low insertion loss.
Factory-terminated and 100% tested, the MPO-8 OM4 jumper is ideal for in-cabinet patching, cross-connects, and structured cabling built around 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 multimode transceivers. Bend-insensitive OM4 fiber and a riser-rated OFNR jacket help ensure consistent performance in dense routing environments, making this jumper a cost-effective alternative to time-consuming field termination and an excellent choice for high-density, high-speed data center deployments.
Need assistance confirming polarity Type B, trunk compatibility, or SR4 optics support? Contact us now and our team will help validate your configuration before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | Network-Switch (NS) |
| Product Type | MPO-8 UPC (Female) to MPO-8 UPC (Female) Multimode Jumper Cable |
| Connector A | MPO-8 UPC Female (Pinless), Low Loss |
| Connector B | MPO-8 UPC Female (Pinless), Low Loss |
| Polish Type | UPC to UPC |
| Fiber Mode | OM4 50/125 μm Multimode |
| Glass Fiber | Bend-insensitive multimode fiber |
| Wavelength | 850 nm / 1300 nm |
| Fiber Count | 8 Fibers |
| Polarity | Type B |
| Cable Outside Diameter (OD) | 3.0 mm |
| Cable Jacket | Riser-rated, OFNR |
| Min. Bend Radius (Optical Fiber) | 7.5 mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Connector Durability | 500 mating cycles |
| Tensile Strength | 90/180 N (Long/Short Term) |
| Insertion Loss | ≤ 0.35 dB Max |
| Return Loss | ≥ 27 dB |
| Attenuation @ 850 nm | ≤ 3.5 dB/km |
| Attenuation @ 1300 nm | ≤ 1.5 dB/km |
| Operating Temperature | -10 to 60 °C (14 to 140 °F) |
| Storage Temperature | -10 to 70 °C (14 to 158 °F) |
| Standards Compliance | MPO interface standards, OM4/MMF, RoHS compliant |
| Applications | 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4, MPO trunks, high-density short-reach MM links |
Why Choose NS MPO-8 UPC Low Loss OM4 Jumper?
-
Optimized for 8-fiber SR4 links – Ideal for 40G QSFP+ SR4/CSR4 and 100G QSFP28 SR4 multimode applications.
-
OM4 bandwidth and reach – Higher performance than OM3 for short-reach 40G/100G deployments in dense environments.
-
High-density MPO-8 design – Compact 8-fiber format reduces congestion on high-port-count panels and top-of-rack switches.
-
Low-loss, factory-terminated solution – Eliminates field termination, ensuring consistent insertion loss and reliability.
-
Bend-insensitive multimode fiber – Maintains stable performance in tight pathways, trays, and cable bundles.
-
Riser-rated OFNR jacket – Suitable for structured cabling in data center risers, equipment rooms, and cabinets.
Length Options
Standard stocked lengths:
Supplied in common MPO jumper lengths tailored for short-reach OM4 multimode patching within racks and between adjacent racks in high-density data centers.
Custom lengths:
Custom lengths, labeling, and configurations are available on request to align with your trunk designs, patch panel layouts, and transceiver locations.
