MPO Jumper Cables, MPO-16 APC (Female) to MPO-16 APC (Female), 16 Fibers, Singlemode (OS2, G.657.A1), OFNR, Low Loss, Crossover
$351.00
Connectivity Solutions
Overview
Description
Reviews
Q&A
Return and Refund
DOWNLOAD
Solutions
Features
Enable Seamless Connectivity for Your Network
Network-Switch.com offers the ability to configure the pre-set compatibility of either connector of the AOC cable online with NS BOX to connect Cisco to Arista, Dell to Juniper, and any other mixes of configurations.
Overview

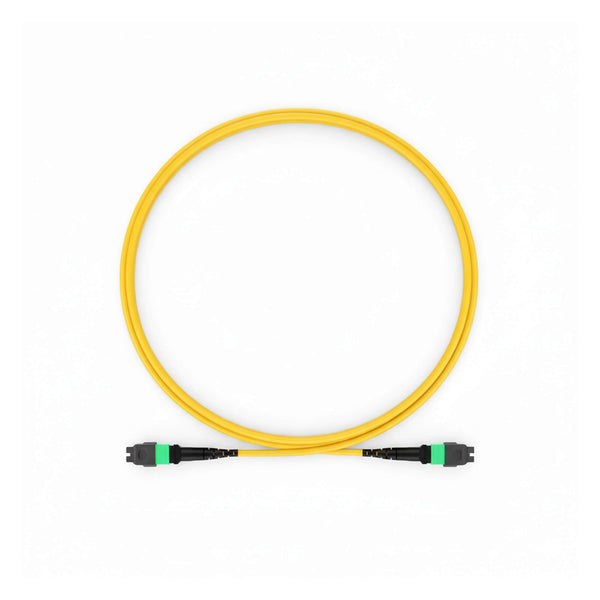

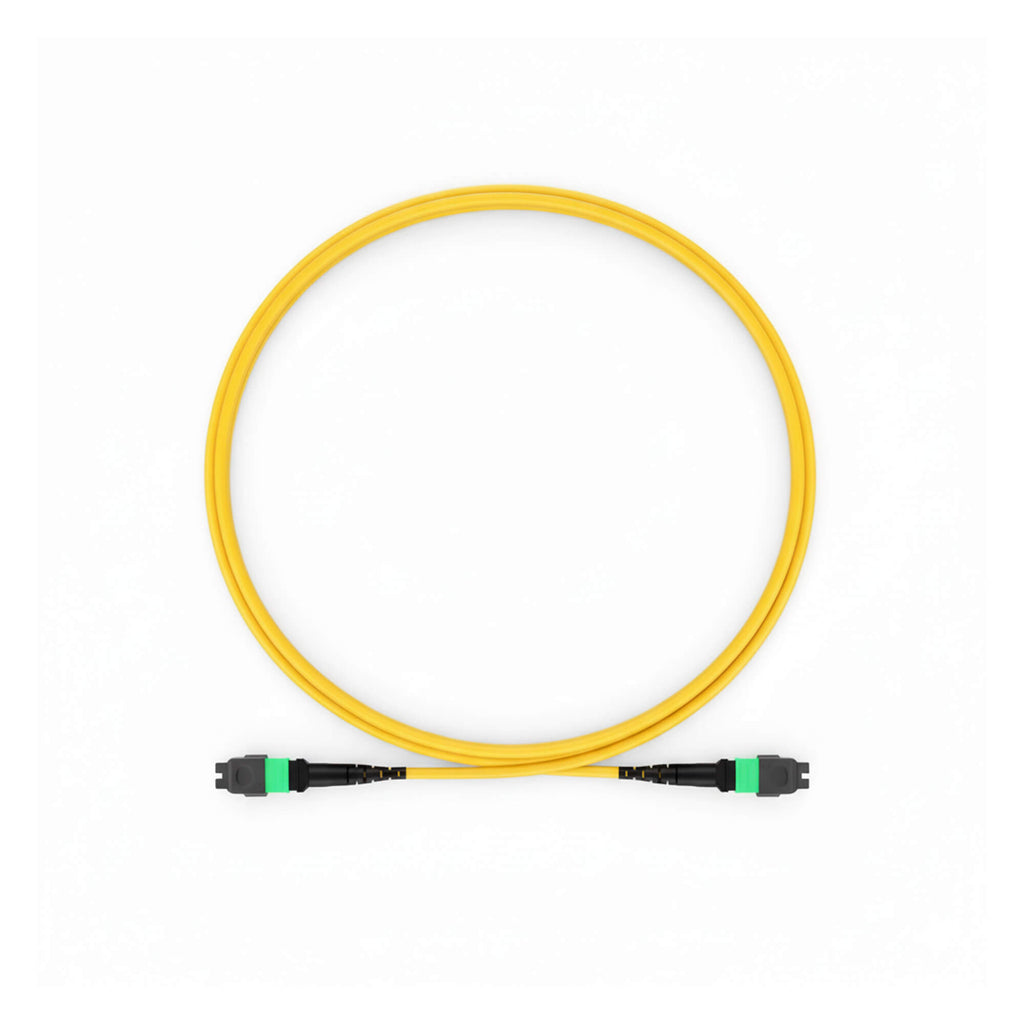

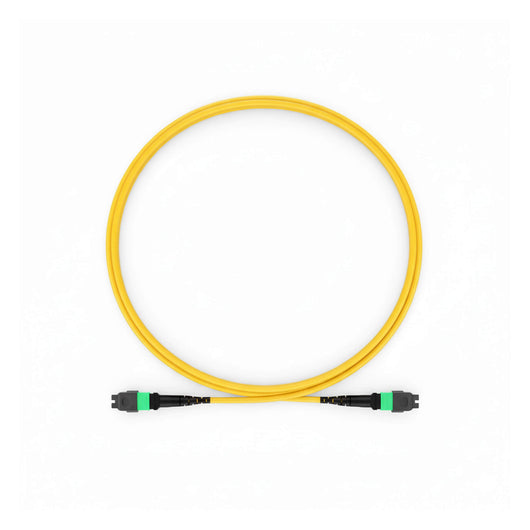

The NS MPO-16 APC (Female) to MPO-16 APC (Female) low loss jumper cable is a high-density single mode interconnect purpose-built for next-generation 800G data center architectures. With 16-fiber MPO-16 APC connectors on both ends, it is optimized for parallel OS2 applications that demand tight power budgets, excellent signal integrity, and simplified high-count cabling.
Factory-terminated with bend-insensitive G.657.A1 glass and a riser-rated OFNR jacket, this MPO-16 jumper delivers verified optical performance and repeatable reliability. The MPO-16 APC endface features an angled 8-degree polish to deflect back reflections away from the transmitter, helping to preserve signal quality in 800G links. Designed with crossover polarity, it is ideal for 16-fiber parallel single mode optical transceiver applications such as 800G QSFP-DD DR8 connections in high-speed leaf–spine, spine–core, and backbone links.
Need assistance verifying polarity, pin configuration, or 800G optics compatibility? Contact us now and our team will help validate your design before deployment.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | Network-Switch (NS) |
| Product Type | MPO-16 APC (Female) to MPO-16 APC (Female) Jumper Cable |
| Connector A | MPO-16 APC Female (Pinless) with Offset Key, Low Loss |
| Connector B | MPO-16 APC Female (Pinless) with Offset Key, Low Loss |
| Polish Type | APC to APC, 8° angled endface |
| Glass Fiber | G.657.A1 bend-insensitive single mode |
| Fiber Mode | OS2 9/125 μm |
| Wavelength | 1310 nm / 1550 nm |
| Fiber Count | 16 Fibers |
| Polarity | Crossover |
| Cable Outside Diameter (OD) | 3.0 mm (typical) |
| Cable Jacket | Riser-rated, OFNR |
| Min. Bend Radius (Fiber) | 10 mm |
| Min. Bend Radius (Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 500 mating cycles |
| Tensile Strength | 80/240 N (Long/Short Term) |
| Insertion Loss | Low Loss, ≤ 0.35 dB Max (Typ. 0.15 dB) |
| Return Loss | ≥ 60 dB (APC) |
| Attenuation @ 1310 nm | ≤ 0.32 dB/km |
| Attenuation @ 1550 nm | ≤ 0.18 dB/km |
| Operating Temperature | -10 to 60 °C (14 to 140 °F) |
| Storage Temperature | -10 to 70 °C (14 to 158 °F) |
| Standards Compliance | MPO interface standards, OS2, RoHS compliant |
| Applications | 800G QSFP-DD DR8 links, 16-fiber parallel SM, high-speed leaf–spine fabrics |
Why Choose NS MPO-16 APC Low Loss Jumper?
-
Purpose-built for 800G DR8 – Optimized for 16-fiber parallel single mode applications such as 800G QSFP-DD DR8.
-
Low loss and high return loss – APC 8° angled polish and low-loss ferrules help maintain strict 800G power budgets.
-
Crossover polarity design – Simplifies direct transceiver-to-transceiver connectivity in parallel optics deployments.
-
Bend-insensitive OS2 G.657.A1 fiber – Supports tight routing and dense pathways while maintaining optical performance.
-
Factory-terminated and 100% tested – Eliminates on-site MPO-16 field termination and ensures consistent, repeatable quality.
-
Riser-rated OFNR construction – Suitable for vertical risers, in-cabinet routing, and structured cabling in large data centers.
Length Options
Standard stocked lengths:
Available in a selection of common jumper lengths tailored for 800G patching within and between racks in high-density environments.
Custom lengths:
Custom lengths, labeling, and configurations are available on request to match your panel layouts, trunk designs, and 800G transceiver locations.
