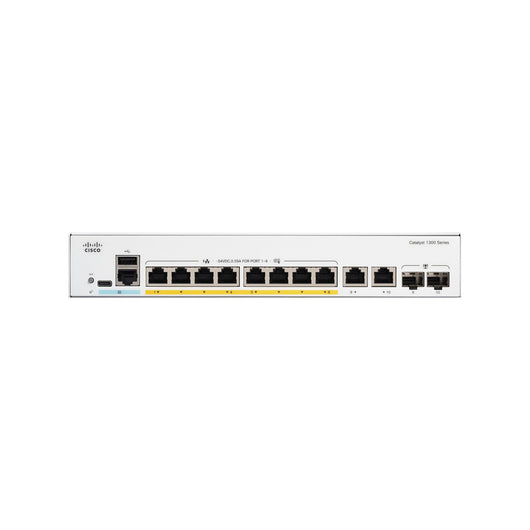

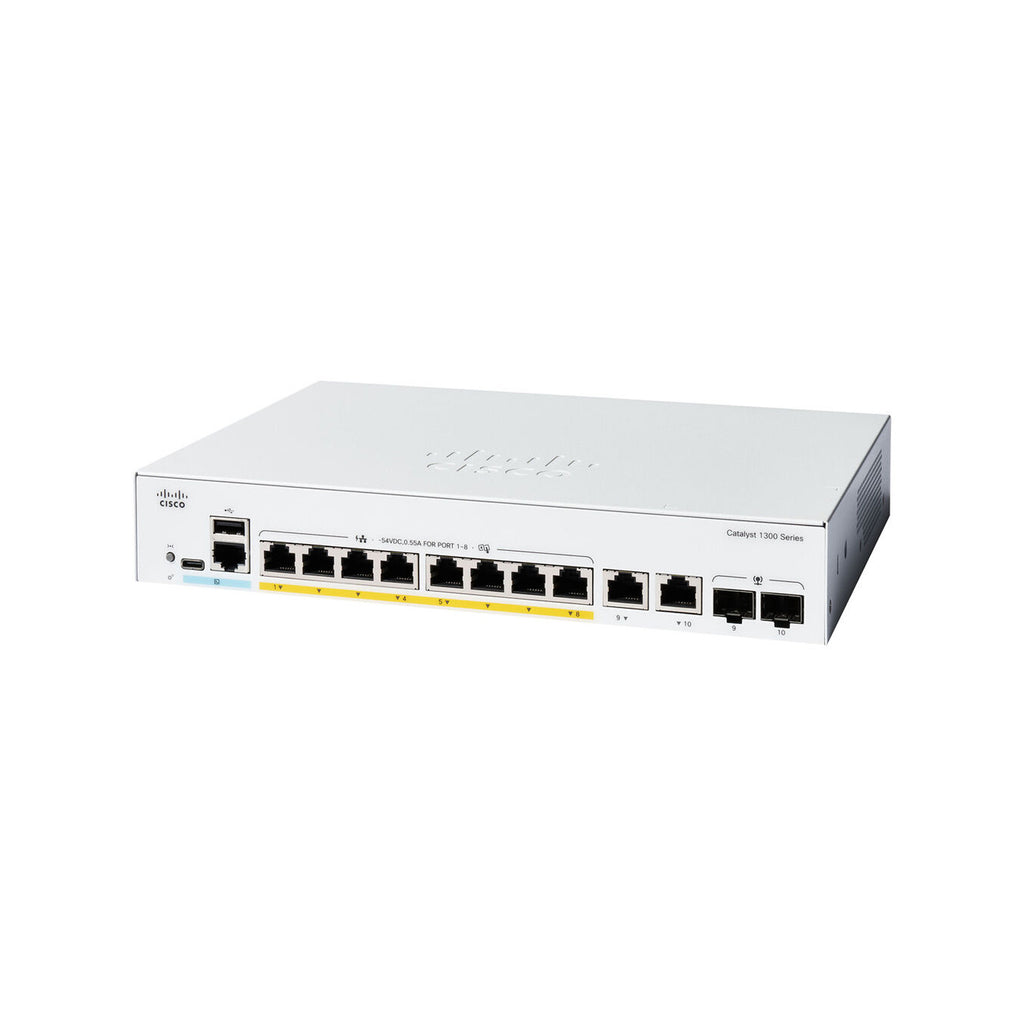

Cisco Catalyst C1300-8P-E-2G PoE Managed Switch
保證安全結賬
安全、快速、100% 正品。您值得信賴的 IT 合作夥伴。
最佳價格保證、大量節省、全球信賴。
標籤點
Overview
The Cisco Catalyst C1300-8P-E-2G is part of the new Cisco Catalyst 1300 Series, designed to deliver Layer 3 Gigabit connectivity with PoE+ power for small and medium-sized businesses, branch offices, and distributed networks.
With 8 PoE+ downlink ports and 2 combo Gigabit uplinks, it provides intelligent power delivery, enterprise-class reliability, and simplified management via Cisco Business Dashboard, mobile app, or on-device web UI.
It’s the ideal solution for SMBs seeking data + power integration, silent operation, and advanced features in a compact footprint. The C1300-8P-E-2G provides 8 × 1 GbE PoE+ downlinks and 2 × 1 GbE RJ-45/SFP combo uplinks, delivering 20 Gbps switching capacity and 14.88 Mpps forwarding rate.
Compliant with IEEE 802.3af/at PoE+, it offers up to 30 W per port and a 67 W total power budget, making it ideal for powering wireless access points, IP phones, and security cameras.
With Layer 2/3 switching, including VLAN, QoS, ACL, IPv6, and Static Routing, the C1300-8P-E-2G provides flexible deployment options and enhanced network control with minimal complexity. Compact, efficient, and silent, the C1300-8P-E-2G delivers PoE+ power and Gigabit Layer 3 performance in a fanless 1U chassis.
With external power and energy-efficient design, it ensures quiet operation and low power consumption. Ideal for small offices, retail stores, and branch deployments, it simplifies both network connectivity and power distribution for connected devices.
Highlights
-
8 × 1 GbE PoE+ ports (67 W total budget) + 2 × 1 GbE RJ-45/SFP combo uplinks
-
20 Gbps switching capacity / 14.88 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent design for quiet environments
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with Catalyst 1300/1200 Series |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and management |
| GLC-SX-MM / GLC-LH-SM | SFP Modules | 1G optical transceivers for combo uplink ports |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-8T-E-2G | 8 × 1 GbE + 2 × 1 GbE combo | — | Fanless | External | Non-PoE model for data-only networks |
| C1300-8P-E-2G (this model) | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 67 W | Fanless | External | Compact PoE+ switch for small deployments |
| C1300-8FP-E-2G | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 120 W | Fanless | External | Higher PoE power for dense device networks |
| C1300-16P-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | Larger PoE+ variant with more ports |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-8P-E-2G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 2 × 1 GbE RJ-45/SFP combo uplinks |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 67 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | External AC adapter (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 12 W (no PoE load), ≈ 85 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 2,200,000 hours |
| Form Factor | Desktop / 1U Rack-mount (optional kit) |
| Dimensions (W × D × H) | 268 × 185 × 43 mm (10.6 × 7.3 × 1.7 in) |
| Weight | 1.45 kg (3.19 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
