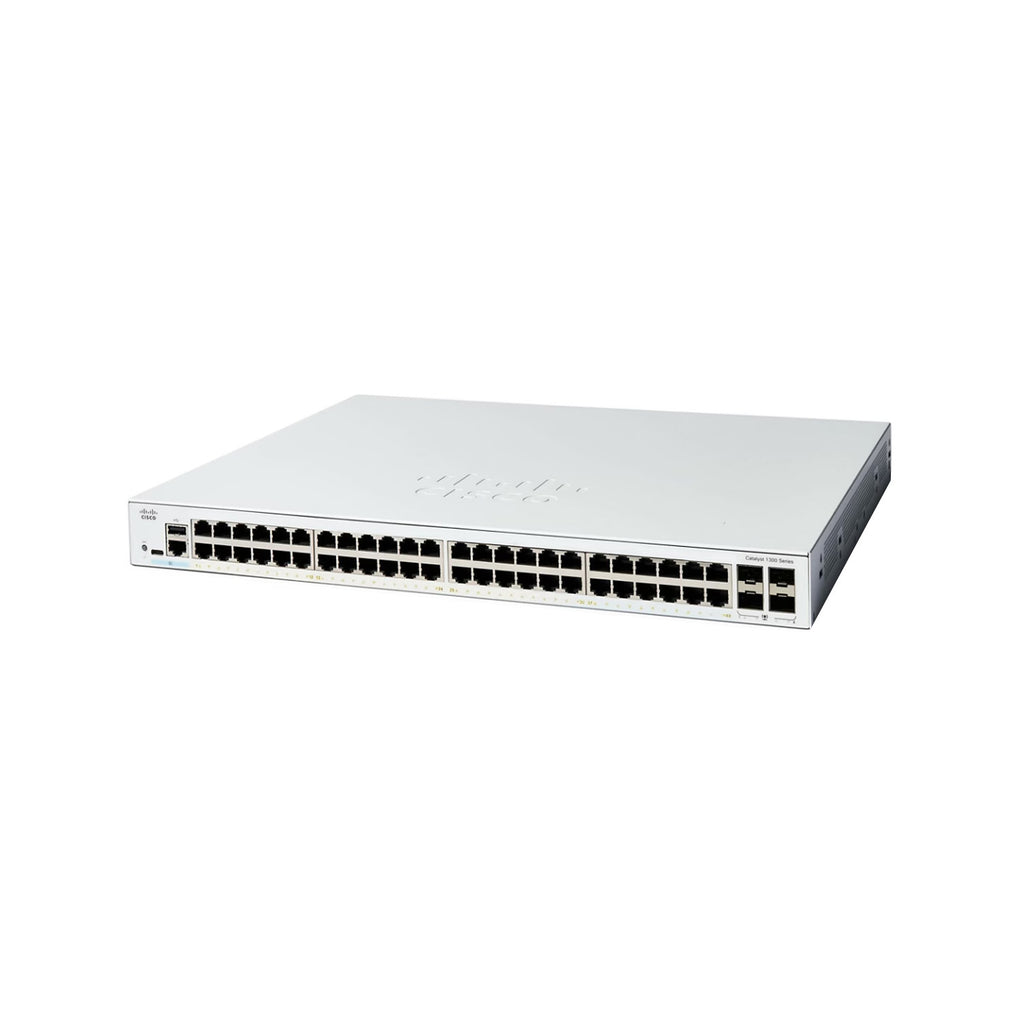

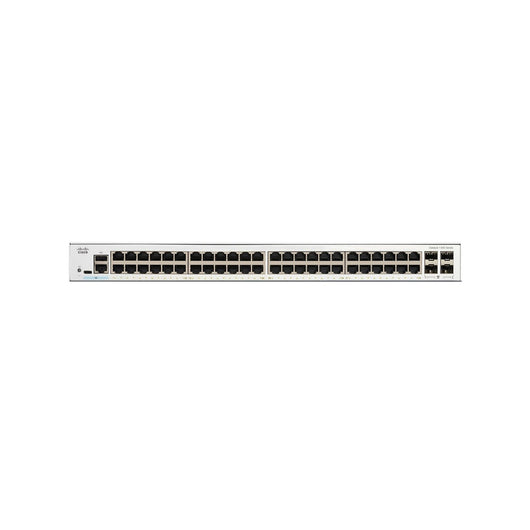

Cisco Catalyst C1300-48T-4G Managed Switch
保證安全結賬
安全、快速、100% 正品。您值得信賴的 IT 合作夥伴。
最佳價格保證、大量節省、全球信賴。
標籤點
Overview
The Cisco Catalyst C1300-48T-4G is a high-density Layer 3 managed Gigabit Ethernet switch within the Cisco Catalyst 1300 Series, designed for SMBs, schools, and branch offices that demand scalable connectivity, enterprise-class security, and quiet fanless operation.
Providing 48 Gigabit access ports and 4 Gigabit SFP uplinks, this model combines non-blocking performance, enhanced CPU processing, and energy-efficient hardware, offering reliable, future-ready networking with intuitive management through the Cisco Business Dashboard, mobile app, or on-device Web UI.
The C1300-48T-4G features 48 × 1 GbE RJ-45 ports and 4 × 1 GbE SFP uplinks, supporting a 104 Gbps switching capacity and 77.38 Mpps forwarding rate. It provides full Layer 2/3 support, including VLAN, QoS, ACL, IPv4/IPv6 static routing, and DHCP relay, ensuring optimal traffic management and segmentation.
Built for data-only applications, it delivers consistent Gigabit throughput for access or aggregation layers with fanless operation, ideal for noise-sensitive environments such as offices or classrooms.
The C1300-48T-4G is a high-port-density Gigabit switch designed for networks requiring expanded capacity, silent performance, and high reliability. With its internal power supply, energy-efficient chipset, and compact 1U rackmount design, it delivers stable Layer 3 performance while minimizing operational costs.
It’s an ideal choice for SMB networks seeking enterprise-level capability without complexity or noise.
Highlights
-
48 × 1 GbE RJ-45 ports + 4 × 1 GbE SFP uplinks
-
104 Gbps switching capacity / 77.38 Mpps forwarding rate
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent operation for noise-sensitive environments
-
Enhanced CPU and DRAM for faster management performance
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with Catalyst 1300/1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and management |
| GLC-SX-MM / GLC-LH-SM | SFP Modules | 1 GbE optical transceivers for uplink connectivity |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-24T-4G | 24 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | Smaller-port non-PoE switch for basic access networks |
| C1300-48T-4G (this model) | 48 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | 48-port Gigabit data switch for large SMB deployments |
| C1300-48T-4X | 48 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | Non-PoE model with 10G uplinks for higher throughput |
| C1300-48P-4G | 48 × 1 GbE PoE+ + 4 × 1 GbE SFP | 370 W | Fanless | Internal | PoE+ switch for powering network endpoints |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-48T-4G |
| Product Type | Managed Layer 3 Gigabit Ethernet Switch |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ-45 (auto MDI/MDIX) |
| Uplink Ports | 4 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 16,000 entries |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 25 W (typical) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,750,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 440 × 270 × 44 mm (17.3 × 10.6 × 1.7 in) |
| Weight | 3.10 kg (6.83 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
