Overview

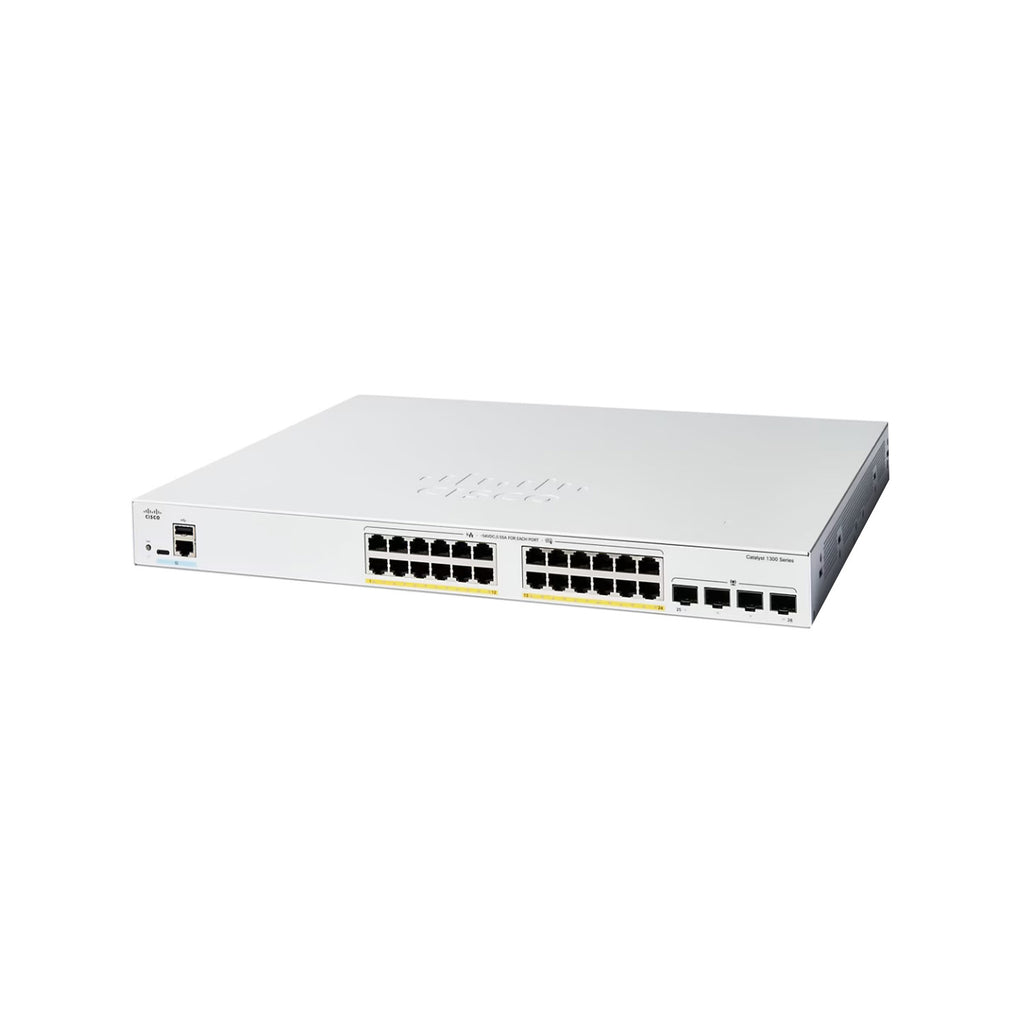

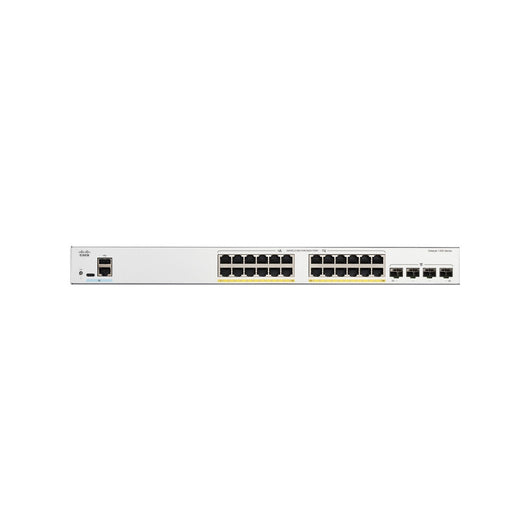

The Cisco Catalyst C1300-24P-4G is a Layer 3 Gigabit PoE+ managed switch in the Cisco Catalyst 1300 Series, engineered for modern SMB networks that demand data and power integration, advanced Layer 3 functionality, and quiet operation.
With 24 PoE+ ports and 4 Gigabit SFP uplinks, it provides enterprise-grade reliability, security, and centralized management through the Cisco Business Dashboard, mobile app, or on-device Web UI. Ideal for powering access points, IP phones, and cameras, it ensures high-speed connectivity and consistent PoE delivery for small-to-medium deployments.
The C1300-24P-4G features 24 × 1 GbE PoE+ downlinks and 4 × 1 GbE SFP uplinks, supporting 52 Gbps switching capacity and 38.69 Mpps forwarding rate. Compliant with IEEE 802.3af/at PoE+, it offers up to 30 W per port and a 195 W total PoE power budget, enabling flexible, efficient power distribution across multiple network devices.
With Layer 2/3 features—including VLAN, QoS, ACL, and static IPv4/IPv6 routing—it provides the intelligence and manageability expected from enterprise-grade switches in a cost-efficient, silent design.
The C1300-24P-4G delivers Gigabit performance and integrated PoE power in a fanless 1U rackmount chassis. Its internal power supply, energy-efficient hardware, and enhanced CPU resources enable quiet and stable operation for office, school, and retail environments.
It’s the perfect choice for SMBs requiring smart, scalable network access with reliable power delivery for edge devices.
Highlights
-
24 × 1 GbE PoE+ ports (195 W total budget) + 4 × 1 GbE SFP uplinks
-
52 Gbps switching capacity / 38.69 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent design for noise-sensitive environments
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1300/1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and management |
| GLC-SX-MM / GLC-LH-SM | SFP Modules | 1 GbE optical transceivers for uplink connectivity |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-24T-4G | 24 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | Non-PoE version for pure data networks |
| C1300-24P-4G (this model) | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | PoE+ model for SMB and branch access layers |
| C1300-24T-4X | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10G uplink model for higher-performance networks |
| C1300-24P-4X | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 195 W | Fanless | Internal | PoE+ switch with 10G uplinks for advanced access or aggregation |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-24P-4G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 195 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 20 W (no PoE load), ≈ 220 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,850,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.10 kg (4.63 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
