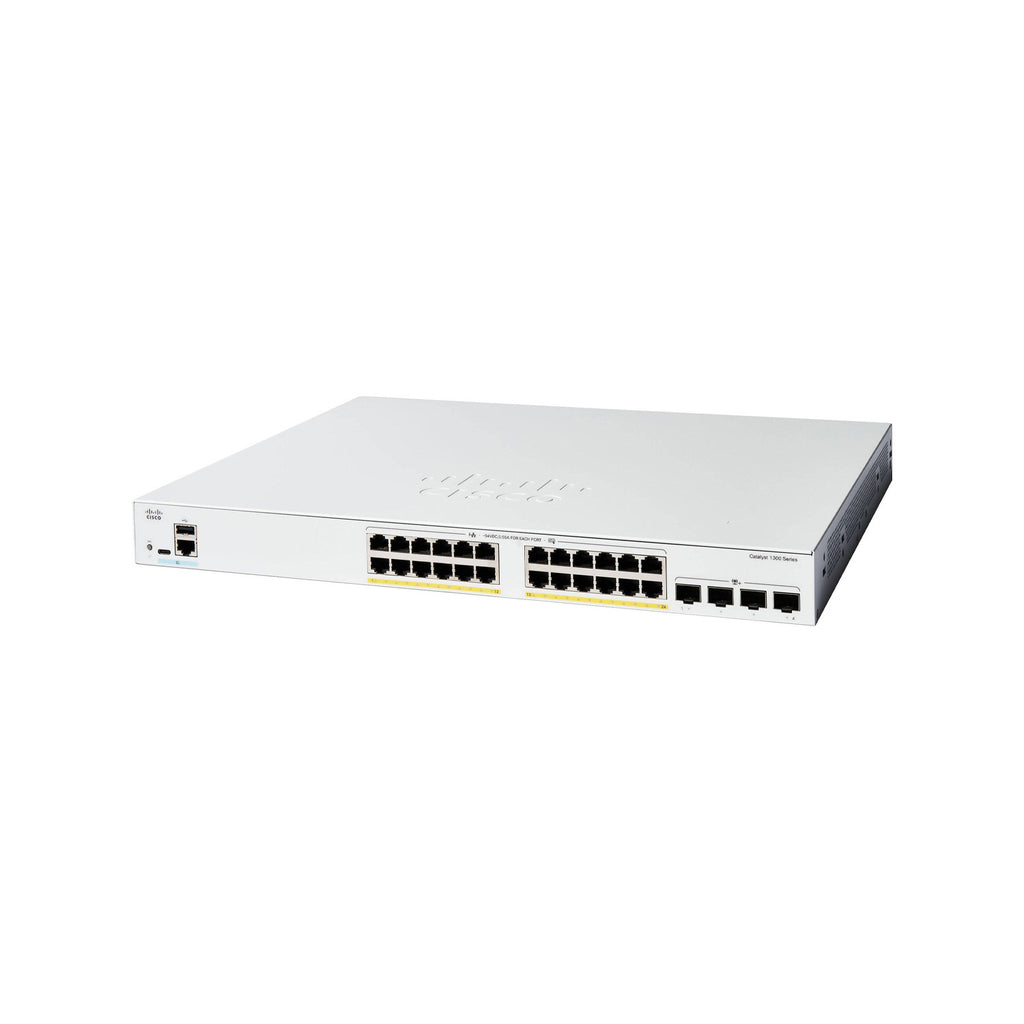

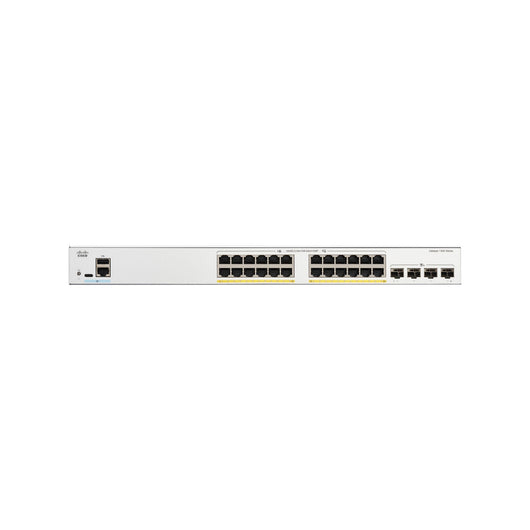

Cisco Catalyst C1300-24FP-4X Full PoE 10G Switch
保證安全結賬
安全、快速、100% 正品。您值得信賴的 IT 合作夥伴。
最佳價格保證、大量節省、全球信賴。
標籤點
Overview
The Cisco Catalyst C1300-24FP-4X is the high-power, 10G uplink PoE+ model of the Catalyst 1300 Series—engineered for SMBs, enterprises, and campus environments demanding advanced Layer 3 functionality, scalable 10G connectivity, and full PoE+ power delivery.
It offers 24 Gigabit PoE+ ports, 4×10G SFP+ uplinks, and a 370 W total PoE budget, delivering high-capacity switching performance, efficient power distribution, and centralized management through the Cisco Business Dashboard, mobile app, or on-device Web UI.
The C1300-24FP-4X combines 24 × 1 GbE PoE+ downlinks with 4 × 10 GbE SFP+ uplinks, achieving 128 Gbps switching capacity and 95.23 Mpps forwarding rate. It supports IEEE 802.3af/at PoE+, providing up to 30 W per port and a 370 W total power budget, ideal for powering dense networks with access points, IP cameras, and VoIP devices.
Built with Cisco’s Layer 2/3 architecture, it features VLAN, QoS, ACL, IPv6, and static routing for optimized traffic segmentation and control in high-demand network environments.
The C1300-24FP-4X delivers the perfect blend of high-speed 10G uplinks, powerful PoE+ capabilities, and silent fanless operation in a compact 1U chassis. Its internal power supply, enhanced CPU, and non-blocking design enable efficient, reliable switching and power management.
Built for scalability, it ensures future-ready network performance for growing SMBs, schools, retail spaces, and branch deployments.
Highlights
-
24 × 1 GbE PoE+ ports (370 W total budget) + 4 × 10 GbE SFP+ uplinks
-
128 Gbps switching capacity / 95.23 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent design for noise-sensitive deployments
-
10G uplinks for high-speed backbone or aggregation connections
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1300/1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for setup and configuration |
| SFP-10G-SR / SFP-10G-LR / GLC-T | SFP/SFP+ Modules | Compatible 1G and 10G optical or copper transceivers for uplinks |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-24P-4X | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 195 W | Fanless | Internal | Standard PoE+ with 10G uplinks |
| C1300-24FP-4X (this model) | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | High-power PoE+ switch with 10G uplinks for dense device networks |
| C1300-48P-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | 48-port PoE+ model for large deployments |
| C1300-48FP-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 740 W | Fanless | Internal | Maximum power capacity for enterprise PoE+ networks |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-24FP-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch with 10G uplinks |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 370 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 24 W (no PoE load), ≈ 410 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,800,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.30 kg (5.07 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
