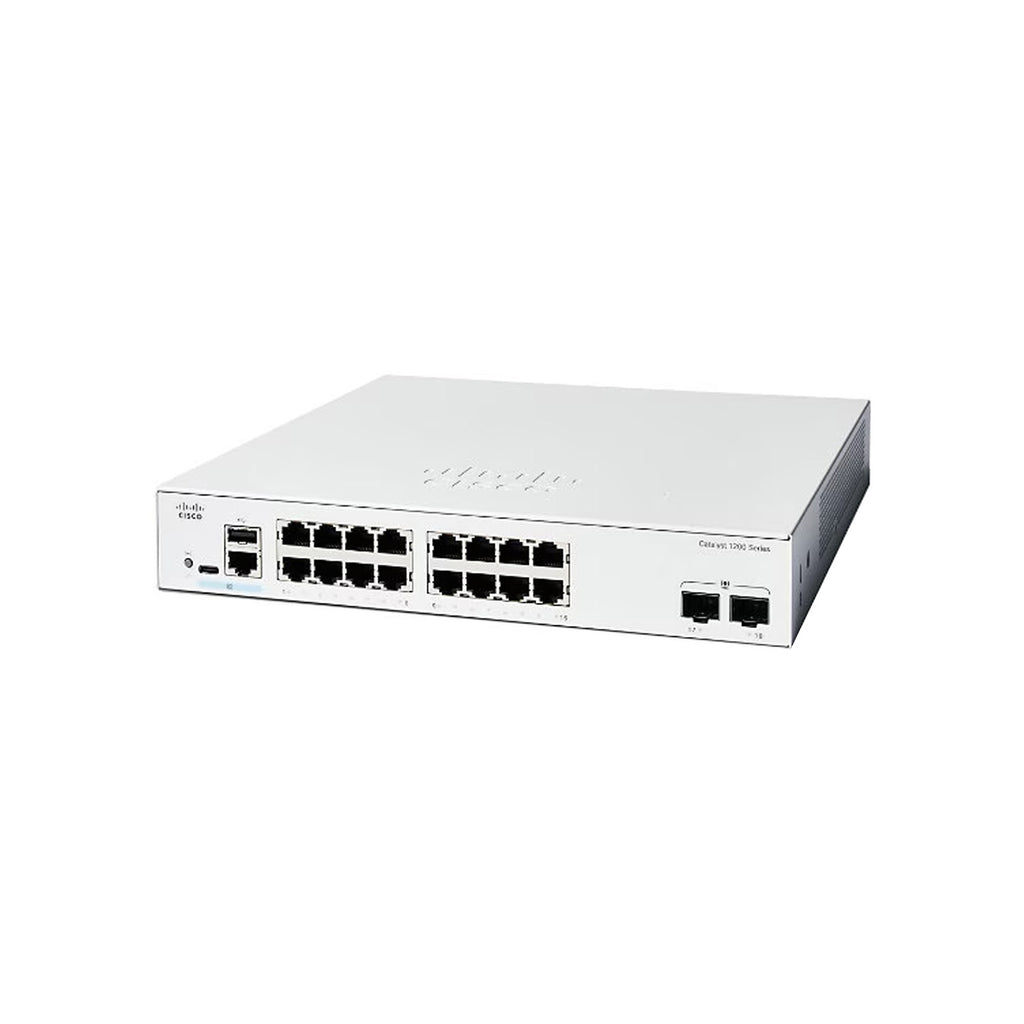

Cisco Catalyst C1200-16T-2G Managed Switch
保證安全結賬
安全、快速、100% 正品。您值得信賴的 IT 合作夥伴。
最佳價格保證、大量節省、全球信賴。
標籤點
Overview
The Cisco Catalyst C1200-16T-2G extends the Catalyst 1200 Series portfolio, offering a balance of port density, Layer 3 intelligence, and silent operation for small to medium-sized business networks. Designed for scalable connectivity in offices, retail sites, and branch networks, it delivers non-blocking Gigabit switching, enterprise-grade reliability, and centralized management through Cisco Business Dashboard, mobile app, or on-device web interface.
The C1200-16T-2G provides 16 × 1 GbE downlink ports and 2 × 1 GbE SFP uplinks, supporting Layer 2/3 features such as VLAN, QoS, ACL, and static routing. With 36 Gbps switching capacity and 26.78 Mpps forwarding rate, it enables stable, high-performance data transfer for access and aggregation layers while maintaining a fanless, energy-efficient design.
Compact and rack-mountable, the C1200-16T-2G offers enterprise performance in a quiet, fanless 1U chassis. It is ideal for organizations that require more downlink density than 8-port models but want to retain silent operation and easy management. Designed with energy efficiency in mind, it delivers reliable Layer 3 performance and high network availability for SMB and branch deployments.
Highlights
-
16 × 1 GbE RJ-45 ports + 2 × 1 GbE SFP uplinks
-
36 Gbps switching capacity / 26.78 Mpps forwarding rate
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent operation for desktop or rack use
-
Managed via Cisco Business Dashboard, Mobile App, Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U mounting brackets for Catalyst 1200 Series models |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-8T-E-2G | 8 × 1 GbE + 2 × 1 GbE RJ-45/SFP combo | — | Fanless | External | Compact data switch with combo uplinks |
| C1200-8P-E-2G | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 67 W | Fanless | External | PoE+ for light network loads |
| C1200-8FP-E-2G | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 120 W | Fanless | External | Higher PoE budget in same size |
| C1200-16T-2G (this model) | 16 × 1 GbE + 2 × 1 GbE SFP | — | Fanless | Internal | 16-port data switch for mid-sized networks |
| C1200-16P-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | 16-port PoE+ variant |
| C1200-24T-4G | 24 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | 24-port access layer model |
| C1200-24T-4X | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10G uplinks for aggregation tier |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-16T-2G |
| Product Type | Managed Layer 3 Gigabit Ethernet Switch |
| Downlink Ports | 16 × 10/100/1000 Mbps RJ-45 (auto MDI/MDIX) |
| Uplink Ports | 2 × 1 Gbps SFP fiber uplinks |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC power supply (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 14.5 W (typical) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −25 °C to 70 °C (−13 °F to 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 2,000,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 1.72 kg (3.79 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
