Introduction

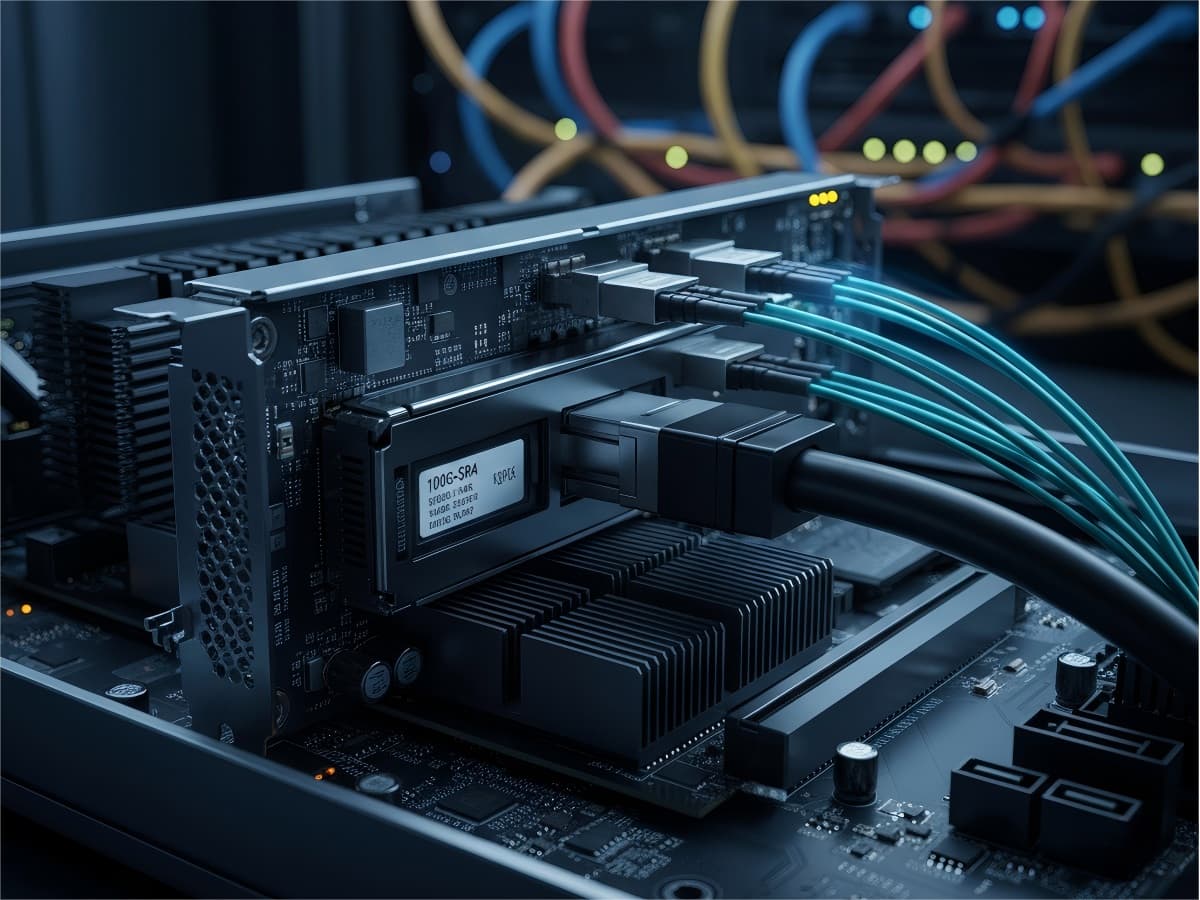

Whether you’re upgrading a workstation, scaling a small business network, or building out a hyperscale data center, a fiber network card (NIC, network interface card) is one of the most critical components for connectivity.
Copper Ethernet NICs still have their place, but when bandwidth, distance, latency, or electromagnetic interference (EMI) become challenges, fiber NICs are the answer.
This guide explains:
- What fiber NICs are and how they differ from copper NICs.
- The main form factors and speeds (SFP, SFP+, SFP28, QSFP+, QSFP28).
- Media choices: single-mode fiber (SMF), multimode fiber (MMF), DACs, and AOCs.
- How to install and troubleshoot PCIe fiber NICs.
- Key features (offloads, SR-IOV, PTP) that matter for enterprise and data center deployments.
- A structured checklist to help you pick the right NIC for your needs.
NIC Form Factors and Speeds
Fiber NICs come with pluggable cages that accept optical transceivers or direct-attach cables. The most common families:
NIC Form Factors vs Typical Speeds
| Form Factor | Typical Speeds | Common Modules / Cables | Connectors | Typical Reach | Typical Use Case |
| SFP | 1G | SX/LX, RJ-45 copper | LC, RJ-45 | 550 m (SX MMF) / 10 km (LX SMF) / 100 m (copper) | Legacy access, industrial |
| SFP+ | 10G | SR/LR/ER, DAC/AOC | LC, MPO-12, DAC | 300–400 m (SR) / 10 km (LR) / ≤7 m (DAC) | Servers, aggregation |
| SFP28 | 25G | SR/LR, DAC/AOC | LC, DAC | 70–100 m (SR MMF) / 10 km (LR SMF) / ≤5 m (DAC) | ToR → servers, cloud |
| QSFP+ | 40G | SR4/LR4, DAC/AOC | MPO-12, DAC | 100 m (SR4) / 10 km (LR4) / ≤5 m (DAC) | Aggregation, legacy 40G |
| QSFP28 | 100G | SR4/DR/FR/LR, DAC/AOC | MPO-12, LC, DAC | 100 m–10 km (optics) / ≤3 m (DAC) | Core, leaf–spine fabrics |
Key insight: Choosing the right NIC starts with understanding speed requirements and the optics or cabling ecosystem you already have.
Media and Distance Options
Fiber NICs can accept a variety of media depending on distance and environment.
Ethernet Standards and Reach
| Standard | Medium | Typical Reach | Notes |
| 1000BASE-SX | MMF (OM2/OM3) | 220–550 m | Entry-level 1G |
| 1000BASE-LX | SMF | 10 km | Common 1G long-reach |
| 10GBASE-SR | MMF (OM3/OM4) | 300–400 m | Data hall short-reach |
| 10GBASE-LR | SMF | 10 km | Campus / metro |
| 25GBASE-SR | MMF (OM4) | 70–100 m | ToR to servers |
| 25GBASE-LR | SMF | 10 km | Aggregation links |
| 40G/100G SR4 | MMF (MPO) | 100 m | Parallel optics |
| 100G DR/FR/LR | SMF | 500 m / 2 km / 10 km | Newer single-lane PAM4 standards |
Rule of thumb:
- SMF (OS2) = long distance (km).
- MMF (OM3/OM4) = short distance (<500 m).
- DAC = cheapest, lowest latency, ≤3–7 m.
- AOC = flexible, light, 3–30 m.
PCIe Compatibility and Platform Fit
Fiber NICs connect to hosts through PCIe slots. Performance bottlenecks can occur if PCIe bandwidth is insufficient.
- 10G NICs: usually fine with PCIe 3.0 ×4.
- 25G NICs: PCIe 3.0 ×4 or ×8.
- 100G NICs: require PCIe 3.0 ×8 or PCIe 4.0 ×4.
- 200G NICs (QSFP56): PCIe 4.0 ×8 or PCIe 5.0.
Other factors:
- Form factor: full-height or low-profile brackets.
- Cooling: dual-port 100G NICs can run hot; airflow and heatsinks matter.
- Drivers: check OS/HCL support (Windows/Linux/VMware/FreeBSD).
Installation and Troubleshooting
Step-by-Step PCIe NIC Installation
- Power down the host and disconnect AC.
- Open the chassis and locate an available PCIe slot.
- Insert the NIC carefully and secure with bracket screws.
- Reconnect power and boot.
- Install drivers/firmware from vendor.
- Check OS recognition (lspci, ethtool -i in Linux).
- Test connectivity with link partner (ping, iperf).
Common Issues and Fixes
| Symptom | Likely Cause | Fix |
| NIC not detected | Loose in slot, BIOS disabled PCIe | Reseat card, enable slot in BIOS |
| Link down | Wrong transceiver/fiber type, polarity error | Check SMF vs MMF, patch polarity |
| Low throughput | PCIe lanes insufficient, MTU misconfig | Use correct PCIe slot, enable jumbo frames |
| High latency/jitter | Offload misconfigured, RSS queues | Tune driver, enable RSS, adjust offloads |
| PTP inaccuracy | NIC lacks hardware timestamp | Ensure IEEE 1588/SyncE support |
Features That Matter
High-performance NICs do more than forward packets. Look for:
NIC Features and Value
| Feature | Purpose | Use Case |
| SR-IOV | Virtual functions for VMs | Private cloud, NFV |
| DPDK/AF_XDP | User-space packet I/O | High-speed NFV, security appliances |
| VXLAN/Geneve Offload | Tunnel encapsulation offload | SDN/Overlay networks |
| RSS/TSO/LRO/GRO | Multi-queue scaling, segmentation | Throughput optimization |
| RoCEv2/iWARP | RDMA | Storage, AI training |
| PTP (IEEE 1588) | Precise time sync | Finance, industrial |
| PXE/iSCSI Boot | Remote boot support | Cluster deployment |
Typical Use Case Examples
- Home/professional workstation (10G):Single-port SFP+ NIC + DAC (2 m) → 10G switch.
- SMB access/aggregation (25G):Dual-port SFP28 NIC + SR modules (70 m OM4) → 25G ToR.
- Data center ToR/core (100G):QSFP28 100G NIC + SR4 modules (100 m MPO) or 100G DR (500 m SMF).
FAQs
Q1. Single-mode or multimode for fiber NICs?
A: Single-mode (OS2) for long distance (km), multimode (OM3/OM4) for short (<500 m).
Q2. Why upgrade from 10G to 25G NICs?
A: 25G offers better cost/bit efficiency, aligns with 100G uplinks (4×25G).
Q3. PCIe slot requirements for 100G NICs?
A: PCIe 3.0 ×8 or PCIe 4.0 ×4 minimum.
Q4. Can RJ-45 modules be used in SFP+ NICs?
A: Yes, but copper 10GBASE-T modules draw more power and add latency.
Q5. What if the link won’t come up?
A: Check module type (SR vs LR), fiber type (OM4 vs OS2), polarity, FEC settings, and firmware.
Q6. How to confirm OS/driver support?
A: Use ethtool -i on Linux, check VMware HCL, or vendor’s driver matrix.
Q7. Which features matter for AI/storage?
A: RDMA (RoCEv2), low-latency tuning, and PTP.
Conclusion
Fiber network cards are no longer niche, they’re central to modern servers, storage, and AI infrastructure. From simple 10G upgrades to full 100G leaf–spine architectures, the right NIC ensures you get the throughput, latency, and reliability your workloads demand.
By following a structured approach - choose speed, confirm PCIe, pick the right optics, validate features, you can avoid costly mistakes and build networks that are both efficient and future-proof.
