Intro
LC (Lucent Connector) is the world’s dominant duplex optical interface, used across enterprise networks, telecom infrastructure, and especially data centers. Even as 400G/800G parallel-optics and MPO-based high-density solutions grow, LC remains essential for 10G/25G/50G/100G/200G/400G duplex links, transceiver front-ends, fiber patching, client-side optics, breakout topologies, and high-density structured cabling.

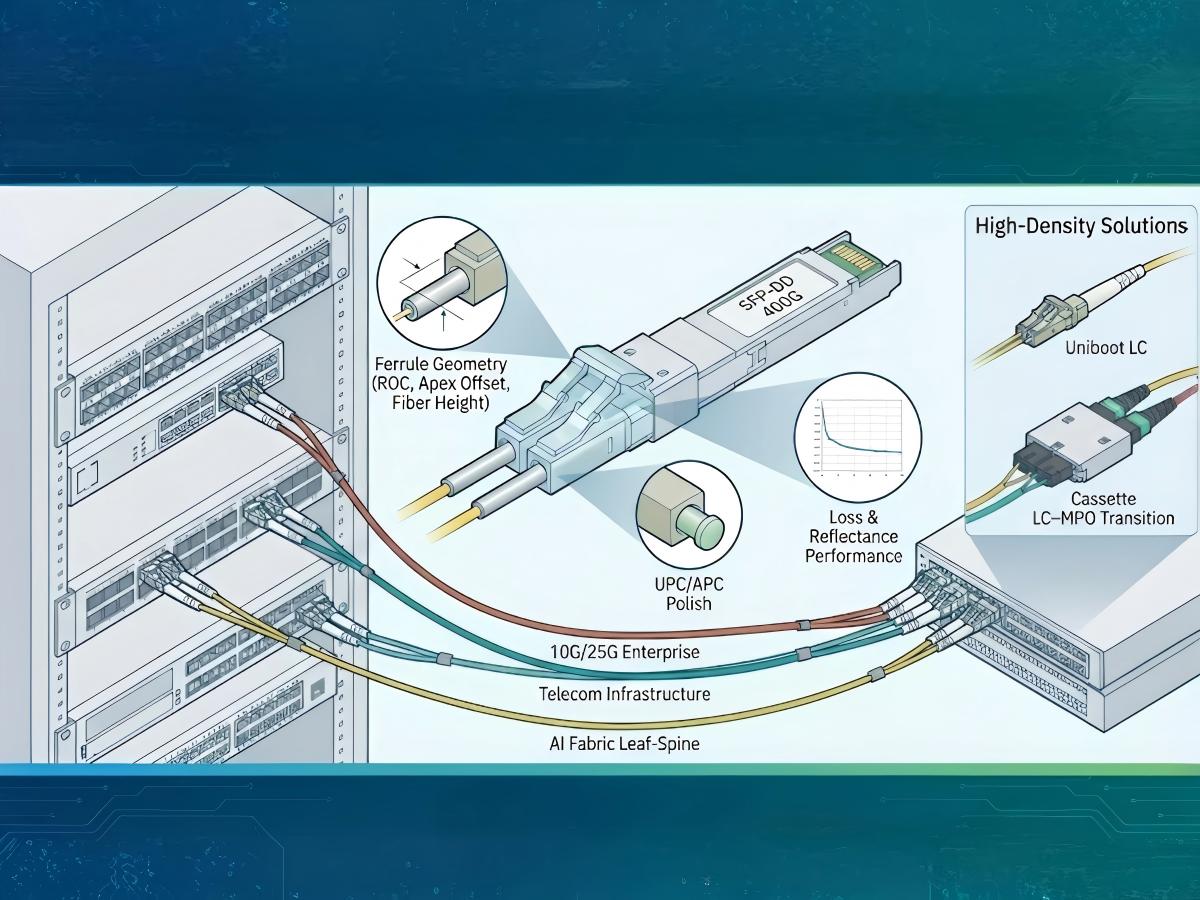

This engineering guide explains LC’s mechanical and optical design, ferrule geometry (ROC, apex offset, fiber height), connector polish types (UPCfaces (SFP+/SFP28/QSFP28/QSFP-DD), and LC’s evolving role in 2026 data center architectures including AI fabrics, leaf–spine networks, and 400G/800G migration paths.
Overview of LC Fiber Optics
Why LC Still Matters?
Even with the rise of parallel optics and MPO-16/MPO-24 for 400G/800G/1.6T links, LC remains indispensable because:
- LC is the universal duplex interface for SFP+/SFP28 and many QSFP-family transceivers
- LC provides superior density for duplex serial links
- LC continues to anchor the patching layer even in MPO-based topologies
- LC offers unmatched compatibility, low insertion loss, and stable optical alignment
Across small and medium data centers, enterprise networks, telecom ODNs, and AI compute fabrics - LC remains the connector of choice for duplex SMF/MMF links from 10G to 400G FR/LR optics.
What is LC? Evolution from Lucent Connector to Global Standard
1. Origins
LC (Lucent Connector) was created by Lucent Technologies (now part of Nokia/Alcatel-Lucent) as a Small Form Factor (SFF) connector to replace bulky SC/FC connectors in telecom environments.
2. Why LC Became Dominant
- 1.25 mm zirconia ferrule (half of SC’s ferrule size)
- High-density latch mechanism
- Compatibility with TIA/EIA-604 FOCIS 10 specifications
- Rapid adoption in SFP/SFP+ transceivers and patch hardware
3. LC vs SC/FC/ST
| Feature | LC | SC | FC | ST |
| Form Factor | SFF (very small) | Large | Large | Large |
| Density | Highest | Moderate | Low | Low |
| Ferrule | 1.25 mm | 2.5 mm | 2.5 mm | 2.5 mm |
| Latching | Retaining tab | Push-pull | Threaded | Bayonet |
| Usage (2026) | Data centers, LAN, WDM | Legacy LAN | Legacy telecom | Legacy campus |
LC dominates modern deployments where density and repeatability matter.
LC Connector Engineering: Geometry & Optical Performance
The performance of LC connectors depends on precise ferrule geometry regulated by IEC 61755.
1. Ferrule Geometry
Key parameters:
- Radius of Curvature (ROC): 7–25 mm typical
- Apex Offset: <50 µm ideal
- Fiber Height: +50–100 nm protrusion
- Surface Roughness: Determines IL stability
- Endface Angle (UPC vs APC):UPC ≈ 0° APC = 8° angle to deflect reflections
2. Connector Polish Types
- LC UPC (Ultra Physical Contact) Standard for Ethernet optics Return Loss ≈ –50 to –55 dB Used on SFP+/SFP28/QSFP LR4/FR4 modules
- LC APC (Angled Physical Contact) Return Loss ≈ –60 to –65 dB Used in PON, DWDM, RFoG Not compatible with Ethernet LC UPC ports Not used for multimode
3. Connector Grades
IEC grades:
| Grade | Typical IL | Typical RL | Application |
| A | 0.07–0.12 dB | High RL | PAM4 optics, data centers |
| B | 0.12–0.25 dB | Medium RL | General telecom/LAN |
| C | 0.25–0.5 dB | Low RL | Low-cost scenarios |
For 100G/200G/400G FR/LR duplex optics, ULL LC Grade A is recommended to ensure BER margin across PAM4 links.
LC Fiber Patch Cable Ecosystem
LC patch cables come in several variants optimized for different environments.
1. Standard LC Duplex Patch Cords
- Available in OS2, OM3, OM4, OM5
- Simplex or duplex
- Common for 1G/10G/25G/100G SR/LR links
2. Uniboot LC Patch Cords
Designed for high-density data centers:
- Two fibers share one round cable + one boot
- Cuts cable bulk by up to 50%
- Supports easy polarity reversal
- Push-pull tab options allow tight-pack switch deployment
3. Ultra-Low-Loss (ULL) LC Patch Cords
- IL ≈ ≤0.12 dB
- Essential for PAM4 optics
- Reduce the number of FEC corrections
- Extend optical budgets for multi-cassette structured cabling
ULL LC cords are now standard in new 100G/200G/400G deployments.
4. Armored LC Patch Cords
- Steel tube or metal braid
- Rodent-proof, crush-proof, vibration-resistant
- Ideal for harsh environments, industrial networks, and AI cluster racks
- Same OD as standard cords to maintain density
5. Mode Conditioning LC Patch Cords
Used to run LX optics over legacy multimode fiber:
- Combines MMF + SMF
- Solves DMD (Differential Mode Delay) issues
- Supports 1000BASE-LX in legacy fiber plants
6. Breakout LC Cables
- LC ↔ MPO/MTP
- LC ↔ SC/FC/ST
- LC ↔ LC fanouts (4/6/8/12/24 cores)
Used widely in:
- Leaf–server breakouts (100G → 4×25G)
- AI clusters
- Telco ODFs
- High-density patching
LC Hardware Infrastructure
1. LC Adapters (Couplers)
- Simplex, duplex, quad
- UPC (blue) / APC (green) color coding
- Shuttered versions for dust protection
2. LC Fiber Patch Panels
- 1U, 2U, 4U sliding-tray designs
- Density up to 144F per 1U with uniboot
- Front-access or dual-access for easy maintenance
- Used in DC meet-me-rooms & main distribution areas
3. LC Cassettes (MTP/MPO → LC)
- Rear: MPO trunk
- Front: LC ports
- Used in 10G/25G/100G duplex architectures
- Enable structured cabling with consistent polarity management
LC Attenuators (Power Management)
1. Fixed LC Attenuators (1–25 dB)
Used when:
- EDFA amplifiers raise signal levels too high
- Receiver sensitivity range requires trimming
- PAM4 optics need consistent launch power
2. Variable LC Attenuators (VOA)
Used in DWDM systems where power equalization across wavelengths is required.
LC-Interfaced Transceiver Technology
LC is the primary duplex optical interface for:
1. 10G SFP+ Duplex Optics
- 10GBASE-SR (MMF)
- 10GBASE-LR (SMF)
- 10G ER/ZR variants
2. 25G SFP28
- 25G SR
- 25G LR
- 25G BiDi LC (single-fiber)
3. 40G/100G FR/LR
Some QSFP+ and QSFP28 variants use LC for single-lane duplex connections:
- 100GBASE-LR4 (LC duplex)
- 100GBASE-FR1 (LC duplex)
- 100GBASE-FR4 (LC duplex)
4. 200G/400G (LC-based duplex client optics)
- 200G FR4 (LC duplex)
- 400G FR4/LR4 (LC-to-LC versions, still deployed for certain client-side SMF links)
LC persists where duplex serial transmission remains the optical layer of choice.
LC vs MPO (Parallel Optics)
1. Duplex vs Parallel
- LC = duplex serial lanes
- MPO = multi-lane parallel (4/8/16 channels)
2. When LC Wins
- Low insertion loss
- Simple patching
- High reliability
- Great for duplex serial optics
- Ideal for 10G, 25G, 100G FR/LR client links
3. When MPO Wins
- 100G SR4 / DR4
- 200G SR4
- 400G SR8
- 800G/1.6T parallel optics
- Fiber backbones with high lane count
4. LC–MPO Hybrid Cabling
- MPO trunk cables
- LC cassettes at endpoints
- LC patching to transceivers
- Best practice for 10G→40G→100G→400G migration
LC in Data Center Architecture
1. LC at ToR/Leaf Layer
- Servers → leaf switches: SFP+/SFP28/100G-LC
- Low IL LC patching preserves BER and reduces FEC workload
- AI cluster nodes often use LC for 25G/50G links
2. LC in Leaf–Spine
- 100G FR/DR and FR4 uplinks connect via LC
- Breakout: 100G → 4×25G using LC fan-outs
- LC remains the “patchable” edge of structured cabling
3. LC + MPO Hybrid Strategy
- MPO trunks for high core bandwidth
- LC cassettes for server-facing connectivity
- Agile migration path to 400G/800G without ripping out LC patching
4. LC in AI / Machine Learning Fabrics
- AI node servers often deployed at 25G/50G
- Duplex LC links pair with spine leaf FR/LR optics
- Ensures low-latency optical connectivity between GPU cluster racks
LC Best Practices (Critical Engineering Section)
1. Polarity Management
- A/B polarity
- Uniboot flipping
- MPO→LC polarity mapping (Type A/B/C trunks)
2. Cleaning & Inspection
- Follow IEC 61300-3-35
- Dirty LC is the #1 cause of high IL and BER
- Always inspect before connecting (IBC, scope)
3. IL/RL Budget Planning
Typical IL for duplex LC links:
| Application | Max Link IL | Notes |
| 10G SR/LR | <3.5 dB | Simple |
| 25G SR/LR | <2.5 dB | Tighten IL margin |
| 100G FR/LR | <2.0 dB | PAM4 sensitive |
| 400G FR4 | <1.5 dB | ULL LC recommended |
4. Mechanical Durability
- LC connectors are rated for thousands of insertions
- Use unibody connectors for higher repeatability
- Avoid excessive pulling on the latch
LC Selection Framework (Which LC Solution Should You Use?)
Use Standard LC Duplex when:
- Office or enterprise patching
- 1G/10G/25G/100G SR/LR
- Short runs in structured cabling
Use Uniboot LC when:
- High-density switches
- Space is at a premium
- Need easy polarity reversal
Use ULL LC when:
- PAM4 optics (25G/50G/100G/200G/400G FR/LR)
- Multi-cassette structured cabling
- Long optical budgets with tight IL requirements
Use LC APC when:
- PON (GPON/XGS-PON)
- DWDM/CWDM OADM systems
- RFoG, analog optical signals
- NOT for Ethernet optics
Use Armored LC when:
- Industrial racks
- Harsh or outdoor environments
- Under-floor or exposed cable paths
Advanced Engineering FAQs
Q1: Why is LC still dominant despite MPO’s rise?
A: Because duplex serial optics remain essential for 10G/25G/100G FR/LR deployments.
Q2: Can I use LC APC with Ethernet?
A: No. Ethernet optics require LC UPC.
Q3: Why does ULL LC matter for PAM4 optics?
A: PAM4 is margin-sensitive; low IL improves BER and reduces FEC corrections.
Q4: Is LC obsolete in 800G networks?
A: No. LC is still widely used on 800G duplex client ports and breakouts.
Q5: What about LC single-fiber BiDi?
A: BiDi LC saves fiber pairs and reduces ODF port usage.
Q6: When should I use LC cassettes?
A: When transitioning from MPO trunks to duplex equipment ports.
Q7: Can LC be used in AI GPU clusters?
A: Yes, 25G/50G LC is common for GPU node connectivity.
Q8: Why does apex offset affect 25G/100G?
A: High-frequency PAM4 links require precise optical alignment.
Q9: How often should LC connectors be inspected?
A: Before every installation, dust increases IL dramatically.
Q10: Are LC connectors fragile?
A: Properly handled zirconia LC ferrules last thousands of cycles.
Q11: Can LC support coherent 400G ZR/ZR+?
A: Yes, many coherent modules still use LC duplex SMF.
Q12: Do all LC connectors support polarity reversal?
A: Only uniboot LC designs support easy reversal.
Q13: Does LC work with OM5?
A: Yes, duplex LC is fully compatible with OM5 MMF.
Q14: Can LC breakout support 400G?
A: Yes, 400G QSFP-DD FR4 → 4×100G LC FR1 breakouts are widely used.
Q15: What IL is acceptable for 400G FR4?
A: Typically ≤1.5 dB for optimal link stability.
Conclusion
In 2026, LC remains one of the most essential connector systems in optical networking. Its compact size, reliability, extremely low insertion loss, high-density compatibility, and deep ecosystem support from patch cords and cassettes to attenuators and duplex transceivers, ensure LC’s ongoing relevance even as the industry expands into parallel 400G/800G optics and AI fabrics.
LC’s role is evolving but far from disappearing. In duplex serial optics, structured cabling, client connections, PON, DWDM, and hybrid LC–MPO architectures, LC continues to shape how the world deploys scalable, high-performance optical networks.
Network-Switch.com provides a complete LC ecosystem, including ULL LC patch cords, armored LC solutions, LC cassettes, LC–MPO transitions, LC-based transceivers, and fiber distribution hardware optimized for modern data centers, enterprises, and telecom networks.
