As network speeds accelerate into the 400G, 800G, and even 1.6T era, optical fiber continues to dominate the backbone of modern connectivity. Whether in AI data centers, telecom networks, cloud platforms, enterprise campuses, or FTTH deployments, fiber optic cabling delivers unparalleled performance in speed, distance, EMI immunity, and bandwidth capacity.
This 2026 expert guide takes a deep, modern look at:
- What optical fiber is
- Updated fiber types (OS2, OM4, OM5, G.657A2)
- Advantages and disadvantages
- How to select the right fiber
- Application scenarios in AI/Cloud/Data Centers
- 2026 trends in optical connectivity
- A comprehensive FAQ section
Overview of Optical Fibers
What is Optical Fiber?
Optical fiber is a transmission medium that uses pulses of light rather than electrical signals to carry information. Inside each fiber, light travels through a glass or plastic core via total internal reflection, enabling extremely high-speed, long-distance, and interference-free communication.
A typical fiber consists of:
- Core - where light travels
- Cladding - keeps the light reflected inside
- Coating - buffer to protect the glass
- Strength members - Kevlar fibers providing tensile strength
- Jacket - OFNR, OFNP, LSZH, PE, or armored depending on environment
Optical fibers can be:
- Ultra-thin and flexible for high-density data centers
- Armored for outdoor or industrial environments
- Ribbonized for parallel high-speed MTP/MPO systems

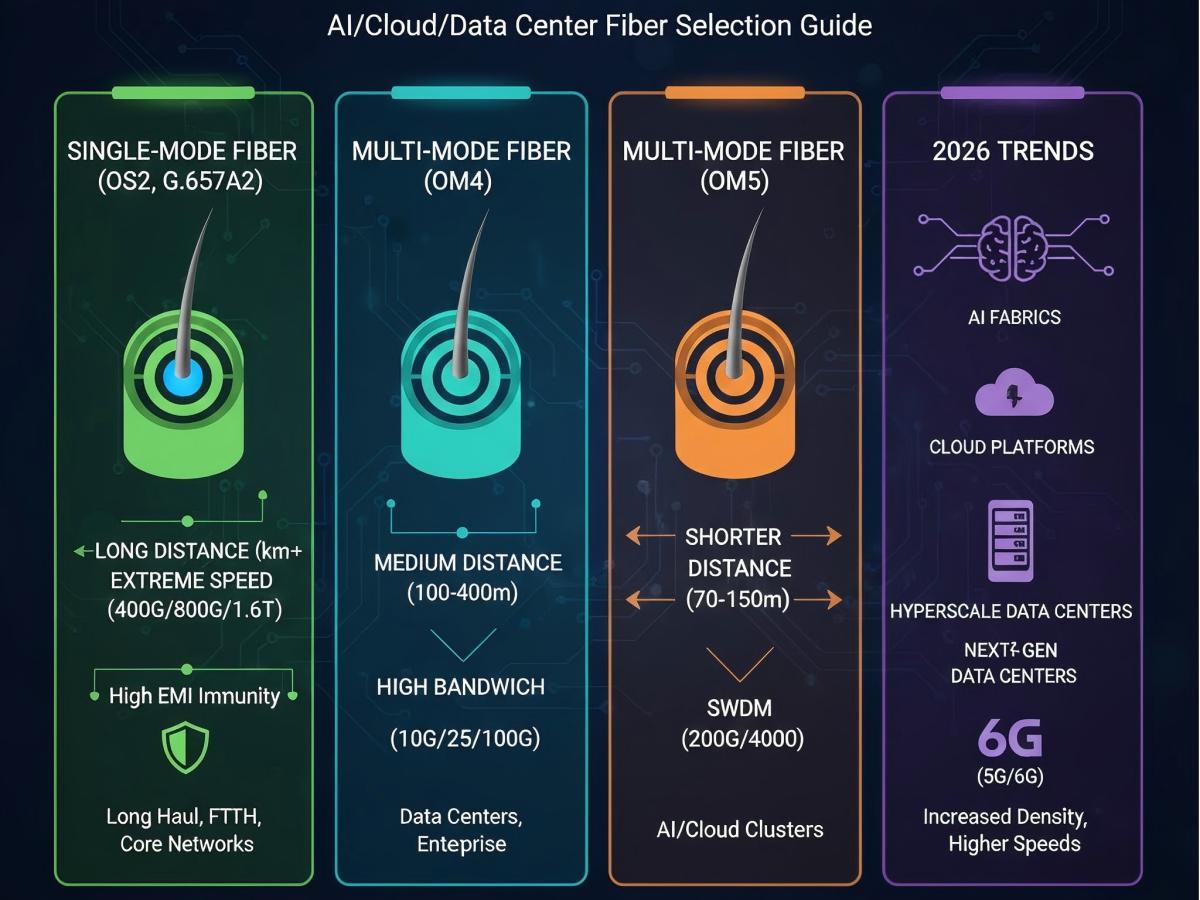

Common Fiber Types
1. Single-Mode Fiber (SMF – OS2)
- Core size: ~9 µm
- Transmits one “mode” of light → lowest loss, longest distance
- Typical standards: ITU-T G.652D, G.657A1/A2
- Supports: 10G / 25G / 40G / 100G 200G / 400G DR4 / 800G DR8 Coherent DWDM systems
- Used in: AI data centers Metro & long-haul networks Cloud infrastructure Enterprise backbones
G.657A2 is especially important in 2026 due to bend-insensitive deployment in dense racks.
2. Multimode Fiber (MMF – OM3 / OM4 / OM5)
- Core sizes: 50 µm or 62.5 µm
- Enables multiple light modes → ideal for short-range, high-speed links
- OM4 and OM5 remain dominant in data centers
- Typical supported speeds: 10G up to 400G (SR4, SR8) Next-gen SR8 800G (short reach)
- Best suited for: Top-of-rack (TOR) → spine cabling (<150m) High-density 100G-400G MMF systems
OM5 additionally supports SWDM for 100G/200G/400G wavelength-division MMF deployments.
3. Plastic Optical Fiber (POF)
- 1 mm core diameter
- Easy to install
- Very low cost
- Only for low-speed, short-distance consumer/industrial use
- Not used in modern enterprise or data-center networks
Advantages of Optical Fiber
1. Ultra-High Bandwidth & Future-Proof Speeds
Fiber is the only medium capable of supporting:
- 100G
- 200G
- 400G
- 800G
- 1.6T (2026 emerging)
SMF bandwidth extends into the terahertz range, far beyond copper or wireless.
2. Long-Distance, Low-Loss Performance
- SMF easily supports tens of kilometers without signal regeneration
- Lower attenuation than any electrical medium
- Ideal for metro, long-haul, and campus backbones
3. Immune to Electromagnetic Interference (EMI)
Fiber is fully resistant to:
- Electrical noise
- Power surges
- Industrial EMI
- Crosstalk
Crucial in factories, substations, railways, and smart cities.
4. Lightweight, Thin, Flexible for High Density
Fiber allows:
- More fibers per cable
- Better airflow
- Higher rack density
- MTP/MPO high-density backbone solutions
- Easier cable management
5. Extremely Low Latency
Light moves faster than electrical signals through copper.
Latency is especially critical in:
- AI training clusters
- HPC systems
- High-frequency trading
- Distributed storage
6. High Security
Fiber is immune to radiated emissions - tapping is extremely difficult.
Any physical disturbance causes detectable signal loss.
7. Long Lifespan
Properly installed fiber can last 25–100 years, far exceeding copper.
Disadvantages of Optical Fiber
1. Optical Modules Drive Up Cost
The cable itself is inexpensive, but 100G/400G/800G optics cost far more than copper transceivers.
2. Installation Requires Professional Tools
- Fiber cleavers
- Fusion splicers
- Inspection microscopes
- Cleaning tools
Incorrect installation = link failure.
3. Highly Sensitive to Dust & Oil Contamination
The #1 cause of failure in 100G/400G/800G networks is dirty fiber endfaces.
4. Bend Radius Constraints
Even bend-insensitive fiber requires careful routing:
- Excess bending causes loss
- Ribbon/MTP/MPO requires precision cable pathways
5. Requires Opto-Electrical Conversion
Fiber cannot transmit power (PoE)
→ requires transceivers, media converters, or separate copper runs.
6. Tight Insertion-Loss Budgets at 400G/800G
High-speed optics allow very limited IL budget:
- Typical 400G DR4 IL budget: ~3 dB
- MTP/MPO must be Elite-grade (<0.2 dB per mated pair)
Standard connectors often fail these requirements.
How to Select the Right Optical Fiber Cable?
1. SMF vs MMF
Choose based on:
- Distance
- Speed
- Upgrade path
- Transceiver type
Rule of thumb:
- SMF = best for >100m or >100G
- MMF = best inside racks or short-reach (<150m)
- OS2 (SMF) for AI data centers using DR4/FR4 optics
2. Indoor / Outdoor Requirements
Indoor:
- OFNP (Plenum)
- OFNR (Riser)
- LSZH (low smoke zero halogen)
Outdoor:
- Water-blocking
- PE jacket
- Armored
- Aerial self-supporting
Hybrid cables:
- Dual-jacket fiber for campus cross-building deployment
3. Fiber Construction
- Tight-buffered (indoor)
- Loose-tube (outdoor, long-distance)
- Breakout cable (device → device)
- Ribbon fiber (high-density MTP/MPO trunks)
4. Fiber Count
Common counts:
- 2F / 4F / 8F / 12F
- 24F / 48F / 96F / 144F
- Ribbonized 12F/24F for MTP/MPO
2026 data centers favor 12F/24F trunk systems.
Match Fiber to Transceiver Type
| Transceiver | Recommended Fiber |
| 100G SR4 | OM4 / OM5 MMF |
| 100G DR | OS2 SMF |
| 400G DR4 | OS2 SMF |
| 400G SR8 | OM5 |
| 800G DR8 | OS2 SMF |
| 800G SR8 | OM5 / SMF (depending on model) |
2026 Key Trends in Optical Fiber
1. AI Data Centers Driving SMF Adoption
- SMF dominates new hyperscale builds
- DR4/DR8 optics standardize OS2 deployments
2. Rise of 400G / 800G / 1.6T
Next-generation Ethernet pushes:
- Ultra-low IL requirements
- MTP/MPO Elite connectors
- Bend-insensitive OS2 fiber
3. MTP/MPO High-Density Cabling
The entire market is shifting toward:
- 12-fiber and 24-fiber MTP trunk systems
- Modular cassettes
- Fast MAC (Move/Add/Change) operations
4. G.657A2 Becoming the Standard for Dense Cabling
Better bend performance → fewer deployment failures.
5. FTTH Expansion Worldwide
Millions of homes connecting to fiber →
fiber price drops, ecosystem matures.
Application Scenarios for Optical Fiber
1. Cloud & AI Data Centers
- OS2 single-mode
- MTP/MPO backbone
- 400G/800G connectivity
2. Enterprise Campus Networks
- SMF for backbone
- MMF for IDF/MDF interconnects
3. Telecom / Metro / Long-Haul
- G.652D / G.655 / G.657C
- DWDM systems
4. FTTH / FTTx
- Drop cable
- Self-supporting aerial fiber
5. Industrial & Smart City
- Armored OS2
- EMI-resistant long-distance links
- PoE cameras backhaul (fiber for data, copper for power)
Fiber vs Copper vs DAC/AOC
| Feature | Fiber | Copper | DAC/AOC |
| Speed | Up to 1.6T | Up to 10G (40G short) | 25G/100G/400G |
| Distance | Up to 100km | 100m | 1–10m |
| EMI | Immune | Susceptible | Immune |
| Cost | Medium (cable cheap, optics expensive) | Low | Medium |
| Installation | Requires tools | Easy | Very easy |
| Use Case | Backbone/DC/FTTH | Access/PoE | TOR connections |
FAQs
Q1: Is multimode fiber becoming obsolete?
A: No. OM4/OM5 remain essential for short-reach 100G–400G links in data centers.
Q2: What fiber should I use for 800G?
A: 800G DR8 → OS2 SMF
800G SR8 → OM5 or SMF depending on vendor
Q3: What’s the difference between G.652D and G.657A2?
A: G.657A2 has much better bend performance for dense racks.
Q4: Why do high-speed optical links fail?
A: Most failures come from dirty fiber endfaces causing insertion-loss spikes.
Q5. How long do optical fibers last?
A: Properly installed fiber can last over 25–50 years; underground ducts can last 75–100+ years.
Q6. Is fiber more secure than copper?
A: Yes. Fiber is extremely difficult to tap without detection.
Q7. What is bend-insensitive fiber?
A: Fiber engineered (G.657) to reduce loss from tight bends in racks.
Q8. Should enterprises migrate fully to optical fiber?
A: Backbone → Yes.
Access layer → Depends on PoE requirements.
Q9. Can fiber carry power like PoE?
A: No. It only carries data unless using composite fiber + copper.
Q10. Does OM5 replace OM4?
A: Not entirely. OM5 adds SWDM benefits but is optional—OM4 still dominates cost-sensitive DCs.
Q11. When should I use armored fiber?
A: Outdoor, industrial, mining, or high-risk environments.
Q12. What fiber is best for a campus backbone?
A: OS2 single-mode is the modern standard.
Why Choose Network-Switch.com for Fiber Solutions?
Network-Switch.com provides:
- Multi-brand fiber compatibility (Cisco / Huawei / Ruijie / H3C / NS)
- MTP/MPO high-density cabling solutions
- 400G/800G optical module guidance
- CCIE/HCIE/H3CIE engineering consultation
- Global supply chain with fast delivery
- One-stop fiber, switches, modules, patch panels, and accessories
Whether building an AI data center or upgrading enterprise backbones, our team delivers expert-level design and deployment support.
Conclusion
As the world moves toward full optical connectivity driven by AI workloads, hyperscale cloud, FTTH expansion, and high-density data centers optical fiber stands as the most future-proof, scalable, and reliable medium for modern networks.
Its advantages in speed, distance, EMI immunity, and long-term performance overwhelmingly surpass copper, making fiber the foundation for next-generation digital infrastructure.
For accurate selection, professional planning, and multi-brand compatibility, Network-Switch.com provides the expertise and complete portfolio needed to build robust fiber networks for 2026 and beyond.
