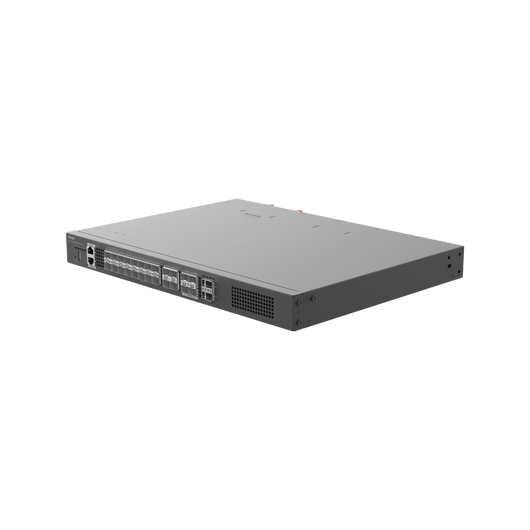

RG-S6120-20XS4VS2QXS Switch Overview
According to the Ruijie RG-S6120-20XS4VS2QXS specifications, it is a high-performance layer 3 managed switch that can be deployed in enterprise campus and metropolitan area network (MAN) and data center networks. RG-S6120-20XS4VS2QXS highlights Flexibility with: 1 RU 20 × 1GE/2.5GE/10GE SFP+ ports; 4 × 10GE/25GE SFP28 ports; 2 × 40GE QSFP+ uplink ports. This platform effectively supports advanced features like virtual switch unit (VSU) virtualization, full Layer 3 routing protocols, and a full set of security policies that empower the large-scale core and aggregation layers.
Highlights
- High-Density Port Configuration: Provides 20 × 1GE/2.5GE/10GE SFP+ ports, 4 × 10GE/25GE SFP28 ports, and 2 × 40GE QSFP+ uplink ports, supporting flexible deployment options.
- VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
- Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
- Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
- High Reliability: Features hot-swappable power modules and fan modules with redundancy, ensuring continuous operation and service reliability.
- Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6120-20XS4VS2QXS:
| Product Model | Category | Description |
| RG-PA150I-F | Power Supply Module | 150W AC power supply module, supporting hot-swapping and redundancy. |
| RG-PD150IB-F | Power Supply Module | 150W DC power supply module, supporting hot-swapping and redundancy. |
| M1SFAN I-F | Fan Module | Pluggable fan module for efficient cooling and airflow management. |
| XG-SFP-SR-MM850 | Optical Transceiver | 10GE SR module, SFP+ form factor, LC connector, 850 nm, up to 300 m over OM3 MMF. |
| XG-SFP-LR-SM1310 | Optical Transceiver | 10GE LR module, SFP+ form factor, LC connector, 1310 nm, up to 10 km over SMF. |
| VG-SFP-SR-MM850 | Optical Transceiver | 25GE SR module, SFP28 form factor, LC connector, 850 nm, up to 100 m over OM4 MMF. |
| VG-SFP-LR-SM1310 | Optical Transceiver | 25GE LR module, SFP28 form factor, LC connector, 1310 nm, up to 10 km over SMF. |
| 40G-QSFP-SR-MM850 | Optical Transceiver | 40GE SR module, QSFP+ form factor, MPO connector, 850 nm, up to 150 m over OM4 MMF. |
| 40G-QSFP-LR4-SM1310 | Optical Transceiver | 40GE LR module, QSFP+ form factor, LC connector, 1310 nm, up to 10 km over SMF. |
Specifications
| Parameter | Specification |
| Model | RG-S6120-20XS4VS2QXS |
| Service Ports | 20 × 1GE/2.5GE/10GE SFP+ |
| Uplink Ports | 4 × 10GE/25GE SFP28, 2 × 40GE QSFP+ |
| Switching Capacity | 912 Gbps |
| Packet Forwarding Rate | 678 Mpps |
| MAC Address Table | Up to 32,768 entries |
| ARP Table Size | Up to 16,000 entries |
| IPv4 Unicast Routes | Up to 16,000 entries |
| IPv6 Unicast Routes | Up to 16,000 entries |
| IPv4 Multicast Routes | Up to 4,000 entries |
| IPv6 Multicast Routes | Up to 2,000 entries |
| Power Module Slots | 2 (supporting 1+1 redundancy) |
| Fan Module Slots | 2 pluggable fan modules |
| Management Ports | 1 × RJ45 console port, 1 × RJ45 MGMT port, 1 × USB 2.0 port |
| Dimensions (W × D × H) | 442 mm × 330 mm × 43.6 mm (17.40 in. × 12.99 in. × 1.72 in.) |
| Weight | Approximately 4.6 kg (with two fan modules) |
| Power Supply | AC 100–240V, 50/60 Hz or DC –36V to –75V |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
