Introduction

Wi-Fi has gone from "nice to have" to "if it's down, the business stops." In 2026, most offices, campuses, hospitals, hotels, factories, and warehouses:

• Run dozens or hundreds of access points (APs)
• Need consistent SSIDs, security, and user experience
• Can't afford constant manual tweaking of every AP

If every AP is configured one by one, you quickly end up with:

• Inconsistent settings
• Ugly roaming behavior
• RF interference between APs
• A troubleshooting nightmare

That's where the Wireless LAN Controller (WLC) comes in.

In this article we'll cover:

• What a WLC is and how it works
• Controller-based vs cloud-managed vs controller-less designs
• What benefits a WLC actually brings (beyond marketing)
• When you really need one and when you can keep it simple
• How to choose and size a WLC in 2026
• Example multi-vendor bundles (Huawei, Ruijie, H3C, Cisco)
• Basic connectivity design between WLC, switches, and APs

Wireless LAN Controller Overview

What is a WLC?

Definition and Core Role

A Wireless LAN Controller (WLC) is a centralized platform (physical appliance, VM, or cloud service) that:

• Manages and configures multiple wireless APs as a single system
• Terminates the control plane for APs: AP discovery and join Configuration and firmware management Monitoring and telemetry

The WLC becomes the "brain" of the WLAN:

• APs become "fit" or "thin" radios that take instructions from the controller
• The controller enforces policy, coordinates RF, and provides visibility

Fat AP vs Thin/Fit AP vs Cloud-Managed AP

Historically you had:

• Fat AP (Autonomous AP)Each AP is fully independent, configured via its own web/CLI. Good for 1-3 AP environments; painful beyond that.
• Thin/Fit AP + WLCAPs offload control/management to a central WLC. WLC holds the configs, APs pull and enforce. Data traffic can be: Tunneled back to the WLC, or Locally bridged on the LAN (depending on design).

Today you also see:

• Cloud-Managed APAPs connect to a cloud controller rather than a box in your rack. Control plane runs in the vendor's cloud; data often stays local on your LAN.

In all cases, there is a "controller"-it might be hardware, virtual, or cloud, but APs are no longer little islands.

Control Plane vs Data Plane

It helps to separate two ideas:

• Control Plane (Management & Control)AP discovery, join, configuration Firmware updates Client authentication events, roaming coordination RF telemetry (channel, noise, utilization)
• Data Plane (User Traffic)The actual client packets (web, video, VoIP, etc.)

Common patterns:

• Centralized data planeAPs tunnel user traffic back to the WLC; WLC acts as anchor for SSIDs/VLANs.
• Local breakout / Flex / Distributed data planeAPs send user traffic directly into local switches/VLANs. WLC still controls policy and configuration but doesn't hairpin data.

Protocols for control/data tunnels include CAPWAP, DTLS-based tunnels, or vendor-specific mechanisms.

How a Wireless LAN Controller Works?

AP Discovery and Join Process

When a fit/cloud AP boots:

1. It obtains an IP address (usually via DHCP).
2. It discovers the WLC via: DHCP options, DNS (e.g., cisco-capwap-controller.localdomain-style hostnames), Static configuration, or Local broadcast (vendor-dependent).
3. It establishes a secure control channel to the WLC.
4. The WLC: Authenticates the AP (certificate, MAC, serial number). Assigns it to a site/floor/group. Pushes configuration (SSID, security, WLAN profiles, radio settings). Schedules firmware updates and reboots as needed.

From then on, nearly all AP settings are driven by the WLC, not configured locally on each AP.

Centralized Policy and SSID Management

On the WLC you define:

• SSIDs (names, security modes, VLAN mapping)
• Authentication (PSK/WPA3, 802.1X, captive portal, MAC auth, etc.)
• User roles and policies: Staff vs guest vs IoT VLAN/segment mapping ACLs, bandwidth limits, application control

The WLC pushes these WLAN profiles to all APs (or specific groups):

• You change one profile → hundreds of APs and thousands of clients see consistent behavior.

RF Management and Client Roaming Support

The WLC collects:

• AP radio stats: Channel utilization, noise, interference Client counts per AP and per radio
• Client information: RSSI, SNR, roaming events, retries

Based on algorithms and policies, the WLC can:

• Automatically adjust: Channels, channel width, transmit power Band utilization (2.4/5/6 GHz) Load-balancing between APs/SSIDs
• Help with fast roaming: 802.11r / fast transition PMK caching / OKC Steering sticky clients off overloaded APs

All of this improves user experience, especially in dense or roaming-heavy environments.

Controller-Based vs Controller-Less and Cloud-Managed Architectures

Traditional On-Prem WLC

• WLC is a hardware appliance or VM in your data center/core.
• All APs: Establish control tunnels to the on-prem WLC.
• Data traffic: Either tunneled to WLC (centralized) or locally bridged.

Pros:

• Low-latency control plane inside your network.
• Full control, often deep integration with campus security and QoS.

Cons:

• CAPEX for WLCs and HA pairs.
• Per-site or per-region deployment and management.
• You own upgrades and lifecycle.

Cloud-Managed WLAN

• The "WLC" runs in the vendor's cloud.
• APs: Build outbound secure tunnels (HTTPS/DTLS) to cloud.
• Data plane: Usually local breakout (AP sends traffic into local VLANs).

Pros:

• No on-prem controller hardware.
• Easy to manage many small or distributed sites from one portal.
• Rapid deployment, good for retail/hospitality/branch rollouts.

Cons:

• Management/control dependent on internet connectivity.
• Subscription/licensing model.
• Data privacy considerations, depending on vendor and region.

Controller-Less / Distributed Control

• One AP acts as a virtual controller for a small group of APs.
• Often used in: Small offices or simple branches (few APs).

Pros:

• No dedicated WLC or cloud subscription.
• Simple, all-in-one solution for very small networks.

Cons:

• Limited scalability and features.
• Less visibility vs full controller solutions.

Hybrid Approaches

Many modern designs blend:

• On-prem controllers for HQ/campus
• Cloud management overlay
• Branch gateways with embedded WLC functions
• SD-Branch / SD-WAN solutions integrating WLAN and WAN control

The key is to align the architecture with how many sites you have, how much IT staff is available, and how critical Wi-Fi is to the business.

Why Use a Wireless LAN Controller?

1. Security and Access Control

A WLC centralizes security policy for the wireless domain:

• Unified authentication: WPA2/WPA3-Enterprise, 802.1X with RADIUS, certificate-based auth, captive portal.
• Role-based access: Map users/devices to roles → VLANs/segments → ACLs, QoS, and security policies.
• Rogue AP detection: APs scan the air for unauthorized APs/SSIDs and report to the WLC.
• Integration with wired security & identity: NAC (Network Access Control), firewalls, identity providers (AD/LDAP/IDaaS).

Instead of each AP having its own piecemeal security config, the WLC lets you treat WLAN policy as part of a broader network and security architecture.

2. Centralized and Scalable Management

With a controller:

• You configure once, deploy everywhere: SSIDs, encryption, VLANs, RF profiles.
• You monitor: AP status, client count, utilization, alarms.
• You troubleshoot: From one dashboard instead of SSH-ing into dozens of APs.

This is crucial when you have:

• 10, 50, or 500+ APs
• Multiple floors/buildings/sites
• Rotating staff and devices, guest networks, events, etc.

3. RF Optimization and Self-Healing

WLCs include RF management tools such as:

• Auto channel selection.
• Auto power control per radio.
• Band steering (encourage 5/6 GHz usage).
• Coverage hole detection and correction.

If an AP fails:

• WLC can instruct nearby APs to adjust power/channels to cover the gap.
• In high-density spaces, it can reduce power to prevent co-channel interference.

This RF intelligence is hard to replicate manually AP by AP.

4. Simplified Operations and Troubleshooting

Typical features:

• Per-client session history: When it joined, auth method, VLAN, roaming path, signal strength.
• Tools like: Client/infrastructure pings, DHCP/DNS reach tests. RF heatmaps, interference detection, noise floor analysis.
• Integration with: Syslog, SNMP, streaming telemetry, or vendor analytics platforms.

All of this reduces MTTR (mean time to repair) and increases confidence in the wireless network.

Do I Need a Wireless LAN Controller?

1. Small Office / Simple Site

Characteristics:

• 1-5 APs.
• Mostly office apps, limited guest Wi-Fi.
• No dedicated network engineer; basic IT support.

Options:

• Autonomous APs configured via simple GUI.
• Controller-less virtual controller AP.
• Cloud-managed AP solution.

Often, you don't need a dedicated on-prem WLC here-cloud-managed or controller-less can be enough.

3. Medium / Large Offices, Campuses, or High-Density Environments

Characteristics:

• 10+ APs; multiple floors/buildings.
• High user density; roaming across floors.
• Need for guest Wi-Fi, multiple SSIDs, QoS, security integration.

Here, using a WLC (on-prem or cloud) is strongly recommended:

• Centralized policy and RF coordination make a big difference.
• Manual AP configuration becomes unmanageable.

3. Multi-Site Enterprises, Retail Chains, and Branches

For organizations with many sites:

• Central IT wants consistent WLAN policy.
• Local staff may have minimal networking knowledge.

Common solutions:

• Cloud-managed WLAN or Central WLC clusters with remote branch APs.


The choice depends on:

• WAN design, SD-WAN strategy.
• Security/compliance needs.
• Preference for CAPEX vs OPEX.

4. How to Choose a Wireless LAN Controller in 2026

1. Key Sizing Factors

When sizing WLC capacity, consider:

• Number of APs: Today + growth horizon (3-5 years).
• Client density: Peak concurrent clients per AP and per site.
• Bandwidth requirements: Office apps vs VoIP vs video vs high-performance workloads.
• Feature needs:
• Wi-Fi 6/6E/7 support. WPA3, 802.1X, guest portal, IoT onboarding. Location services, analytics, application visibility.

2. On-Prem vs Cloud vs Embedded Controllers

• On-Prem WLC: Pros: full local control, no reliance on public cloud for control-plane, low-latency management. Cons: hardware/VM + HA design cost, per-site deployment.
• Cloud-Managed: Pros: ideal for many distributed sites; centralized management; rapid deployment. Cons: subscription model; requires reliable internet for management.
• Embedded Controllers: WLC functionality built into: Core/distribution switches. Firewalls/branch gateways. Good for medium sites or integrated branch solutions.

3. Licensing, Redundancy, and High Availability

Consider:

• Licensing: Per-AP licensing, feature tiers, subscription vs perpetual.
• Redundancy: N+1 controllers, active/standby, clustering/failover.
• Behavior during failure: Do APs continue to serve clients if controller is down? Local authentication cache or flexconnect mode?

4. Integration with Wired, Security, and SD-WAN

Your WLC should fit into the bigger picture:

• Does it integrate with: Wired access policy (unified wired/wireless)? RADIUS, NAC, or identity providers (AD/LDAP/IdP)? Firewalls and SD-WAN for policy-based routing and segmentation?

The controller should be part of your end-to-end security and connectivity architecture, not a silo.

Example WLC and Switching Bundles from Network-Switch.com

To make things concrete, here are some example bundles using popular models from Huawei, Ruijie, H3C, and Cisco. These are illustrative only; Network-Switch.com can adapt them based on exact SKUs and project requirements.

1. Small Office / Branch (up to ~10 APs)

• CiscoWLC: Cisco Catalyst 9800-CL (virtual controller) APs: Cisco Catalyst 9120/9130 Series Wi-Fi 6 APs Switch: Cisco Catalyst 9200 or 9300 Series PoE access switch (24/48 × 1G + 10G uplinks)

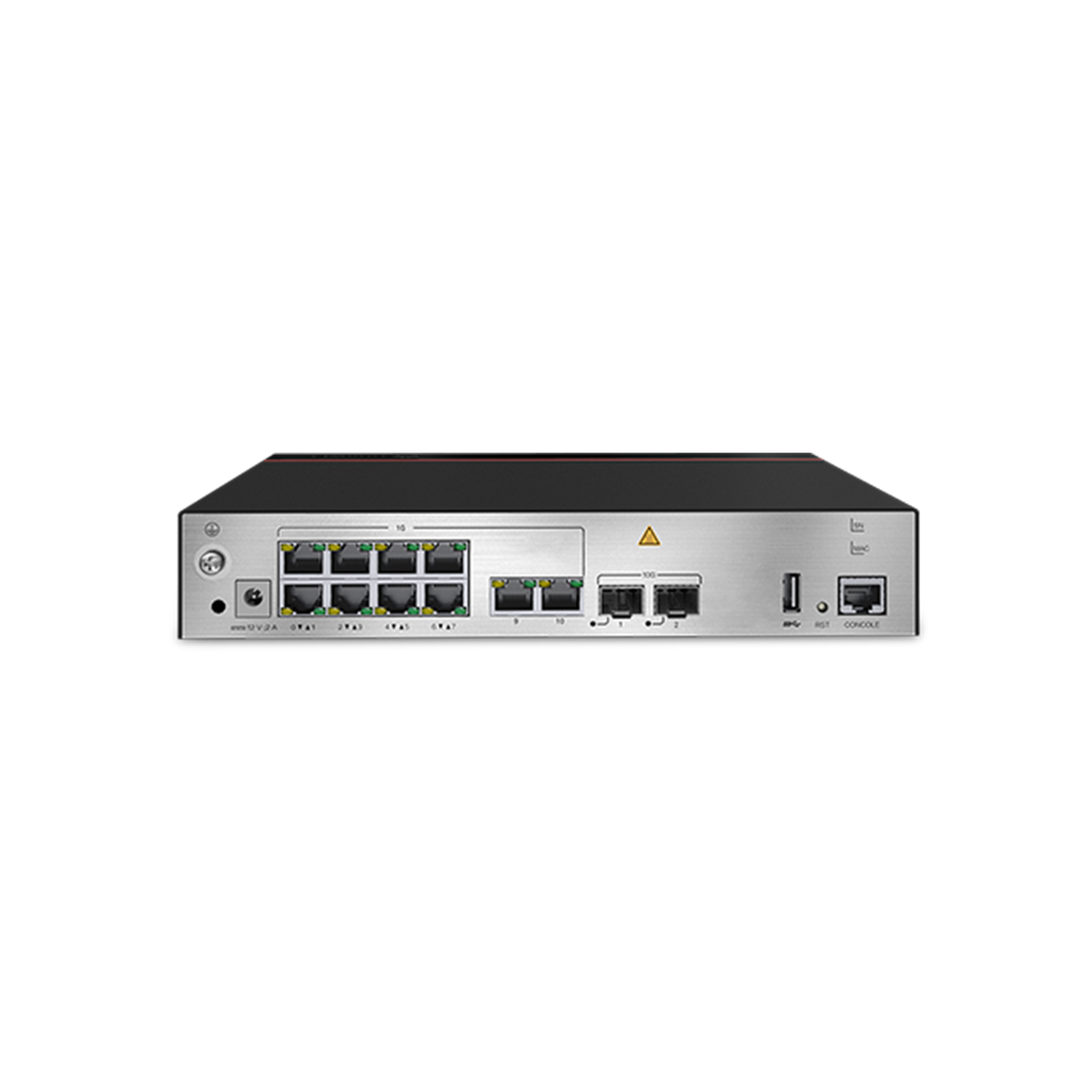

• HuaweiWLC: Huawei AirEngine AC6508 (compact hardware controller, model depending on AP scale) APs: Huawei AirEngine 57xx/67xx Series Wi-Fi 6 APsSwitch: Huawei S57xx/S67xx Series PoE access switches (1G downlinks, 10G uplinks)
• RuijieWLC: Ruijie RG-WS6004 or RG-WS6024 (for small to mid AP counts) APs: Ruijie RG-AP840/880 Series Wi-Fi 6 APs Switch: Ruijie RG-S2910XS / RG-S2915 Series PoE access switches
• H3CWLC: H3C WX2540H or WX3540H Unified Controllers APs: H3C WA63/WA66 Series Wi-Fi 6 APs Switch: H3C S5120-SI / S5560X-EI Series PoE Ethernet switches

This level of bundle is suitable when you have one or a few small sites, need good Wi-Fi, but don't want a very large or complex controller footprint.

2. Medium Campus / HQ (50-200+ APs)

• CiscoWLC: Cisco Catalyst 9800-40 or 9800-80 (with HA pair) APs: Catalyst 9105/9120/9130 SeriesSwitches: Access: Catalyst 9300 PoE Distribution: Catalyst 9500 or similar with 10G/25G uplinks
• HuaweiWLC: Huawei AirEngine AC6805/AC6801 (depending on AP scale) APs: AirEngine Wi-Fi 6/6E models matched to density and environment Switches: Access: S57xx PoE switches Aggregation: CloudEngine S6730/S7730 Series
• RuijieWLC: Ruijie RG-WS6816/6818APs: RG-AP850/880 Series Wi-Fi 6 for higher density Switches: Access: RG-S5750-H PoE SeriesAggregation: RG-S7600 Series with 10G/25G uplinks
• H3CWLC: H3C WX5560H / WX5860H Unified Controllers APs: H3C WA66/WA68 SeriesSwitches: Access: S5130-EI / S5560X-EI PoEAggregation/Core: S7500X / S10500X Series

These bundles target headquarters or medium campuses where roaming, RF optimization, and unified policy across dozens or hundreds of APs are required.

3. Large Campus / Multi-Site Enterprise (Hundreds-Thousands of APs)

• CiscoWLC: Cisco Catalyst 9800-80 or clustered Catalyst 9800 controllers APs: 9105/9120/9130 depending on density and use case Switches: Access: Catalyst 9300/9400 stacks/chassis with PoE Core: Catalyst 9500/9600 with 40G/100G uplinks Often combined with: Cisco DNA Center or SD-Access for fabric and automation.
• HuaweiWLC: AirEngine ACU2/ACU3 or larger centralized controller platforms APs: full AirEngine portfolio (indoor/outdoor, high-density) Switches: Campus core: CloudEngine S12700 or similar Agg/access: S6730/S5730 with PoE and multi-gig support
• Ruijie
• WLC: RG-WS6816/6828 or campus controllers with clustering APs: high-density Wi-Fi 6/6E for lecture halls, stadiums, etc. Switches: Access: RG-S6110 Series PoE Core: RG-N18xxx Series for 40G/100G campus backbone
• H3CWLC: WX5800/7800 Series or unified wireless modules in core chassis APs: WA63/WA66/WA68 high-capacity APs Switches: Access: S6520X / S5560X-EI PoE Core: S12500X / S10500X for high-performance cores

In these environments, you're designing full wireless fabric at scale; controller clustering, global policy, automation, and integration with wired and SD-WAN matter as much as individual model choices.

Network-Switch.com can tailor these examples:

• Match your AP count, user density, and budget
• Mix brands when appropriate
• Provide a validated WLC + AP + PoE switch + core uplink design

How to Connect Controllers, Switches, and APs?

Basic L2/L3 Connectivity Patterns

Typical on-prem WLC deployment:

• WLC has: A management interface (for admin/monitoring). Often additional WLAN/controller interfaces (for CAPWAP and/or VLAN anchoring).
• APs: On an AP management VLAN/subnet. Discover the WLC via DHCP/DNS and open control tunnels.

Whether the WLC sits at L2 or L3 from the AP perspective depends on:

• Vendor design and
• Whether CAPWAP uses unicast or multicast discovery.

SSID-to-VLAN Mapping and Data Plane Options

Two main data-plane modes:

• Centralized tunneling (central data-plane): AP encapsulates client traffic in tunnels to the WLC. WLC then injects traffic into the correct VLAN at the core. Useful for guest isolation, centralized policy enforcement, or remote sites.
• Local breakout: AP tags client traffic into VLANs at the edge, and traffic stays local within the LAN. Less backhaul overhead; often used in distributed branch sites.

Design tasks:

• Map each SSID to: Staff VLAN / guest VLAN / IoT VLAN / voice VLAN, etc.
• Decide per SSID whether traffic is: Centralized or locally bridged.

Switch Port Configuration for WLC and APs

• WLC uplink ports: Typically configured as 802.1Q trunks, carrying: Management VLAN CAPWAP/controller VLAN Client VLANs (if central data-plane)
• AP ports: Either: Access port in AP management VLAN (AP learns client VLANs via tunnel), or Trunk port tagging per-SSID VLANs for local breakout.

Always:

• Allow only necessary VLANs.
• Implement basic security (BPDU Guard, DHCP Snooping, etc.) on access ports.

WLC vs Cloud-Only and Controller-Less - When to Choose Which?

Comparing Management Models

• On-Prem WLC: Strong for campus/HQ with high control and integration needs.
• Cloud-Managed: Great for distributed sites and organizations that like opex and reduced on-prem complexity.
• Controller-Less / Virtual Controller AP: Good for very small, standalone sites where simplicity is king.

Decision Examples

• Single HQ / campus with dedicated IT: On-prem WLC or hybrid (on-prem WLC + cloud visibility).
• Many small branches with minimal onsite IT: Cloud-managed APs or SD-Branch gateways with integrated WLC features.

In many cases, combining models (HQ on-prem + branches cloud-managed) gives the best of both worlds.

FAQs

Q1: Do I still need a physical WLC if I use cloud-managed APs?

A: No. If you choose a full cloud-managed WLAN solution, the "controller" is implemented in the cloud. You don't deploy a separate on-prem WLC appliance-unless you use a hybrid approach or need specific advanced features on-prem.

Q2: Can I mix standalone APs and controller-based APs in the same network?

A: Technically yes, but:

• Management becomes more complex.
• Users may see inconsistent SSIDs/security/roaming behavior.

Best practice:

• Standardize per site: Either all APs under a controller/cloud, or all standalone for that site.

Q3: Does a WLC increase Wi-Fi coverage or speed by itself?

A: No. A WLC:

• Does not act like an RF amplifier or somehow "stretch bandwidth."
• It optimizes: AP channels, power, and alignment. Client steering and roaming.

Better design + RF optimization = more effective coverage and capacity, but physics (AP placement, building materials, client radios) still matters.

Q4: How many APs can a single WLC manage?

A: It depends heavily on the model and license:

• Some entry controllers may support up to 10-50 APs.
• Midrange controllers often support 50-200+ APs.
• Large/clustered controllers can scale to thousands of APs.

Always check:

• AP capacity per controller.
• Whether you can cluster controllers for scale and redundancy.

Q5: What happens if the WLC fails? Does Wi-Fi go down?

A: It depends on:

• HA design and mode (central vs local data-plane).

Common behaviors:

• In centralized tunneling: If WLC is down and there's no backup, many vendors stop new client associations and may drop existing tunnels.
• In local breakout/flex modes: APs may continue to serve existing clients for some time, but new authentications and config changes may not work.

Best practice:

• Use HA pairs or controller clusters for critical environments.
• Understand your vendor's AP survivability modes.

Q6: How does a WLC help with client roaming?

A: WLCs can coordinate:

• Fast roaming (802.11r/FT, PMK caching, OKC).
• Client context sharing between APs.
• Steering clients to better APs based on signal and load.

This reduces:

• Session drops during moves (VoIP, video calls).
• "Sticky client" issues where devices cling to distant APs.

Q7: What's the difference between a WLC and a Wi-Fi router or home AP?

A:

• Home Wi-Fi router: Combines router, NAT, firewall, switch, and AP in one box. Typically handles one small network, 1-3 APs at most.
• WLC: Central enterprise platform for managing many APs and users. Integrates with external routing, firewalls, NAC, and identity systems. Designed for scale, security, and visibility in business environments.

Q8: How does a WLC fit into a zero-trust / identity-aware network?

A: A WLC is a key enforcement point for identity-based access:

• Ties together: User identity / device posture / location. Role-based policies and segmentation.

Integrates with:

• Identity providers (AD, RADIUS, SAML/OAuth IdP).
• NAC platforms.
• Micro-segmentation or SD-Access fabrics.

Q9: Can I run WLC functionality as a VM or in a container?

A: Yes, many vendors offer:

• Virtual WLC appliances (VMware/Hyper-V/KVM).
• Some are moving towards containerized controllers in private clouds.

This is attractive when:

• You want to reuse virtualization infrastructure.
• You need flexible deployment and scaling (e.g., for large or multi-region networks).

Q10: How can Network-Switch.com help design a WLAN with WLCs and APs from multiple vendors?

A: Network-Switch.com can:

• Analyze your current and planned WLAN topology.
• Help you decide: Cloud vs on-prem vs hybrid controllers. AP density and model mix for each area. PoE and backhaul requirements for switches.

We specialize in multi-vendor designs (Cisco, Huawei, Ruijie, H3C, NS), so you're not locked into a single vendor if you don't want to be.

Why Work with us for WLC-Based WLAN Solutions?

Multi-Vendor Wireless and Switching Portfolio

We provide:

• Enterprise Wi-Fi 6/6E/7 APs and controllers from: Cisco, Huawei, Ruijie, H3C, and NS
• PoE access and aggregation switches: From 1G access to 10G/25G/40G/100G uplinks
• Support for: On-prem WLCs, cloud-managed WLANs, SD-Branch, and embedded controllers

End-to-End WLAN Architecture Design

Our team can help with:

• RF coverage and capacity planning (including wall materials, density, interference).
• SSID, security, VLAN, and policy design.
• WLC clustering and high availability.
• Integration with your wired network, security stack, and SD-WAN.

Ongoing Optimization and Support

We also offer:

• RF tuning as device mix or office layout changes.
• Assistance with firmware strategies and security patching.
• Troubleshooting for roaming issues, interference, or performance bottlenecks.

Conclusion

In 2026, a robust WLAN is not just "some APs thrown on the ceiling." It's:

• A carefully managed system with a controller (on-prem, cloud, or both)
• Coordinated APs providing consistent SSIDs, security, and RF behavior
• Integrated with wired, security, and identity infrastructure

A Wireless LAN Controller (or equivalent cloud controller) is what turns dozens or hundreds of APs from a pile of boxes into a coherent wireless network service.

Choosing between:

• Autonomous / controller-less APs
• On-prem WLCs
• Cloud-managed WLAN

depends on your scale, staffing, security needs, and budget. Network-Switch.com can guide you through this decision and provide a validated multi-vendor solution that makes sense for your environment-without overbuilding or underestimating what you'll need in the next 3-5 years.

Did this article help you or not? Tell us on Facebook and LinkedIn . We’d love to hear from you!

Related posts

Wireless Should You Upgrade? Wi-Fi 5 vs. Wi-Fi 6 vs. Wi-Fi 6E vs. Wi-Fi 7 April 27, 2025 12:00 PM

Wireless Boost Your Wi-Fi Performance: Discover the Power of WLAN Controllers! May 7, 2025 10:00 AM

Wireless Wi-Fi 7 AP Battle: Ubiquiti vs Leading Brands – Who Comes Out on Top? May 8, 2025 3:00 PM

Wireless 11 Best Wireless Access Points for Small Business and Home in 2025 May 13, 2025 9:00 AM

Wireless How Can I Combine a Switch and Wireless Access Point? May 16, 2025 9:30 AM

Wireless Wi-Fi Extender vs. Wi-Fi Router vs. Wi-Fi Access Point: What's the Difference and Which One Do You Need? May 17, 2025 10:00 AM
