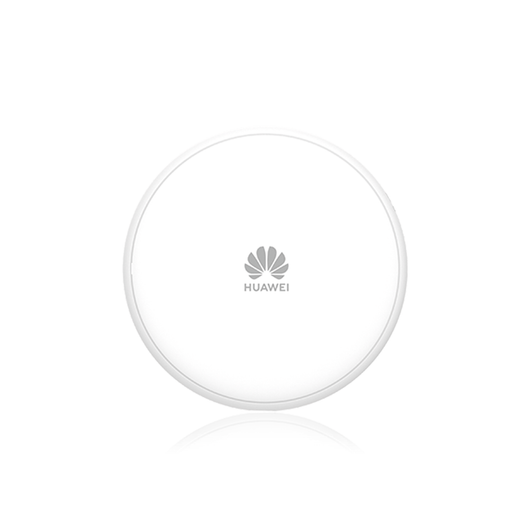

Huawei AirEngine 6776-57T Indoor Wi-Fi 7 AP Overview
The AirEngine 6776‑57T is Huawei’s next-generation indoor Wi‑Fi 7 (802.11be) access point, tailored for high-density environments like offices, schools, and stadiums. It supports simultaneous tri-band operation—2.4 GHz, 5 GHz, and 6 GHz—delivering up to 13.66 Gbps aggregate throughput across 8 spatial streams, backed by built-in smart antennas for consistent coverage.
Highlights
-
Tri-Band with 8 Spatial Streams
-
2.4 GHz: 2×2 MIMO
-
5 GHz: 2×2 MIMO
-
6 GHz: 4×4 MIMO
-
-
Ultra-High Throughput
Achieves up to 13.66 Gbps device-rate through combination of HE160, 320 MHz channels, and 4K QAM. -
Built-In Smart Antennas
Dual-band co-planar smart antennas reduce interference and maintain seamless connectivity. -
Massive Client Support
Supports up to 1,800 users (600 per radio), ideal for crowd-dense environments.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Injector or Switch | Power Supply | IEEE 802.3at/af for PoE power (sold separately). |
| DC Power Adapter | Power Supply | 12 V DC input support (sold separately). |
| Mounting Kits | Installation | Ceiling, wall, and T-rail mounting hardware included. |
| BLE IoT Modules | IoT & Management | Optional BLE for O&M and IoT device pairing. |
Comparison with Similar Models
| Feature | AirEngine 6776‑57T | AirEngine 6776‑X6H | Cisco Catalyst 9136AXE |
|---|---|---|---|
| Bands & Streams | 2.4 GHz 2×2 + 5 GHz 2×2 + 6 GHz 4×4 (8) | Dual‑band 4×4+4×4 (8) | Dual‑band 2×2+6×6 (8) |
| Max Aggregate Rate | 13.66 Gbps | 7.14 Gbps | ~6 Gbps |
| Smart Antennas | Built-in dual-band | Dynamic-zoom | Internal standard |
| User Capacity | Up to 1,800 clients | 1,200 clients | ~1,000 clients |
| Ideal Use Cases | Campus, stadium, office | Large indoor spaces | Enterprise office |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei AirEngine 6776‑57T |
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7) |
| MIMO Performance | 2.4 GHz: 2×2; 5 GHz: 2×2; 6 GHz: 4×4 |
| Spatial Streams | 8 |
| Maximum Data Rate | 13.66 Gbps |
| Antenna Type | Built-in smart antennas |
| Channel Bandwidth Modes | HE160, contiguous 320 MHz & 160+160 MHz |
| Max Clients | 1,800 (600 per radio) |
| Power Input | DC 12 V ±10% or PoE (802.3at/af) |
| Dimensions | Φ220 × 45 mm |
| Operating Temperature | –10 °C to +50 °C |
| Certifications | IEEE 802.11a/b/g/n/ac/ax/be; CE/FCC/etc. |
