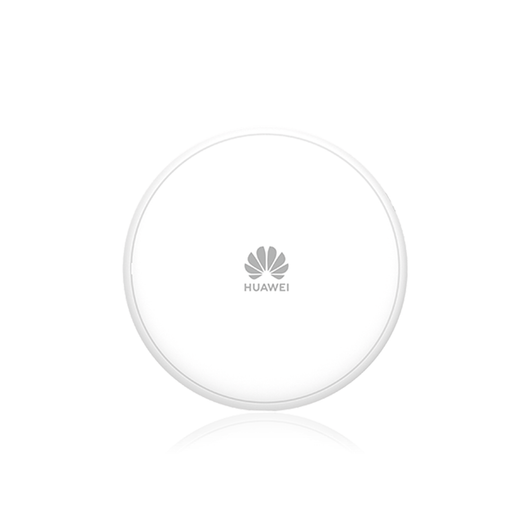

Huawei AirEngine 6761-21T Indoor Wi-Fi 6 AP Overview
The AirEngine 6761‑21T is a high-performance Wi‑Fi 6 (802.11ax) indoor access point tailored for high-density environments like offices, classrooms, and event spaces. Featuring triple-band radios (2.4 GHz + dual 5 GHz), built-in smart antennas, and support for USB/BLE IoT integration, it delivers a top device rate of 6.575 Gbps.
Highlights
-
Triple-Band Radio with 8 Spatial Streams
-
2.4 GHz: 2×2:2 MIMO
-
5 GHz #1: 2×2:2 MIMO
-
5 GHz #2: 4×4:4 MIMO
-
-
Cutting-Edge Wi‑Fi 6 Technologies
Utilizes 1024-QAM, UL/DL MU‑MIMO, OFDMA, and BSS coloring to enhance efficiency and reduce latency. -
Smart Antenna for Adaptive Coverage
Dual-band co-planar smart antennas double signal strength and offer 20% wider coverage dynamically. -
IoT and O&M Integration
Includes USB port for ZigBee/RFID, BLE for device commissioning, and supports Fit/Fat/Cloud management modes.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Injector (802.3at/af) | Power Supply | Supplies power via Ethernet; sold separately |
| DC Power Adapter | Power Supply | Accepts 12 V ±10% input; sold separately |
| Mounting Kits | Installation | Ceiling, wall, and T-rail mounts (included) |
| USB IoT Module | Expansion | Supports ZigBee, RFID integration |
| BLE Beacon Module | IoT & Management | Enhances asset tracking and remote commissioning via Bluetooth |
Comparison with Similar Models
| Feature | AirEngine 6761‑21T | AirEngine 6761‑21E (ext ant.) | Cisco Catalyst 9136AXE |
|---|---|---|---|
| Bands & Spatial Streams | 2.4 GHz 2×2 + 5 GHz 2×2 + 5 GHz 4×4 (8 streams) | Same | 2.4 GHz 2×2 + 5 GHz 4×4 (6 streams) |
| Max Device Throughput | 6.575 Gbps | 6.575 Gbps | ~6 Gbps |
| Smart Antenna | Built-in dual-band | External dual-band antenna | Internal standard |
| IoT/BLE Support | USB + BLE | Similar | Limited |
| Ideal Deployment | High-density indoor | Same | Enterprise indoor |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei AirEngine 6761‑21T |
| Wi‑Fi Standard | IEEE 802.11ax (Wi‑Fi 6) |
| Radios/Frequency Bands | 2.4 GHz (2×2); 5 GHz #1 (2×2); 5 GHz #2 (4×4) |
| Spatial Streams | 8 (2 + 2 + 4) |
| Max Device Throughput | 6.575 Gbps |
| Antenna | Built-in smart antennas |
| USB Interface | USB 2.0 for IoT expansion (ZigBee/RFID) |
| Bluetooth | BLE for O&M via CloudCampus |
| Power Input | PoE (802.3at/af) or DC 12 V ±10% |
| Max Power Consumption | 21.2 W (excluding USB) |
| Max Users | ≤ 1,536 clients (512 per radio) |
| Dimensions | Ø220 × 50 mm |
| Weight | ~1.08 kg |
| Operating Temperature | –10 °C to +50 °C |
| Certifications | Wi‑Fi Alliance, CE, FCC, RoHS, UL/IEC etc. |
