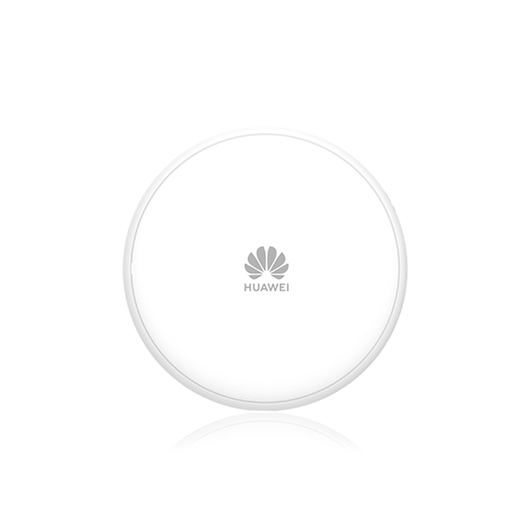

Huawei AirEngine 5776-26 Indoor Wi-Fi 7 AP Overview
The AirEngine 5776‑26 is a cutting-edge indoor access point featuring Wi‑Fi 7 (802.11be) technology designed for environments like small-to-medium offices, schools, and retail spaces. It offers simultaneous dual-band operation—2.4 GHz (2×2 MIMO) and 5 GHz (4×4 MIMO)—with six spatial streams to support device rates up to 6.45 Gbps. Its built-in co‑planar smart antennas provide stable, hole-free coverage.
Highlights
-
Dual‑Band Wi‑Fi 7 (6 Spatial Streams)
-
2.4 GHz: 2×2 MIMO (up to 689 Mbps)
-
5 GHz: 4×4 MIMO (up to 5.76 Gbps)
Total device rate: 6.45 Gbps
-
-
Smart Antennas for Interference-Free Coverage
Co‑planar smart antennas dynamically adjust to optimize signal strength and coverage quality. -
Advanced Wi‑Fi 7 Innovations
Supports multi-link operation (MLO), multi‑RU, 4096‑QAM, MU‑MIMO, and OFDMA for ideal performance and spectral efficiency. -
High User Capacity
Can manage up to 1,200 devices concurrently (600 per radio band).
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Injector (802.3at/af) | Power Supply | Needed for Ethernet-powered operation (sold separately) |
| 12 V DC Power Adapter | Power Supply | Accepts 12 V ±10% input (sold separately) |
| Mounting Kits | Installation | Includes ceiling, wall, and T-rail mounts |
| BLE Beacon Module | IoT & Management | Enables Bluetooth-based asset tracking and O&M |
Comparison with Similar Models
| Feature | AirEngine 5776‑26 | AirEngine 5776‑57 | AirEngine 6761‑21T |
|---|---|---|---|
| Bands & Streams | 2.4 GHz 2×2 + 5 GHz 4×4 (6 sts) | 4‑stream dual/triple mode | 8‑stream tri-band |
| Max Peak Throughput | 6.45 Gbps | 7.20 Gbps | 6.575 Gbps |
| Smart Antenna | Built-in co‑planar adaptation | Built-in | Built-in |
| Multi-Link Operation (MLO) | Yes | Yes | Yes |
| Concurrent User Capacity | Up to 1,200 | Up to 1,200 | Up to 1,536 |
| Ideal Deployment Scenario | SMBs, classrooms, retail | Flexible office spaces | Enterprise-class deployments |
Specifications
| Parameter | Specification |
|---|---|
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7) compatible |
| Spatial Streams (MIMO) | 2.4 GHz 2×2; 5 GHz 4×4 = 6 streams |
| Peak Data Rate | 6.45 Gbps |
| Antenna Type | Built-in smart co‑planar antennas |
| MLO, MRU, 4096‑QAM Support | Yes |
| Max Users | up to 1,200 (600 per radio) |
| Power Input | 12 V DC or 802.3at/af PoE |
| Power Consumption | ~16 W (excluding USB) |
| Dimensions (Ø×H) | 220 × 45 mm |
| Weight | 0.72 kg |
| Operating Temp/Humidity | –10°C to +50°C; 5–95% RH |
