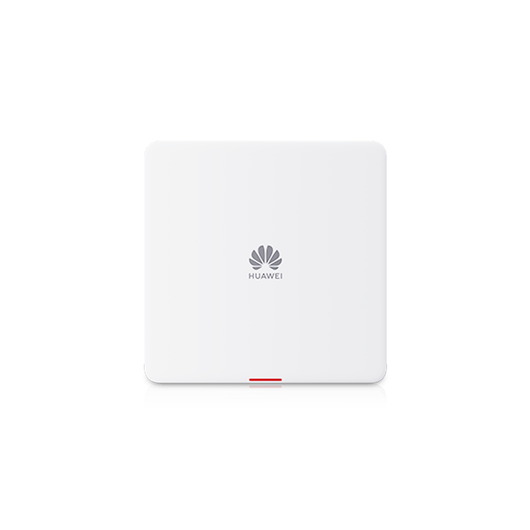

Huawei AirEngine 5773-25HW Wall-Plate Wi-Fi 7 AP Overview
The AirEngine 5773‑25HW is a Wi‑Fi 7 (802.11be) wall-plate access point ideal for environments like dormitories, hotels, and small offices. With built-in dual-band smart antennas, it supports 2×2 MIMO on both 2.4 GHz and 5 GHz, delivering a combined 3.57 Gbps peak throughput. It features hybrid-cable flexibility with both 2.5 GE optical (PoE-capable) and 2.5 GE electrical uplinks, along with eight GE downlink ports.
Highlights
-
Dual-Band 4-Stream MIMO Wi‑Fi 7
Delivers 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) performance for up to 3.57 Gbps combined throughput -
Built-In Smart Antennas
Co-planar smart antennas automatically adjust coverage and signal strength, ensuring steady wireless performance. -
Robust Hybrid Uplink Design
Hybrid optical-electrical uplink (2.5 GE optical + PoE support) and a second 2.5 GE electrical port enhance deployment flexibility. -
Enterprise-Grade Management & Expansion
Includes USB for IoT expansion (e.g., ZigBee, RFID) and BLE for O&M via Huawei CloudCampus; supports Fit and cloud management.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Injector (802.3bt/at) | Power Supply | Needed for PoE uplink via 2.5 GE electrical port |
| DC Power Adapter | Power Supply | Supports 43.2–57.6 V DC input for use without PoE |
| Mounting Kits | Installation | Wall and T-rail hardware included for easy installation |
| USB IoT Expansion Module | IoT & Management | Optional ZigBee or RFID module for added functionality |
Comparison with Similar Models
| Feature | AirEngine 5773-25HW | AirEngine 5773-22HW | AirEngine 5762-12HW |
|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 6 (802.11ax) |
| Radio Bands | Dual-band (2.4 GHz + 5 GHz) | Dual-band (2.4 GHz + 5 GHz) | Dual-band (2.4 GHz + 5 GHz) |
| Spatial Streams (MIMO) | 2×2 (2.4 GHz) + 2×2 (5 GHz) = 4 | 2×2 (2.4 GHz) + 2×2 (5 GHz) = 4 | 2×2 (2.4 GHz) + 2×2 (5 GHz) = 4 |
| Max Device Throughput | 3.57 Gbps | 3.00 Gbps | 2.975 Gbps |
| Smart Antennas | Built-in co-planar | Built-in standard | Built-in standard |
| Uplink Ports | 1×2.5GE optical, 1×2.5GE electrical | 2×2.5GE electrical | 1×GE electrical |
| Downlink Ports | 8×GE | 4×GE | 4×GE |
| BLE & IoT Support | BLE 5.2, USB (IoT modules) | BLE 5.2, USB (IoT modules) | BLE 5.0 |
| Ideal Use Cases | Premium hotels, dormitories, high-end offices | Standard hotels, apartments, SMBs | Small offices, dormitories, budget hotels |
Specifications
| Parameter | Specification |
|---|---|
| Model | AirEngine 5773‑25HW |
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7), backward compatible |
| Spatial Streams (MIMO) | 2.4 GHz: 2×2; 5 GHz: 2×2 = 4 streams |
| Peak Device Rate | 3.57 Gbps |
| Antenna | Built-in dual-band smart co-planar antennas |

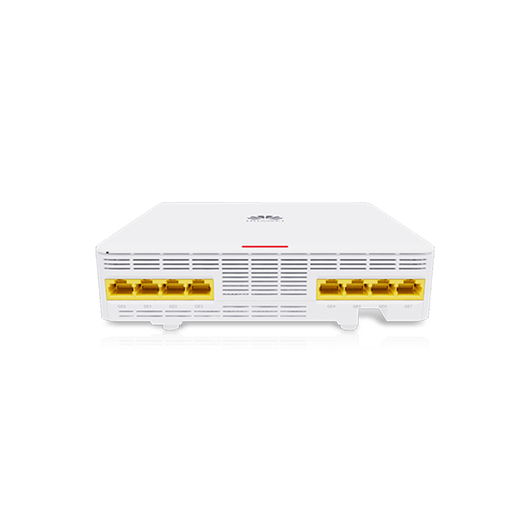

| Ports | 1×2.5 GE optical (PoE-capable), 1×2.5 GE RJ45, 8×GE RJ45 downlink, USB |
| Power Input | 802.3bt/at PoE or 43.2–57.6 V DC |
| Max Power Consumption | 21.9 W (excluding USB peripherals) |
| Bluetooth | BLE 5.2 for O&M |
| Dimensions (H×W×D) | 185 × 185 × 42 mm |
| Weight | 0.73 kg |
| Operating Temperature | 0 °C to +40 °C |
| Antenna Gain | 2.4 GHz: ~5 dBi; 5 GHz: ~6 dBi |
| Certifications | Wi‑Fi Alliance, CE, FCC, RoHS, IEEE 802.11be |
