Introduction
Deploying Cisco wireless access points (APs) is more than just plugging them in. Successful WLAN installations require careful attention to mounting locations, power budgets, cabling, RF tuning, and acceptance testing. Missteps here often lead to poor coverage, AP brownouts, or costly rework.
This in-depth guide provides a step-by-step playbook for installing Cisco Catalyst 9100/916x series APs, calculating PoE budgets, setting up initial RF parameters, and validating deployments with acceptance checklists. It also covers outdoor deployments with the rugged Cisco 9163E.
Starting Deployment
1. Choosing Mounting Options
The right mounting location determines coverage quality. Cisco APs come in multiple form factors for different environments:
-
Ceiling mount (e.g., C9105AXI, C9115AXI, C9120AXI, C9130AXI/AXE, C9136I, C9162I)
Best for open-plan offices and classrooms. Provides uniform coverage and minimizes obstruction. -
Wall-plate (C9105AXW / AXWT)
Designed for hotel rooms, dorms, or offices with many small rooms. Integrates switch ports for local devices. -

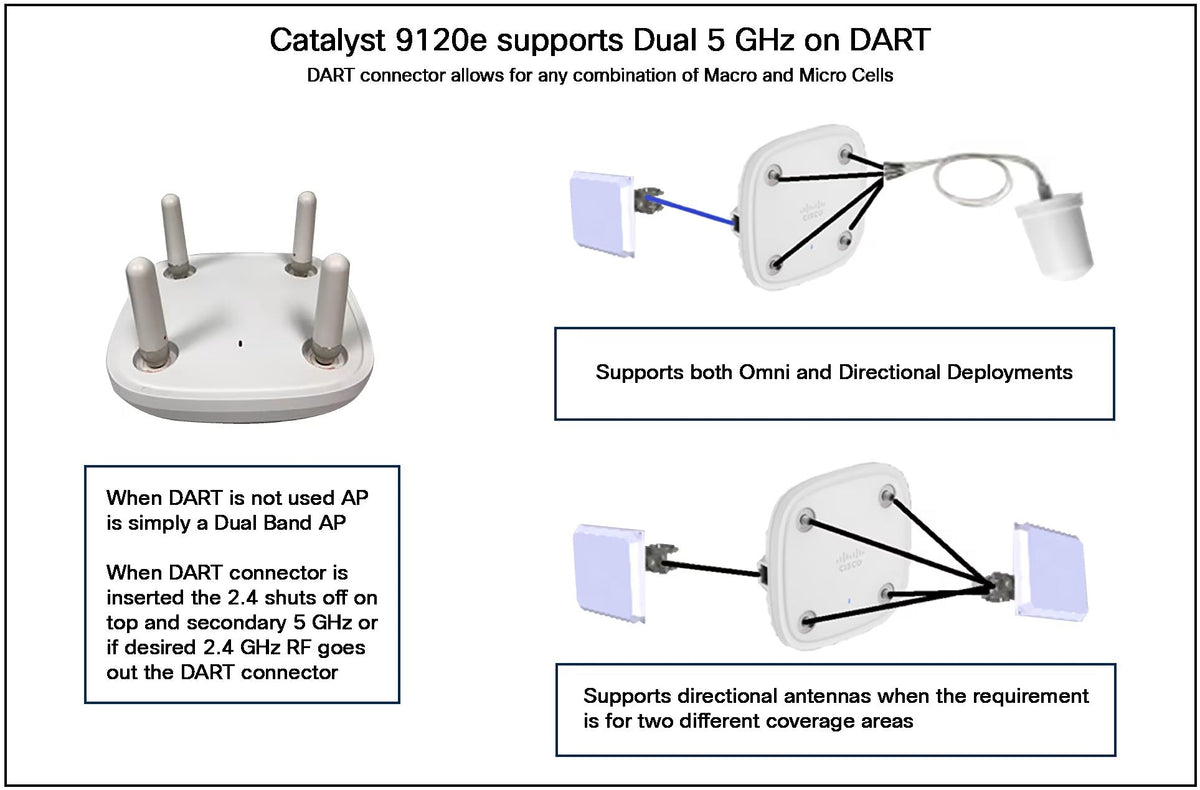

External antenna (AXE/9166D1)
Used in auditoriums, warehouses, or corridors where directional coverage is required. External antennas reduce co-channel interference in elongated spaces. -
Outdoor rugged (C9163E)
Built for stadiums, campuses, and plazas. Includes IP67 rating, surge protection, and weather resistance.
Visualization Tip: Provide a simple diagram showing how coverage differs for ceiling, wall, and corridor deployments.
2. PoE Budgeting
APs draw different amounts of power depending on radios and features. Under-provisioning PoE can disable features (e.g., USB, extra radios) or cause AP resets.
Formula for PoE Headroom
PoE Headroom = (Σ AP Max Power × concurrency factor) × 1.2 safety factor
- Concurrency factor: Typically 0.8, as not all APs peak simultaneously.
- Safety factor: 20% recommended to account for heat and future expansion.
PoE Budget Table
| Switch Model | Total PoE (W) | Planned APs | Max Power/AP | Load (W) | Headroom (%) |
| Catalyst 9300-24P | 740 | 20 × C9115AXI | 16 W | 320 | 56% |
| Catalyst 9300-48P | 1440 | 40 × C9120AXI | 25 W | 1000 | 31% |
| Catalyst 9400 Sup-1XL | 3840 | 60 × C9136I | 36 W | 2160 | 44% |
| Catalyst 9300-24U UPOE+ | 830 | 15 × C9162I | 23 W | 345 | 58% |
| Catalyst 9300X-12Y (mGig) | 1080 | 10 × C9163E outdoor | 40 W | 400 | 63% |
👉 Use this table to spot bottlenecks early. Always confirm with your specific switch SKU’s PoE budget.
3. Initial RF Strategy
Channel Assignment
- 2.4 GHz: Use non-overlapping channels (1/6/11).
- 5 GHz: Leverage DFS + UNII-1/3 bands for extra capacity.
- 6 GHz (Wi-Fi 6E): Available channels depend on regulatory domain; plan carefully.
Power Settings
- Lower bound: ~14 dBm to avoid coverage holes.
- Upper bound: ~20 dBm to reduce co-channel interference.
RRM (Radio Resource Management)
- Start with automatic mode to allow APs to self-adjust.
- After a week of baseline operation, manually fine-tune hotspots.
During Deployment
1. Installation Bill of Materials
Prepare a construction checklist to avoid surprises:
- Cabling: Cat6A for PoE and 2.5G/5G/10G uplinks.
- Mounting brackets: Order model-specific kits (ceiling, wall, or outdoor).
- Anti-theft hardware: Security screws, steel tether.
- Outdoor kits (C9163E): Surge arrestors, grounding wires, weatherproof enclosures.
- Documentation: Cable labeling, port mapping, as-built diagrams.
2. Acceptance Checklist
During commissioning, validate the following:
- RSSI: ≥ –65 dBm across coverage zones.
- SNR: ≥ 25 dB for reliable throughput.
- Jitter: < 30 ms, packet loss < 1% (for voice/video).
- Roaming latency: < 100 ms between APs.
- PoE draw: Matches expected max load.
- Controller registration: All APs successfully join Catalyst 9800/EWC.
How to Deploy my AP?
- Send your PoE and installation plan to network-switch.com for a free review.
- Book remote/onsite install services for guaranteed zero-risk deployment.
- Bundle quotes: Get AP + PoE switch + mounts + licenses tailored to your floor plan.
FAQs
Q1: What happens if my PoE budget is insufficient?
A: The AP may disable features (USB, scanning radios) or fail to boot properly. Always plan with 20% headroom.
Q2: Do wall-plate APs (9105AXW/AXWT) require special mounting kits?
A: Yes. They come with specific brackets that differ from ceiling-mount APs.
Q3: How do I protect outdoor APs like C9163E?
A: Use surge protection, grounding, and IP67-rated enclosures. Follow local building codes.
Q4: Can I reuse Aironet mounting kits for Catalyst APs?
A: Not always. Most Catalyst 9100 APs require new brackets. Verify compatibility before ordering.
Q5: Do I need Cat6A cabling everywhere?
A: For 1G PoE deployments, Cat5e may suffice. For 2.5G/5G/10G uplinks, Cat6A is mandatory.
Q6: How soon should I tune RF settings after deployment?
A: Let RRM run automatically for at least one week before making manual adjustments.
Q7: What acceptance tests are mandatory?
A: At minimum: RSSI, SNR, jitter/latency, PoE draw, and roaming performance.
