The Ruijie RG‑S5350 Series sits at the top of Ruijie’s campus and enterprise switch portfolio.
This line of Layer-3 10GE switches combines high-density 1G downlinks, modular uplinks, PoE options, and robust Layer-3 capabilities, making them ideal Campus Switches, Enterprise Switches, Aggregation Switches, and backbone ethernet switches optimized for future-proof campus architectures.
Powered by RGOS 12.X, these models address access and aggregation roles with excellent flexibility and security.
Models Overview & Specifications
| Model | 1G Ports | Uplinks | PoE Support | Capacity / Forwarding | Notes |
| 24GT4XS‑E | 24×1G RJ45 | 4×1G/10G SFP+ | No | 528 Gbps / 396 Mpps | Base access |
| 48GT4XS‑E | 48×1G RJ45 | 4×1G/10G SFP+ | No | 704 Gbps / 528 Mpps | Higher density |
| 12GT4XS‑P‑E | 12×1G RJ45 | 4×1G/10G SFP+ | PoE/PoE+ | ~300 Gbps / 276 Mpps (est) | Mid-size PoE access |
| 24GT4XS‑P‑E | 24×1G RJ45 | 4×1G/10G SFP+ | PoE/PoE+ | ~528 Gbps / 396 Mpps | Full-featured PoE access |

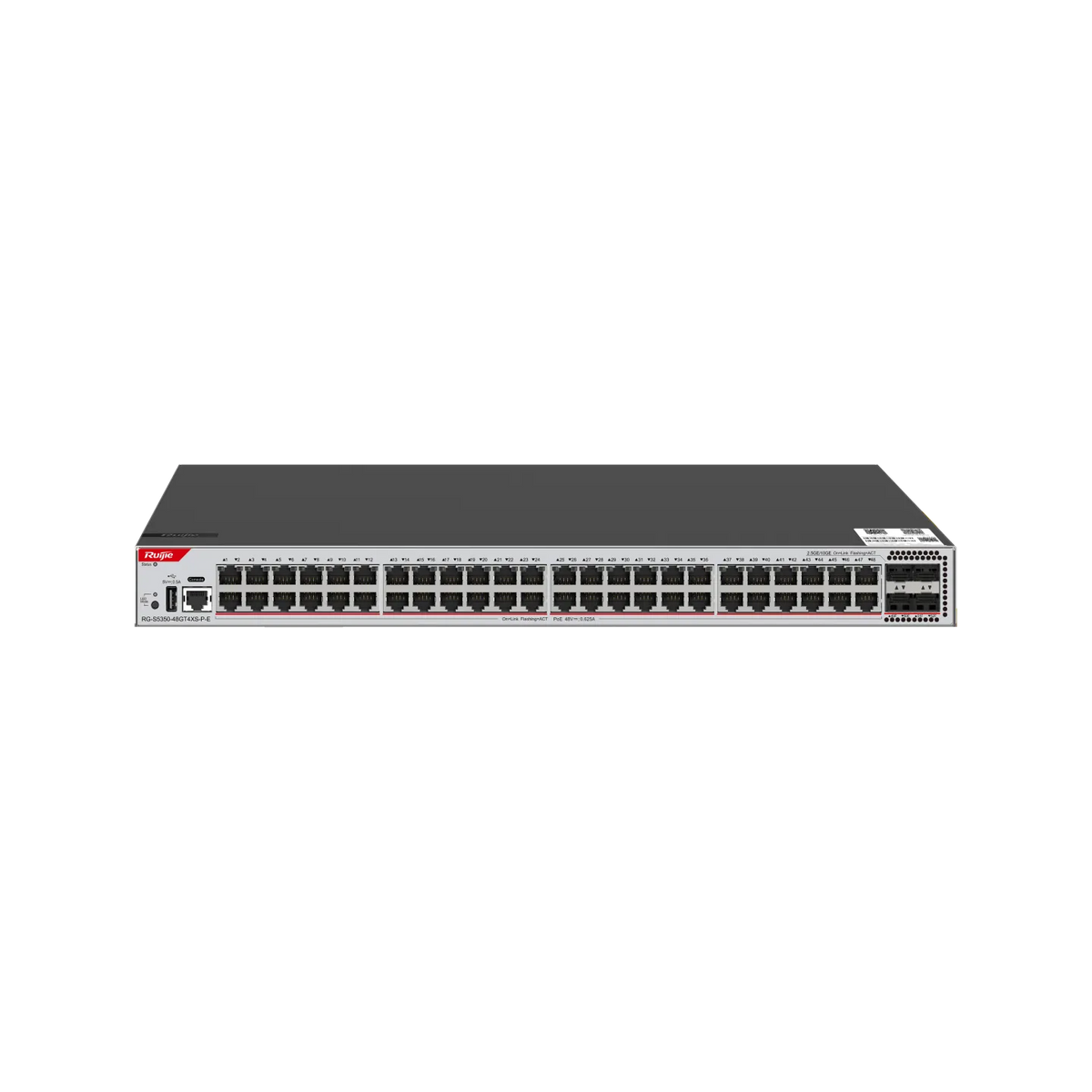

| 48GT4XS‑P‑E | 48×1G RJ45 | 4×1G/10G SFP+ | PoE/PoE+ | 704 Gbps / 528 Mpps | PoE for dense edge |
| 24GT4SFP‑E | 24×1G SFP | 4×1G/10G SFP+ | No | ~528 Gbps / 396 Mpps | Full fiber access |
| 48GT4SFP‑E | 48×1G SFP | 4×1G/10G SFP+ | No | 704 Gbps / 528 Mpps | Fiber aggregation |
| 24GT4SFP‑P‑E | 24×1G SFP | 4×1G/10G SFP+ | PoE/PoE+ | ~528 Gbps / 396 Mpps | Fiber + PoE for niche uses |
| 48GT4SFP‑P‑E | 48×1G SFP | 4×1G/10G SFP+ | PoE/PoE+ | 704 Gbps / 528 Mpps | Maximum fiber + PoE capability |
Notes & Highlights:
- All models feature dual hot-swappable power, VSU stacking, IPv6-ready Layer 3 features, and Security: ACLs + IP-MAC-Port binding + ARP/DHCP inspection, based on official RG‑S5350 datasheets and community forum info.
- PoE models support IEEE 802.3af/at (likely up to 740 W or 1440 W budgets depending on port count).
Core Features & Differences
10G Uplink & High Bandwidth
Each model features 4×1G/10G SFP+ uplinks, making the RG‑S5350 series a true 10GE switch suitable for aggregation and distribution layer deployments.
Modular OS & VSU Virtual Stacking
With RGOS 12.X, RG‑S5350 supports VSU across mixed models — enabling seamless failover, unified configuration, and simplified scalability.
Layer-2+ and Advanced Layer-3 Capabilities
Supports extensive VLAN features, STP/MSTP, ERPS, BFD, VRRP, IS-IS, OSPFv2/v3, RIPng, and BGP. Suitable as an Aggregation Switch or edge Enterprise Switch with full routing.
PoE Power Applicability
Robust PoE/PoE+ support enables powering of Wi-Fi APs, cameras, and endpoints on fiber-capable versions—perfect for modern smart campus setups.
Security & Resilience
Includes ARP/DHCP snooping, IP-MAC-Port binding, dynamic ACLs, NFPP, CPP, and loop/guard protocols — ideal for Campus Switch applications requiring tight edge security.
Quiet & Efficient
Variable-speed fans and energy-efficient hardware make these ethernet switches manageable for both wiring closets and equipment rooms.
Deployment Scenarios
Building-Wired Access Layer
48‑port RJ45 models can serve as Gigabit access points for wired users, cameras, and phones, with 10G uplinks connecting to campus backbone.
Wi‑Fi 6/7 AP Aggregator
PoE/PoE+ versions provide power and data to high-powered APs, offloading the need for injectors and improving deployment agility.
Fiber-Only Access or Labs
SFP models support fiber-based device connectivity—useful in laboratories, server areas, or densely wired zones.
Distributed Aggregation / Redundancy
With VSU and multi-gig uplinks, RG‑S5350 can act as a resilient distribution switch for campus pods, aggregating multiple access stacks.
Scalable Campus Core Connector
Supports IPv6 and BGP — enabling RG‑S5350 to act as an Enterprise Switch connecting to core routers.
Deployment & Management Experience
- Zero‑touch provisioning via Ruijie Cloud / INC with template-based onboarding.
- Hot‑swap PSUs and fans ensure service continuity during maintenance.
- Unified visibility through Ruijie Cloud and SNMPv3/CLI/Web management.
- Advanced telemetry tools (sFlow, RMON, NetStream) facilitate operational analytics.
CLI Examples for RG‑S5350 Series
QoS & Traffic Shaping (Suits for all models)
system-view
qos car cir 20000 cbs 64000 eir 40000 ebs 128000
interface gigabitEthernet0/1
qos car cir 10000 cbs 32000
ACL Rule with IPv6 and Time Range (Suits for all models)
acl ipv6 2000
rule 5 permit ipv6 source 2001:db8::/64 destination any
rule 10 deny ipv6 source any destination any time-range WorkHours
time-range WorkHours
periodic weekdays 08:00 to 18:00
Multicast IGMP Snooping & MLD Querier (Suits for all models)
igmp-snooping enable
interface gigabitEthernet0/1
igmp-snooping report-threshold 5
ipv6 mld-snooping enable
PoE Scheduling & Priority (PoE models only)
interface gigabitEthernet0/1
poe enable
poe power-limit 25
poe priority low
poe timer schedule PowerOff
BGP-L3VPN with Loopback for Aggregation (Suits for all models)
router bgp 65000
ipv4-family vpn-instance VNI100
peer 192.0.2.1 as-number 65001
interface LoopBack0
ip address 10.100.0.1 255.255.255.255
Conclusion
The Ruijie RG‑S5350 Series delivers a powerful blend of access and aggregation roles, ideal as a Campus Switch, Enterprise Switch, and Aggregation Switch.
With PoE/PoE+, fiber/10G uplinks, advanced Layer-3 routing, stacking, and robust security—all within a modern ethernet switch platform—it's a future-proof solution for modern wired campus infrastructures.
FAQ – Insightful User Q&A
Q1: Can I mix PoE and non‑PoE models in one stack?
Yes—VSU allows heterogeneous stacking across the series.
Q2: Do these support line-rate 10G uplinks?
Yes—uplinks are full-duplex 10GbE SFP+.
Q3: Is IPv6 fully supported?
Yes—supports IPv6 routing, SLAAC, RIPng, OSPFv3, and VRRPv3.
Q4: What’s the PoE budget?
24‑port PoE+: ~740 W; 48‑port PoE+: ~1440 W; exact values in datasheets.
Q5: Are there Layer 3 redundancy features?
Yes—BFD, VRRP, OSPF/BGP redundancy supported.
Q6: Is this a true campus backbone switch?
Yes—the series stands as both access and aggregation switch with core-level performance.
