Executive Summary (TL;DR)

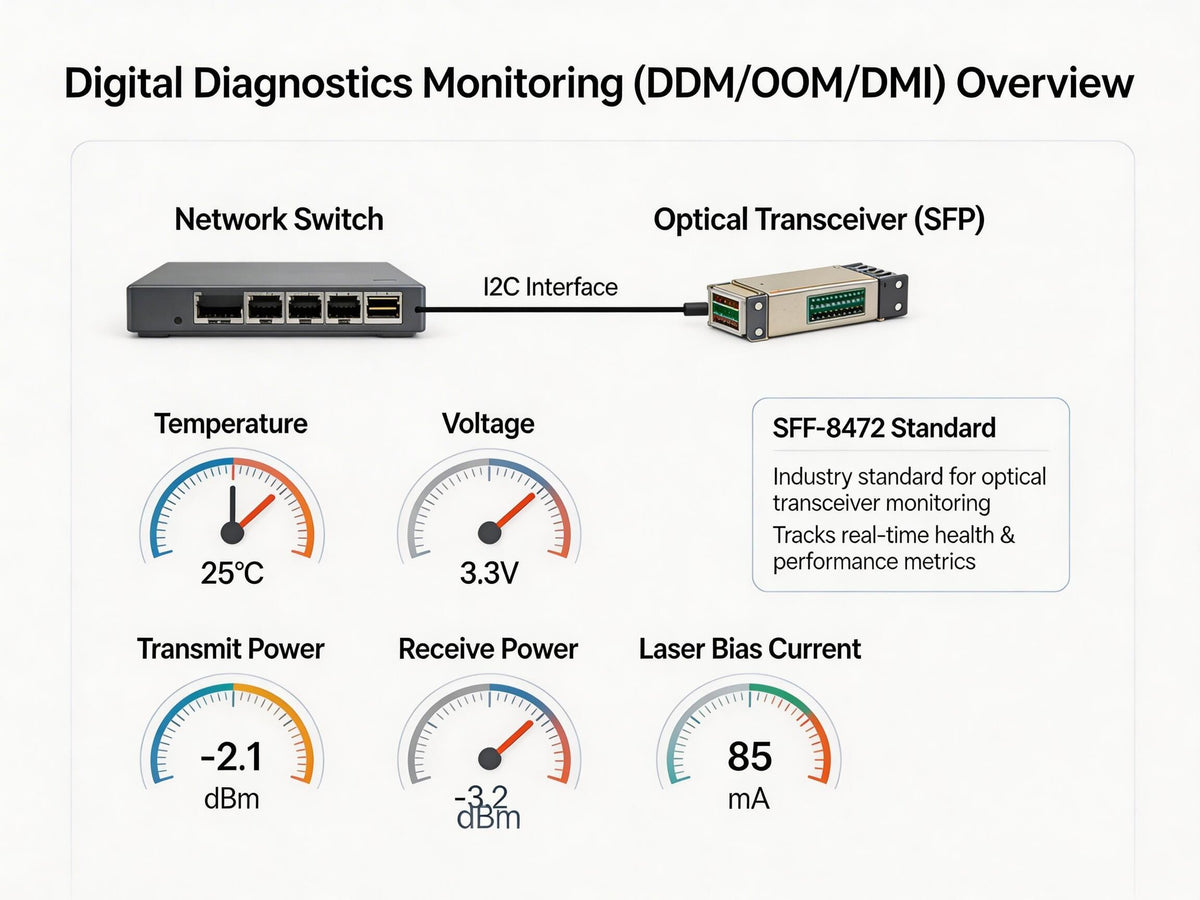

Digital Diagnostics Monitoring (DDM), also known as Digital Optical Monitoring (DOM) or Diagnostic Monitoring Interface (DMI), is a standardized feature defined by SFF-8472 that allows network devices to monitor real-time optical transceiver parameters such as temperature, voltage, transmit power, receive power, and laser bias current.
In simple terms: DDM allows a switch to "communicate" with an optical module to determine whether it is operating normally, degrading, or about to fail.
Key Takeaways
- DDM, DOM, and DMI all refer to the same SFF-8472 monitoring standard
- Provides real-time visibility into optical module health
- Uses I2C interface and A2h memory space for diagnostics
- Essential for troubleshooting and predictive maintenance
- Critical in 100G / 400G / 800G and AI network environments
Modern optical networks require not only connectivity but also visibility.
DDM enables engineers to:
- Monitor optical performance in real time
- Detect early signs of failure
- Troubleshoot link issues quickly
Without DDM, diagnosing optical problems becomes reactive and inefficient.
Why DDM Matters in 2026 Networks?
With the rapid growth of:
- 100G / 400G / 800G networks
- AI clusters
- High-density data centers
Optical links are operating near physical limits.
Even minor issues such as:
- Dirty connectors
- Fiber bending
- Connector misalignment
Can cause measurable degradation.
DDM transforms network operations from reactive troubleshooting → predictive maintenance.
1. What is DDM/DOM/DMI in Optical Modules?
DDM is defined by the SFF-8472 standard, enabling transceivers to expose internal operating data.
DDM vs DOM vs DMI
While terminology varies by vendor:
- DDM (Digital Diagnostics Monitoring)
- DOM (Digital Optical Monitoring)
- DMI (Diagnostic Monitoring Interface)
They all refer to the same standardized capability.
What Parameters Does DDM Monitor?
| Parameter | Description |
| Temperature | Internal module temperature |
| Voltage | Supply voltage |
| Tx Power | Optical transmit output |
| Rx Power | Optical received signal |
| Bias Current | Laser drive current |
These parameters provide a complete picture of optical link health.
2. How DDM Works (Inside the Module)?
Inside a transceiver:
- Sensors monitor physical conditions
- Data is stored in onboard EEPROM
- Host devices retrieve data via I2C interface
I2C Interface & Memory Mapping (Deep Technical Insight)
The host system accesses DDM data via the I2C serial interface.
- A0h Address Space → Basic identification (vendor, part number)
- A2h Address Space → Real-time diagnostics (Tx/Rx power, temperature, etc.)
This structure is defined by SFF-8472 and ensures interoperability across vendors.
In NSComm deployments, modules are fully programmed to ensure accurate A2h data reporting across Huawei, Cisco, and other platforms.
Key DDM Parameters Explained
Temperature
- Normal: 0°C - 70°C
In 800G QSFP-DD modules:
- Power consumption: 14-18W
- Risk: Thermal throttling
DDM temperature monitoring is the first defense against performance degradation.
Voltage
- Typical: 3.3V
- Fluctuations may indicate hardware issues
Transmit Power (Tx)
- Indicates signal strength entering fiber
- Decreasing Tx → laser degradation
Receive Power (Rx)
- Most critical parameter
- Low Rx = most common failure cause
Bias Current
- Drives laser output
Engineer Insight: Increasing bias current + decreasing Tx power = laser aging
Lab Insight: The "Warning" vs "Alarm" Logic
In NSComm modules, DDM includes four thresholds:
- High Alarm
- High Warning
- Low Warning
- Low Alarm
Interpretation:
- Low Warning → Link still active, maintenance required
- Low Alarm → Imminent failure
This threshold-based monitoring enables proactive network maintenance.
How to Use DDM for Troubleshooting?
DDM converts troubleshooting into a data-driven process.
Low Rx Power
Causes:
- Dirty connectors
- Fiber attenuation
- Incorrect fiber type
High Temperature
Causes:
- Poor airflow
- High port density
No Signal
Check:
- Connector type
- Polarity
- Module compatibility
If connector issues are suspected, refer to LC vs SC vs MPO vs MTP connector guide
Optical Link Budget Equation
To ensure stable operation in high-speed networks:
DDM provides real-time values to validate this equation in live networks.
Real-World Deployment Scenarios
1. Enterprise Campus
- Monitor link health across buildings
- Detect degradation early
2. Data Centers (100G/400G)
- Track link stability in spine-leaf topology
3. AI & HPC Clusters (800G)
- Prevent downtime in critical workloads
In high-density environments, DDM is essential for reliability.
DDM vs Non-DDM Modules
| Feature | DDM Enabled | Non-DDM |
| Monitoring | Real-time | None |
| Troubleshooting | Data-driven | Manual |
| Failure Prediction | Yes | No |
In 2026, enterprise networks overwhelmingly rely on DDM-enabled modules.
Secure Your Optical Visibility with NSComm
Without visibility, network reliability is compromised.
As your Global Enterprise Network Infrastructure Partner, Network-Switch.com provides:
- DDM-enabled optical modules
- Full compatibility with Huawei, Cisco, and enterprise platforms
- Lab-tested diagnostics and performance
All NSComm optical modules:
- Fully support SFF-8472 DDM standard
- Provide accurate Tx/Rx monitoring
- Undergo lab validation before shipment
Contact us today to deploy reliable and monitorable optical networks.
Frequently asked questions (FAQs)
Do all modules support DDM?
Most modern modules do, but low-cost optics may not.
Can DDM predict failure?
Yes. Key indicators including:
- Rising temperature
- Increasing bias current
- Falling Tx power
Is DDM standardized?
Yes, defined by SFF-8472.
Why is Rx power low?
- Dirty connectors
- Fiber mismatch
- Excessive loss
Can I see DDM data using NSComm modules in Huawei or Cisco switches?
Yes. NSComm modules are programmed to ensure full compatibility with host systems.
The switch can fully access the A2h diagnostic memory space, providing the same DDM visibility as OEM optics.
