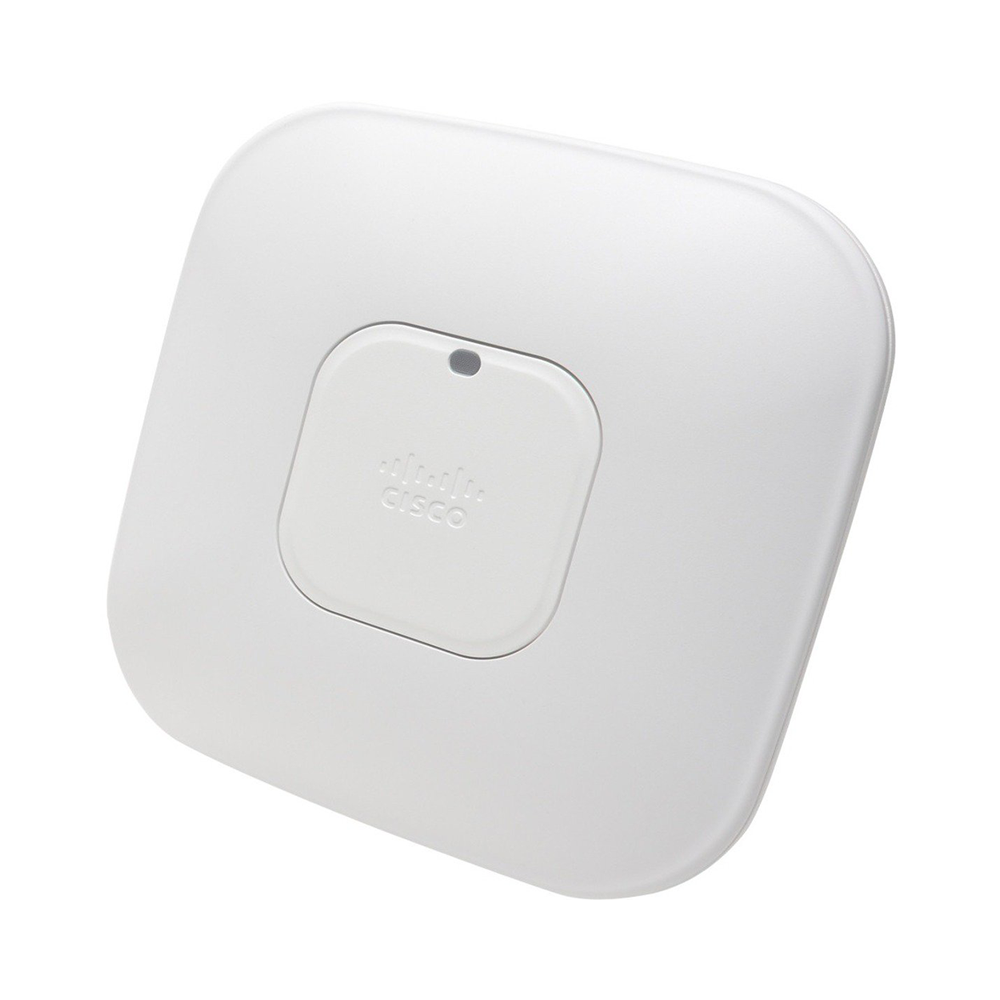

Aironet CAP3602I-X-K9 Access Point Overview
The AIR-CAP3602I-X-K9 is a high-performance Cisco Aironet 3600 Series Access Point, designed for enterprise-level wireless connectivity in environments like factories and large offices. This dual-band access point supports IEEE 802.11 a/b/g/n with internal antennas and optional regulatory domains. Featuring 4x4 MIMO technology with three spatial streams, it delivers speeds up to 1.3 Gbps with the IEEE 802.11ac module, ensuring reliable connectivity and seamless mobility. As part of the Cisco Unified Wireless Network, it supports voice, location services, guest access, and advanced security, with scalability of up to 18,000 access points. Cisco CleanAir technology and Cisco Clientlink 2.0 optimize performance. Shop Cisco Wireless APs, including the Cisco Aironet 3600 Access Points, for robust wireless solutions.
Specifications
Product Description |
Cisco Catalyst 3600 Series Access Points with external antennas | |
|
Devide Type |
Wireless Access point | |
| Supported wireless LAN controllers | ● Cisco 2500 Series Wireless Controllers ● Cisco Wireless Controller Module for ISR G2 ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches ● Cisco 5500 Series Wireless Controllers |
● Cisco Flex 7500 Series Wireless Controllers ● Cisco 8500 Series Wireless Controllers ● Cisco Virtual Wireless Controller ● Cisco 5760 Wireless LAN Controller ● Cisco Catalyst 3850 Series Switches ● Cisco Catalyst 3650 Series Switches |
| Software | Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 7.2 or later for the Cisco Aironet 3600 Series Access Point ● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point ● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point |
Cisco IOS XE Software Release: for the 3600 Series Access Point
support – (T arget 1HCY15) |
| Data rates supported | ● 802.11a: up to 54 Mbps ● 802.11g: up to 54 Mbps |
● 802.11n: up to 450 Mbps |
|
Maximum number of nonoverlapping channels |
5 GHz ● 802.11a: ◦ 20 MHz: 21 ● 802.11n: ◦ 20 MHz: 21 ◦ 40 MHz: 9 |
2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3 |
| Antenna (purchase separately) | ● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) |
● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios |
| Interfaces | ● 10/100/1000BASE-T autosensing (RJ-45) | ● Management console port (RJ-45) |
| System memory | ● 256 MB DRAM | ● 32 MB flash |
| Module options | ● Cisco Aironet Wireless Security Module ● Cisco Aironet IEEE 802.1ac Wave 1 Module |
● Cisco Universal Small Cell 5310 |
| Power consumption (purchase separately) | ● No external module installed, 4x4:3 on 2.4/5 GHz : 16.1 Watts | ● with wireless Security module, 4x4:3 on 2.4/5 GHz +WSM: 19.6 Watts |
| ● No external module installed, 3x3:3 on 2.4/5 GHz : 15.4 Watts | ● with wireless Security module, 2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts | |
| IEEE standards | ● IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d | ● IEEE 802.11ac (by module) |
| Security | ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ● 802.1X |
● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) |
|
Extensible Authentication Protocol (EAP) types |
● EAP-Transport Layer Security (TLS) Authentication Protocol Version 2 (MSCHAPv2)
|
● EAP-Flexible Authentication via Secure Tunneling (FAST) ● PEAP v1 or EAP-Generic Token Card (GTC) ● EAP-Subscriber Identity Module (SIM) |
|
Frequency band and 20-MHz operating channels |
A (A regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels C (C regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.825 GHz; 5 channels E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) I (I regulatory domain): ● 2.412 to 2.472 GHz, 13 channels ● 5.180 to 5.320 GHz; 8 channels K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz, 7 channels ● 5.745 to 5.805 GHz, 4 channels |
N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5,660 to 5,805 GHz, 7 channels S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.280 to 5.320 GHz; 3 channels ● 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels |
| Environmental | ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: -25˚C, 15,000 ft. ● Operating temperature: -4° to 131°F (-20° to 55°C) |
● Operating humidity: 10% to 90% percent (noncondensing) ● Operating altitude test: -40˚C, 9843 ft. |
