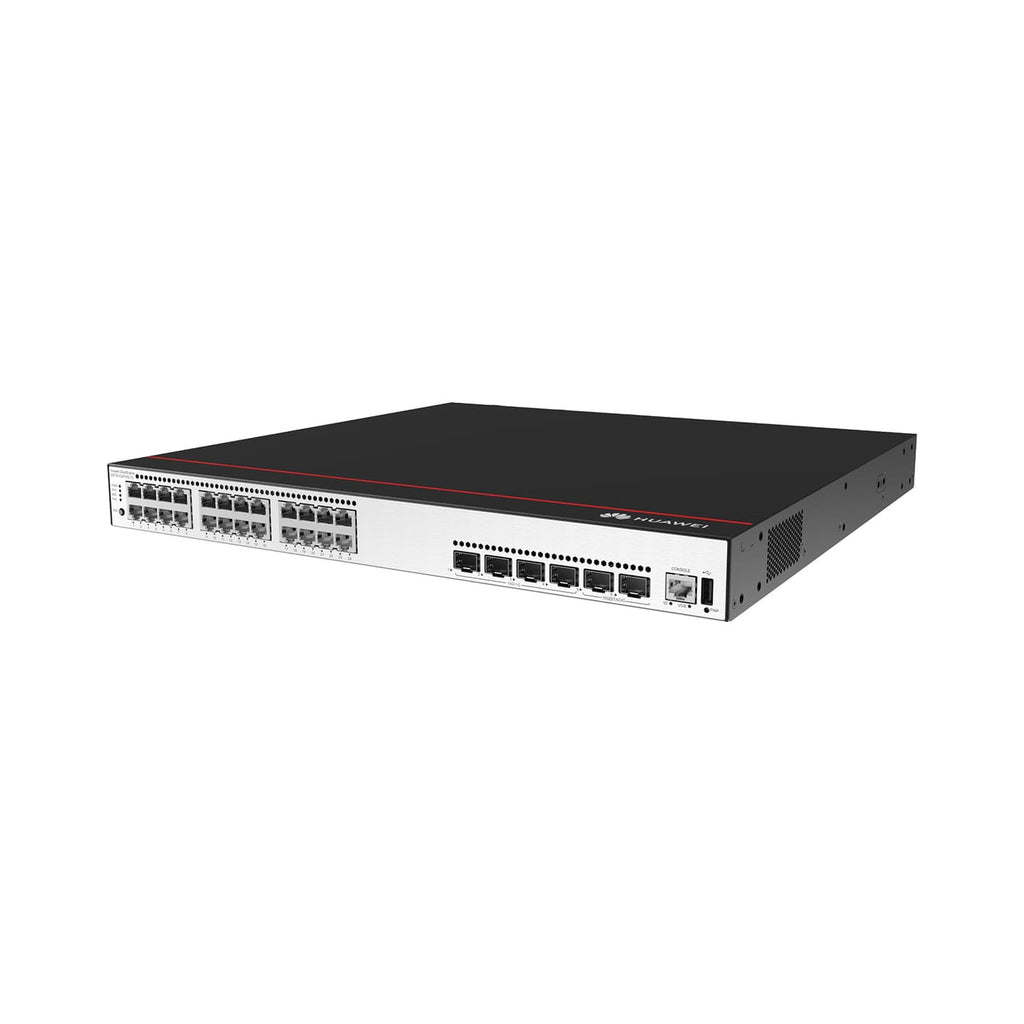

Huawei CloudEngine S5735-S24P4XE-V2 24-Port Gigabit PoE+ Campus Access Switch
Quick Buying Guide - Best for Campus access
-
Deployment fit: Campus access. Campus access, Campus aggregation, Metropolitan area network access.
-
Interfaces: 24 x 10/100/1000BASE-T, PoE+; 4 x 10GE SFP+.
-
Additional interface note: 2 x 12GE dedicated stack ports (not uplinks).
-
Software: S5735-S-V2 series supports feature-based and N1 licensing; N1 Foundation/Advanced functions depend on package (p. 18)..
-
PoE planning: The cited Huawei source specifies 840 W of available PoE power for its stated supply configuration; confirm the installed power supply before ordering.
Selection note from Certified Experts: Choose this configuration when campus access calls for 24 x 10/100/1000base-t, poe+ and 4 x 10ge sfp+; confirm software and power options against the final bill of materials.
Overview
The Huawei S5735-S24P4XE-V2 is designed for campus access. It provides 24 x 10/100/1000BASE-T, PoE+ with 4 x 10ge sfp+. Campus access, Campus aggregation, Metropolitan area network access.
Confirm transceivers, power configuration and software features against the intended topology before ordering.
Core Highlights
-
Data ports: 24 x 10/100/1000BASE-T, PoE+.
-
Uplinks: 4 x 10GE SFP+.
-
Additional interfaces: 2 x 12GE dedicated stack ports (not uplinks).
-
Switching capacity: 176 Gbps.
-
Forwarding rate: 132 Mpps.
-
PoE: The cited Huawei source specifies 840 W of available PoE power for its stated supply configuration; confirm the installed power supply before ordering.
PoE Budget Planning
For a Huawei S5735-S24P4XE-V2 deployment, multiply each powered device's datasheet maximum input by its quantity, then add a 25% planning reserve (not an IEEE requirement). The cited Huawei source specifies 840 W of available PoE power for its stated supply configuration; confirm the installed power supply before ordering Check the per-port power class and available powered-port count; a per-port maximum is not the same as the total switch budget. Calculate your project PoE budget before finalizing power supplies and endpoints. The result is a planning estimate, not a compatibility guarantee.
Use Cases & Deployment Scenarios
- Campus access
- Campus aggregation
- Metropolitan area network access
Recommended Accessories
Select accessories for the final media, uplink speed and power configuration.
| Accessory Category |
Selection Guidance |
| Transceivers and cabling |
Match optics and cabling to 4 x 10ge sfp+. |
| Power supply and PoE devices |
Check the installed power configuration and endpoint power class before allocating the PoE budget. |
| Configuration |
Confirm the required software entitlement for the planned features. |
Comparison with Similar Models
Compare interface media, PoE class and deployment fit. Software and power configurations are not drop-in replacements.
| Model |
Ports & Uplinks |
PoE |
Key Difference |
| Huawei S5735-L24P4XE-A-V2 |
24 x 1G RJ45, 4 x 10G SFP+; 2 stack ports |
PoE+ |
Same endpoint/uplink count in the L-V2 access tier; compare installed PSU and software features. |
| Cisco C9200L-24P-4X-E |
24 x 1G RJ45, 4 x 1/10G SFP+ |
PoE+ |
Comparable 24-port powered access; stacking and management are vendor-specific. |
| Huawei S5735-S24T4XE-V2 |
24 x 1G RJ45, 4 x 10G SFP+; 2 stack ports |
No |
Data-only S-V2 variant with identical network port counts. |
Detailed Specifications
| Parameter |
Specification |
| Model |
S5735-S24P4XE-V2 |
| Port configuration |
24 x 10/100/1000BASE-T, PoE+ |
| Uplinks |
4 x 10GE SFP+ |
| Additional interface or upgrade note |
2 x 12GE dedicated stack ports (not uplinks) |
| Switching capacity |
176 Gbps |
| Forwarding rate |
132 Mpps |
| PoE power |
The cited Huawei source specifies 840 W of available PoE power for its stated supply configuration; confirm the installed power supply before ordering |
| Software and licensing |
S5735-S-V2 series supports feature-based and N1 licensing; N1 Foundation/Advanced functions depend on package (p. 18). |
| Manufacturer source |
Huawei CloudEngine S5735-S-V2 Series Switches Datasheet, p. 1; Huawei CloudEngine S5735-S-V2 Series Switches Datasheet, p. 6; Huawei CloudEngine S5735-S-V2 Series Switches Datasheet, p. 21; Huawei CloudEngine S5735-S-V2 Series Switches Datasheet, p. 18 |
