Intro
PCI, PCI-X, and PCIe represent three generations of computer expansion interfaces. PCI and PCI-X use parallel shared-bus architectures that cannot scale beyond a few hundred megabytes per second and degrade sharply when multiple devices share the bus.
PCIe (PCI Express) replaces the entire bus design with a high-speed, point-to-point serial architecture that scales with lanes (x1/x4/x8/x16) and protocol generations (Gen1→Gen6).
PCIe supports modern workloads such as NVMe SSDs, GPUs, DPUs, SmartNICs, and 10G/25G/100G/200G NICs, while PCI and PCI-X are fully obsolete. PCIe Gen6 using PAM4 signaling achieves up to 64 GT/s per lane and 126 GB/s on a x16 link.
This engineering guide explains the architectural differences, signal integrity challenges, bandwidth evolution, lane topology, platform considerations, and why PCIe is the only viable interface for servers and data centers in 2026.
Why this Matters in 2026?
Modern workloads—AI training, 100G/200G Ethernet, NVMe flash storage, GPUs, accelerators, and DPUs—consume bandwidth at levels that PCI and PCI-X can never deliver. PCIe has evolved alongside these compute demands, now reaching PCIe Gen6 with PAM4 signaling and per-slot bandwidth exceeding 100 GB/s.
Key industry trends that make PCIe essential:
- AI and GPU clusters require x16 Gen5/6 links
- NVMe drives consume PCIe Gen4/Gen5 x4 lanes
- 100G/200G/400G NICs require Gen4/Gen5 x8
- DPUs/SmartNICs rely entirely on PCIe for high-throughput control planes
- Server CPUs provide 64–128 PCIe lanes directly from the CPU die
PCIe’s architecture - not just its speed, it is what enables the modern computing ecosystem.

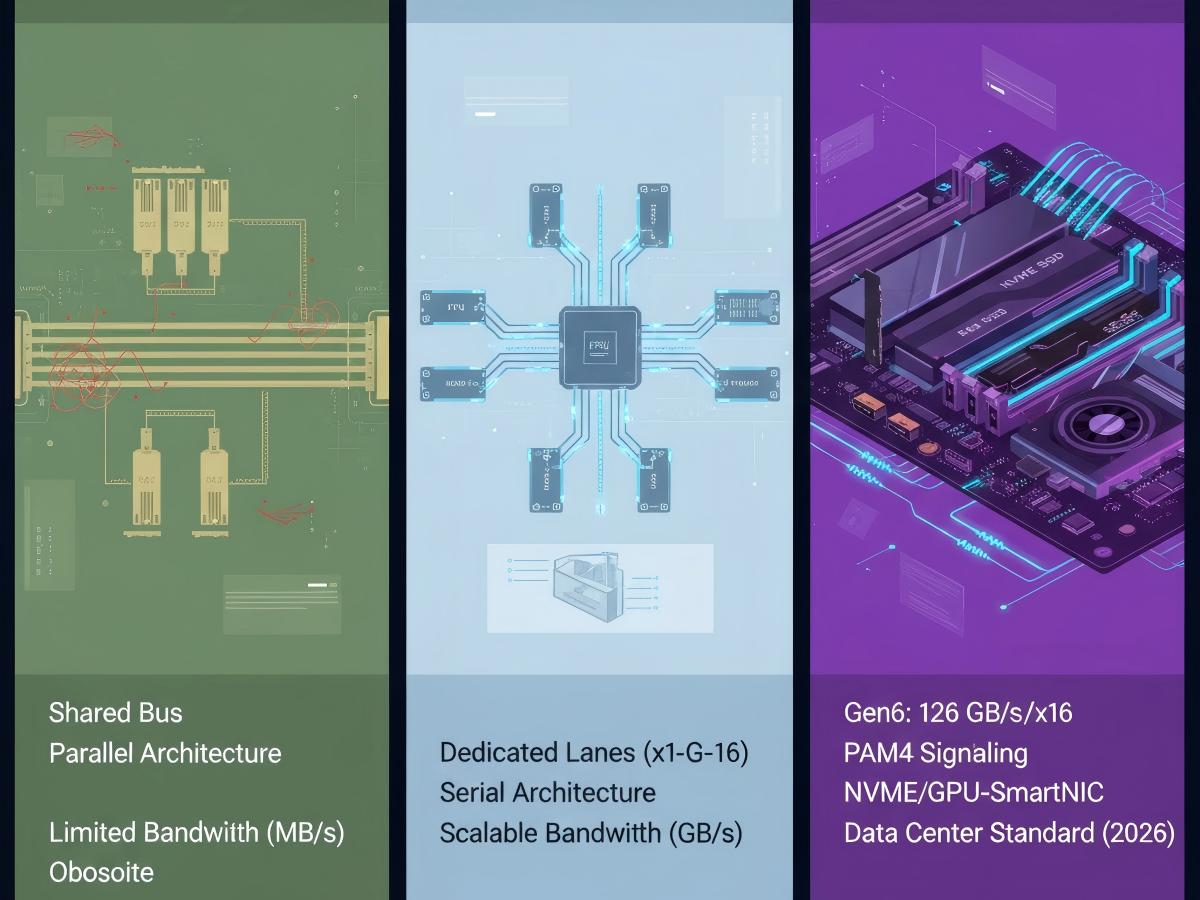

PCI vs PCI-X vs PCIe
The Evolution of PCI → PCI-X → PCIe
PCI (Peripheral Component Interconnect)
- Introduced in 1992
- Parallel, shared-bus architecture
- 32-bit or 64-bit
- 33/66 MHz
- Bandwidth: 133 MB/s to 533 MB/s
- Poor scalability
- Data contention across devices
- Extremely sensitive to timing skew
PCI dominated desktop and early server platforms but hit its electrical limits quickly.
PCI-X (PCI Extended)
- Introduced in 1998 for servers
- Still parallel, still shared bus
- 64-bit, up to 133 MHz (or 533 MHz for PCI-X 2.0)
- Bandwidth: 533 MB/s → 1.06 GB/s
- Used for SCSI RAID, early gigabit NICs, Fibre Channel HBAs
- Suffered the same fundamental limitations: Multi-device bus contention Trace-skew constraints Complexity of wide parallel routing
- Multi-device bus contention
- Trace-skew constraints
- Complexity of wide parallel routing
PCI-X offered more speed, but the architecture had reached a dead end.
PCI Express (PCIe): A Complete Architectural Breakaway
Released in 2004, PCIe abandoned parallel bus design entirely.
PCIe features:
- High-speed differential serial signaling
- Point-to-point topology
- Full-duplex lanes
- Scalable widths (x1/x2/x4/x8/x16/x32)
- Root Complex → Switch Fabric → Endpoints
- Link training & negotiation
- Error recovery & flow control
Because each device gets its own dedicated link, PCIe can scale infinitely better than PCI or PCI-X.
PCIe is not “PCI 3.0”—it is a fundamentally different technology.
Parallel Bus vs Serial Fabric: The Foundational Difference
PCI/PCI-X = Parallel Shared Bus
- All devices share a single bus
- Fixed bandwidth across devices
- Severe skew/timing challenges
- EMI and crosstalk grow exponentially with frequency
- Cannot scale to multi-gigabit signaling
- Adding devices reduces speed for all devices
PCIe = Serial Point-to-Point Fabric
- Each device has dedicated lanes
- No bus contention
- No parallel skew constraint
- Differential signaling provides noise immunity
- Higher per-lane data rates (2.5 GT/s → 64 GT/s)
- Devices negotiate lane count and speed dynamically
This architectural shift is why PCIe became the foundation for modern I/O.
PCI Express Architecture Explained
PCIe Topology
- Root Complex (RC): CPU or chipset
- Switches: Expand PCIe lanes to multiple devices
- Endpoints: NICs, SSDs, GPUs, DPUs, RAID HBAs
PCIe behaves much like a network fabric.
Lane Structure & Scaling
Lane widths:
- x1
- x2
- x4
- x8
- x16
- x32 (rare)
Lane count determines total bandwidth.
Lanes are bidirectional and independent.
CPU-Direct Lanes vs PCH Lanes
- CPU lanes = direct, full-speed
- PCH lanes = bottlenecked by DMI link
- NIC/SSD/GPU must be plugged into CPU-direct slots for full performance
Hot-Plug & SR-IOV
PCIe supports:
- Native hot-plug (on server backplanes)
- SR-IOV virtualization for NICs (25G/100G/200G)
- MSI-X for multi-queue performance
PCIe Generations: Gen1 to Gen6
Bandwidth Table
| PCIe Gen | Signaling Rate | Encoding | x1 Bandwidth | x16 Bandwidth |
| 1.0 | 2.5 GT/s | 8b/10b | 250 MB/s | 4 GB/s |
| 2.0 | 5.0 GT/s | 8b/10b | 500 MB/s | 8 GB/s |
| 3.0 | 8.0 GT/s | 128b/130b | ~985 MB/s | 15.75 GB/s |
| 4.0 | 16 GT/s | 128b/130b | ~1.97 GB/s | 31.5 GB/s |
| 5.0 | 32 GT/s | 128b/130b | ~3.94 GB/s | 63 GB/s |
| 6.0 | 64 GT/s | PAM4 + FEC | ~7.88 GB/s | 126 GB/s |
Why Encoding Matters
- PCIe 1.0–2.0 used 8b/10b, losing 20% efficiency
- PCIe 3.0+ uses 128b/130b, ~1.54% overhead
- PCIe 6.0 uses PAM4 modulation with FEC
- PAM4 doubles throughput by encoding multiple amplitude levels per symbol
PCIe Gen6 marks the largest jump since PCIe 3.0.
Physical Slot Differences (PCI vs PCI-X vs PCIe)
PCI
- 32-bit or 64-bit
- ~85–130 mm long
- Large slot footprint
- Not used in modern systems
PCI-X
- Only 64-bit
- Looks similar to long PCI slots
- Found only on early 2000s servers
PCIe
- Slot size depends on lane width (x1–x16)
- Compact x1 slots to full-length x16 GPU slots
- Backwards and forwards compatible
Bandwidth Comparison in Practice
PCI / PCI-X
- PCI: 133–533 MB/s
- PCI-X: up to 1.06 GB/s
- Multi-device contention reduces performance further
PCIe
- PCIe Gen5 x8 NIC: 31.5 GB/s
- PCIe Gen4 x4 NVMe: 7.8 GB/s
- PCIe Gen6 x16 GPU: 126 GB/s
PCI/PCI-X are slower by two orders of magnitude.
Why PCIe Completely Replaces PCI & PCI-X
Technical Superiority
- Independent, dedicated lanes
- No shared-bus bottlenecks
- Differential signaling ensures clean high-speed transfer
- Automatic link training
- Higher clock and throughput per lane
- Full duplex
Real-World Performance
- Adding more PCIe cards does not degrade other cards
- Supports 10G/25G/40G/100G/200G NICs
- Supports NVMe SSDs and RAID cards
- Supports GPUs and AI accelerators
- Supports DPUs / SmartNICs for virtualization offload
PCIe has become the backbone of all high-performance systems.
Economic & Industry Adoption
- Simplified motherboard routing
- Reduced layer count and trace complexity
- Universal adoption across all consumer & server CPUs
- All new hardware built around PCIe
PCI & PCI-X are now purely legacy.
Real Application Scenarios
1. Network Interface Cards (NICs)
- 10G NIC → PCIe Gen2/3 x4
- 25G NIC → PCIe Gen3 x4
- 100G NIC → PCIe Gen4 x8
- 200G NIC → PCIe Gen5 x8
- 400G NIC → PCIe Gen5 x16 or PCIe Gen6 x8
PCI/PCI-X cannot support any of these.
2. Storage: NVMe SSD & RAID/HBA
- NVMe SSD → PCIe Gen3/4/5 x4
- RAID/HBA → PCIe Gen3/4/5
- SAS controllers have mostly moved to PCIe
3. GPU / AI Accelerators
- GPUs require PCIe x16
- PCIe Gen4/Gen5 essential for AI model training
- PCIe is the underlying fabric even when NVLink is used for GPU-to-GPU communication
4. SmartNICs & DPUs
- NVIDIA BlueField
- Intel IPU
- AMD Pensando
All rely on PCIe for host communication.
PCIe Slot Selection Guide
1. Avoid Bottlenecks
- A 100G NIC in a PCIe Gen3 x4 slot will bottleneck severely
- Always match device lane requirements
2. Prefer CPU-Direct Slots
CPU lanes offer:
- Lower latency
- No DMI bottleneck
- Higher sustained throughput
Avoid PCH lanes for high-speed NICs or NVMe SSDs.
3. Lane Negotiation
- PCIe cards can operate in smaller lane widths
- Example: x8 card in x16 slot = runs as x8
- Example: x8 card in x4 slot = performance disaster
4. Multi-card Systems
- Understand CPU lane allocation
- Multi-socket servers provide separate PCIe root complexes
- NUMA awareness boosts NIC/GPU performance
5. Compatibility Matrix (PCI / PCI-X / PCIe)
| Card Type | PCI Slot | PCI-X Slot | PCIe Slot |
| PCI | ✔ | ✔ (downclock) | ✘ |
| PCI-X | ✘ | ✔ | ✘ |
| PCIe | ✘ | ✘ | ✔ |
FAQs
Q1: Can a PCIe Gen5 card run in a Gen3 slot?
A: Yes, but it will downshift to Gen3 bandwidth.
Q2: Can I use a PCIe x8 NIC in a x16 slot?
A: Yes. It will operate as x8.
Q3: Can PCI-X cards be used on modern motherboards?
A: No. PCI-X slots have been removed from all modern platforms.
Q4: Why is PCIe needed for 100G/200G NICs?
A: Because PCIe Gen4/5 x8 provides the bandwidth required for line-rate 100G/200G.
Q5: Why are GPUs x16?
A: AI/GPU compute workloads require extremely high I/O throughput.
Q6: Does PCIe lane bifurcation affect NIC performance?
A: Not if each NIC receives adequate lanes (x4/x8). If split too aggressively, performance drops.
Q7: Is PCIe Gen6 backward compatible?
A: Yes. It negotiates to Gen1–Gen5 speeds automatically.
Q8: Why use retimers for PCIe Gen5/6?
A: Signal integrity challenges at 32–64 GT/s require retiming for longer PCB traces.
Q9: Does PCIe affect network latency?
A: Yes, PCIe latency contributes to NIC DMA and queue operations. Higher gen and CPU-direct lanes reduce latency.
Q10: Is CXL replacing PCIe?
A: No. CXL uses the PCIe physical layer. PCIe remains the universal I/O attachment interface.
Conclusion
PCI and PCI-X belong to an era when parallel buses dominated system design. In 2026, their architectural limitations - shared bandwidth, skew, EMI, inflexible routing, and low scalability - render them obsolete.
PCIe, with its high-speed differential signaling, lane scalability, link training, and multi-generation backward compatibility, is now the universal standard for modern servers, workstations, and data center systems. It powers 100G/200G NICs, NVMe SSDs, DPUs, SmartNICs, GPUs, AI accelerators, and virtually every high-performance expansion card.
For modern networking and compute workloads, PCIe is not just the preferred interface—it is the only viable choice.
