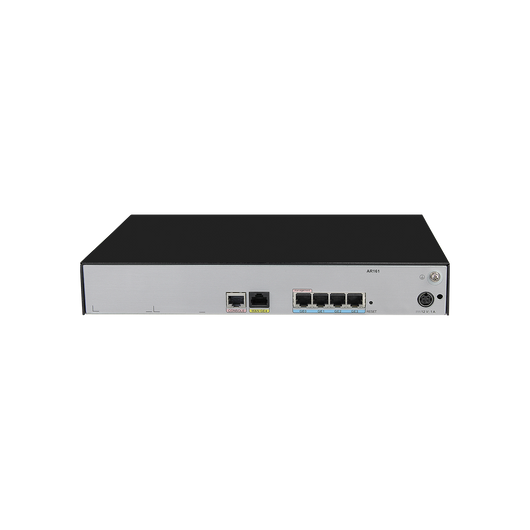

Huawei AR161-S Routers Overview
The Huawei AR161-S is a compact, high-performance enterprise router designed for small to medium-sized businesses and branch offices. As part of the AR160 series, it integrates routing, switching, security, and wireless capabilities into a single device, providing a comprehensive networking solution. With a fanless design, the AR161-S ensures silent operation, making it ideal for office environments.
Highlights
-
Integrated Networking Functions: Combines routing, switching, security, and wireless features to deliver a unified networking solution.
-
High Performance: Supports up to 150 Mbps WAN throughput with services enabled, ensuring efficient data processing.
-
Flexible Interface Configuration: Features 1 GE WAN port and 4 GE LAN ports, which can be configured as WAN interfaces to meet diverse networking requirements.
-
Comprehensive Security: Offers robust security features including firewall, ACL, AAA authentication, and VPN support to safeguard network integrity.
-
User-Friendly Management: Provides multiple management interfaces such as web-based GUI, CLI, and SNMP for easy configuration and monitoring.
Compare to Similar Items
| Model | Port Configuration | Max Throughput | Form Factor | Power Consumption | Software Support | Target Use | Redundancy |
| Huawei AR161-S | 1xGE WAN, 4xGE LAN | 150 Mbps | Fixed | 24W | Huawei VRP | SMBs, Branch Offices | No |
| Huawei AR169 | 1xVDSL2 WAN, 4xGE LAN | 150 Mbps | Fixed | 24W | Huawei VRP | SMBs, Branch Offices | No |
| Cisco ISR 4321 | 2xGE WAN, 2xGE LAN | 50 Mbps | Fixed | 60W | Cisco IOS XE | SMBs, Branch Offices | Yes |
| Juniper SRX300 | 6xGE Ports | 1 Gbps | Fixed | 30W | Junos OS | SMBs, Branch Offices | Yes |
Recommended Accessories
| Model | Description |
| SFP-GE-LX | 1000Base-LX SFP Transceiver Module |
| SFP-GE-SX | 1000Base-SX SFP Transceiver Module |
| CAB-CONSOLE-RJ45 | Console Cable for Configuration |
| LC-LC-OM3-3M | 3m LC-LC OM3 Multimode Fiber Patch Cable |
| LC-LC-OS2-5M | 5m LC-LC OS2 Singlemode Fiber Patch Cable |
Specifications
| Category | Specification |
| Model | AR161-S |
| Product Type | Enterprise Router |
| Fixed Interfaces | 1 x GE WAN, 4 x GE LAN (configurable) |
| USB Ports | 1 x USB 2.0 |
| Console Port | 1 x RJ45 |
| Memory | 512 MB RAM, 512 MB Flash |
| WAN Throughput | Up to 150 Mbps |
| VPN Support | IPSec, GRE, DSVPN, L2TP |
| Security Features | Firewall, ACL, AAA, RADIUS, PKI |
| Management Interfaces | Web GUI, CLI, SNMP, RMON, NTP |
| Power Supply | AC 100–240V, 50/60 Hz |
| Power Consumption | Maximum 24W |
| Dimensions (H x W x D) | 44.0 mm x 300.0 mm x 216.4 mm |
| Weight | Approximately 2.8 kg |
| Operating Temperature | 0°C to 45°C |
| Relative Humidity | 5% to 95% non-condensing |
| Software Compatibility | Huawei VRP |
| Form Factor | 1U Rack-Mountable |
