Quick Answer: What is Optical Link Budget?

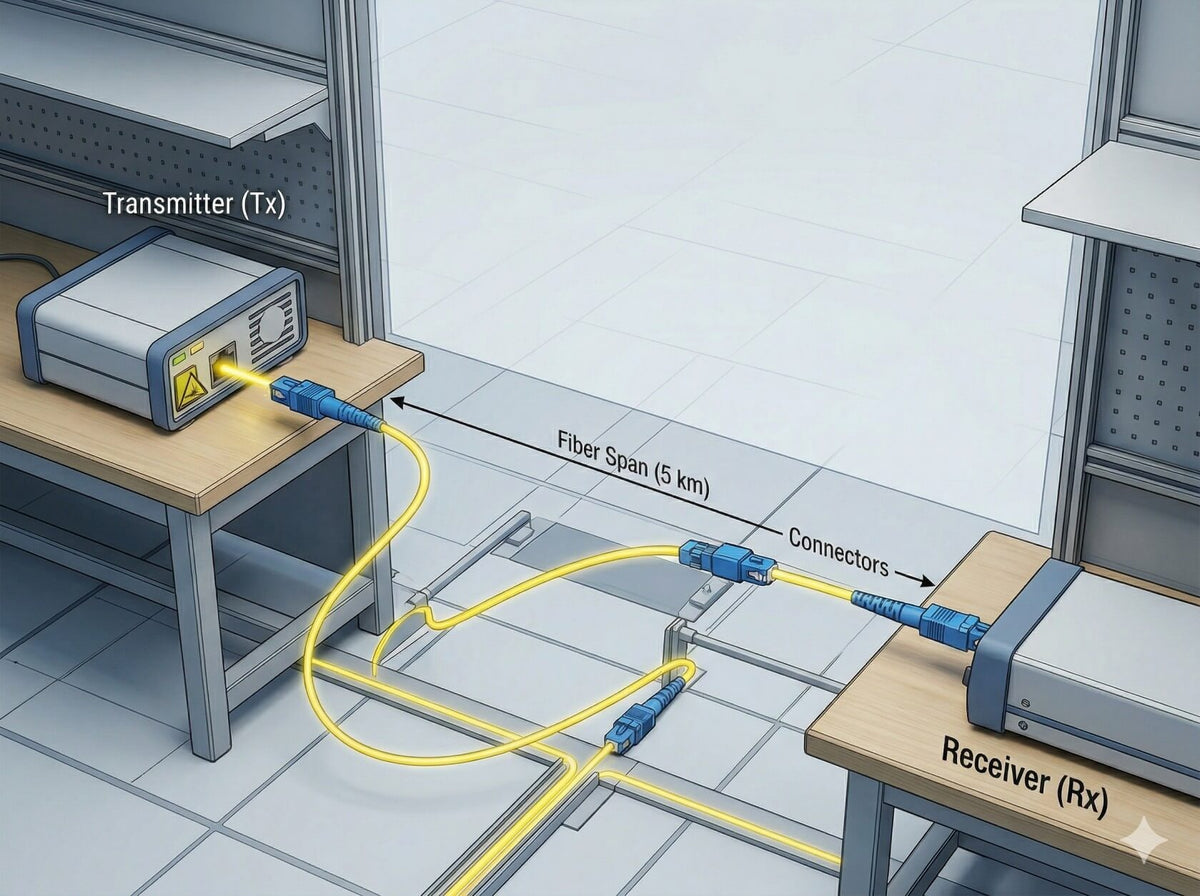

Optical Link Budget is the maximum allowable signal loss between a transmitter (Tx) and a receiver (Rx) in a fiber optic link. It ensures that the received signal is strong enough for the equipment to process data without errors. Calculated in decibels (dB), it is the difference between the module's output power and its receiver sensitivity, minus a safety margin.
Introduction
In modern enterprise networks, high-density data centers, and campus deployments, ensuring reliable fiber optic connectivity is critical. Engineers must account for signal loss, connector tolerances, and device specifications to guarantee error-free transmission.
This guide explains optical link budget in depth, provides practical calculation methods, and demonstrates real-world deployment scenarios with NSComm modules, enabling engineers to design reliable networks with confidence.
Core Components of an Optical Link Budget
An optical link budget is determined by several critical components:
-
Transmitter Power (Tx) - The output optical power of the transceiver, typically in dBm.
Example: An NSComm SFP28 module typically provides a Tx of 0 dBm. -
Receiver Sensitivity (Rx) - The minimum power required at the receiver to maintain an acceptable Bit Error Rate (BER).
Example: Rx = -5 dBm (You can monitor this real-time via DDM/DOM diagnostics). -
Fiber Attenuation - Loss per kilometer, dependent on fiber type (single-mode vs multi-mode) and wavelength.
Example: Single-mode OS2 at 1310 nm: 0.35 dB/km (Single Mode vs Multi Mode fiber differences). -
Connector & Splice Losses - Each connector (~0.2-0.5 dB) and splice (~0.1 dB) contributes to total loss.
Example: LC connector: 0.25 dB loss (LC vs MPO connector performance guide). - System Margin (Safety) - Extra allowance for aging, temperature variations, bending, and installation errors (recommended 3-5 dB).
Reference Matrix: Standard vs NSComm Premium Components
| Component | Standard Loss (Average) | Premium (NSComm Grade) |
| OS2 Fiber (1310nm) | 0.4 dB / km | 0.35 dB / km |
| OM4 Fiber (850nm) | 3.5 dB / km | 3.0 dB / km |
| LC/MPO Connector | 0.5-0.75 dB | <0.25 dB |
| Fusion Splice | 0.1 dB | 0.05 dB |
How to Calculate Fiber Link Loss (Step-by-Step)
Optical Link Budget Formula
The Master Equation for Optical Link Budget:
Example Calculation
- Transmitter (Tx): 0 dBm
- Receiver Sensitivity (Rx): -5 dBm
- Fiber: 10 km × 0.35 dB/km = 3.5 dB
- Connectors: 2 × 0.3 dB = 0.6 dB
- System Margin: 3 dB
Solution: Increase Tx power, use lower-loss fiber, or reduce link distance.
2026 Design Scenarios: From Campus to 800G Data Centers
Case Study 1: Campus Network 10G Uplink
- Scenario: 1 km single-mode fiber connecting two buildings using NSComm SFP+ modules.
- Tx/Rx Specs: Tx = 0 dBm, Rx = -6 dBm
- Fiber loss: 0.35 dB
- Connectors: 2 × 0.3 dB = 0.6 dB
- System Margin: 3 dB
- Result: Remaining margin = 1.4 dB → Safe Link
Case Study 2: 100G Spine in Data Center
- Scenario: 2 km single-mode fiber, QSFP28 DR4 modules.
- Tx/Rx Specs: Tx = 6.5 dB, Rx = -3 dB
- Fiber loss: 2 × 0.35 = 0.7 dB
- Connectors: 4 × 0.3 = 1.2 dB
- Splices: 2 × 0.1 = 0.2 dB
- System Margin: 3 dB
- Result: Margin sufficient → Supports 100G connectivity
Case Study 3: Future 800G Leaf-Spine
- Scenario: NSComm QSFP-DD 400G/800G modules
- Fiber Attenuation & Connectors: Recalculated for distance and high-speed link
- System Margin: ≥3 dB required
- Result: Ensures error-free transmission for ultra-high-speed backbone
Common Mistakes & Troubleshooting
- Ignoring connector and splice losses
- Overestimating module power
- Mixing fiber types improperly
- Neglecting temperature effects
- Skipping post-deployment verification
Troubleshooting Tips:
- Measure end-to-end power with an optical power meter
- Clean connectors before testing
- Use attenuators for short links with high-power modules
Best Practice Recommendations
- Always calculate link budget before installation
- Use NSComm certified modules for consistent Tx/Rx performance
- Reserve 3-5 dB system margin
- Perform post-deployment validation
- Maintain a documented link budget matrix for all critical connections
H2: FAQs (Structured for AI & JSON-LD)
Frequently asked questions (FAQs)
What is a safe system margin for fiber links?
3-5 dB, accounting for aging, repairs, and connector contamination.
Does temperature affect my optical link budget?
Yes, extreme heat/cold causes laser drift, reducing Tx power and increasing attenuation.
Can I have too much power in a link budget?
Yes, excessive power may saturate or damage the receiver; use an attenuator in short links.
How often should I re-evaluate my link budget?
After any infrastructure changes, fiber repairs, or module replacements. Regular audits are recommended annually.
Do multi-mode and single-mode fibers require different calculations?
Yes, attenuation per km differs, and connectors/splice losses vary. Always apply fiber-specific loss factors in your calculations.
Conclusion with Engineer Insight
Engineer Insight: "Accurate link budget calculations prevent costly downtime and errors. NSComm modules provide consistent Tx/Rx specifications, validated in multi-vendor deployments, making design predictable and reliable." - Senior Network Engineer, NSComm Technical Team
Mastering optical link budgets ensures:
- Reliable connectivity for 100G-800G networks
- Optimized fiber deployment costs
- Simplified troubleshooting and maintenance
Contact us today for a free consultation and a customized hardware quote tailored to your 2026 enterprise needs.
